Categories

Solenoids

24 V

12 V

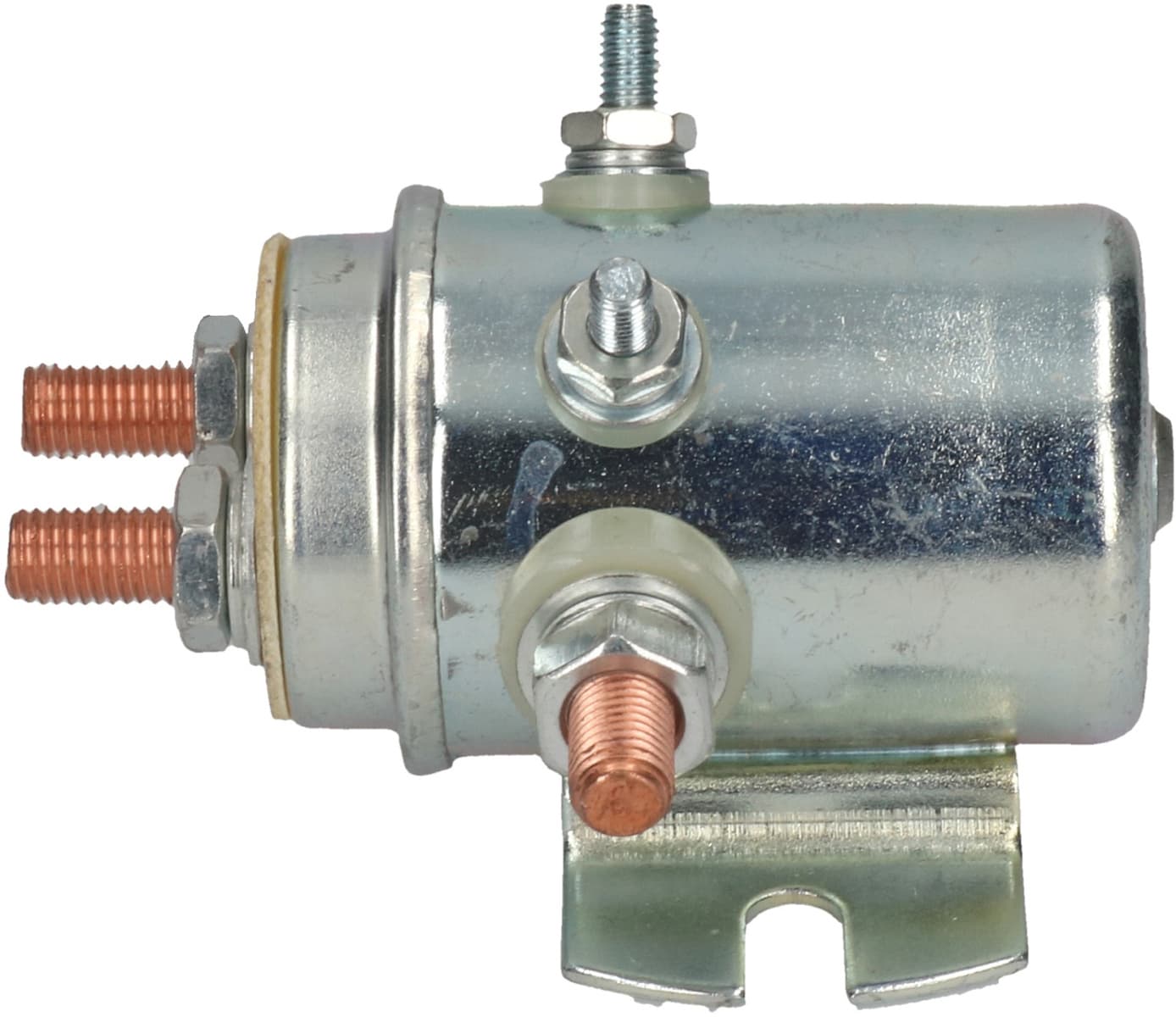

F032130493 - Solenoid Switch

F032130493 - Solenoid SwitchTrade number 130493

Intermittent load 150 Amp, Voltage 12, No./mount. holes 2, No./terminals 4, Outer Diameter 42.30, Amount of Mounting Holes 2, Remarks N.O. Terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 62.50

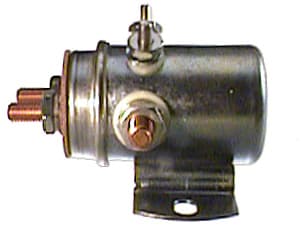

F032131371 - Solenoid Switch

F032131371 - Solenoid SwitchTrade number 131371

Intermittent load 500 Amp., Seconds 5, Voltage 24, Amp 80, No./mount. holes 2, No./terminals 4, Outer Diameter 51.70, Amount of Mounting Holes 2, Remarks Silver contact. Insulated return. N.O. terminals: M8. Coil Terminals: 6.30 mm., Total Length 99.50

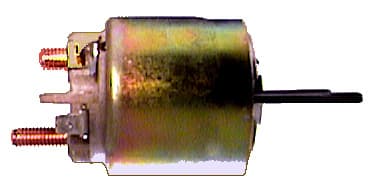

F032131790 - Solenoid Switch

F032131790 - Solenoid SwitchTrade number 131790

Voltage 12, No./mount. holes 2, No./terminals 4, Terminal 50/mm 6.30, Coil Bolt Length 13.50, Terminal 15A/mm 6.30, Eye Outer Diameter 10.50, Plunger Outer Diameter 20.75, Eye Inner Diameter 4.60, B+ M8, Terminal 15a Spade, Terminal 50 Spade, B+ Height 17.00, Coil Bolt Diameter M8, Outer Diameter 50.20, Remarks Cap: HC-CARGO 130479., Amount of Mounting Holes 2, Total Length 109.00
F032131800 - Solenoid Switch

F032131800 - Solenoid SwitchTrade number 131800

Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 15.00, Plunger Inner Diameter 10.30, Eye Outer Diameter 13.10, Plunger Outer Diameter 21.80, Eye Inner Diameter 4.80, B+ M8, Terminal 50 Spade, B+ Height 16.50, Coil Bolt Diameter M8, Outer Diameter 52.30, Remarks Cap: HC-CARGO 133269. Moving contact: HC-CARGO 133270., Length 52.35, Amount of Mounting Holes 2, Total Length 93.00
F032133047 - Solenoid Switch

F032133047 - Solenoid SwitchTrade number 133047

Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm M4, Coil Bolt Length 15.50, Plunger Inner Diameter 10.30, Eye Outer Diameter 13.00, Plunger Outer Diameter 21.75, Eye Inner Diameter 4.80, B+ M8, Terminal 50 Screw, B+ Height 16.50, Coil Bolt Diameter M8, Outer Diameter 52.30, Remarks Cap: HC-CARGO 133276., Length 52.20, Amount of Mounting Holes 2, Total Length 93.00

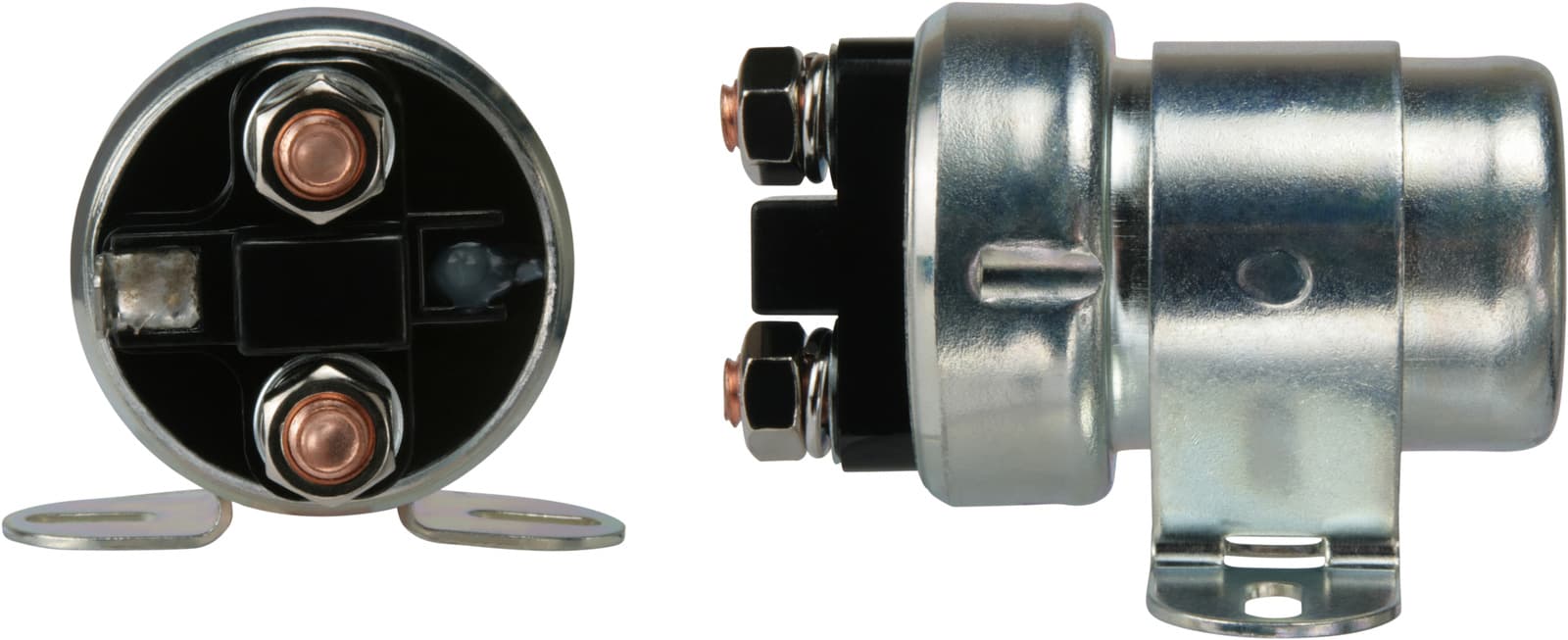

F032133855 - Solenoid Switch

F032133855 - Solenoid SwitchTrade number 133855

Intermittent load 800 Amp, Voltage 12, Amp 100, No./mount. holes 2, No./terminals 3, Outer Diameter 48.50, Amount of Mounting Holes 2, Remarks 3.95-4.15 coil resistance. N.O. Terminals: 5/16" UNC. Coil Terminal: 10-32 UNF., Total Length 55.50
F032133857 - Solenoid Switch

F032133857 - Solenoid SwitchTrade number 133857

Intermittent load 800 Amp, Voltage 12, Amp 100, No./mount. holes 2, No./terminals 4, Outer Diameter 48.20, Amount of Mounting Holes 2, Remarks 3.95-4.15 coil resistance. N.O. Terminals: 5/16" UNC. Coil Terminals: 10-32 UNF., Total Length 55.50
F032137300 - Solenoid Switch

F032137300 - Solenoid SwitchTrade number 137300

Voltage 12, No./mount. holes 2, No./terminals 4, Terminal 50/mm M5, Coil Bolt Length 10.50, B+ M8, Terminal 50 Bolt, B+ Height 15.00, Coil Bolt Diameter M8, Outer Diameter 53.80, Remarks Insulated return. Cap: HC-CARGO 232010., Amount of Mounting Holes 2, Total Length 77.00
F032137766 - Solenoid Switch

F032137766 - Solenoid SwitchTrade number 137766

Intermittent load 600 Amp., Seconds 5, Voltage 24, Amp 100, No./mount. holes 2, Source Prestolite, Outer Diameter 41.00, Amount of Mounting Holes 2, Remarks Terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 89.50
F032138068 - Solenoid Switch

F032138068 - Solenoid SwitchTrade number 138068

Intermittent load 900 Amp, Seconds 5, Voltage 12, Amp 200, No./mount. holes 2, Outer Diameter 42.00, Amount of Mounting Holes 2, Remarks Silver contact. N.O. terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 89.50
