Alternator Parts

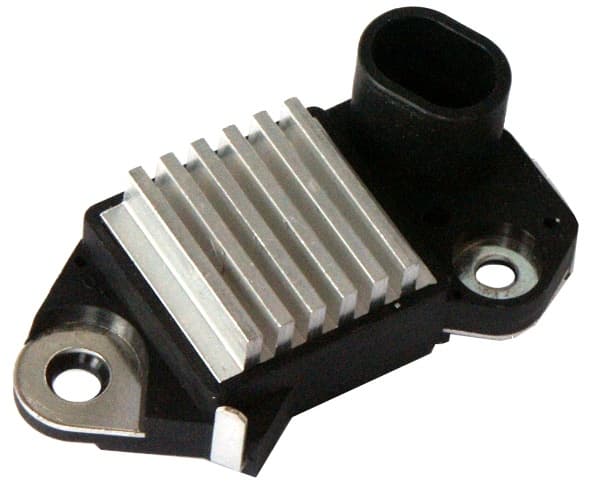

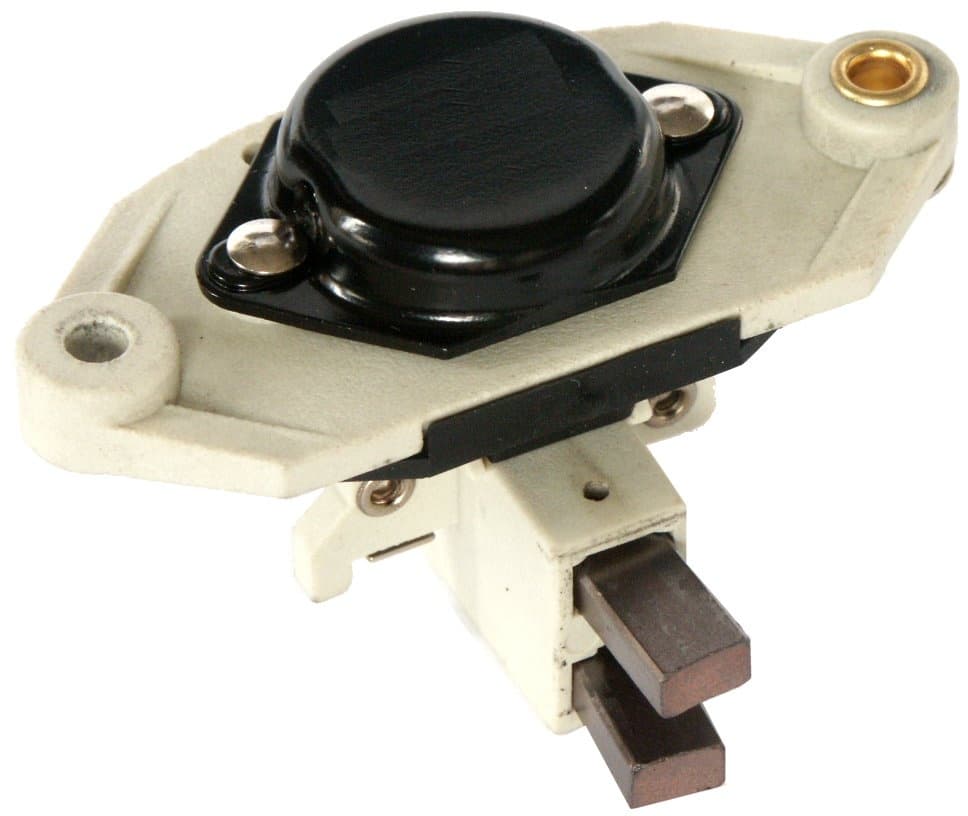

F032131300 - EL Field RegulatorTrade number 131300
Voltage setting 28.3,Voltage 28,Regulator type Electronic,Distance Between Mounting Holes 39.00

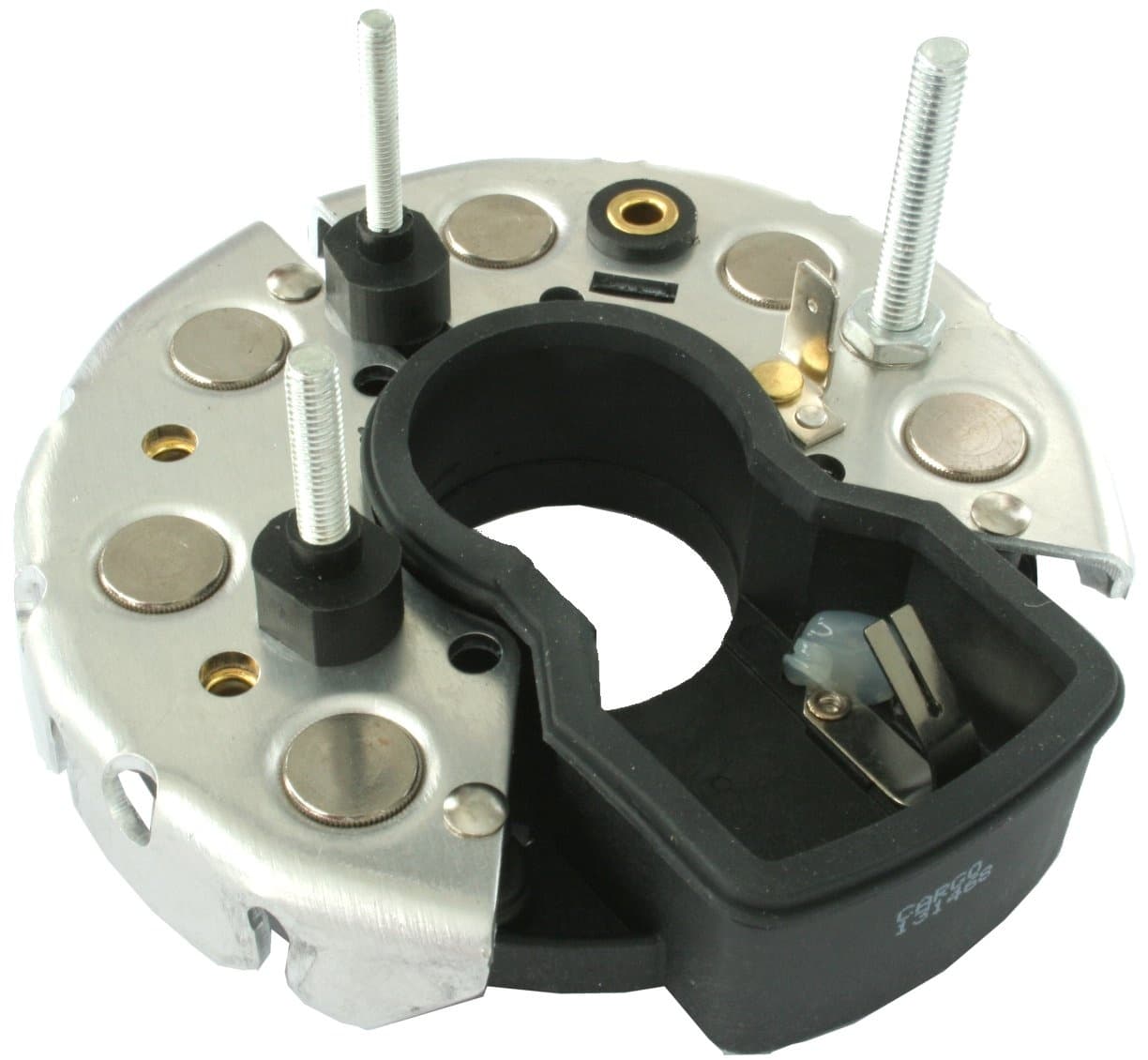

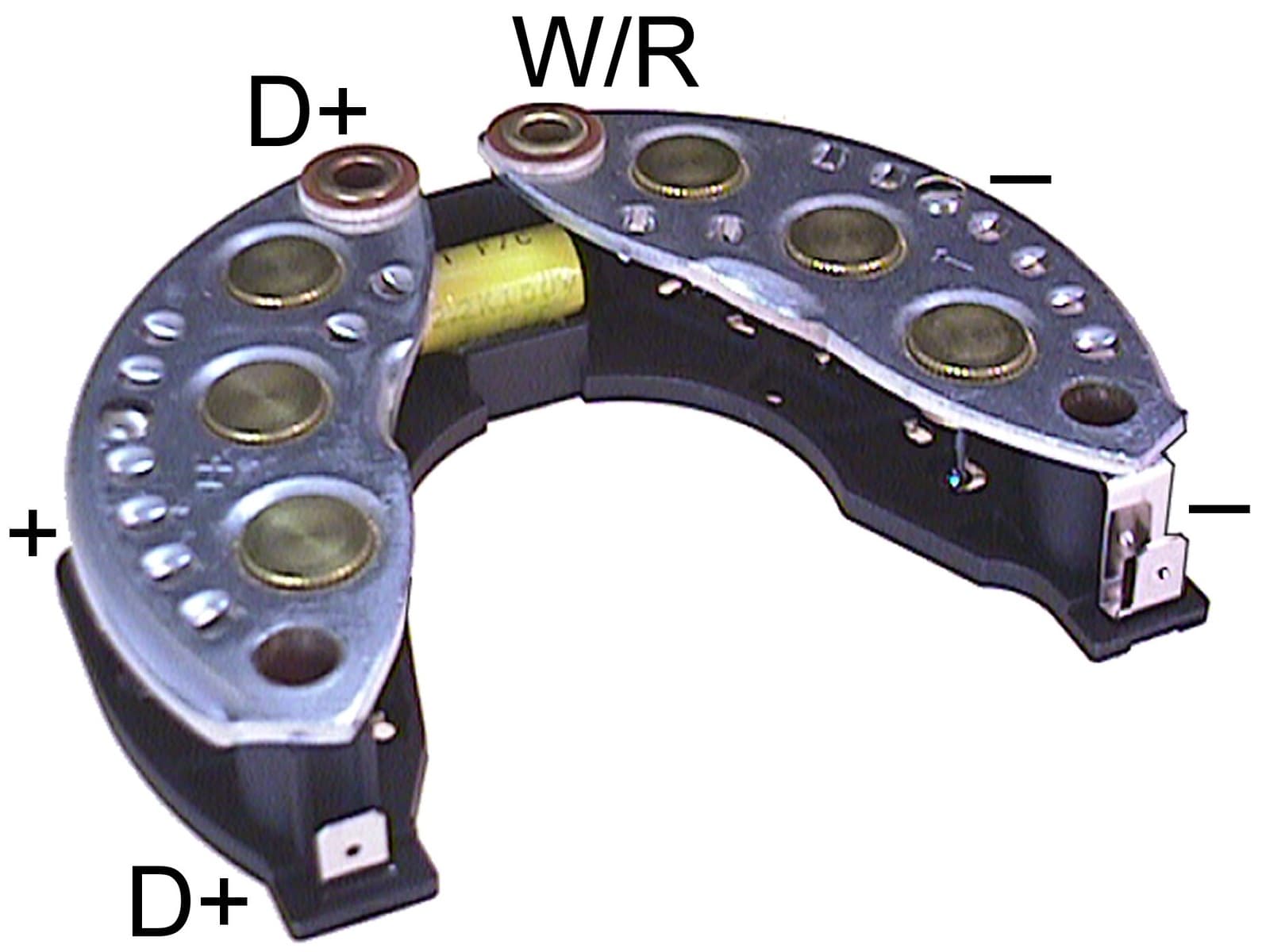

F032131468 - RectifierTrade number 131468
Diode A 35,Voltage 28,Connections for stator 3,Diode - 3,B+ type Bolt,W type Bolt,D+ Size M4,Inner Diameter 35.50,B+ size M6,B+ Length 34.00,D+ type Bolt,W Size M5,Diode + 3,Outer Diameter 114.00,D+ Length 25.00,Mounting Distance 20.00

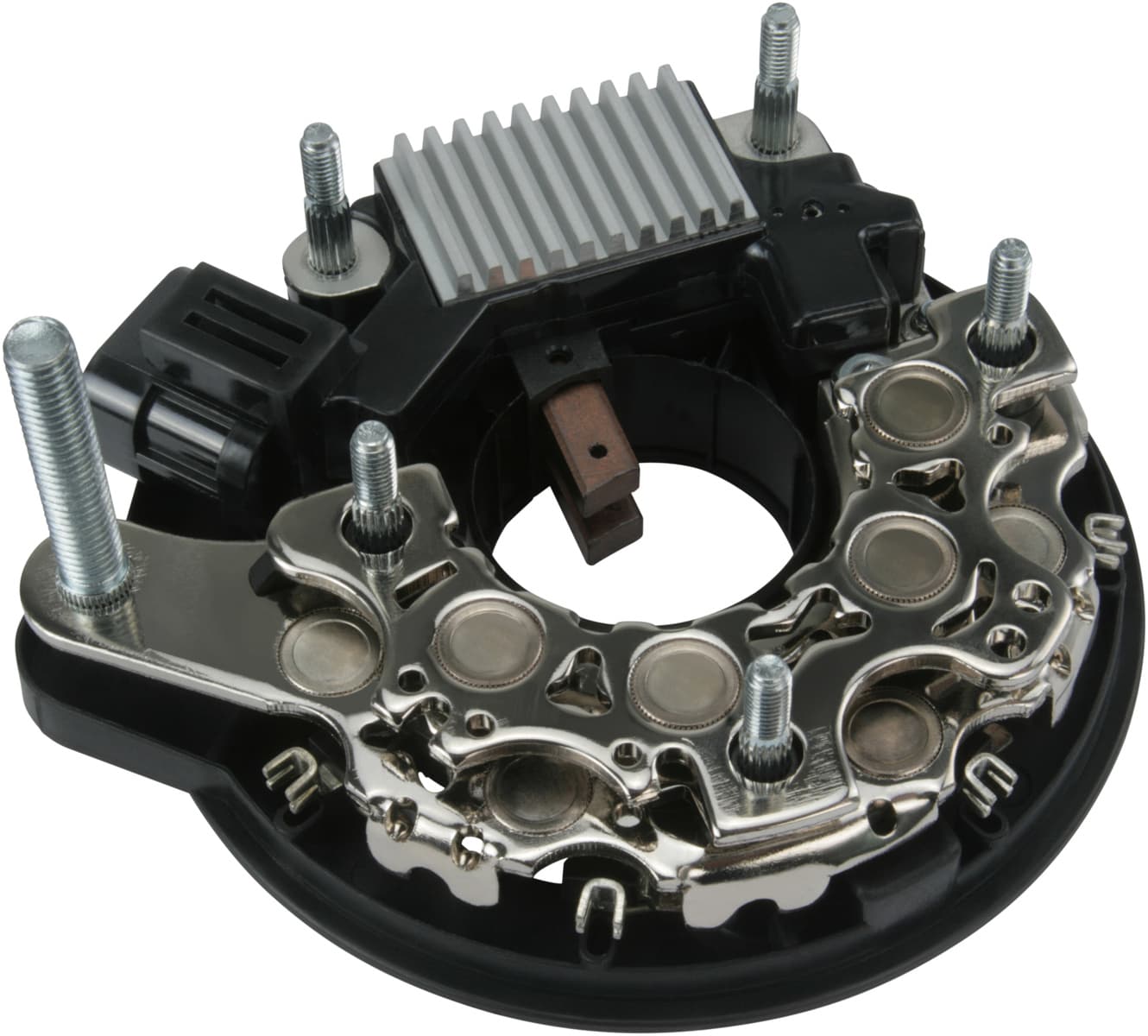

F032131701 - RectifierTrade number 131701
Diode A 35,Diode type HD,Connections for stator 3,Capacitor w/,Diode Trio w/,Inner Diameter 39.50,Control diodes w/,Outer Diameter 115.00

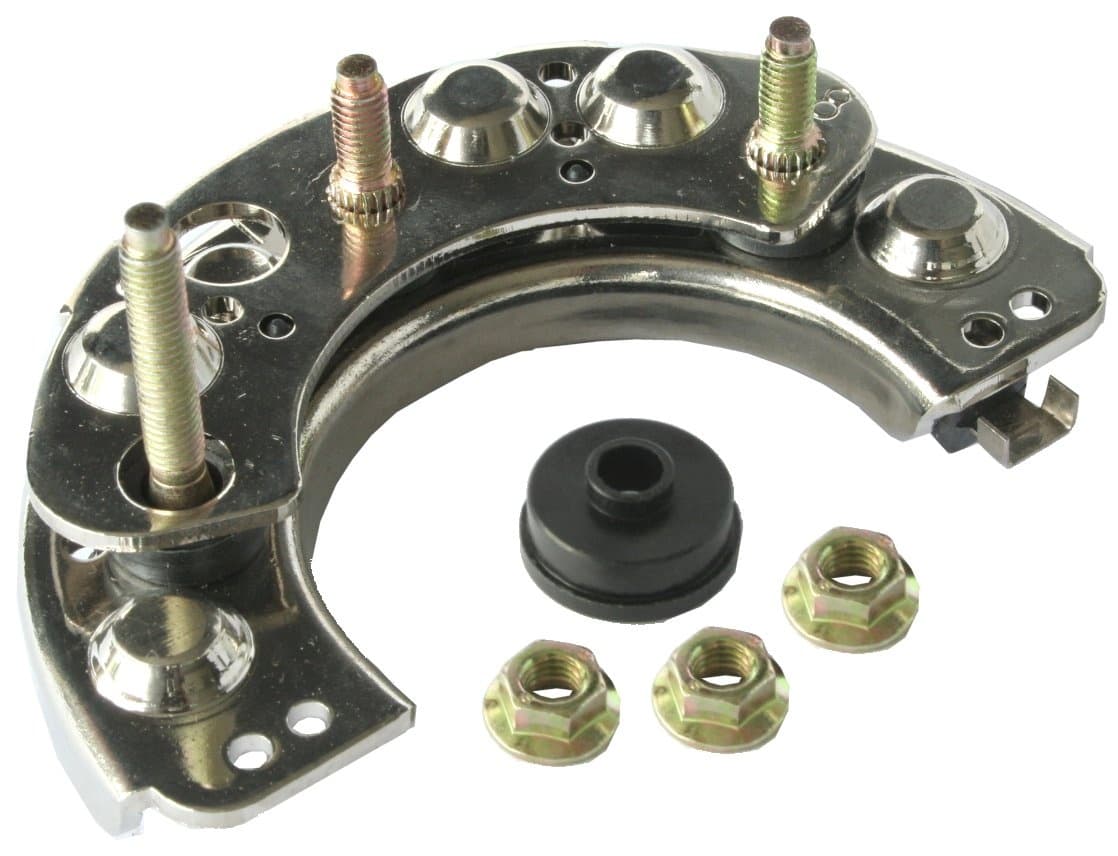

F032132406 - RectifierTrade number 132406
Diode A 35,Connections for stator 3,B+ type Bolt,Diode Trio w/,Inner Diameter 52.50,B+ size M5,Control diodes w/,B+ Length 27.00,Outer Diameter 100.00,Remarks Copper heat sinks.

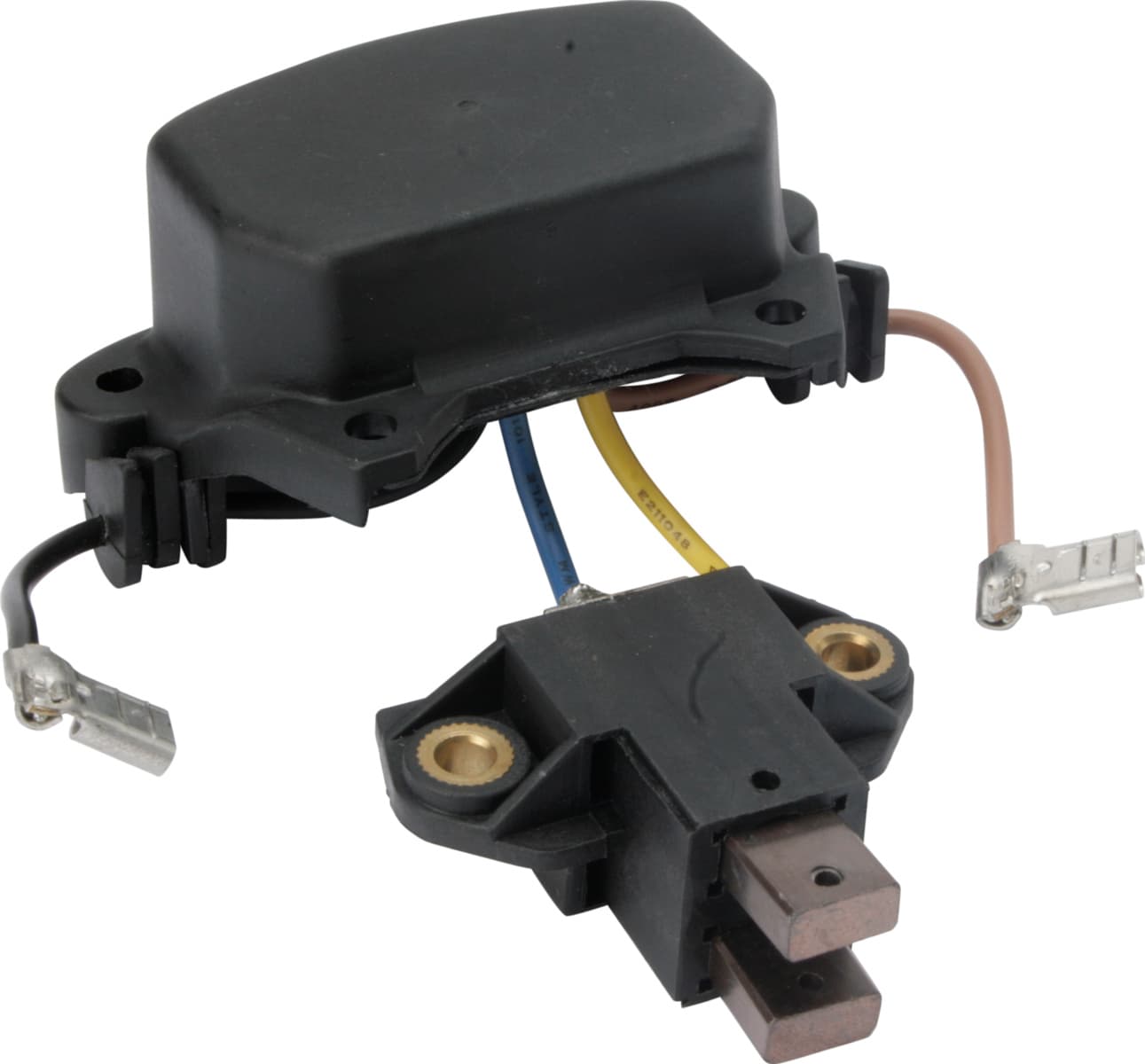

F032132429 - EL Field RegulatorTrade number 132429
Voltage setting 14.5,Voltage 14,Plug no. 1 PL09,Capacitor w/,Terminal type R-L,Regulator type Electronic,Remarks Repair circuit: HC-CARGO 132434.,Distance Between Mounting Holes 50.50

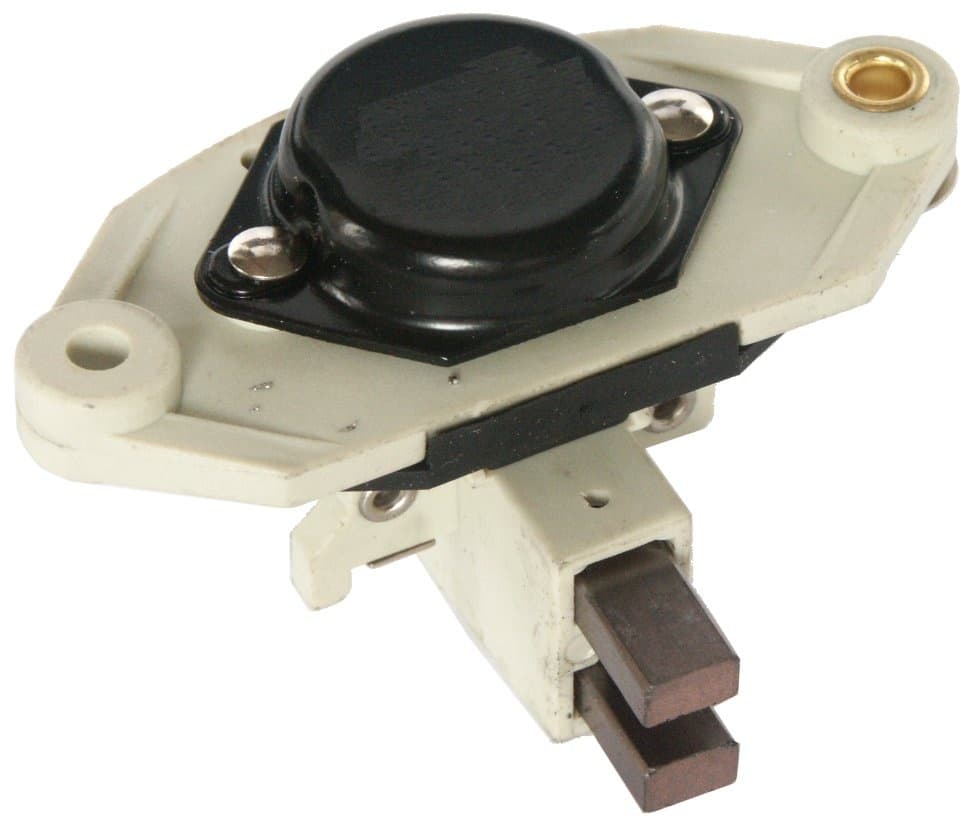

F032132903 - EL Field RegulatorTrade number 132903
Voltage setting 28,Voltage 28,Regulator type Electronic,Remarks Slip ring O.D. 28.00 mm.,Distance Between Mounting Holes 64.00
F032135856 - EL Field RegulatorTrade number 135856
Voltage setting 28.5,Voltage 28,Regulator type Electronic,Remarks Slip ring O.D. 28.00 mm,Distance Between Mounting Holes 65.00

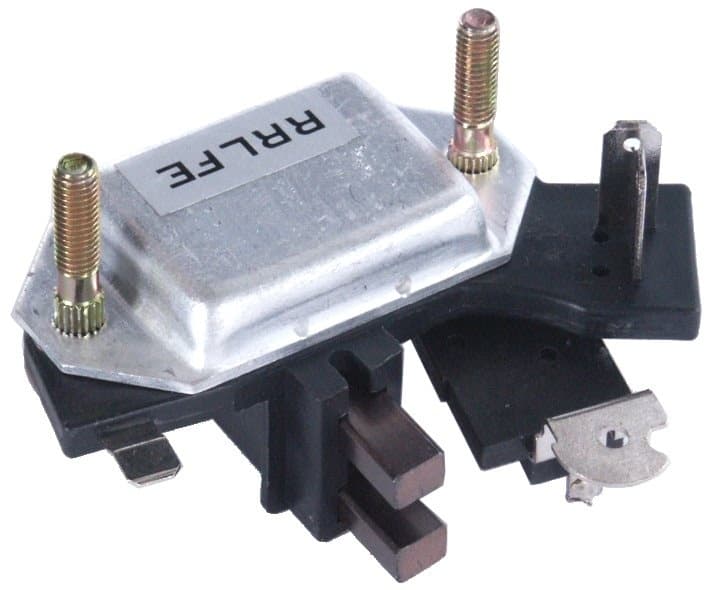

F032233975 - EL Field RegulatorTrade number 233975
Voltage setting 14.1,Voltage 14,Terminal type S-L,Regulator type Electronic,Distance Between Mounting Holes 45.00
F032335160 - Repair KitTrade number 335160
Diode type Press-fit,Connections for stator 4,Diode - 4,B+ type Bolt,Inner Diameter 37.80,B+ size M8,B+ Length 37.00,Brush gear w/,Diode + 4,No. of diodes 8,Diode socket Aluminium,Outer Diameter 120.40
