Starter Components

Briggs & Stratton

Universal Parts

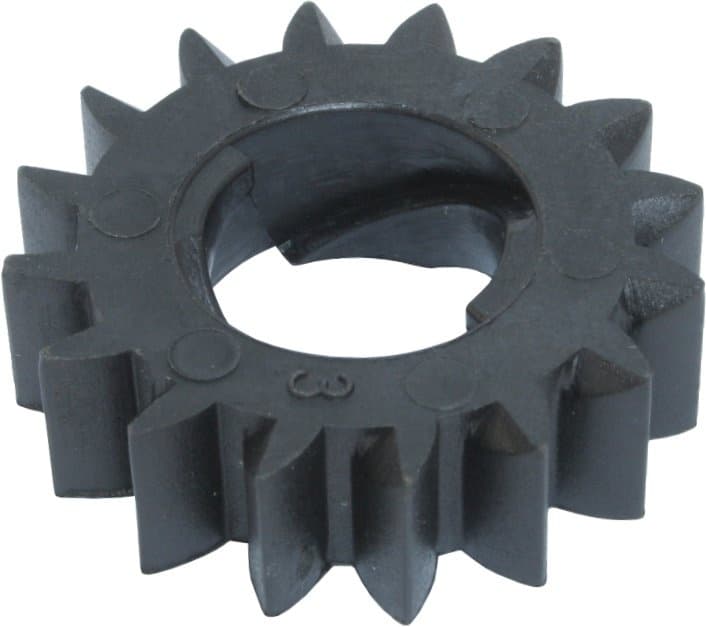

F032139395 - Starting-Motor PinionTrade number 139395

Bearing w/o, No./splines 2, Teeth Depth 5.20, Bushing w/o, Inner Diameter 20.50, Teeth Height 11.55, Outer Diameter 41.00, Height 11.55, No./teeth 16

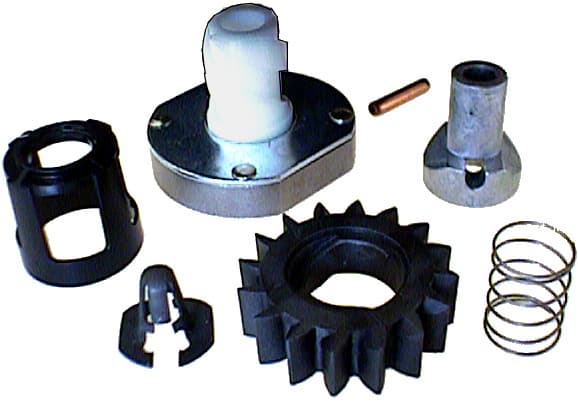

F032139418 - Starting-Motor PinionTrade number 139418

Splines internal 2, Outer Diameter 41.00, Remarks Gear: HC-CARGO 139395., No./teeth 16

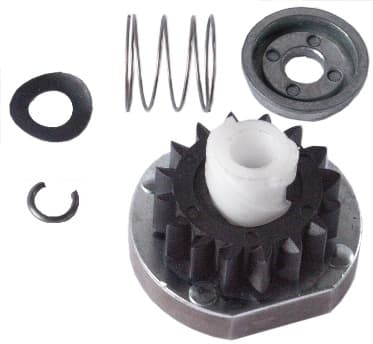

F032230400 - Starting-Motor PinionTrade number 230400

Outer Diameter 41.00, Remarks w/ snap ring., Total Length 11.50, No./teeth 16

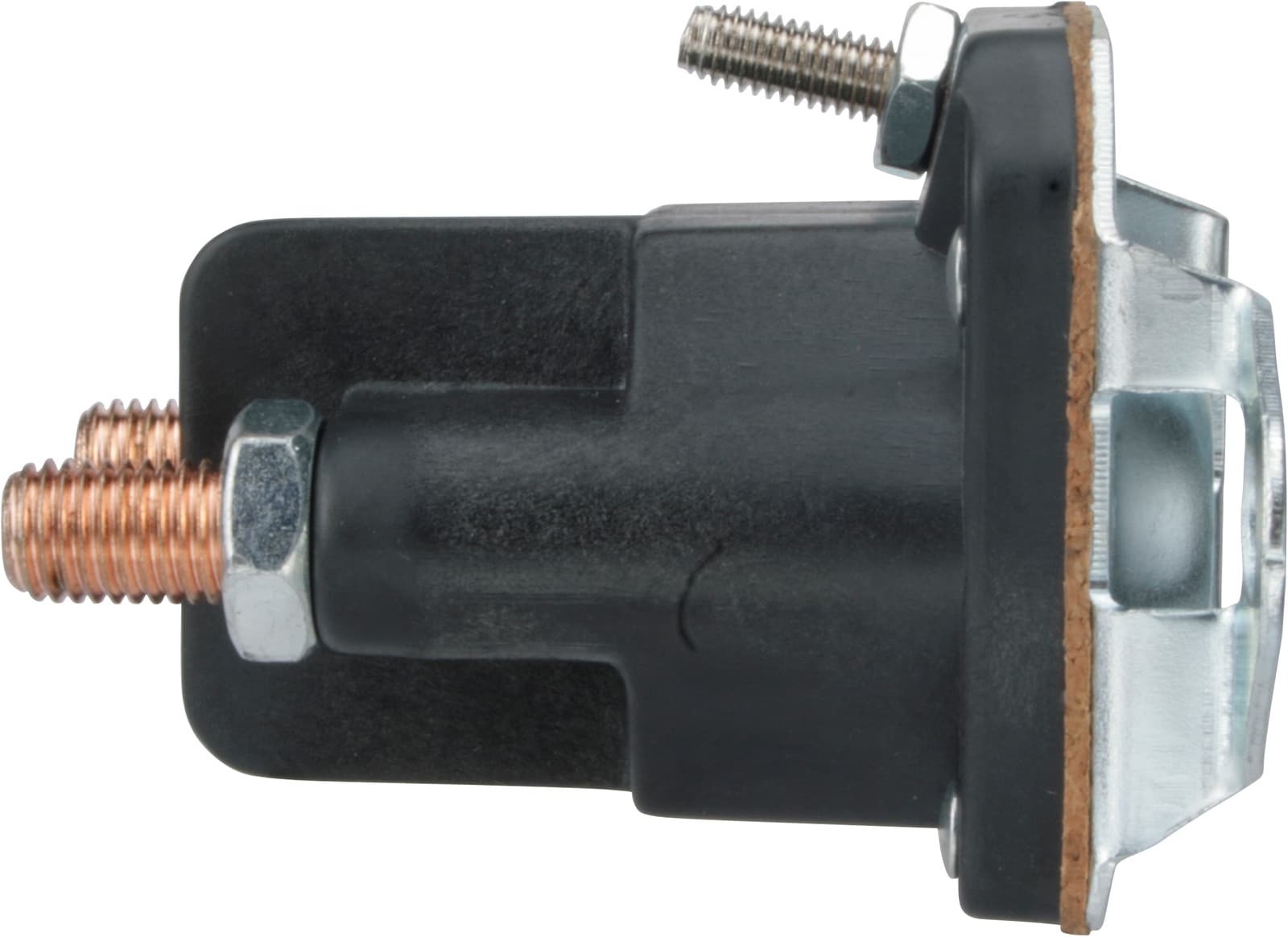

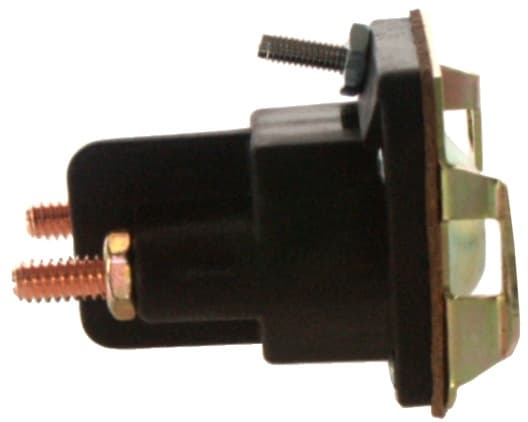

F032231526 - Solenoid SwitchTrade number 231526

Voltage 12, Amp 80, No./mount. holes 2, No./terminals 3, Outer Diameter 55.80, Amount of Mounting Holes 2, Remarks N.O. Terminals: 5/16" UNF. Coil Terminal: 10-32 UNF. Relay w/ 1/4" Terminals: HC-CARGO 234070., Total Length 65.00

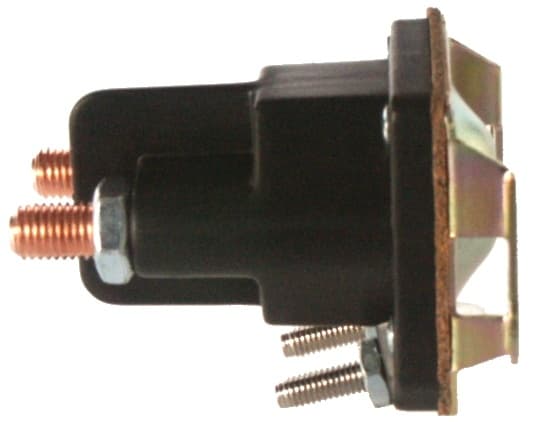

F032234070 - Solenoid SwitchTrade number 234070

Voltage 12, Amp 80, No./mount. holes 2, No./terminals 3, Amount of Mounting Holes 2, Remarks N.O. Terminals: 1/4" UNC. Coil Terminal: 10-32 UNF. Relay w/ 5/16" terminals: HC-CARGO 231526., Total Length 66.50

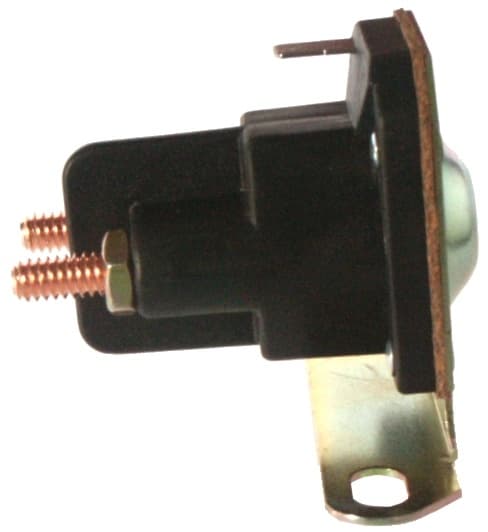

F032234071 - Solenoid SwitchTrade number 234071

Voltage 12, Amp 80, No./mount. holes 2, No./terminals 3, Amount of Mounting Holes 2, Remarks N.O. Terminals: 1/4" UNC. Coil Terminal: 6.30 mm., Total Length 64.00

F032234072 - Solenoid SwitchTrade number 234072

Voltage 12, Amp 80, No./mount. holes 2, No./terminals 4, Amount of Mounting Holes 2, Remarks Insulated return. N.O. Terminals: 5/16" UNF. Coil Terminals: M5., Total Length 66.50

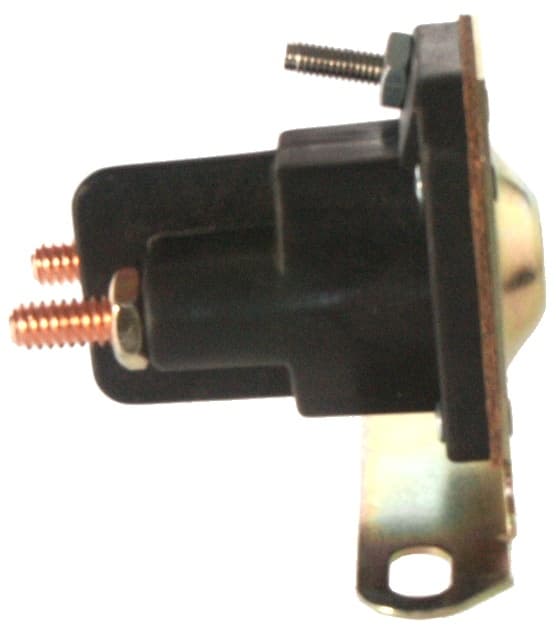

F032234073 - Solenoid SwitchTrade number 234073

Voltage 12, Amp 80, No./mount. holes 2, No./terminals 3, Amount of Mounting Holes 2, Remarks N.O. Terminals: 1/4" UNC. Coil Terminal: 10-32 UNF., Total Length 64.00

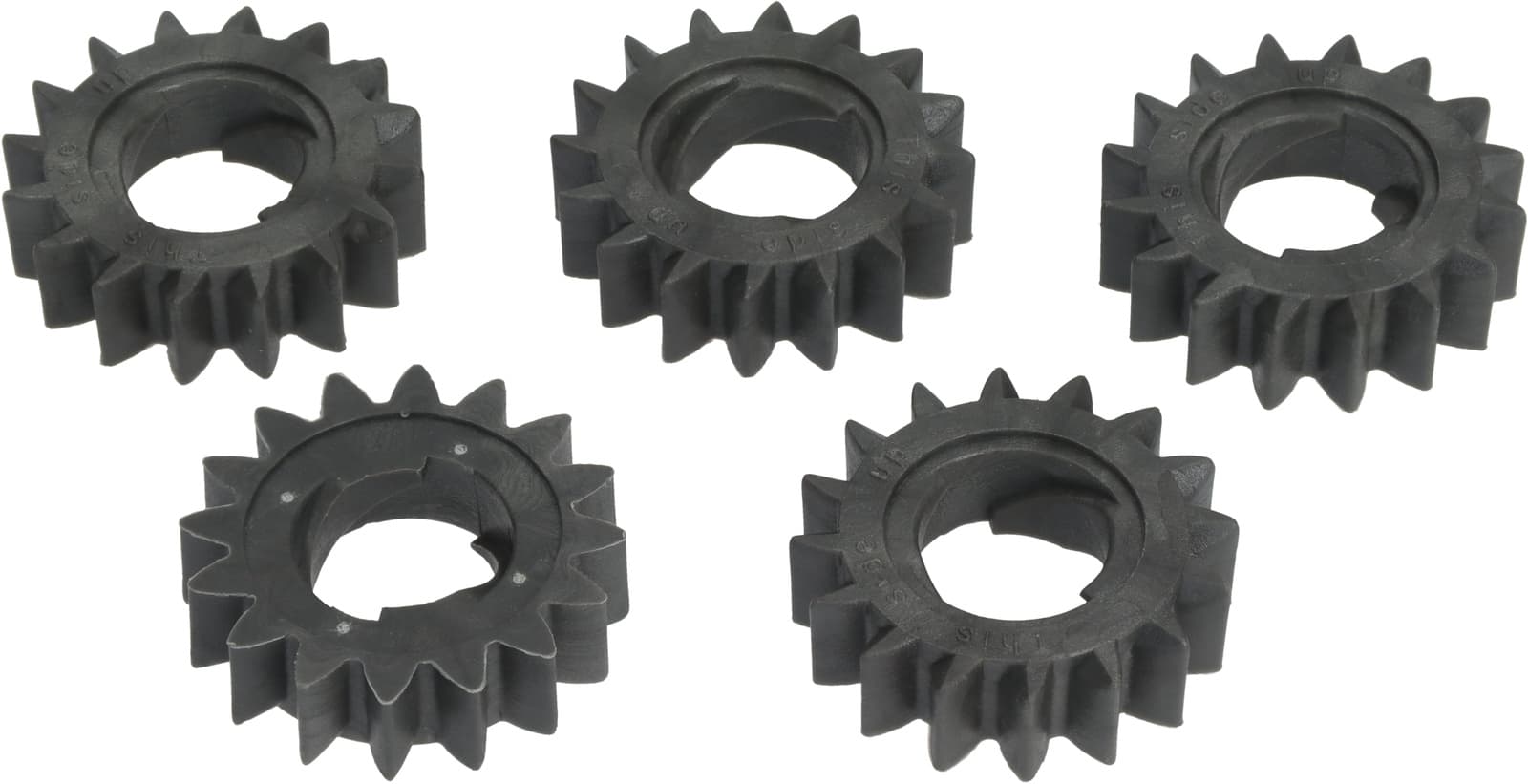

F032335924 - Starting-Motor PinionTrade number 335924

Bearing w/o, No./splines 2, Teeth Depth 5.20, Bushing w/o, Inner Diameter 20.50, Teeth Height 11.55, Outer Diameter 41.00, Remarks 5 pcs., Height 11.50, No./teeth 16
