Yokes

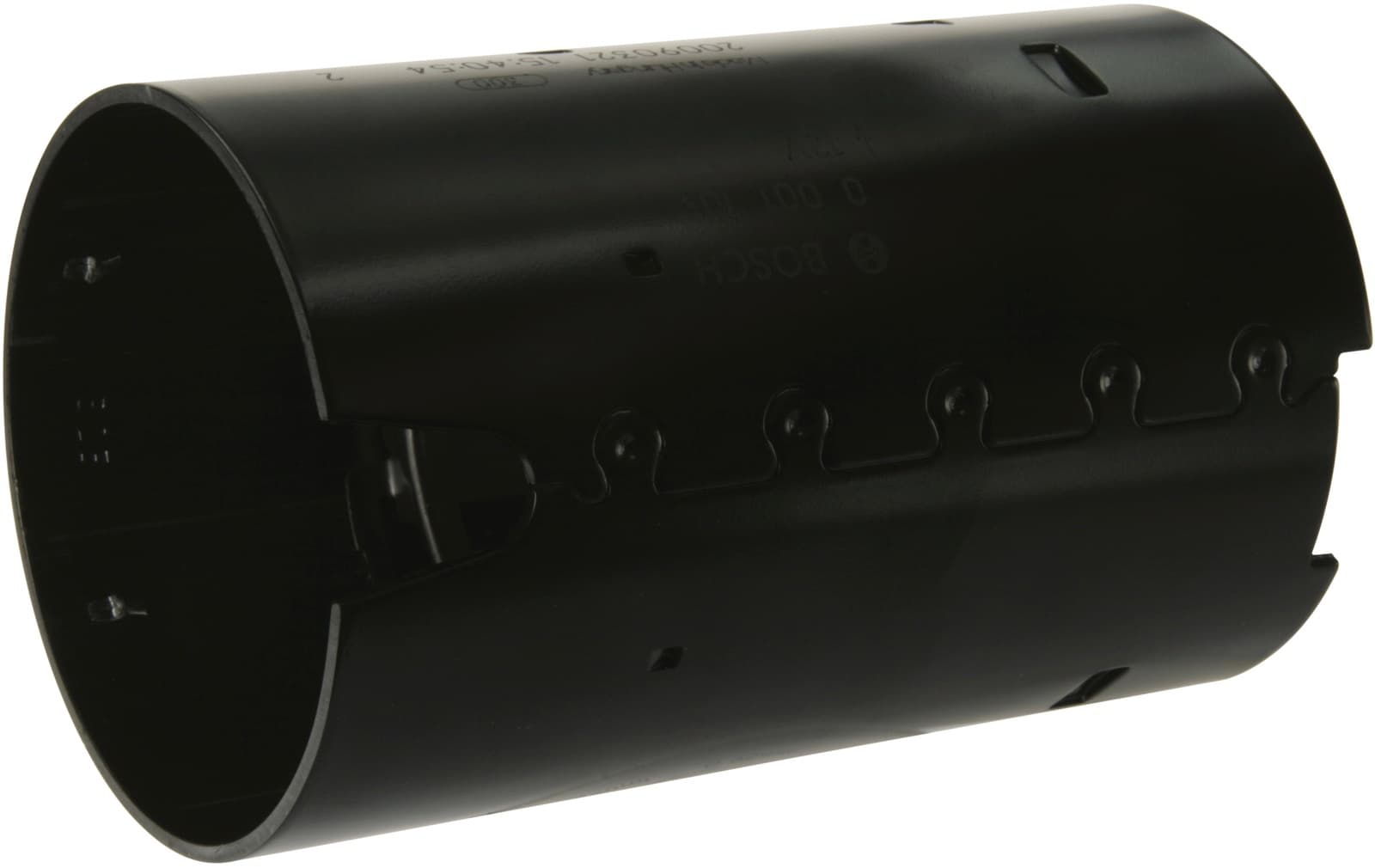

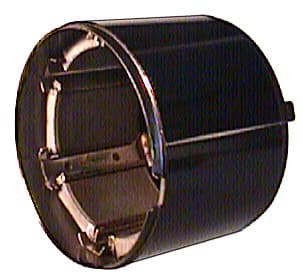

F032136894 - Pole housingTrade number 136894
kW 1.2/1.4,Voltage 12,Inner Diameter 55.80,Brush gear w/o,No./magnets 6,Outer Diameter Middle 74.70,Outer Diameter Rear 72.20,Coil w/o,Magnets w/,Rotation CW,Outer Diameter Front 71.90,Length 63.60
F032137169 - Pole housingTrade number 137169
kW 1.4,Voltage 12,Inner Diameter 69.50,South Side Depth 32.30,Brush gear w/o,Outer Diameter Middle 74.00,Outer Diameter Rear 74.00,North Side Depth 37.50,Coil w/o,Magnets w/,Outer Diameter Front 74.00,Length 112.50
F032137399 - Parts SetTrade number 137399
Voltage 12,kW 1.1,Coil w/o,Magnets w/,Inner Diameter 44.80,Brush gear w/o,No./magnets 4,Outer Diameter Middle 63.50,Length 96.20
F032139241 - Pole housingTrade number 139241
Voltage 12,kW 1.0,Outer Diameter Rear 70.60,North Side Depth 12.00,Coil w/o,Magnets w/,Inner Diameter 53.60,Outer Diameter Front 70.60,Brush gear w/o,Outer Diameter Middle 70.60,Length 52.70
F032139788 - Pole housingTrade number 139788
kW 1.4,Voltage 12,Inner Diameter 51.50,South Side Depth 7.00,Brush gear w/o,Outer Diameter Middle 68.00,Outer Diameter Rear 72.00,North Side Depth 13.00,Coil w/o,Magnets w/,Rotation CCW,Outer Diameter Front 68.00,Length 60.50
F032230020 - Pole housingTrade number 230020
Voltage 12,Outer Diameter Rear 63.40,Coil w/o,Magnets w/,Rotation CCW,Inner Diameter 60.00,Outer Diameter Front 63.40,Brush gear w/o,No./magnets 4,Outer Diameter Middle 63.40,Length 90.50
F032230231 - Pole housingTrade number 230231
kW 1.8,Voltage 12,Inner Diameter 60.00,South Side Depth 31.00,Brush gear w/o,Outer Diameter Middle 78.00,Outer Diameter Rear 78.00,North Side Depth 42.50,Coil w/o,Magnets w/,Outer Diameter Front 78.00,Length 135.00
F032230740 - Pole housingTrade number 230740
kW 2.2,Voltage 12,Inner Diameter 54.50,South Side Depth 17.80,Brush gear w/o,No./magnets 4,Outer Diameter Middle 79.00,Outer Diameter Rear 79.00,North Side Depth 41.50,Coil w/o,Magnets w/,Outer Diameter Front 79.00,Length 128.00
F032235572 - Pole housingTrade number 235572
Voltage 12,kW 2.2,Outer Diameter Rear 78.40,Magnets w/,Inner Diameter 74.00,Outer Diameter Front 78.40,Outer Diameter Middle 78.40,Length 124.50
F032236364 - Pole housingTrade number 236364
kW 2.0,Voltage 12,Inner Diameter 51.00,Brush gear w/o,No./brushes 2,Outer Diameter Middle 74.50,Outer Diameter Rear 69.50,Brush Length 11.00,Rotation CCW,Outer Diameter Front 68.80,Length 38.00,Brush Thickness 7.00,Brush Height 12.90
