D.E. Brackets

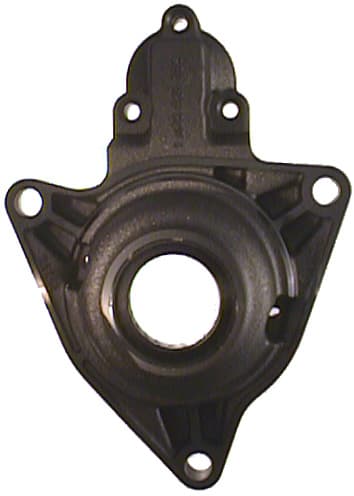

F032130511 - drive end shieldTrade number 130511
Mounting Hole B1 16.60,Mounting Flange Distance 101.50,Position D1 10,Distance O3 127.00,Distance C2 18.00,Type Closed,Servicing 40MT, 50MT,Position D3 50,Mounting Hole B2 16.60,Distance O2 127.00,Position D2 30,Distance C3 18.00,Mounting Hole B3 16.60,Distance C1 18.00,Mounting Flange Diameter 92.00,Distance O1 127.00

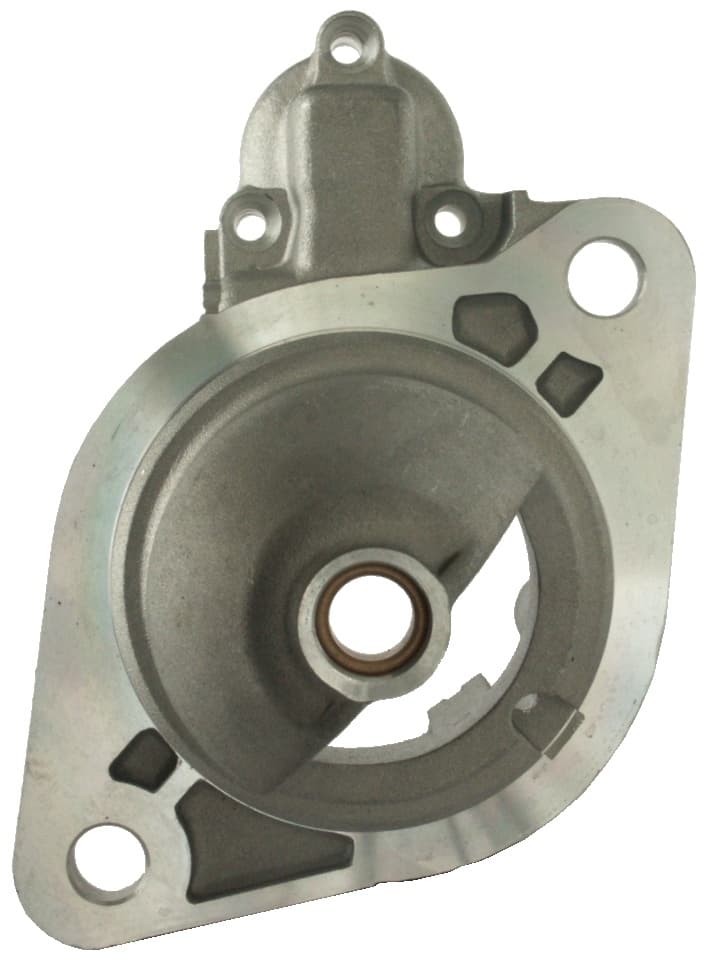

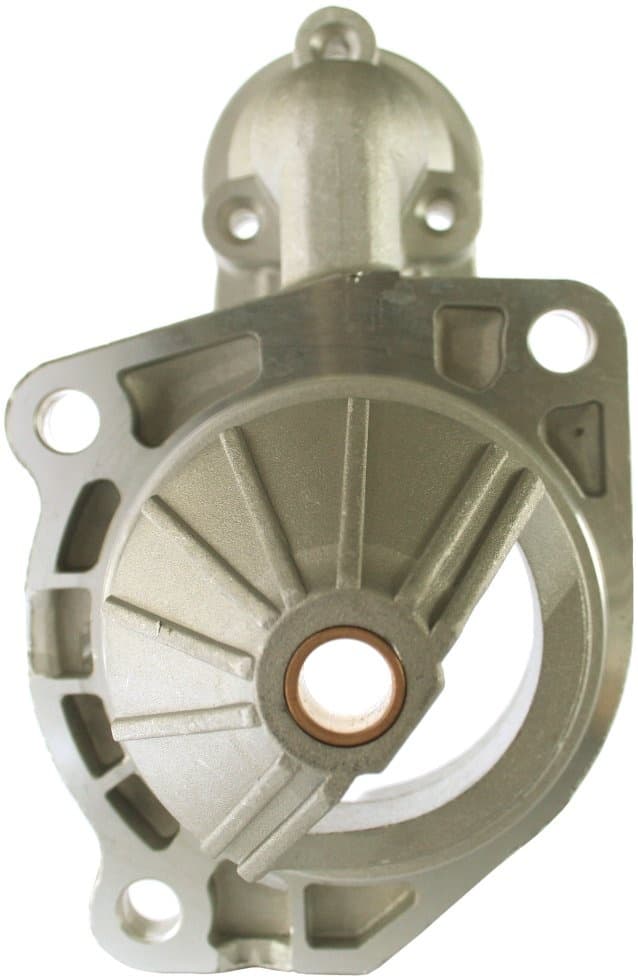

F032132049 - Drive bearingTrade number 132049
Mounting Hole B1 11.00,Mounting Flange Distance 23.00,Mounting Hole B2 11.00,Distance C2 13.30,Distance C3 13.30,Mounting Hole B3 11.00,Distance C1 13.30,Mounting Flange Diameter 89.00,Type Open

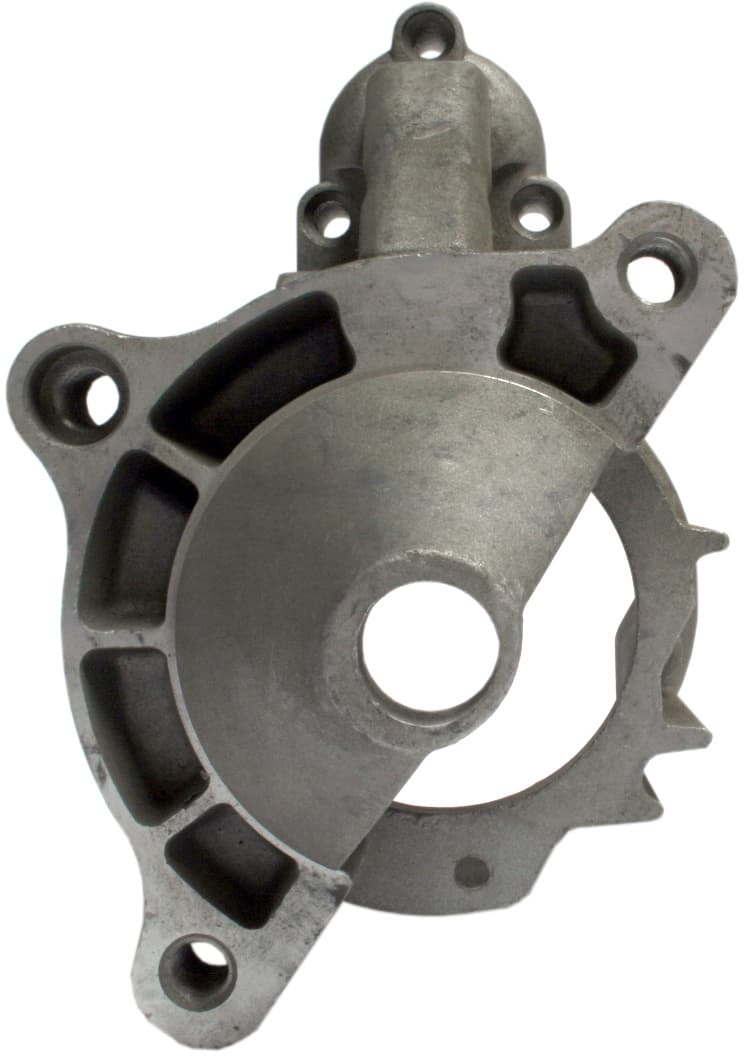

F032132219 - drive end shieldTrade number 132219
Mounting Hole B1 12.60,Mounting Flange Distance 96.50,Position D1 5,Distance O3 102.00,Distance C2 13.00,Type Closed,Position D3 50,Mounting Hole B2 12.60,Distance O2 139.00,Position D2 20,Distance C3 13.00,Mounting Hole B3 12.60,Distance C1 13.00,Mounting Flange Diameter 88.40,Distance O1 102.00

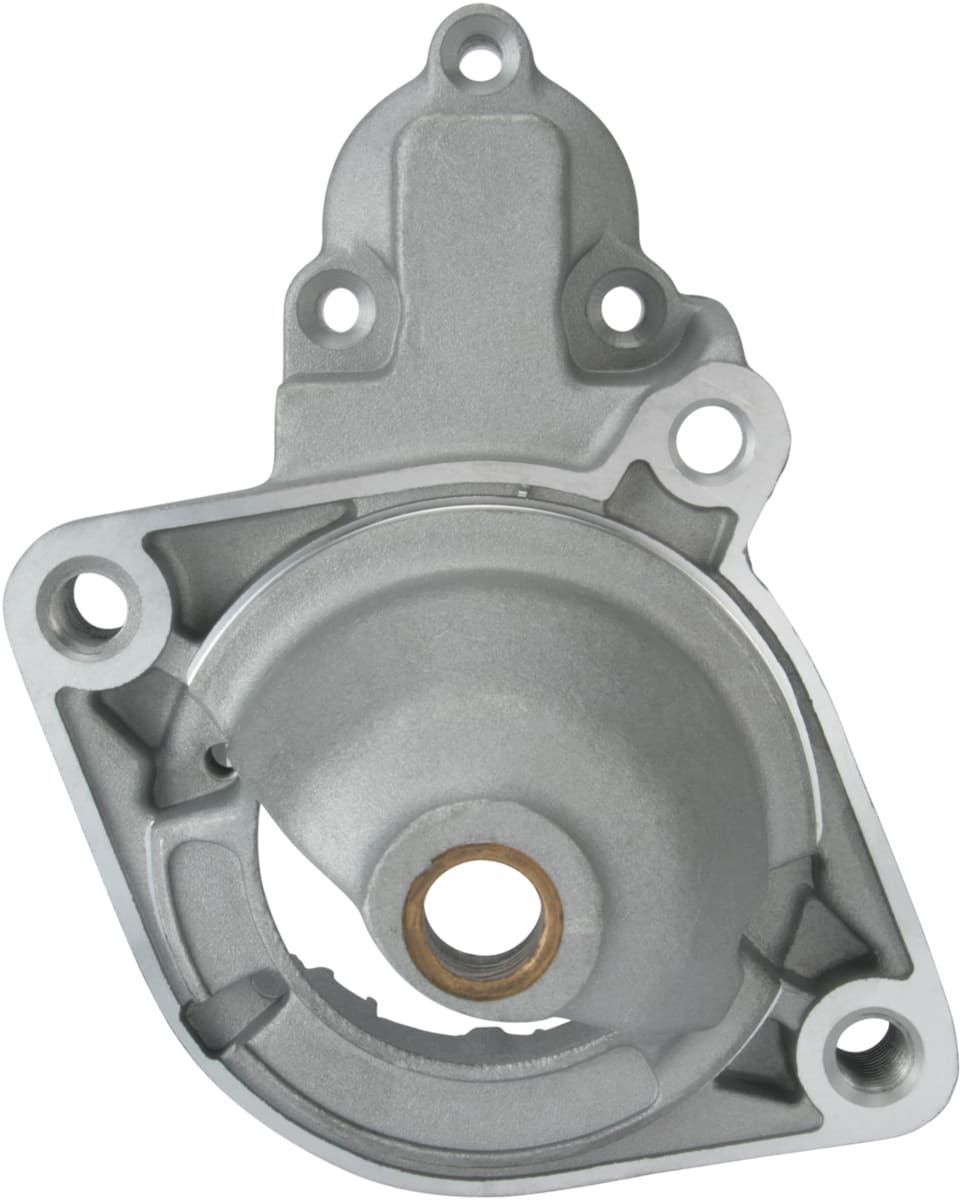

F032134130 - drive end shieldTrade number 134130
Mounting Hole B1 10.80,Mounting Flange Distance 68.00,Position D1 5,Distance O3 101.00,Distance C2 13.70,Type Closed,Position D3 50,Mounting Hole B2 10.80,Distance O2 101.00,Position D2 25,Distance C3 13.70,Mounting Hole B3 10.80,Distance C1 13.70,Mounting Flange Diameter 89.00,Distance O1 139.00

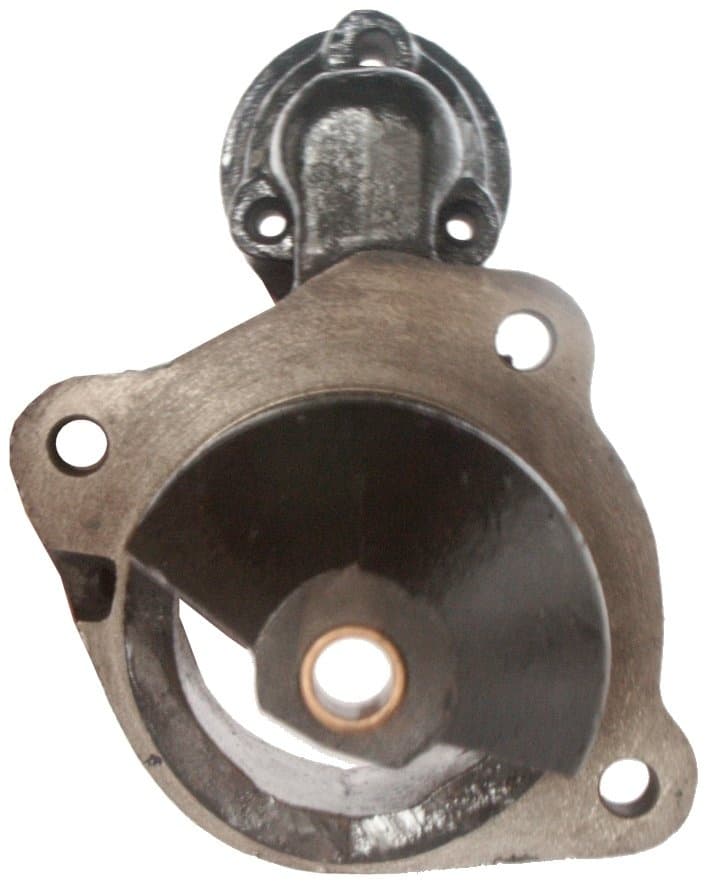

F032134677 - drive end shieldTrade number 134677
Mounting Hole B1 13.20,Mounting Flange Distance 53.40,Mounting Hole B2 10.30,Position D1 25,Distance C2 4.60,Position D2 55,Distance C1 4.20,Mounting Flange Diameter 82.60,Distance O1 120.00,Type Closed

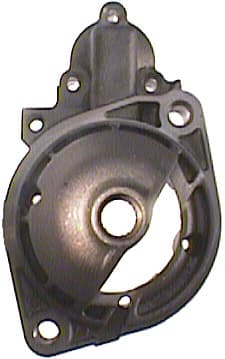

F032134864 - drive end shieldTrade number 134864
Mounting Hole B1 12.50,Mounting Flange Distance 79.00,Mounting Hole B2 12.50,Position D1 10,Distance C2 15.00,Position D2 40,Distance C1 16.20,Mounting Flange Diameter 82.50,Distance O1 127.00,Type Closed

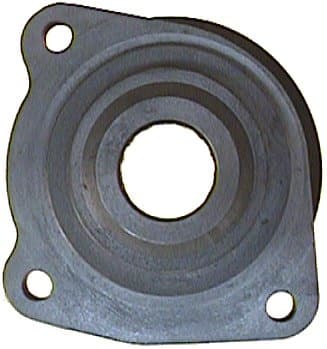

F032137630 - Drive bearingTrade number 137630
Mounting Hole B1 9.00,Mounting Flange Distance 39.00,Position D1 10,Distance O3 101.50,Type Open,Position D3 50,Mounting Hole B2 9.00,Distance O2 106.00,Position D2 29,Mounting Hole B3 9.00,Mounting Flange Diameter 76.00,Distance O1 101.50

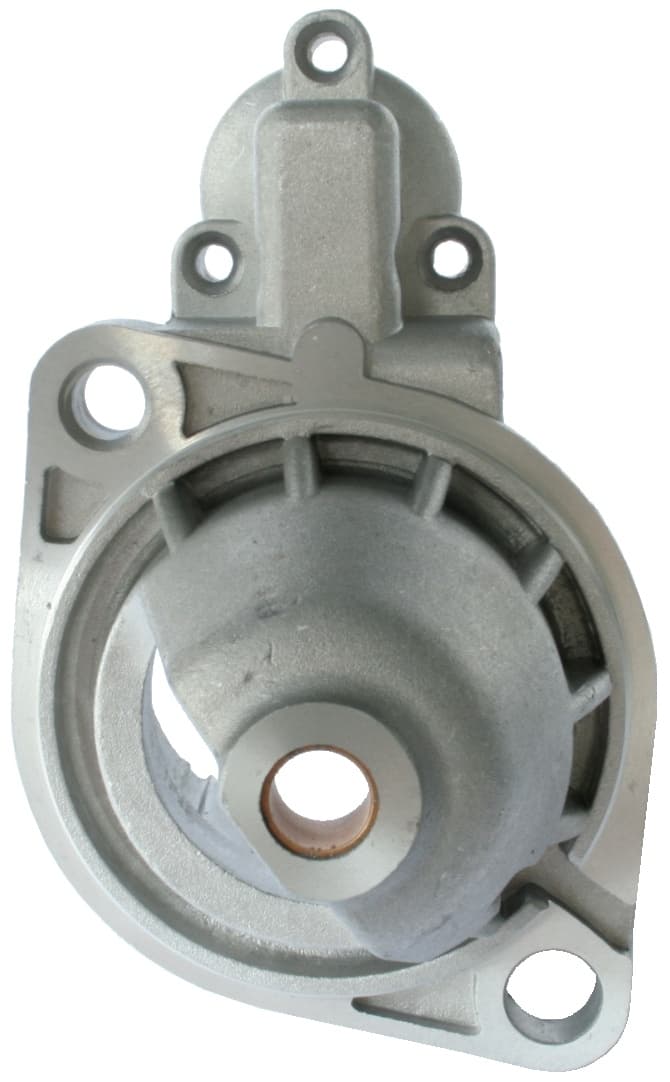

F032137633 - drive end shieldTrade number 137633
Mounting Hole B1 M10,Mounting Flange Distance 36.40,Position D1 5,Distance O3 93.00,Distance C2 18.60,Type Closed,Position D3 50,Mounting Hole B2 M10,Distance O2 94.00,Position D2 35,Distance C3 18.60,Mounting Hole B3 M10,Distance C1 18.60,Mounting Flange Diameter 74.00,Distance O1 128.00,Remarks Needle bearing: HC-CARGO 140242.
F032137911 - Drive bearingTrade number 137911
Mounting Hole B1 7.50,Mounting Flange Distance 53.00,Position D1 5,Distance O3 74.00,Distance C2 8.50,Type Closed,Position D3 50,Mounting Hole B2 M10,Distance O2 105.00,Position D2 20,Distance C3 8.50,Mounting Hole B3 M10,Distance C1 9.60,Mounting Flange Diameter 76.00,Distance O1 74.00
F032138324 - drive end shieldTrade number 138324
Mounting Hole B1 M10,Mounting Flange Distance 63.50,Mounting Hole B2 M10,Position D1 5,Distance C2 6.00,Position D2 35,Distance C1 6.00,Mounting Flange Diameter 82.50,Distance O1 115.00,Type Closed
