Clutches

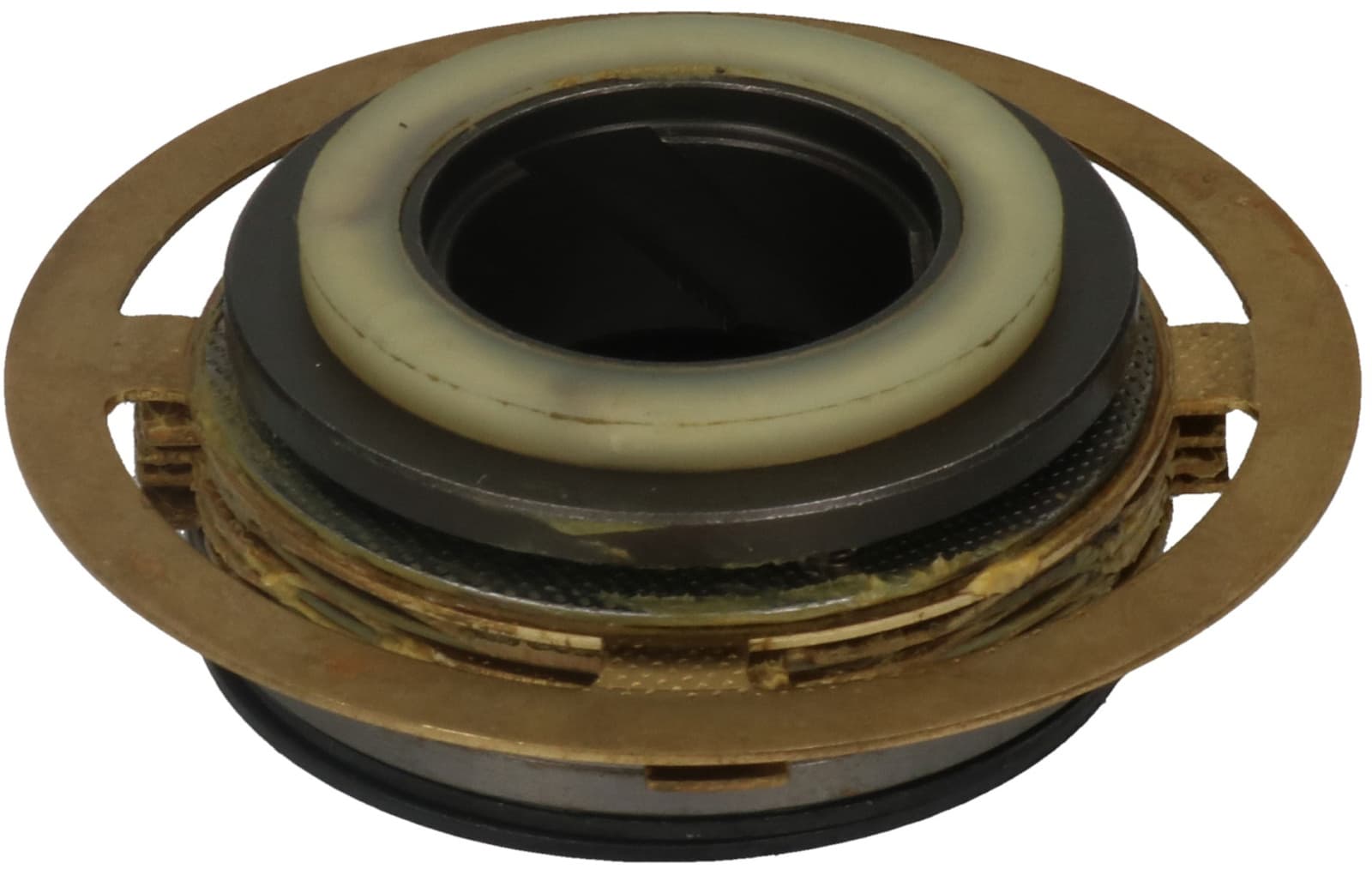

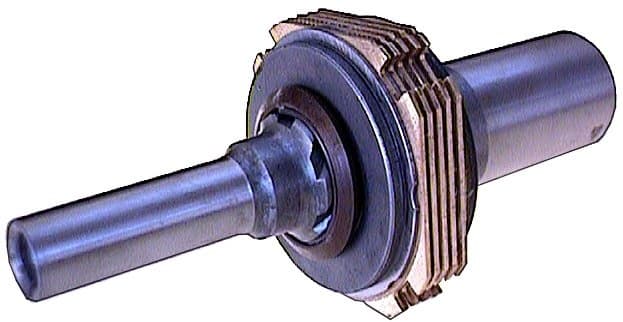

F032130317 - Multiplate ClutchTrade number 130317
Shaft Outer Diameter Rear 18.00, Rotation CW, Shaft Outer Diameter Front 33.00, Outer Diameter 66.00, Total Length 166.00

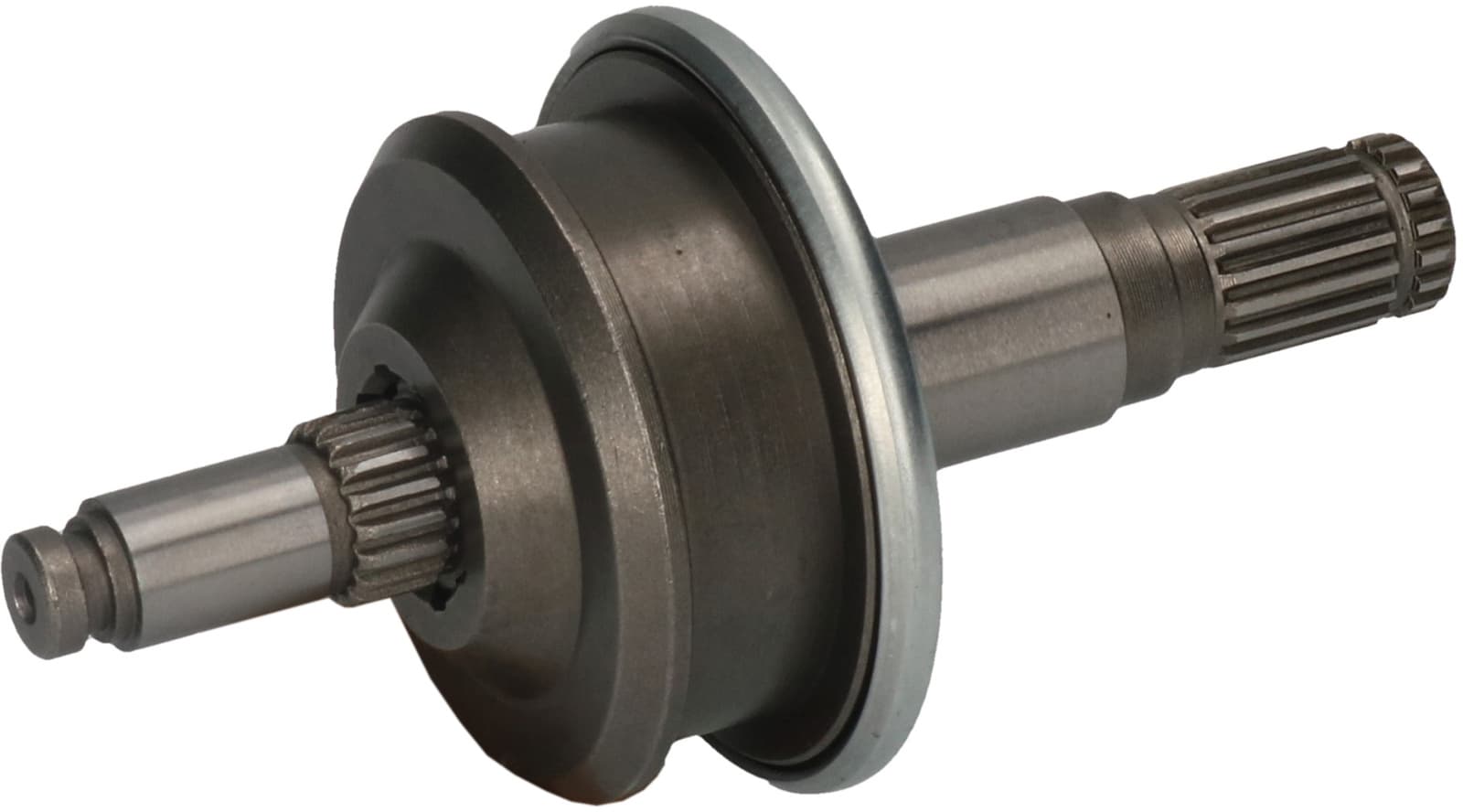

F032132386 - Overrunning-Clutch DriveTrade number 132386
No./splines 18, Shaft Outer Diameter Rear 11.00, Spline Outer Diameter 13.30, Drive End House Shaft Length 53.70, Rotation CW, Shaft Outer Diameter Front 17.00, Outer Diameter 56.00, Total Length 124.00

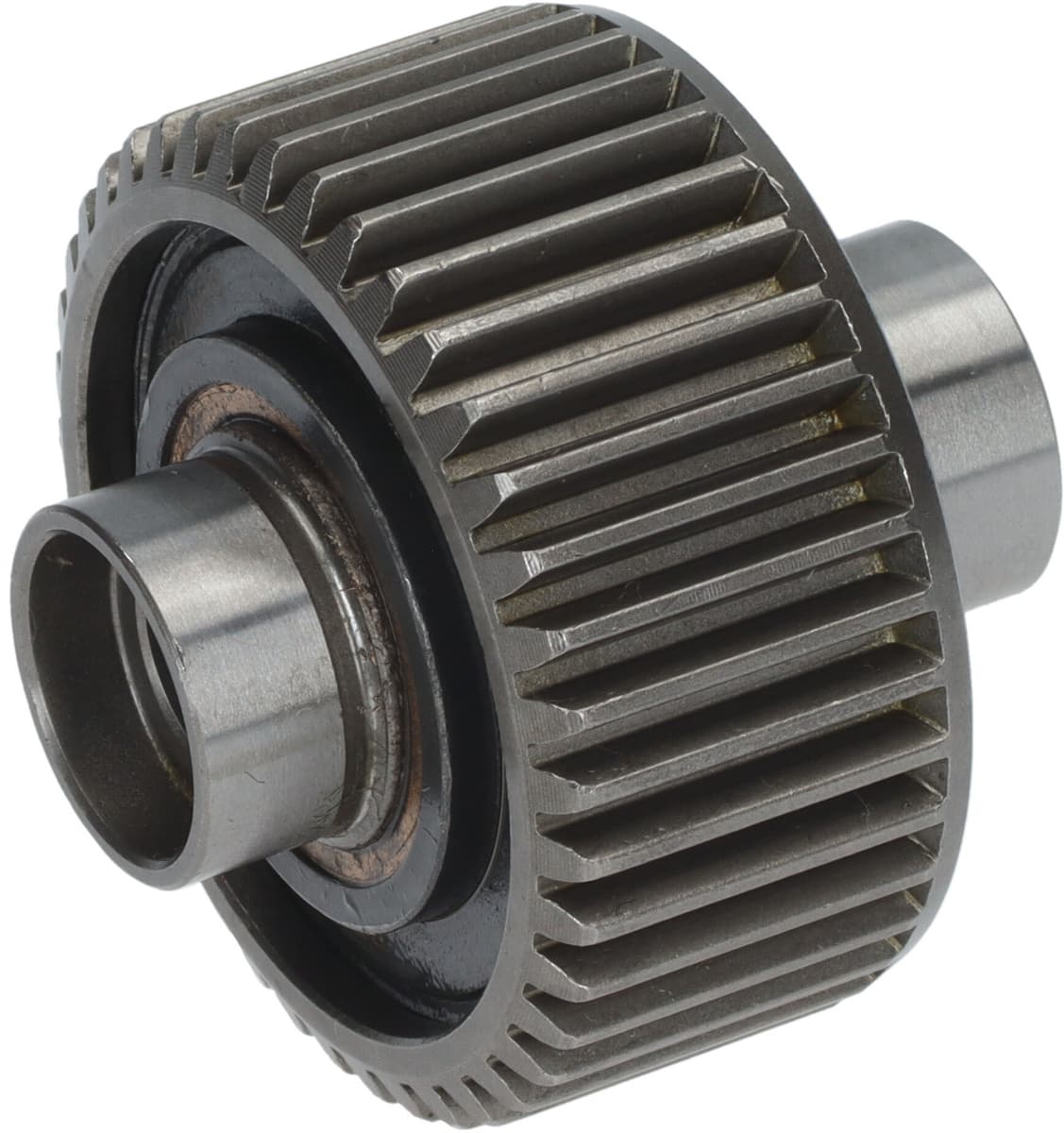

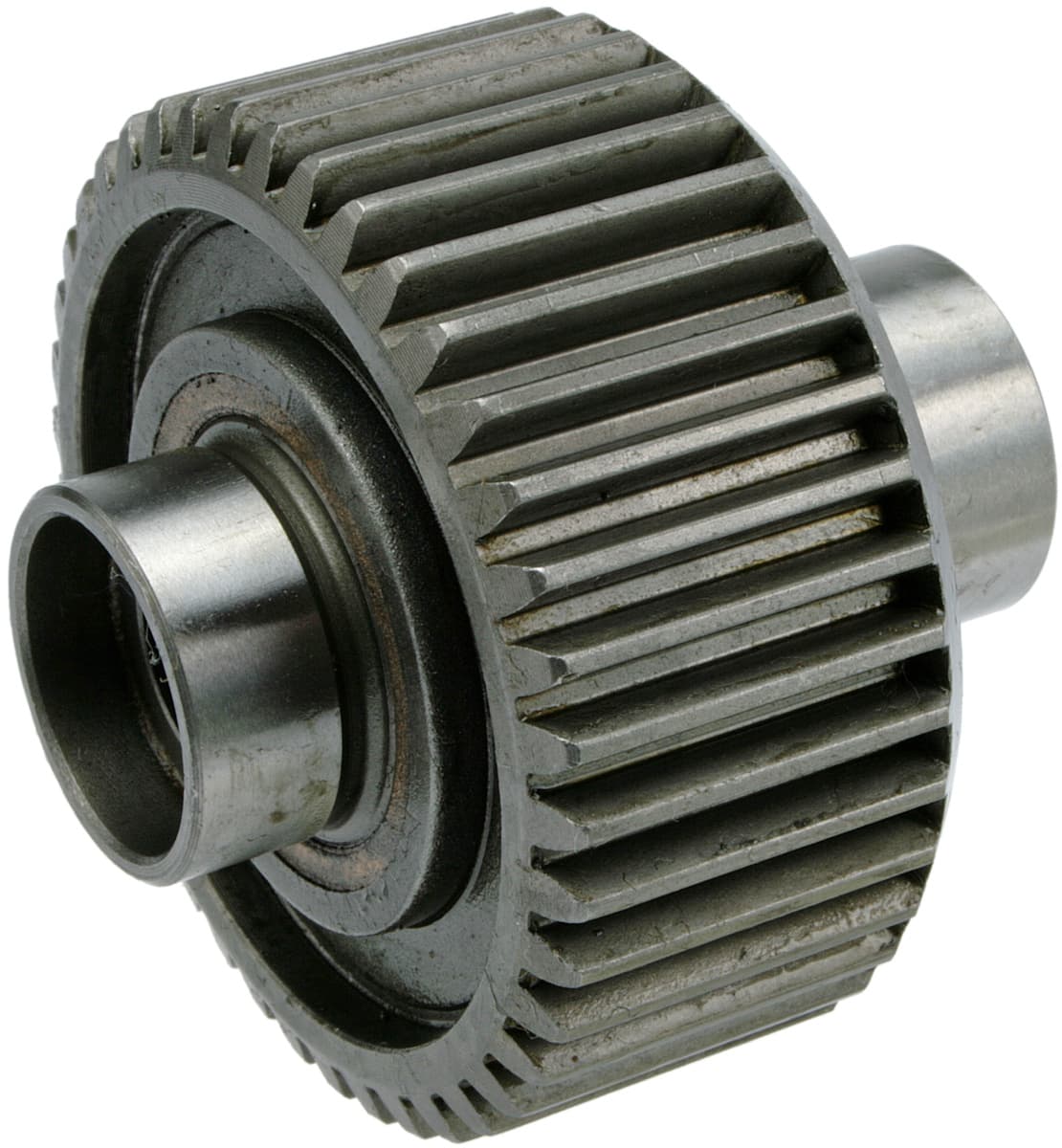

F032132459 - CouplingTrade number 132459
Drive End Inner Diameter 12.00, Bearing Outer Diameter 1 42.00, Bearing Outer Diameter 37.00, Splines/housing 10, Rotation CW, Outer Diameter 53.00, Servicing HC-CARGO 333105, 140226, Remarks Front Bearing: HC-CARGO 140223/333105. Rear Bearing: HC-CARGO 140226., Total Length 50.00, No./teeth 41

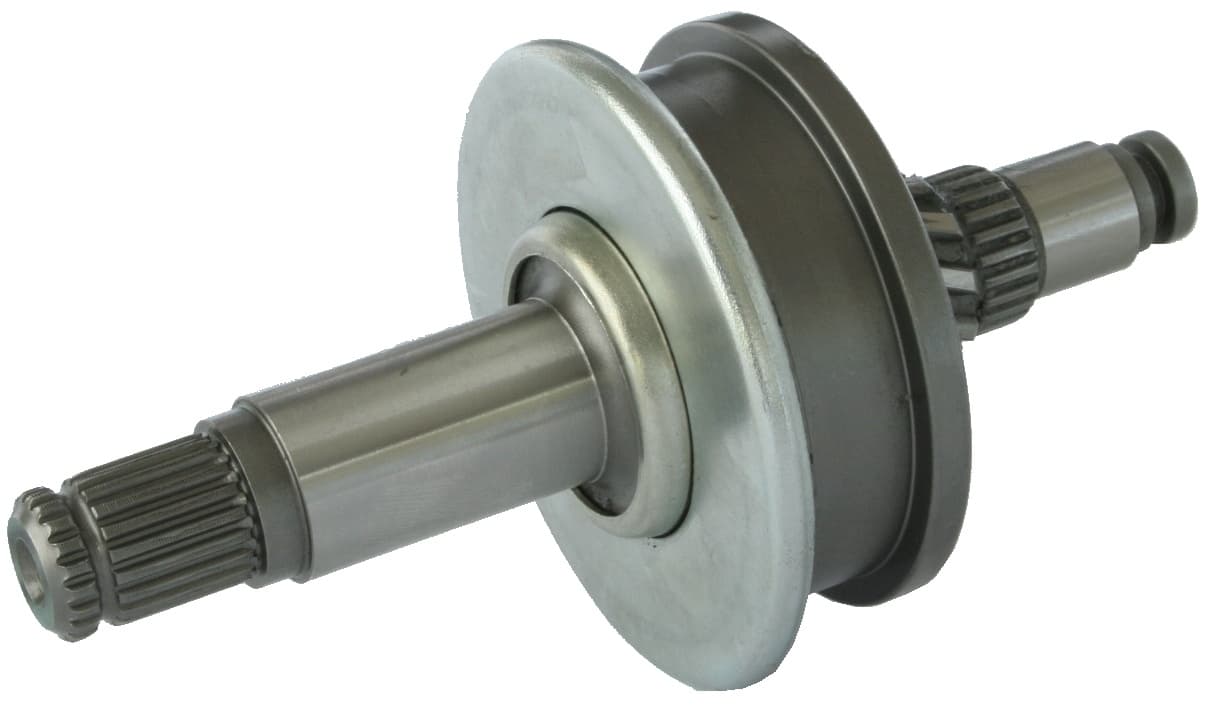

F032132489 - CouplingTrade number 132489
No./splines 20, Shaft Outer Diameter Rear 14.00, Spline Outer Diameter 14.50, Drive End House Shaft Length 33.00, Splines/housing 10, Shaft Outer Diameter Front 18.65, Outer Diameter 66.50, Total Length 118.80

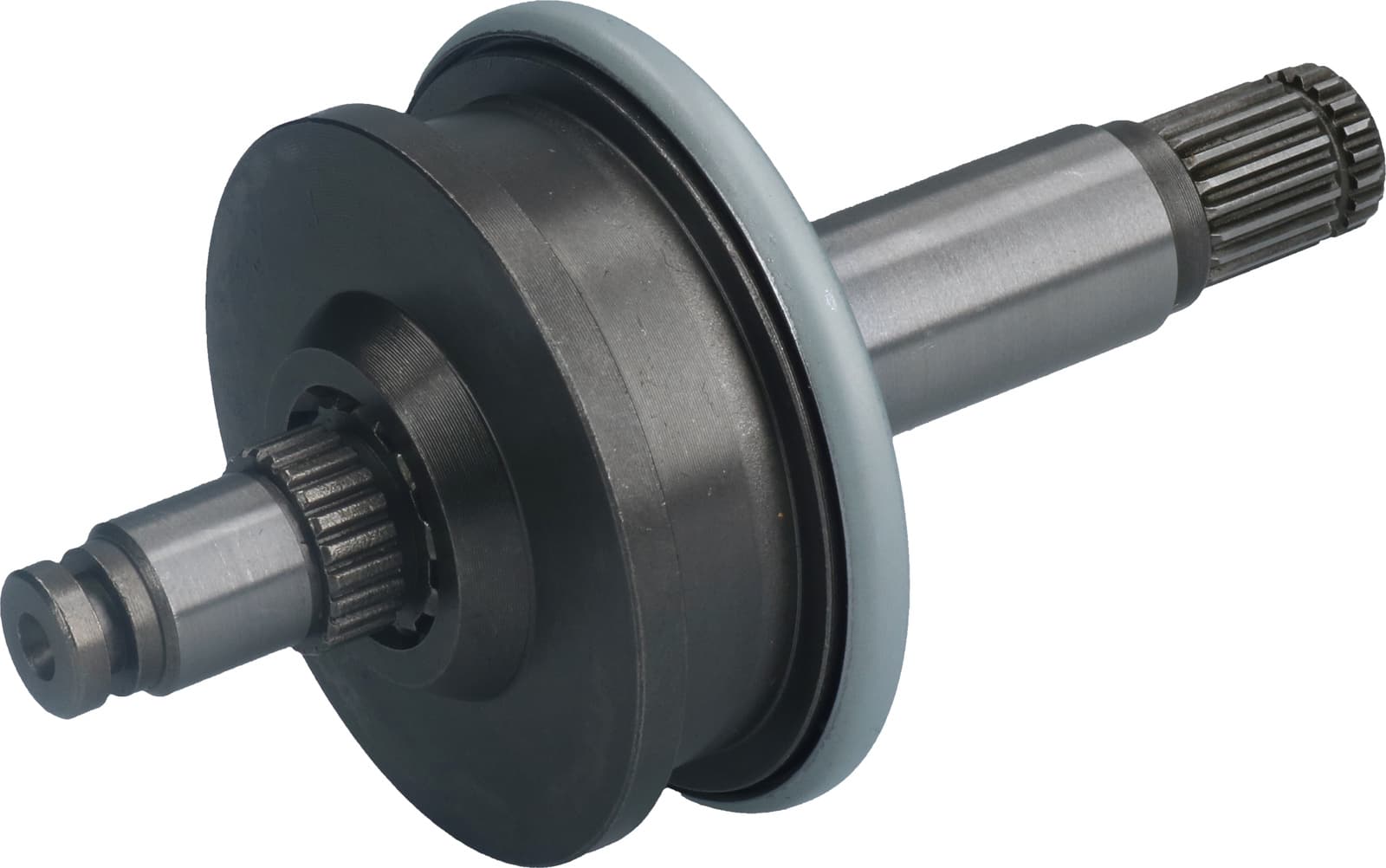

F032133439 - CouplingTrade number 133439
No./splines 18, Shaft Outer Diameter Rear 11.00, Spline Outer Diameter 13.40, Drive End House Shaft Length 53.20, Shaft Outer Diameter Front 16.85, Outer Diameter 58.00, Total Length 122.50

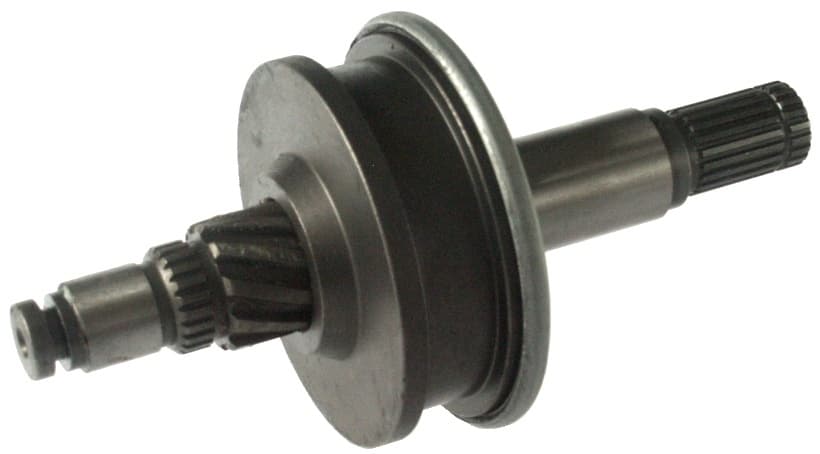

F032133448 - Overrunning-Clutch DriveTrade number 133448
No./splines 20, Shaft Outer Diameter Rear 14.00, Spline Outer Diameter 14.90, Drive End House Shaft Length 56.00, Shaft Outer Diameter Front 18.65, Outer Diameter 66.70, Total Length 131.40
F032133449 - Overrunning-Clutch DriveTrade number 133449
No./splines 20, Shaft Outer Diameter Rear 14.00, Drive End House Shaft Length 66.00, Shaft Outer Diameter Front 18.65, Outer Diameter 66.70, Total Length 143.80

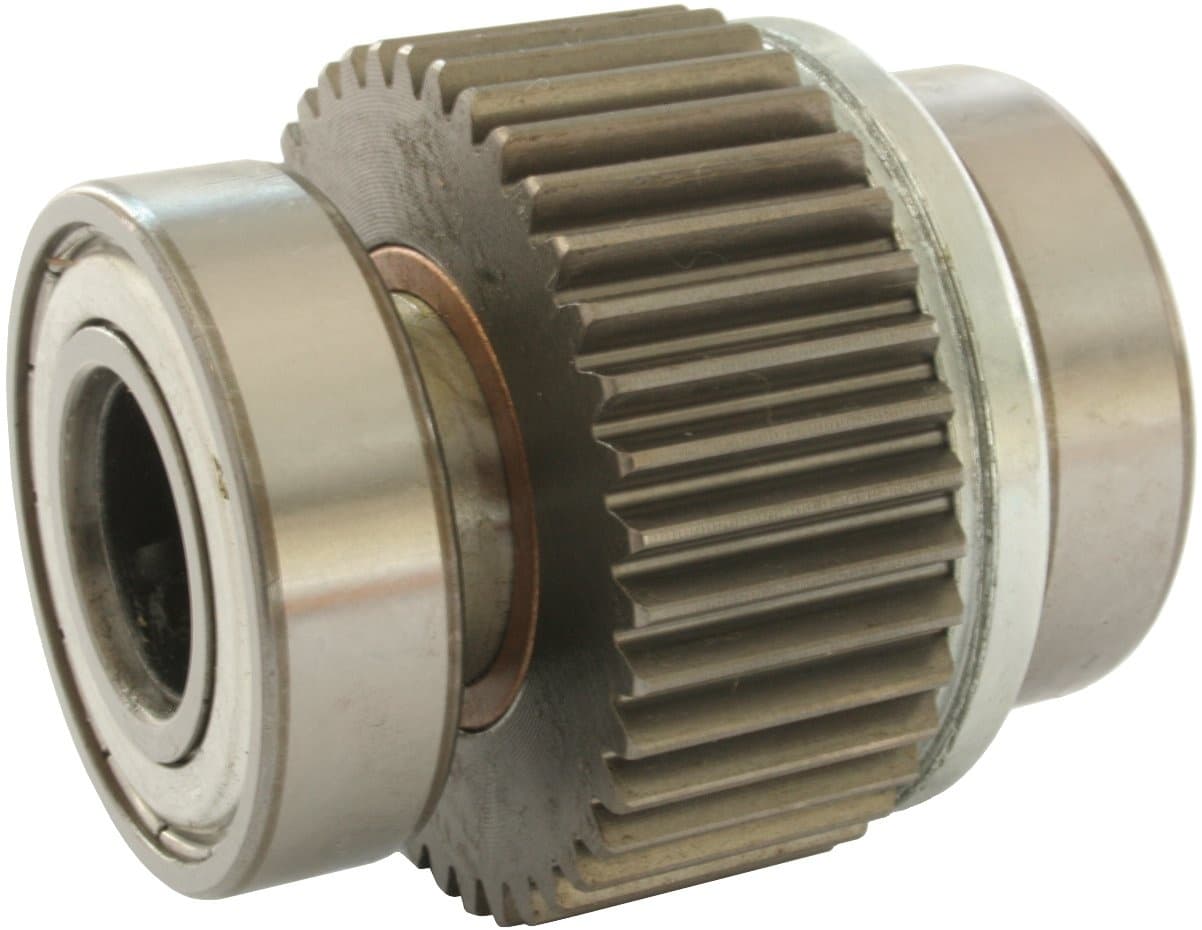

F032134806 - CouplingTrade number 134806
Drive End Inner Diameter 13.50, No./splines 10, Bearing Outer Diameter 1 42.00, Bearing Outer Diameter 42.00, Rotation CW, Outer Diameter 53.80, Total Length 65.00
F032135059 - CouplingTrade number 135059
No./splines 10, Rotation CCW, Outer Diameter 52.00, Total Length 50.00
