F032901517 - Solenoid Switch

Trade number 131373Z

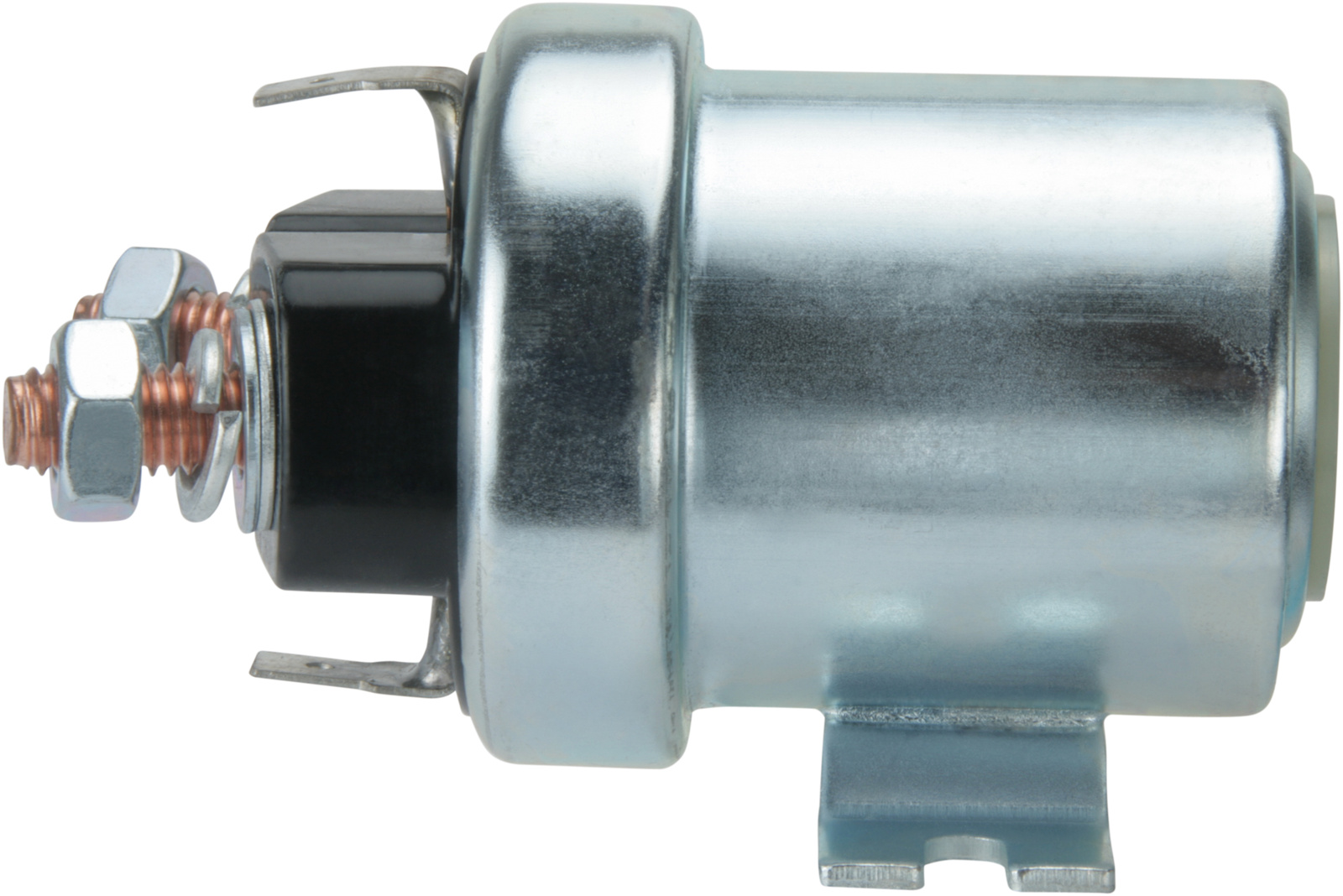

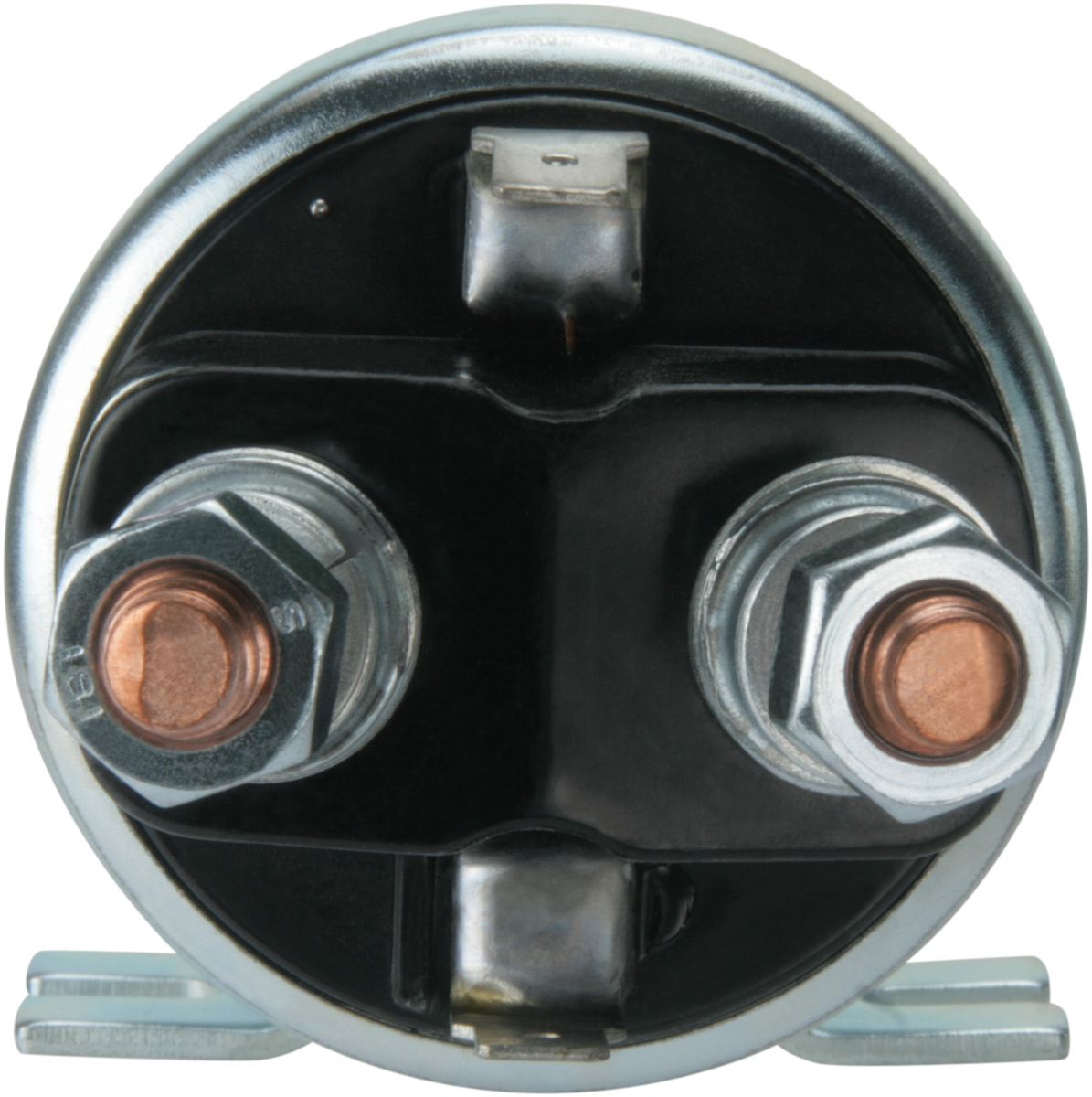

Product image - main
Trade number 131373Z

Details & description

Intermittent load 800 Amp, Voltage 12, Amp 150, Seconds 5, No./mount. holes 2, No./terminals 4, Outer Diameter 54.20, Amount of Mounting Holes 2, Remarks Silver contact. Insulated return. N.O. terminals: M8. Coil Terminals: 6.30 mm., Total Length 92.00

Product information

Electrical information

  • Intermittent load800 Amp
  • Voltage12
  • Amp150
  • Seconds5

Catalogue information

  • RemarksSilver contact. Insulated return. N.O. terminals: M8. Coil Terminals: 6.30 mm.

Physical information

  • No./mount. holes2
  • No./terminals4
  • Outer Diameter54.20
  • Total Length92.00

Suggested Products

Replacing and BOMs

Competitor References

  • SS0351BOSCHAUTOSTARTER POLAND
  • 0333009004BOSCH
  • 1986SE3744BOSCH
  • F042S10375BOSCH
  • F042010375BOSCH
  • 033538DURITE
  • 12700EFEL
  • 131373HC-CARGO
  • 131373ZHC-CARGO
