F032234476 - Solenoid Switch

Trade number 234476

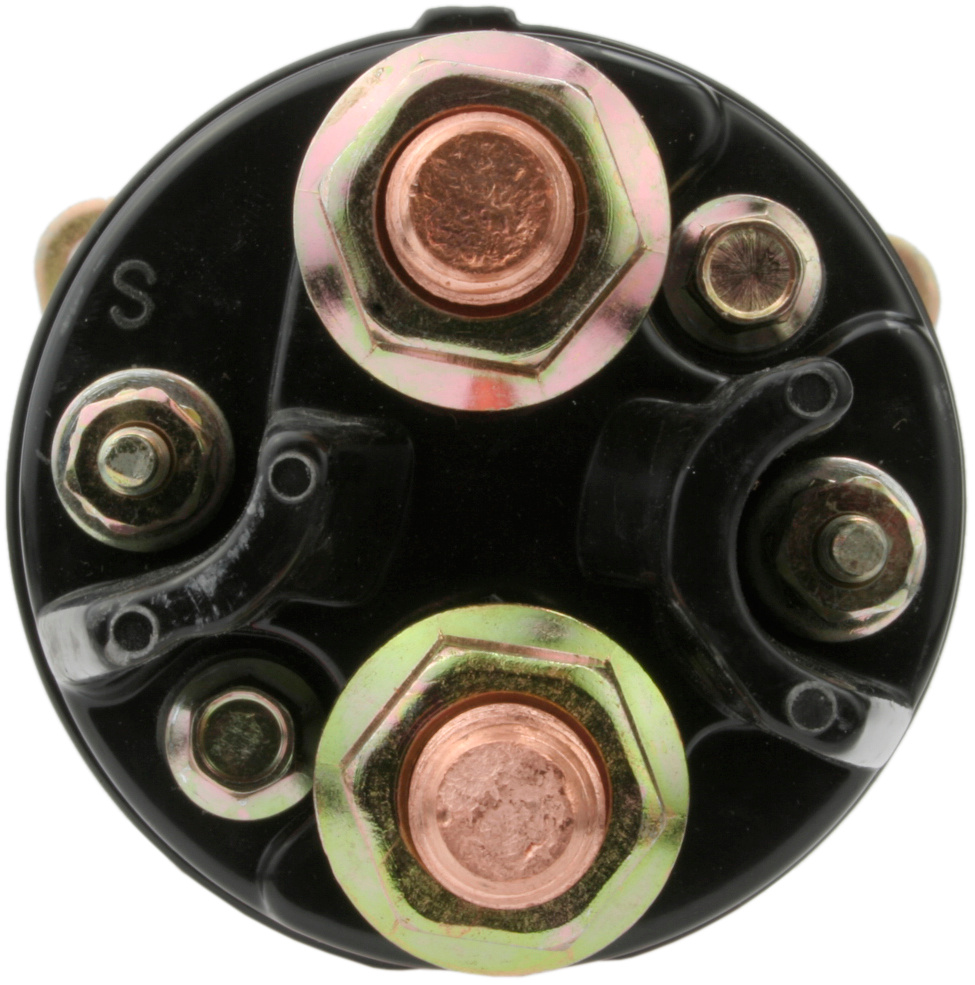

Product image - main
Trade number 234476

Details & description

Voltage 12, No./mount. holes 3, No./terminals 4, Terminal 50/mm 10-32 UNF, Coil Bolt Length 28.50, Servicing 42MT, B+ 1/2" UNC, Terminal 50 Bolt, B+ Height 37.50, Coil Bolt Diameter 1/2" UNC, Terminal 50 Width 16.50, Outer Diameter 69.00, Remarks Insulated return. Ground Terminal: 10-32 UNF. Cap: HC-CARGO 135324., Amount of Mounting Holes 3, Total Length 159.00

Product information

Electrical information

  • Voltage12

Catalogue information

  • Servicing42MT
  • RemarksInsulated return. Ground Terminal: 10-32 UNF. Cap: HC-CARGO 135324.

Physical information

  • No./mount. holes3
  • No./terminals4
  • Coil Bolt Length28.50
  • B+1/2" UNC
  • Terminal 50Bolt
  • Coil Bolt Diameter1/2" UNC
  • Outer Diameter69.00
  • Total Length159.00

Suggested Products

Replacing and BOMs

Competitor References

  • 7942SRACCURATE
  • 234476HC-CARGO
  • 1115701REMY
  • 1115712REMY
  • 661131WAI
  • 66113SLWAI
  • ZM356ZM
  • ZM7356ZM
  • 356ZM
