F032233873 - Solenoid Switch
Trade number 233873
Replacing and BOMs
Competitor References
SS1149PAUTOSTARTER POLAND
F042S10597BOSCH
F042010597BOSCH
233873HC-CARGO
1115667REMY
1115668REMY
1115673REMY
66114SLWAI
ZM361ZM
ZM7361ZM
361ZM
7361ZM

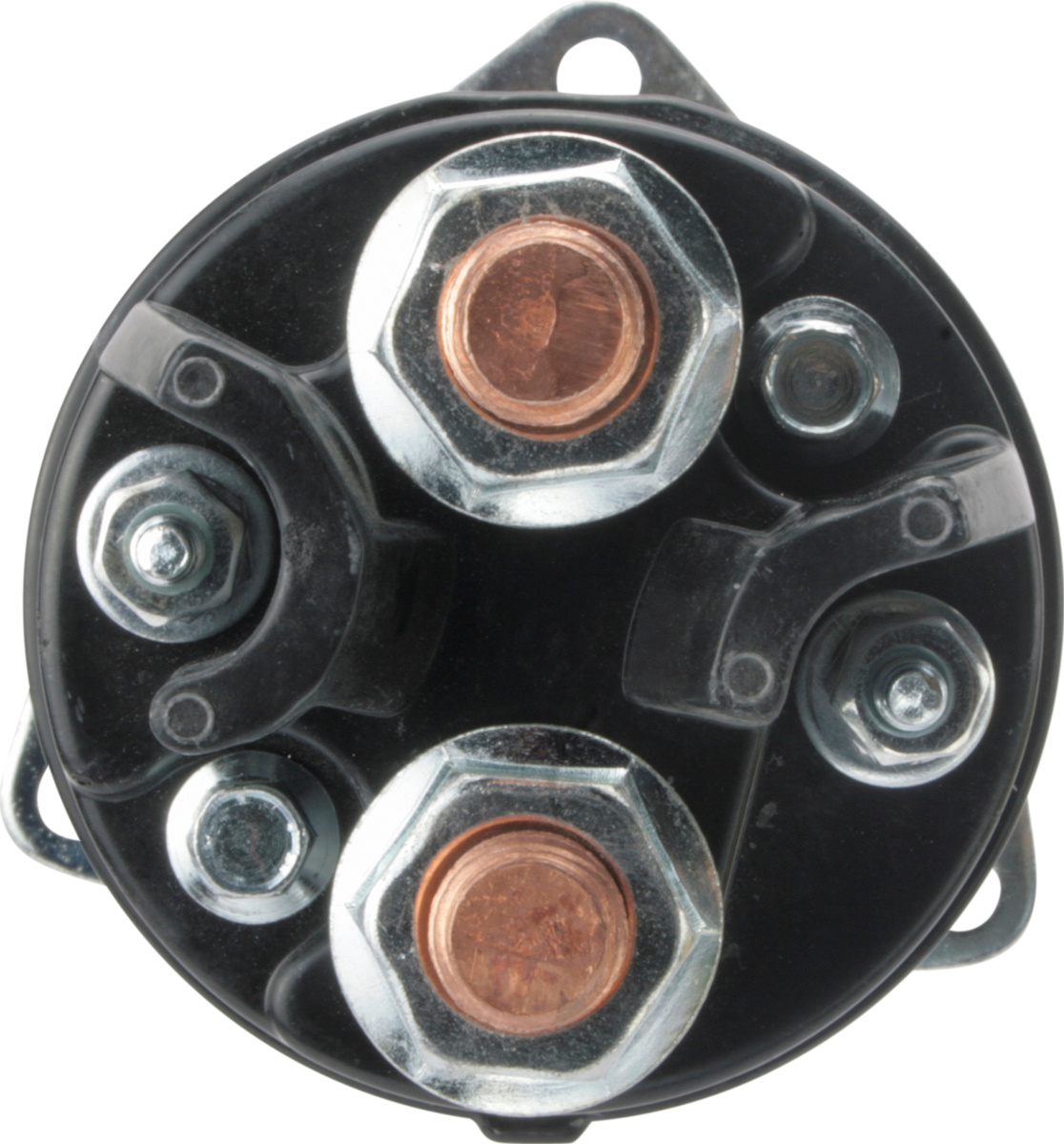

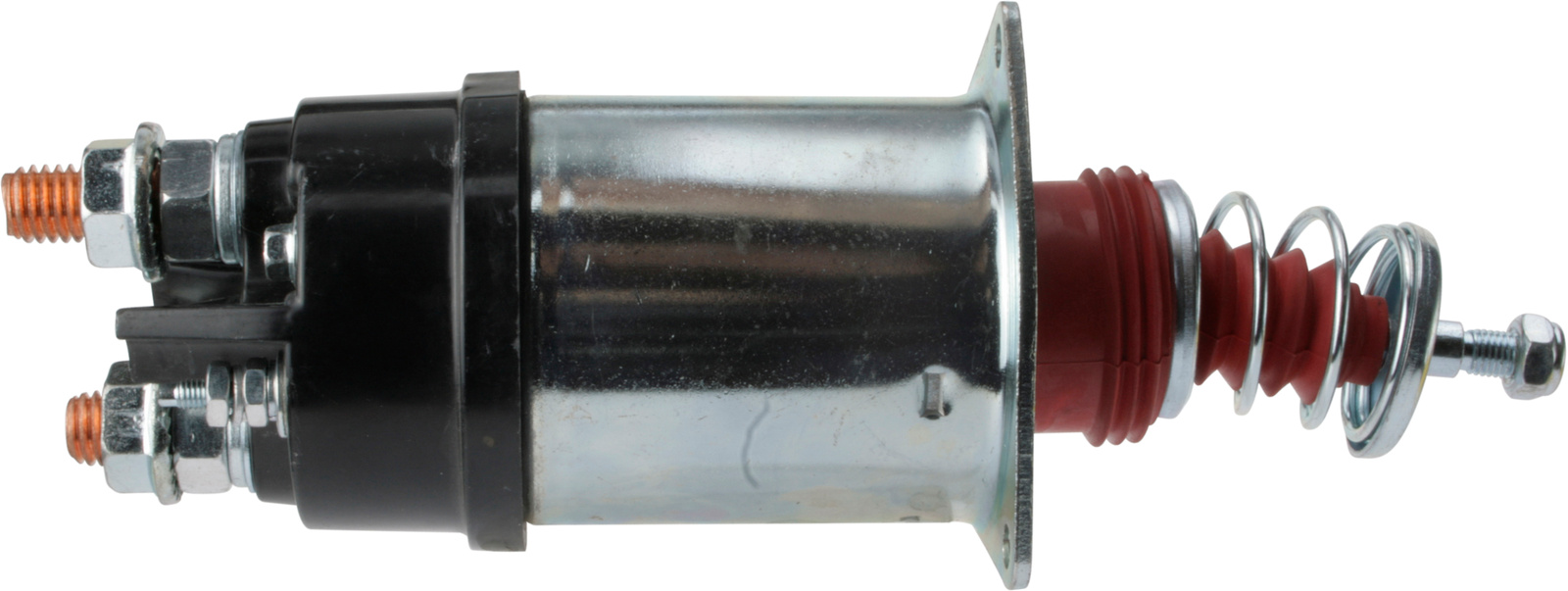

F032233873 - Solenoid Switch
Details & description
Voltage 24, No./mount. holes 3, No./terminals 4, Terminal 50/mm 10-32 UNF, Terminal 15A/mm 10-32 UNF, Servicing 42MT, B+ 1/2" UNC, Terminal 15a Bolt, Terminal 50 Bolt, Coil Bolt Diameter 1/2" UNC, Outer Diameter 68.50, Remarks Insulated return., Amount of Mounting Holes 3, Total Length 157.00
Product information
Voltage:24
No./mount. holes:3
No./terminals:4
Terminal 50/mm:10-32 UNF
Terminal 15A/mm:10-32 UNF
Servicing:42MT
B+:1/2" UNC
Terminal 15a:Bolt
Terminal 50:Bolt
Coil Bolt Diameter:1/2" UNC
Outer Diameter:68.50
Remarks:Insulated return.
Amount of Mounting Holes:3
Total Length:157.00
Replacing and BOMs
Competitor References
SS1149PAUTOSTARTER POLAND
F042S10597BOSCH
F042010597BOSCH
233873HC-CARGO
1115667REMY
1115668REMY
1115673REMY
66114SLWAI
ZM361ZM
ZM7361ZM
361ZM
7361ZM
