F032233854 - Rotor

Trade number 233854

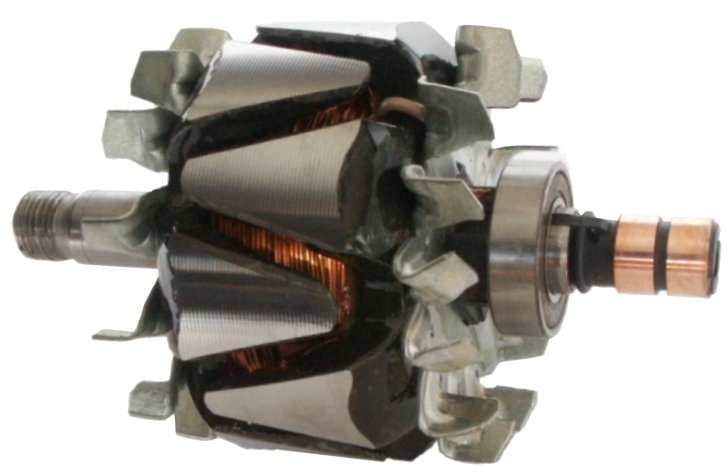

Product image - main
Trade number 233854

Details & description

Voltage 14, Amp 75, Wire Diameter 0.75, Ring Height 1 7.70, Thread Length 9.50, Slip Ring Rear 109.30, Slip Ring Outer Diameter 15.40, Ring Height 2 8.00, Slip Ring End Length 52.50, Ring Distance 2.40, Drive End Length 51.20, Windings 345, Bearing Diameter 17.00, Slip Ring Front 99.30, Wing height 77.00, Cooling fan w/, Rotation CW, Thread size M16-1.50, Outer Diameter 89.00, Height 48.50, Shaft Diameter 17.00, Total Length 43.20;151.00

Product information

Electrical information

  • Voltage14
  • Amp75

Physical information

  • Ring Height 17.70
  • Thread Length9.50
  • Ring Height 28.00
  • Ring Distance2.40
  • RotationCW
  • Thread sizeM16-1.50
  • Outer Diameter89.00
  • Height48.50
  • Shaft Diameter17.00

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • AR0012AUTOSTARTER POLAND
    • F00M111604BOSCH
    • F00M111609BOSCH
    • 233854HC-CARGO
    • WRT69772WOOD AUTO SUPPL
