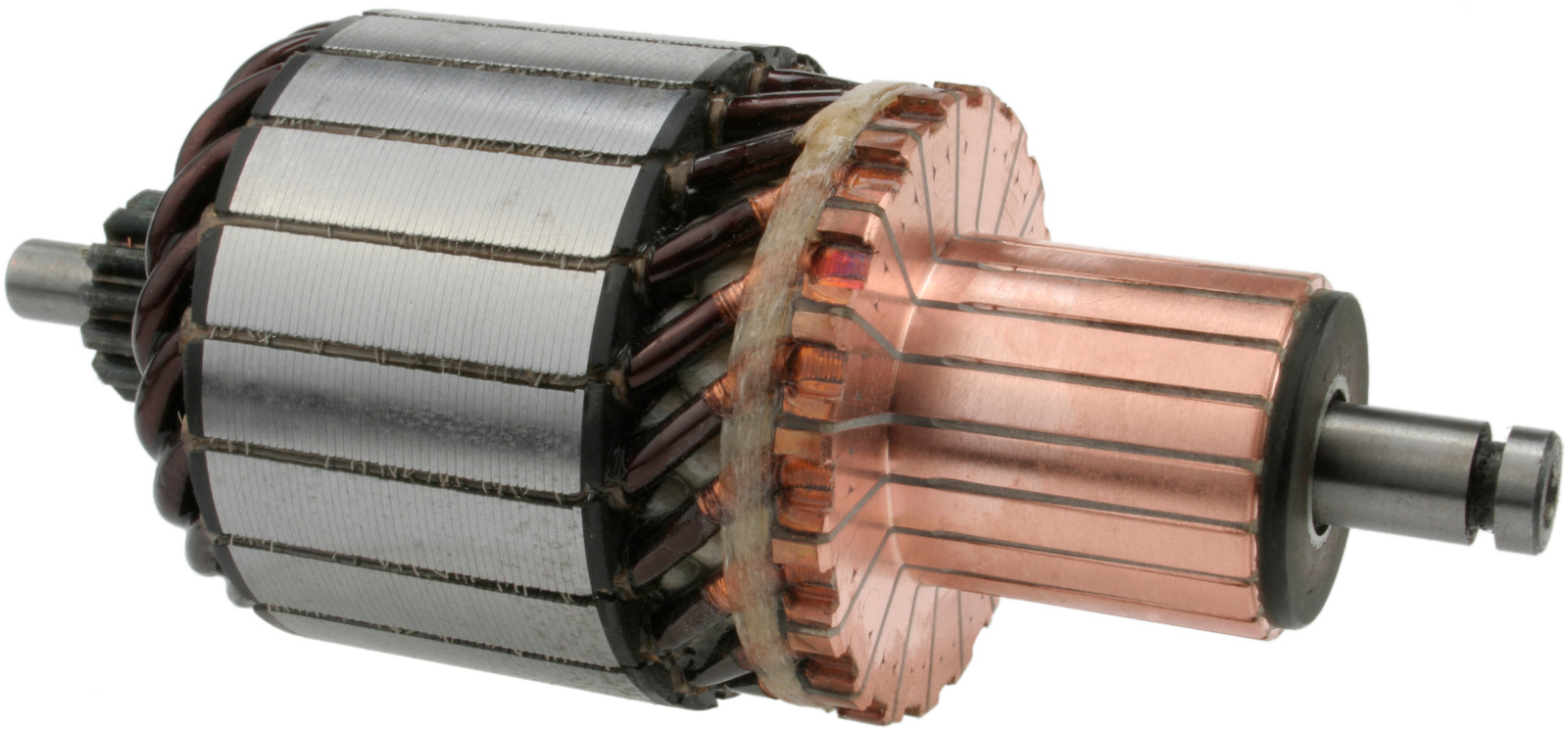

F032233475 - Armature

Trade number 233475
Product image - main
Trade number 233475

Details & description

kW 2.3, Voltage 12, Commutator Diameter 30.50, Commutator Distance 17.50, OD/spline/teeth 20.50, No./bars 19, Commutator Height 37.60, Bar length 1.90, Commutator Inner Diameter 10.20, Bar Distance 3.70, No./teeth 14, Core Diameter 58.00, Shaft length 144.00, Bar Cross Distance 39.20, Commutator End Shaft Diameter 10.00, Bar Lane Height 28.90, Spline Teeth Length 24.50, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 43.40, Rotation CW

Product information

Electrical information

  • kW2.3
  • Voltage12

Physical information

  • Commutator Diameter30.50
  • Commutator Distance17.50
  • OD/spline/teeth20.50
  • No./bars19
  • Commutator Height37.60
  • Commutator Inner Diameter10.20
  • Bar Distance3.70
  • No./teeth14
  • Core Diameter58.00

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0052AUTOSTARTER POLAND
    • 6033AD1059BOSCH
    • 6033AD0010BOSCH
    • 6033AD0436BOSCH
    • 233475HC-CARGO
    • WSA5975WOOD AUTO SUPPL
