F032133422 - Solenoid Switch

Trade number 133422

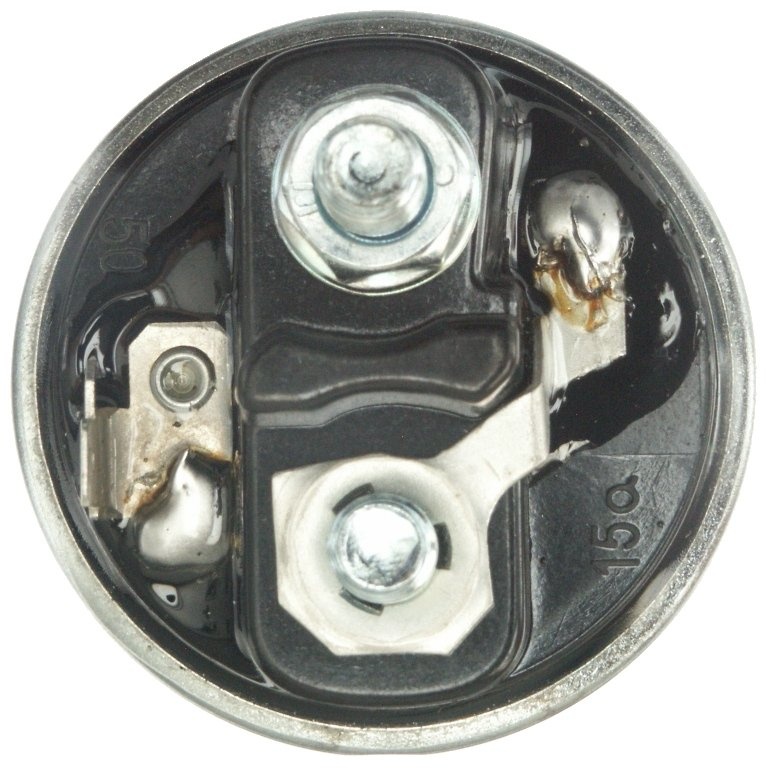

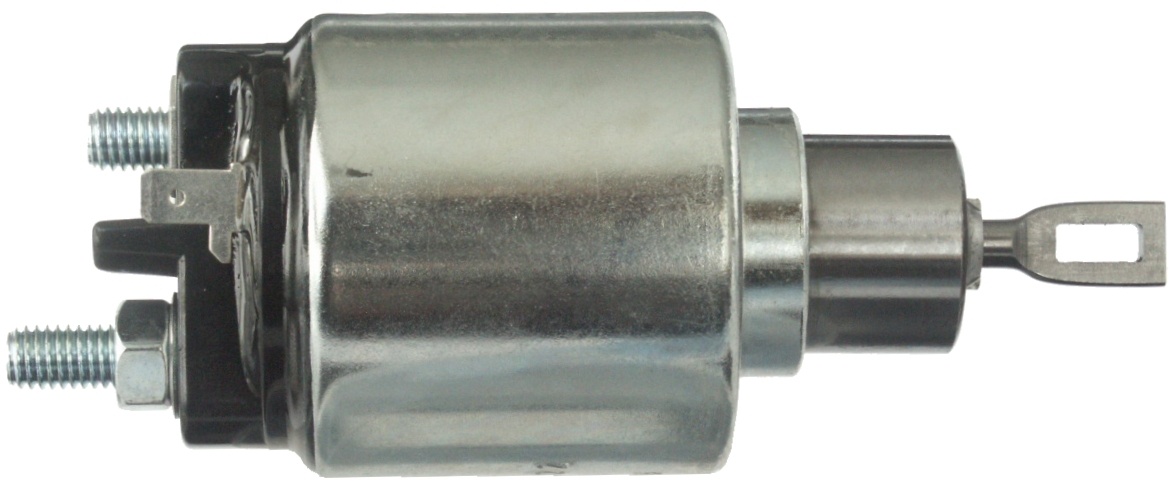

Product image - main
Trade number 133422

Details & description

Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 9.00, Plunger Inner Diameter 10.30, Eye Outer Diameter 10.60, Plunger Outer Diameter 26.90, Eye Inner Diameter 4.60, B+ M8, Terminal 50 Spade, B+ Height 15.00, Coil Bolt Diameter M8, Outer Diameter 56.30, Remarks Cap: HC-CARGO 132779., Length 63.00, Amount of Mounting Holes 3, Total Length 86.00

Product information

Electrical information

  • Voltage12

Catalogue information

  • RemarksCap: HC-CARGO 132779.

Physical information

  • No./mount. holes3
  • No./terminals3
  • Coil Bolt Length9.00
  • Eye Outer Diameter10.60
  • Eye Inner Diameter4.60
  • B+M8
  • Terminal 50Spade
  • Coil Bolt DiameterM8
  • Outer Diameter56.30

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SS0195BOSCHAUTOSTARTER POLAND
    • SS0195ZMAUTOSTARTER POLAND
    • SS0195PAUTOSTARTER POLAND
    • 0331303109BOSCH
    • 0331303609BOSCH
    • 9330331013BOSCH
    • 9330331513BOSCH
    • 133422HC-CARGO
    • ZM1976ZM
