F032116782 - Alternator

Trade number 116782

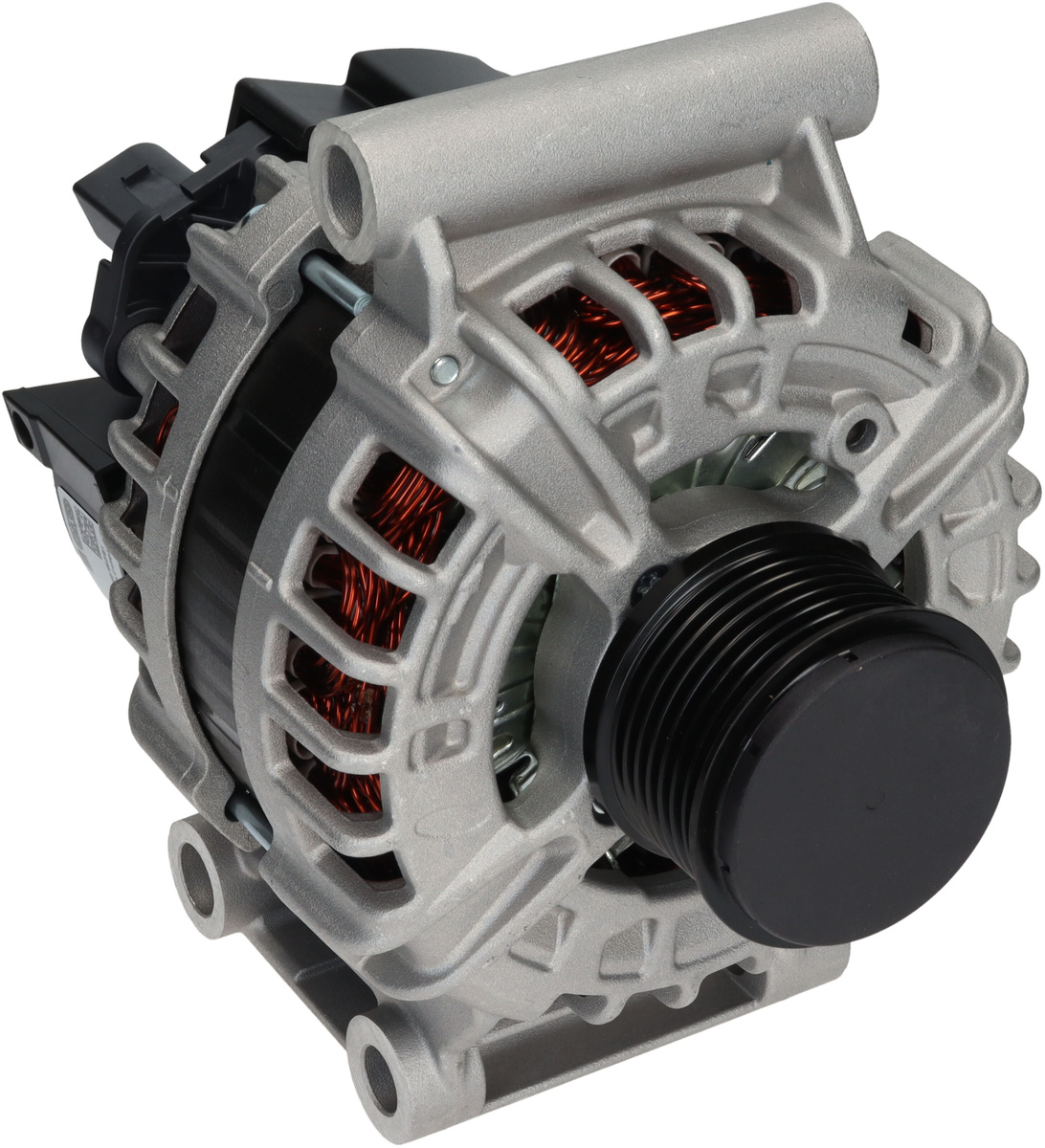

Product image - main
Trade number 116782

Details & description

Voltage 14, Amp 210, Communication LIN, Pulley SP/FW, Pulley Diameter 58.70, Bracket Hole Size Rear 12.30, Pulley Distance 43.50, ID Code 88, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 74.00, Radius 87.50, Belt Adjustment Bracket Hole 1 10.30, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 10.30, Terminal type COM, Holder Arm Width 97.00, B+ M8, Fan IF, Radius 2 87.50, Plug no. 1 PL174, Rotation CW, B+ Position 44, Total Length 203.00

Product information

Electrical information

  • Voltage14
  • Amp210

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter58.70
  • Bracket Hole Size Rear12.30
  • Pulley Distance43.50
  • ID Code88
  • Mounting Bracket Distance74.00
  • Radius87.50
  • Belt Adjustment Bracket Hole 110.30
  • Suggested Products

    Replacing and BOMs

    OEM number

    • BK3T10300EBFORD
    • BK3T10300EAFORD
    • 1820604FORD
    • BK3Z10346AFORD
    • 1874997FORD

    Competitor References

    • DRA1798AC DELCO
    • 555028RIBAD KÜHNER
    • A0770SAUTOSTARTER POLAND
    • 0125811086BOSCHBOM
    • 0125811016BOSCHBOM
    • 0125811015BOSCHBOM
    • 0986082187BOSCH
    • 0125811085BOSCHBOM
    • 1986A00683BOSCH
  • Compatible products
