F032116776 - Starter

Trade number 116776

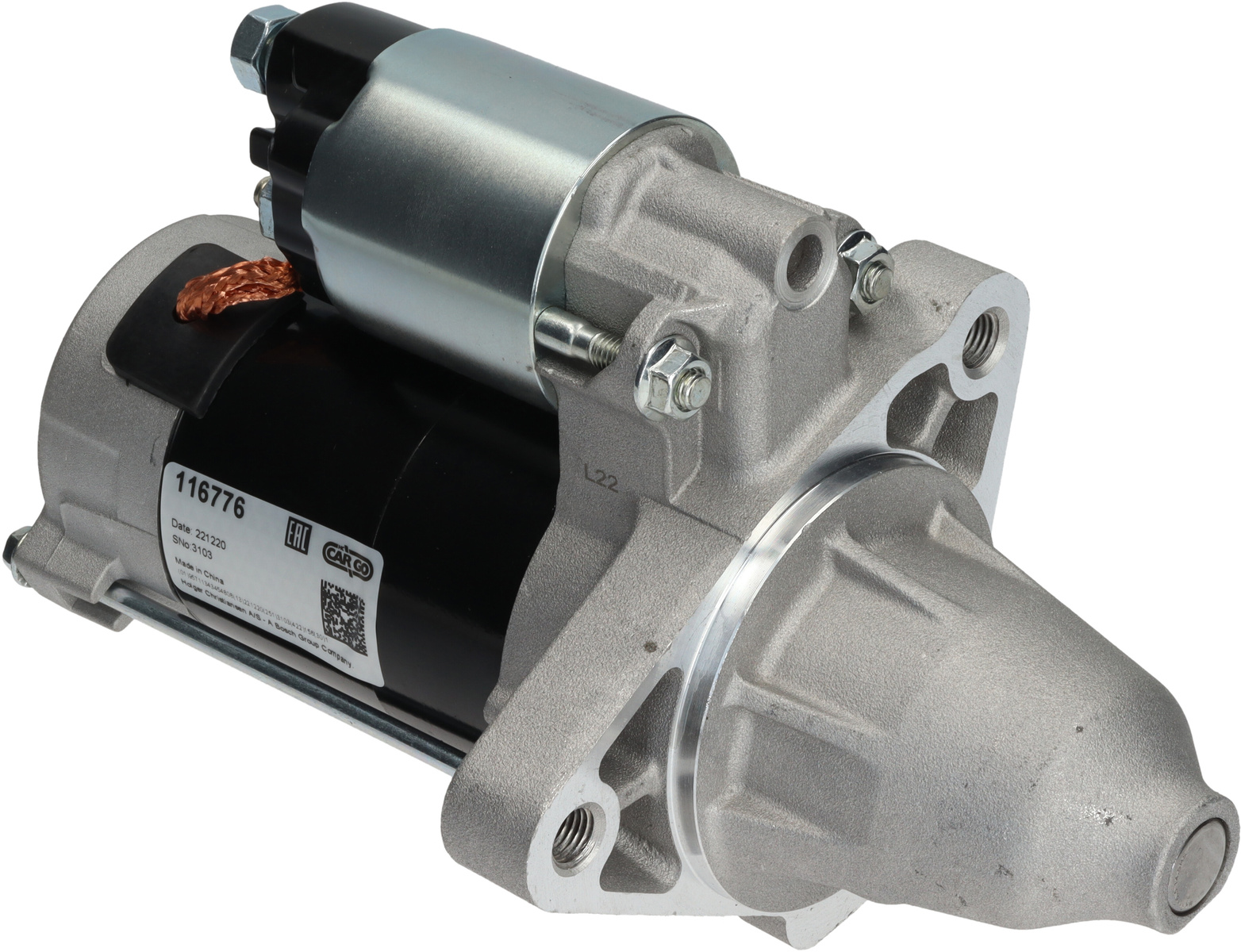

Product image - main
Trade number 116776

Details & description

kW 1.0, Voltage 12, Drive type Steel, No./mount. holes 2 (2), Mounting Hole 2 M10-1.25, Rear Distance 153.50, Gear type GR, Front Distance 69.00, Drive Distance 36.00, No./teeth 9, B+ M8, Terminal 50 6.30, Mounting Flange 74.00, Distance 104.00, Rotation CW, Position 45, Mounting Hole 1 M10-1.25, B+ Position 60, Amount of Mounting Holes 2 (2), Total Length 222.50

Product information

Electrical information

  • kW1.0
  • Voltage12

Physical information

  • Drive typeSteel
  • No./mount. holes2 (2)
  • Mounting Hole 2M10-1.25
  • Rear Distance153.50
  • Gear typeGR
  • Front Distance69.00
  • Drive Distance36.00
  • No./teeth9
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 28100B1020SUBARU
    • 28100B2120TOYOTA
    • 28100B1020TOYOTA
    • 28100B2110TOYOTA

    Competitor References

    • 4280002560DENSOBOM
    • 317033092DRI
    • 254177ELSTOCK
    • 11040864EUROTEC
    • 116776HC-CARGO

    Compatible products
