F032116676 - Alternator

Trade number 116676

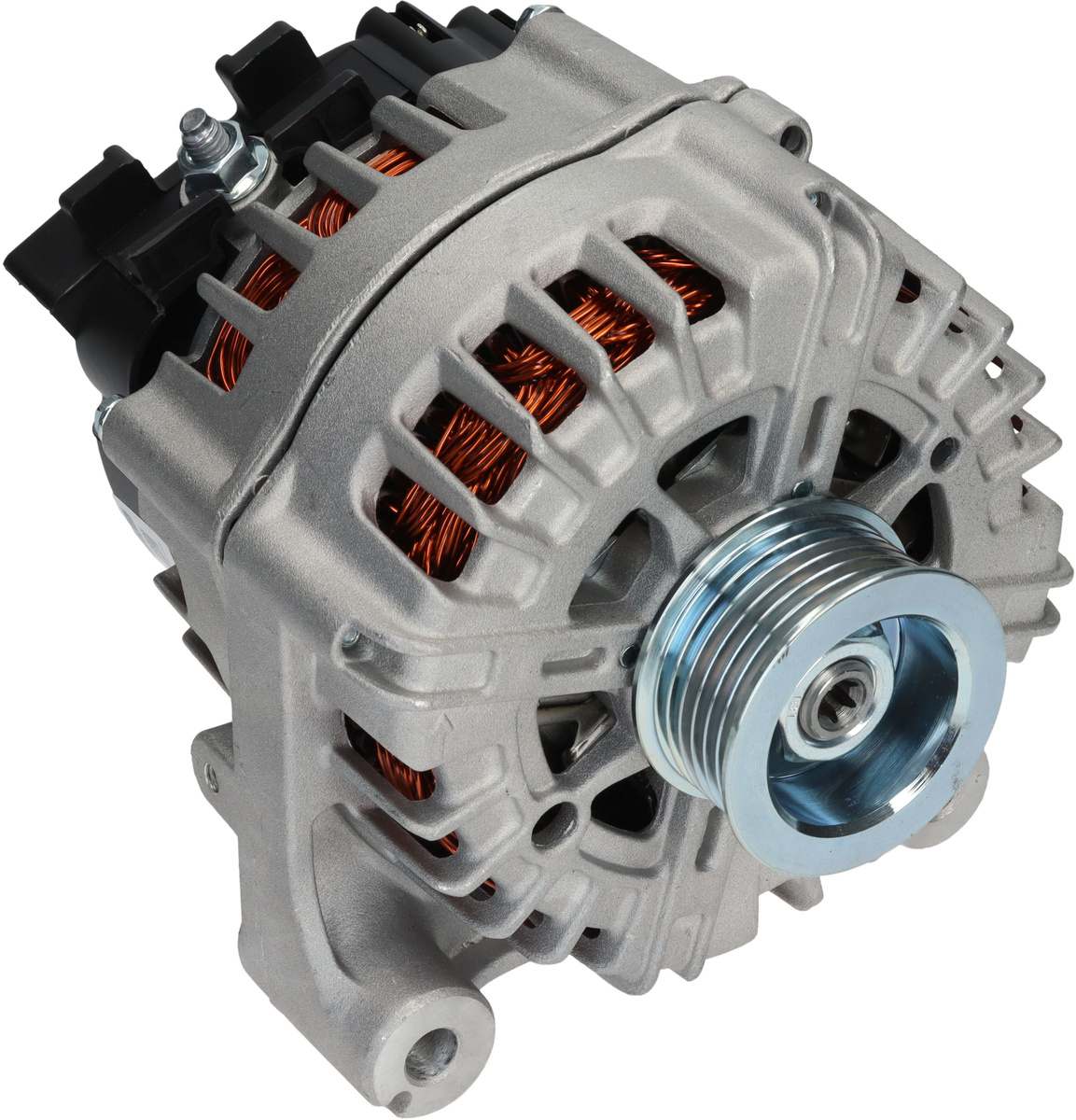

Product image - main
Trade number 116676

Details & description

Voltage 14, Amp 180, Communication BSS, Pulley SP, Pulley Diameter 53.00, Bracket Hole Size Rear M10, Pulley Distance 57.50, ID Code 52, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 75.50, Radius 93.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 28.00, B+ M8, Fan IF, Radius 2 93.00, Plug no. 1 PL125, Rotation CW, B+ Position 59, Belt Adjustment Bracket Hole Position 43, Total Length 180.00

Product information

Electrical information

  • Voltage14
  • Amp180

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP
  • Pulley Diameter53.00
  • Bracket Hole Size RearM10
  • Pulley Distance57.50
  • ID Code52
  • Mounting Bracket Distance75.50
  • Radius93.00
  • Belt Adjustment Bracket Hole 110.50
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 7805432BMW
    • 12317805432BMW
    • 12317808073BMW

    Competitor References

    • DRA0429AC DELCO
    • 554208RIAD KÜHNER
    • CAL15378CASCO SRL
    • 215553175CV PSH
    • DRA0429DELCO REMY
    • 2151821802DRI
    • 285736ELSTOCK
    • 210815ERA SPA
    • 210815AERA SPA
