F032116554 - Starter

Trade number 116554

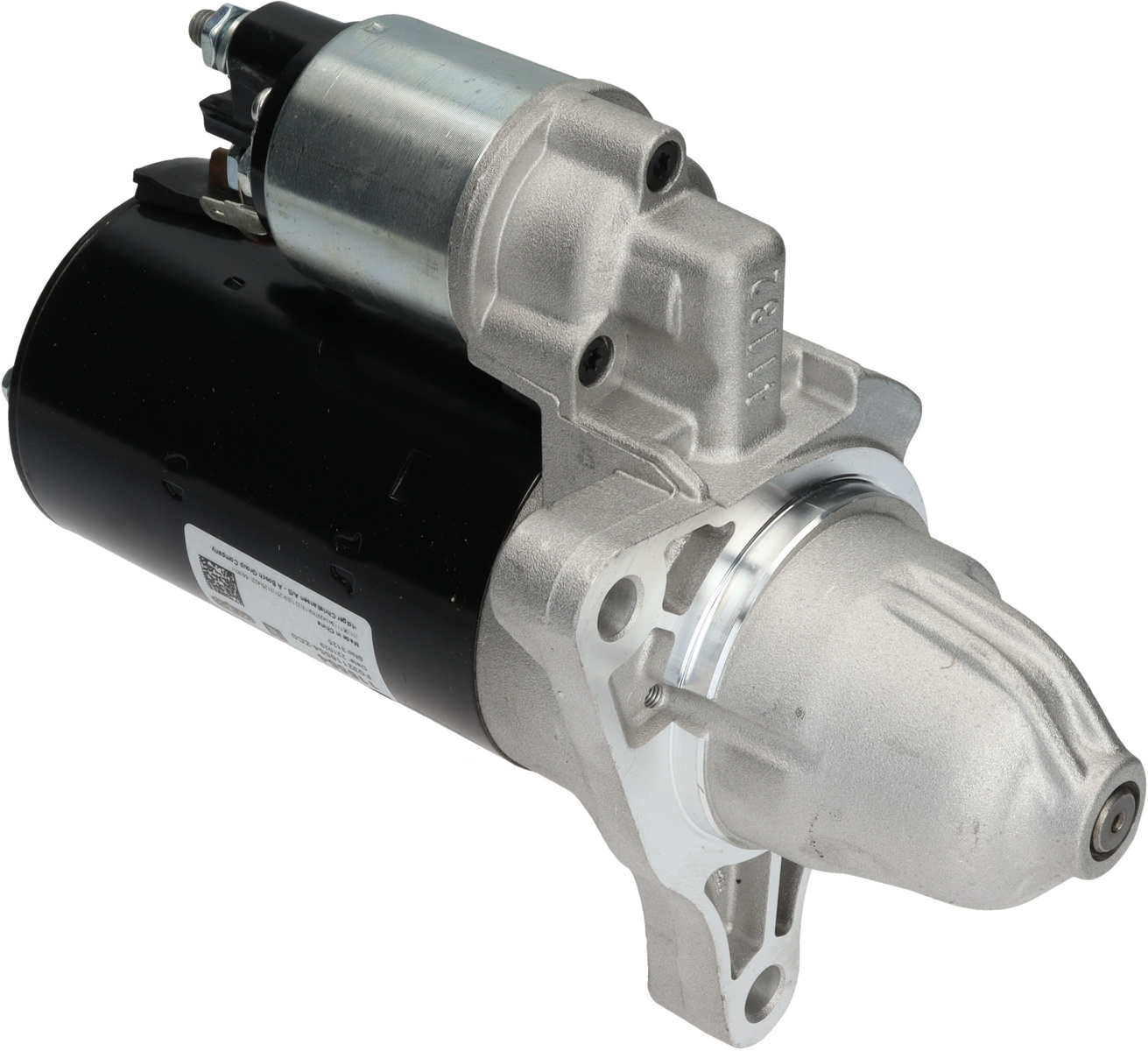

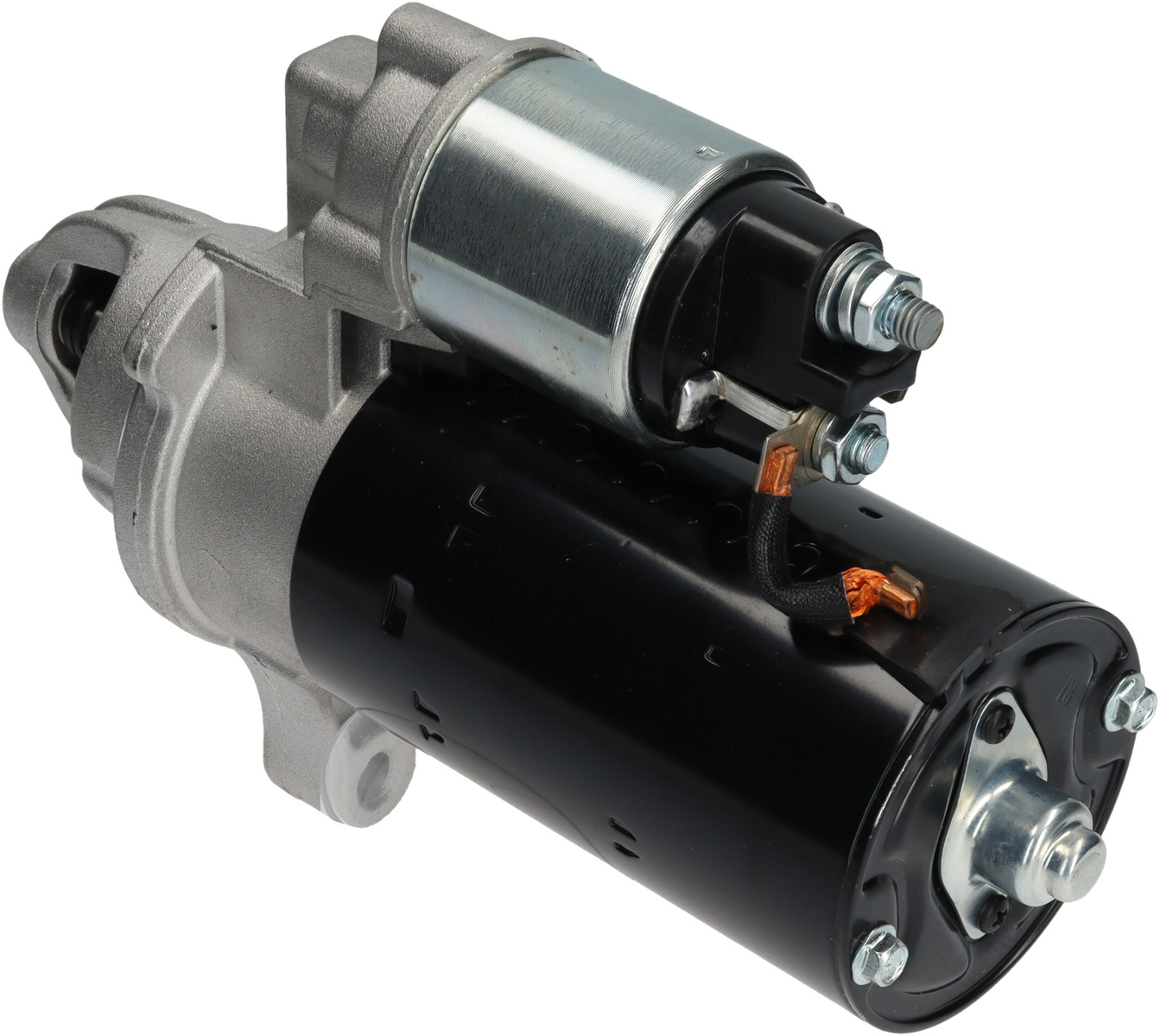

Product image - main
Trade number 116554

Details & description

kW 2.5, Voltage 12, No./mount. holes 2 (0), Mounting Hole 2 11.00, Rear Distance 186.50, Gear type GR, Front Distance 70.00, Drive Distance 36.00, No./teeth 10, B+ M8, Terminal 50 6.30, Mounting Flange 70.00, Distance 120.50, Rotation CW, Position 20, Mounting Hole 1 11.00, B+ Position 60, Amount of Mounting Holes 2 (0), Total Length 256.50

Product information

Electrical information

  • kW2.5
  • Voltage12

Physical information

  • No./mount. holes2 (0)
  • Mounting Hole 211.00
  • Rear Distance186.50
  • Gear typeGR
  • Front Distance70.00
  • Drive Distance36.00
  • No./teeth10
  • B+M8
  • Terminal 506.30

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 04801849ABCHRYSLER
    • 04801849ACCHRYSLER
    • 4801849ABCHRYSLER
    • 4801849ACCHRYSLER
    • 68100366AACHRYSLER

    Competitor References

    • DRS0608AC DELCO
    • 255015AD KÜHNER
    • S0619SAUTOSTARTER POLAND
    • 0001109377BOSCHBOM
    • 0001109378BOSCHBOM
    • 0001109401BOSCHBOM
    • 0001109402BOSCHBOM
    • 1986S00746BOSCH
    • 0001109342BOSCHBOM

    • Compatible products
