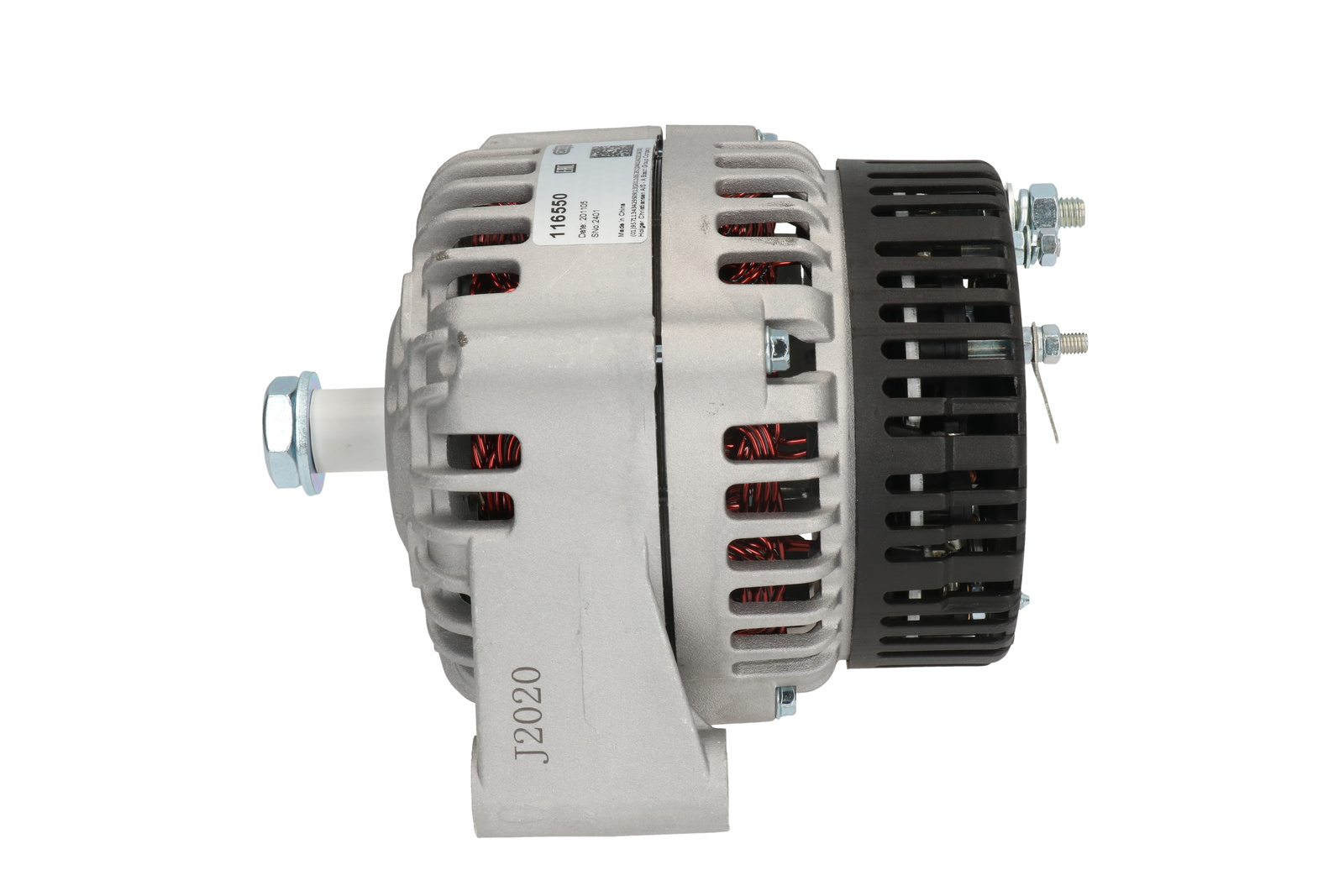

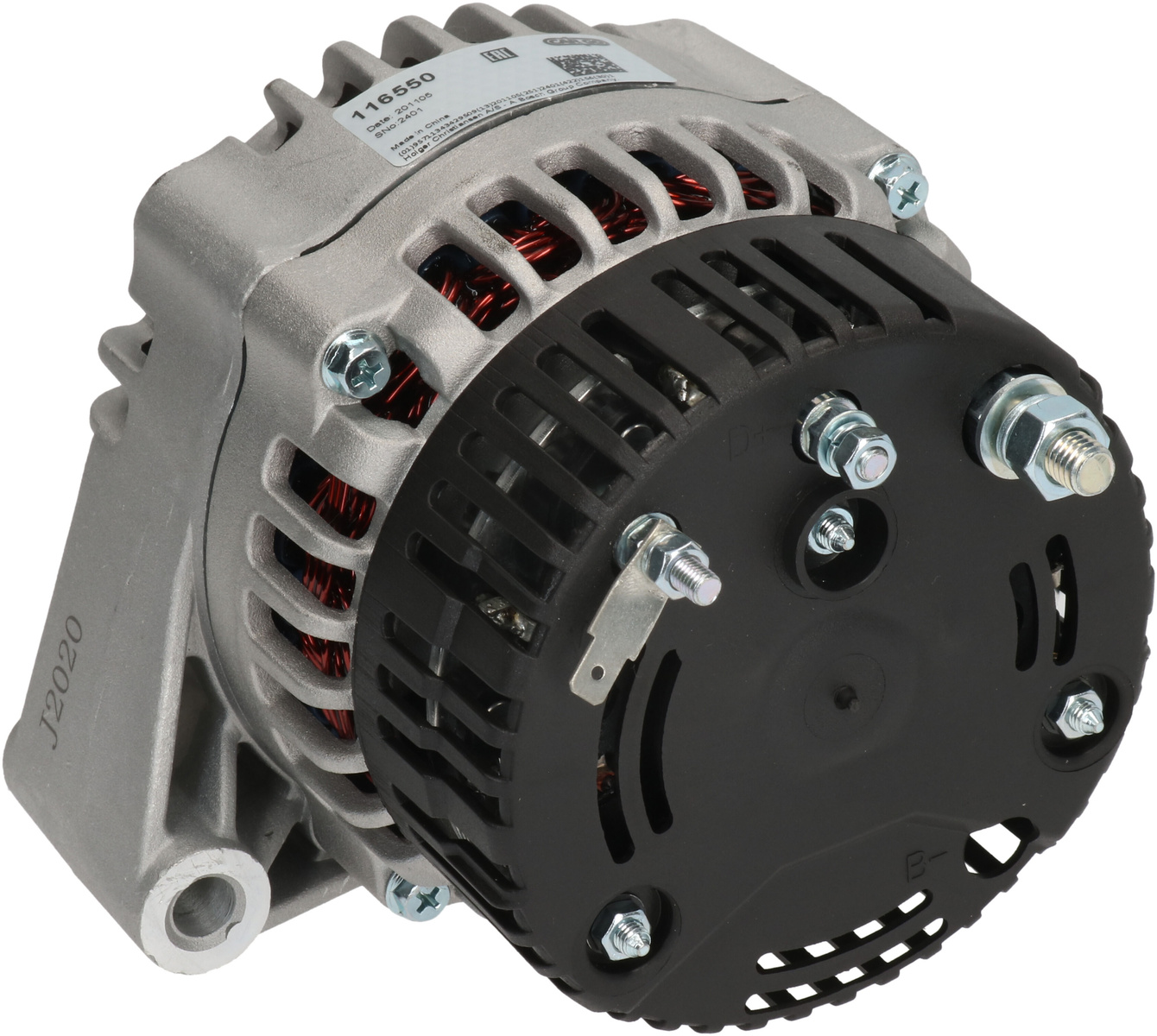

F032116550 - Alternator

Trade number 116550
Product image - main
Trade number 116550

Details & description

Terminal W, Voltage 14, Amp 95, Pulley w/o, W plug type M5-6.30, Bracket Hole Size 1 10.30, D+ Size M5, D+ Position 50, Holder Arm Width 56.00, B+ M8, Fan IF, Radius 2 90.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.30, Regulator type IR, B+ Position 56, Belt Adjustment Bracket Hole Position 50, Total Length 193.00

Product information

Electrical information

  • TerminalW
  • Voltage14
  • Amp95

Physical information

  • Pulleyw/o
  • W plug typeM5-6.30
  • Bracket Hole Size 110.30
  • D+ SizeM5
  • D+ Position50
  • Holder Arm Width56.00
  • B+M8
  • FanIF
  • Radius 290.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 05715374BOMAG
    • 05716783BOMAG
    • 05718621BOMAG
    • 08821094BOMAG
    • 5716783BOMAG
    • 01182038DEUTZ-FAHR
    • 01183429DEUTZ-FAHR
    • 01183622DEUTZ-FAHR
    • 01181745DEUTZ-FAHR

    • Competitor References

    • DRA0344NAC DELCO
    • DRA0344AC DELCO
    • DRA1338AC DELCO
    • DRA1338NAC DELCO
    • 553791RIAD KÜHNER
    • A9277SAUTOSTARTER POLAND
    • A9148LETRIKAAUTOSTARTER POLAND
    • CAL21112CASCO SRL
    • CAL21135CASCO SRL
