F032116538 - Alternator

Trade number 116538

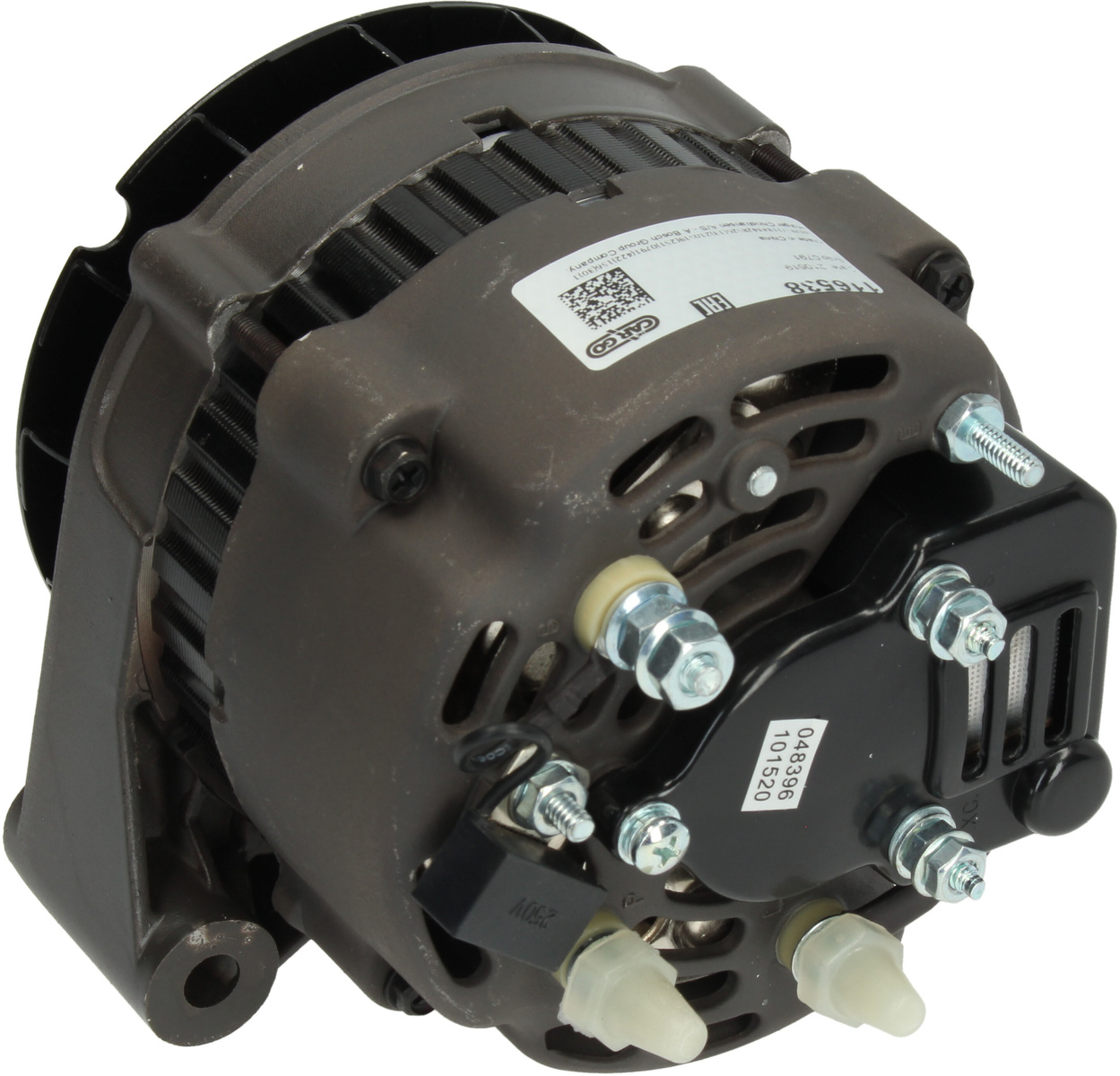

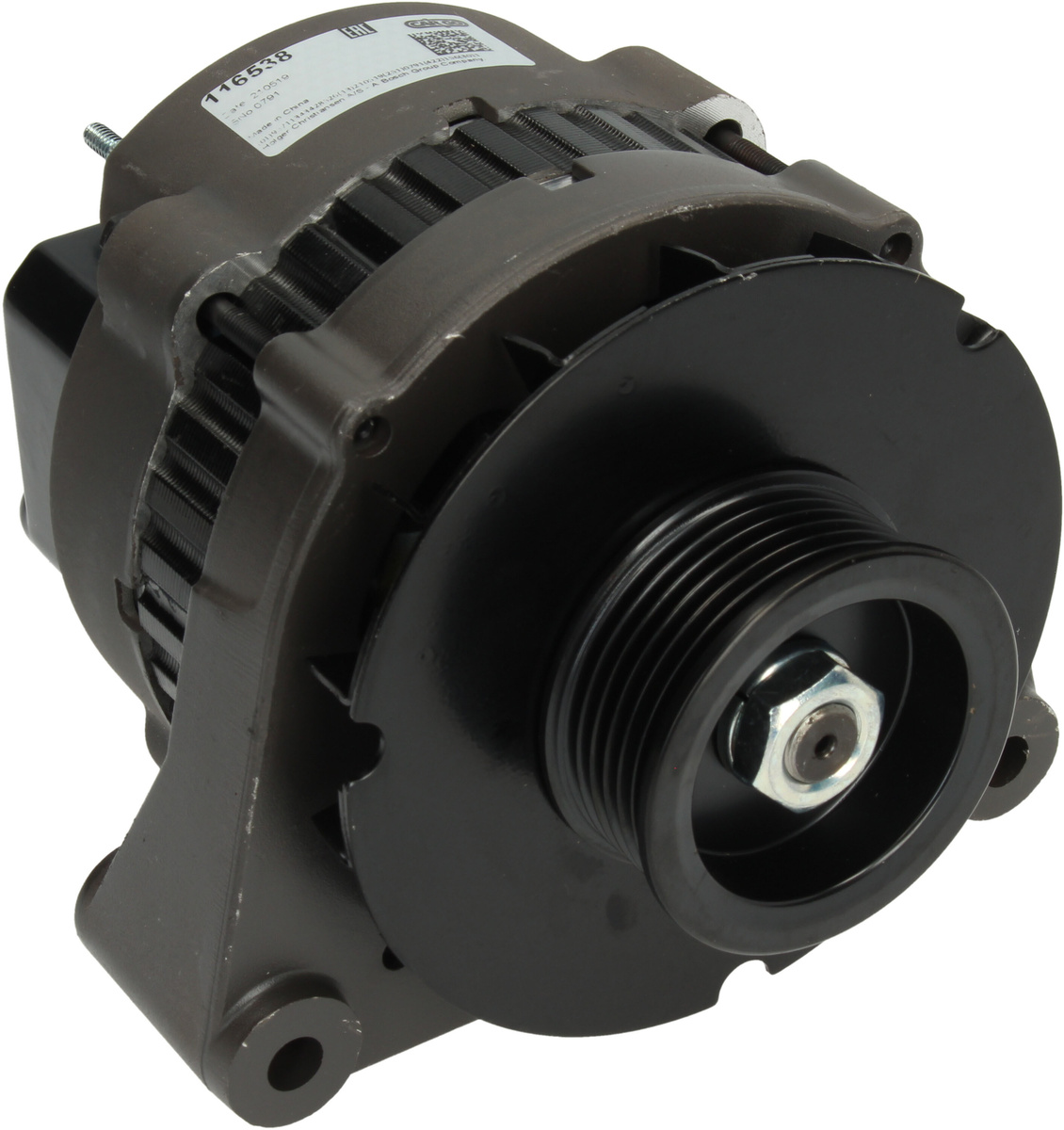

Product image - main
Trade number 116538

Details & description

Voltage 14, Amp 65, Bracket Hole Size 1 9.70, Pulley Diameter 63.00, D+ Size 10-24 UNC, D+ Position 37, Pulley Distance 72.40, B+ 1/4" UNC, Fan EF, Radius 2 89.00, Mounting Bracket Distance 50.60, Radius 89.00, Rotation CW, Belt Adjustment Bracket Hole 1 9.70, Grooves/pulley 6, B+ Position 2, Total Length 173.00

Product information

Electrical information

  • Voltage14
  • Amp65

Physical information

  • Bracket Hole Size 19.70
  • Pulley Diameter63.00
  • D+ Size10-24 UNC
  • D+ Position37
  • Pulley Distance72.40
  • B+1/4" UNC
  • FanEF
  • Radius 289.00
  • Mounting Bracket Distance50.60

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 3860082VOLVO
    • 3860798VOLVO

    Competitor References

    • 554282RIAD KÜHNER
    • AMN0018AKS DASIS
    • AMN0018ARROWHEAD
    • CAL32125CASCO SRL
    • 815022065CV PSH
    • 285923ELSTOCK
    • 113427FACROM
    • 116538HC-CARGO
    • LRA03311LUCAS
