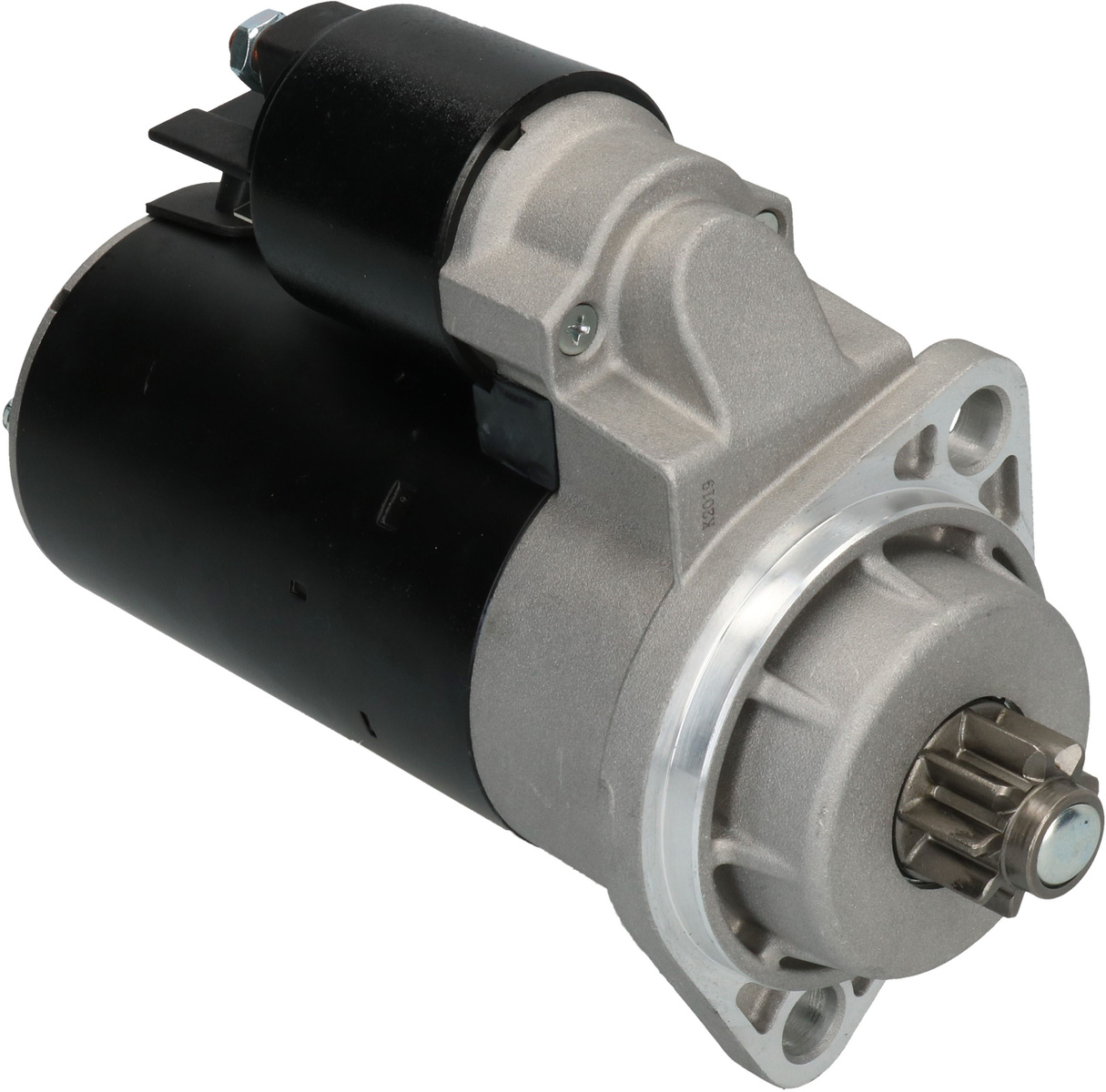

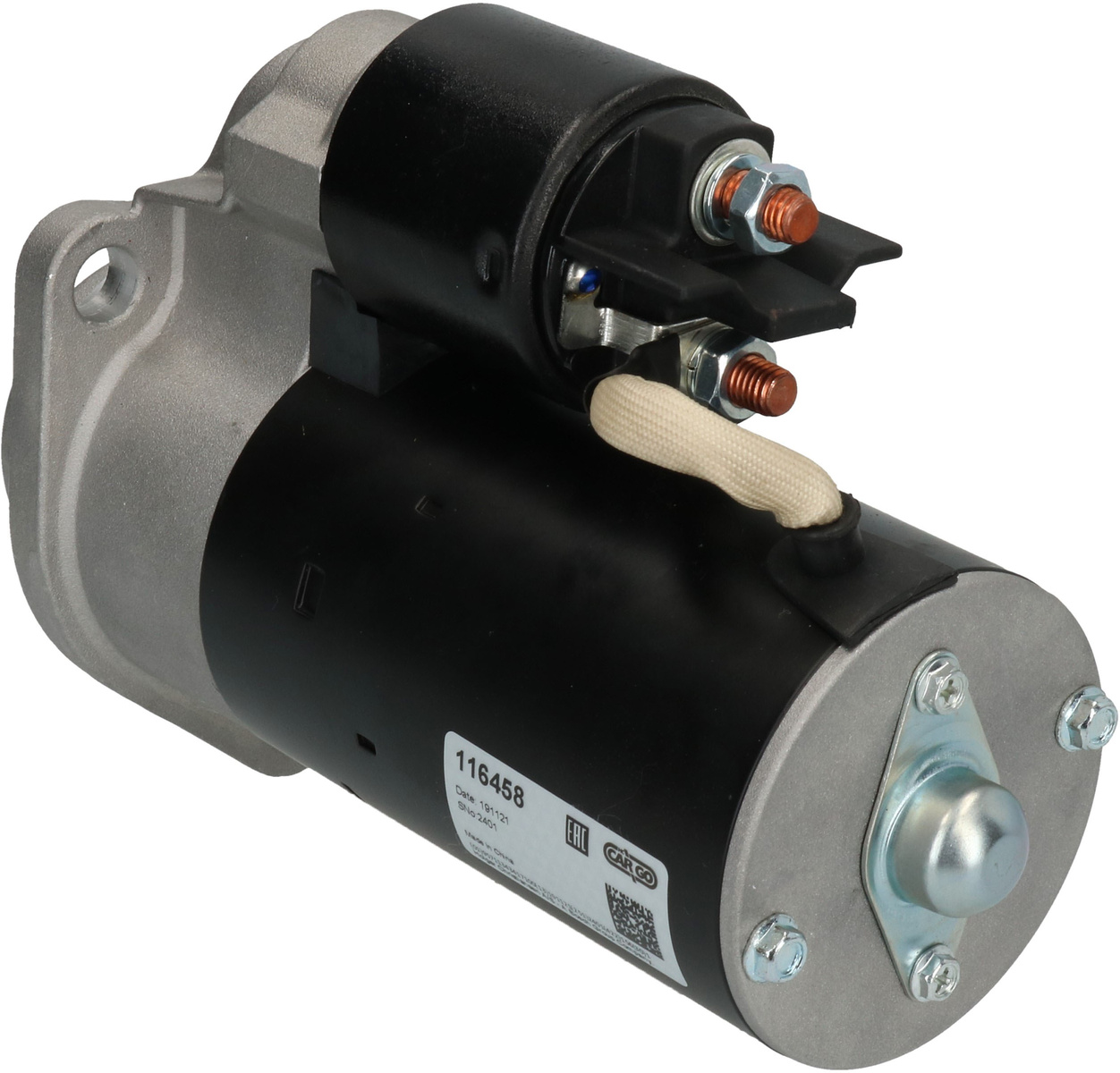

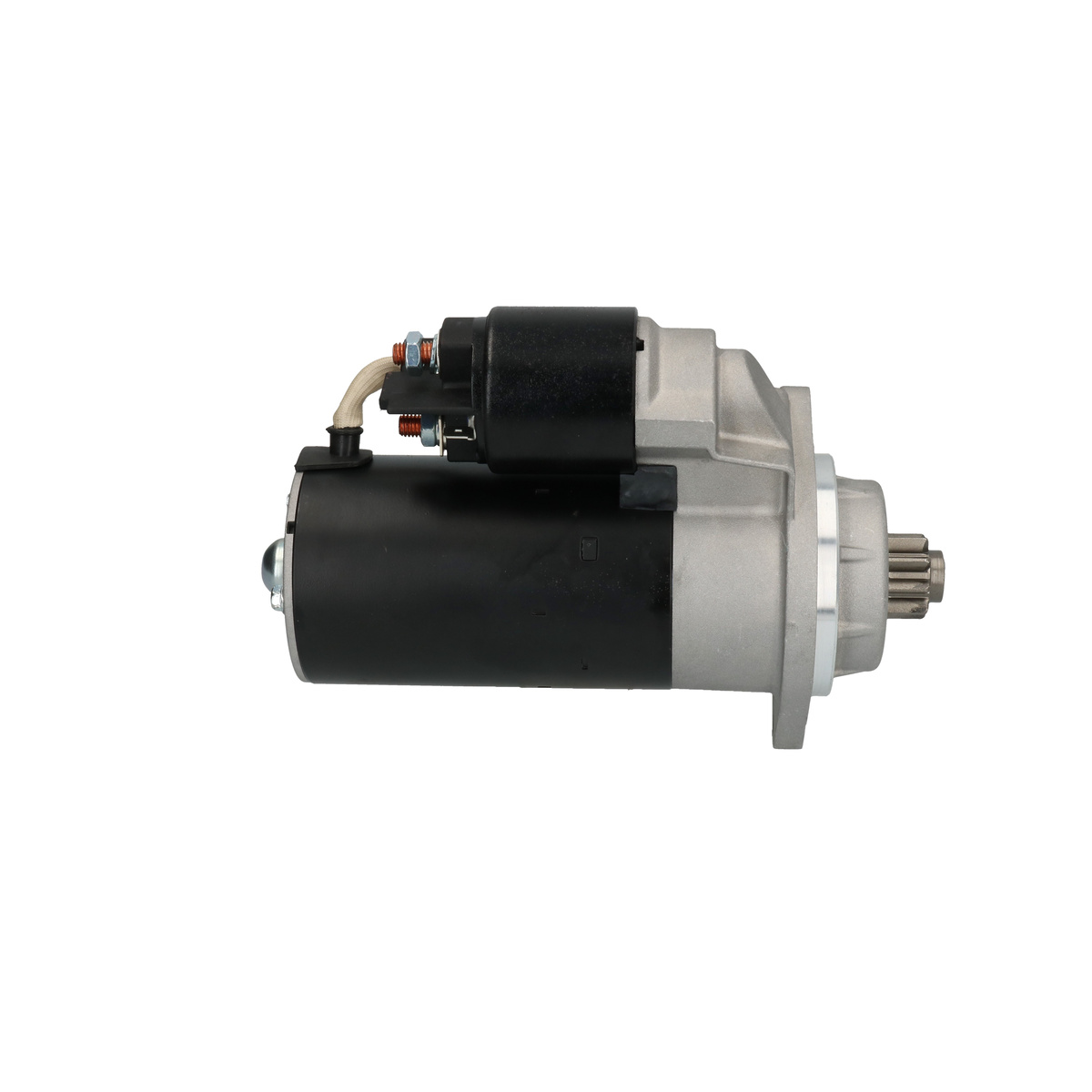

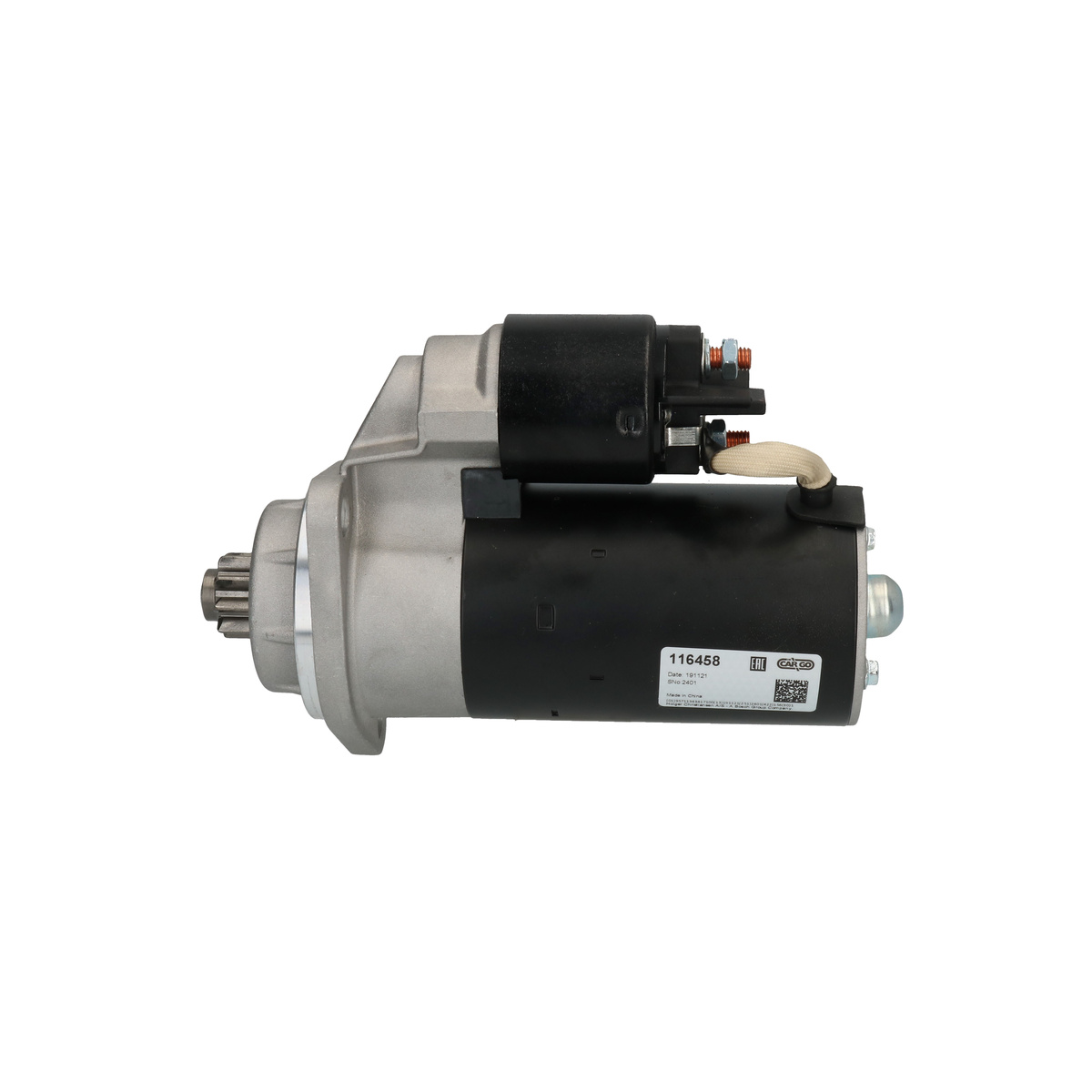

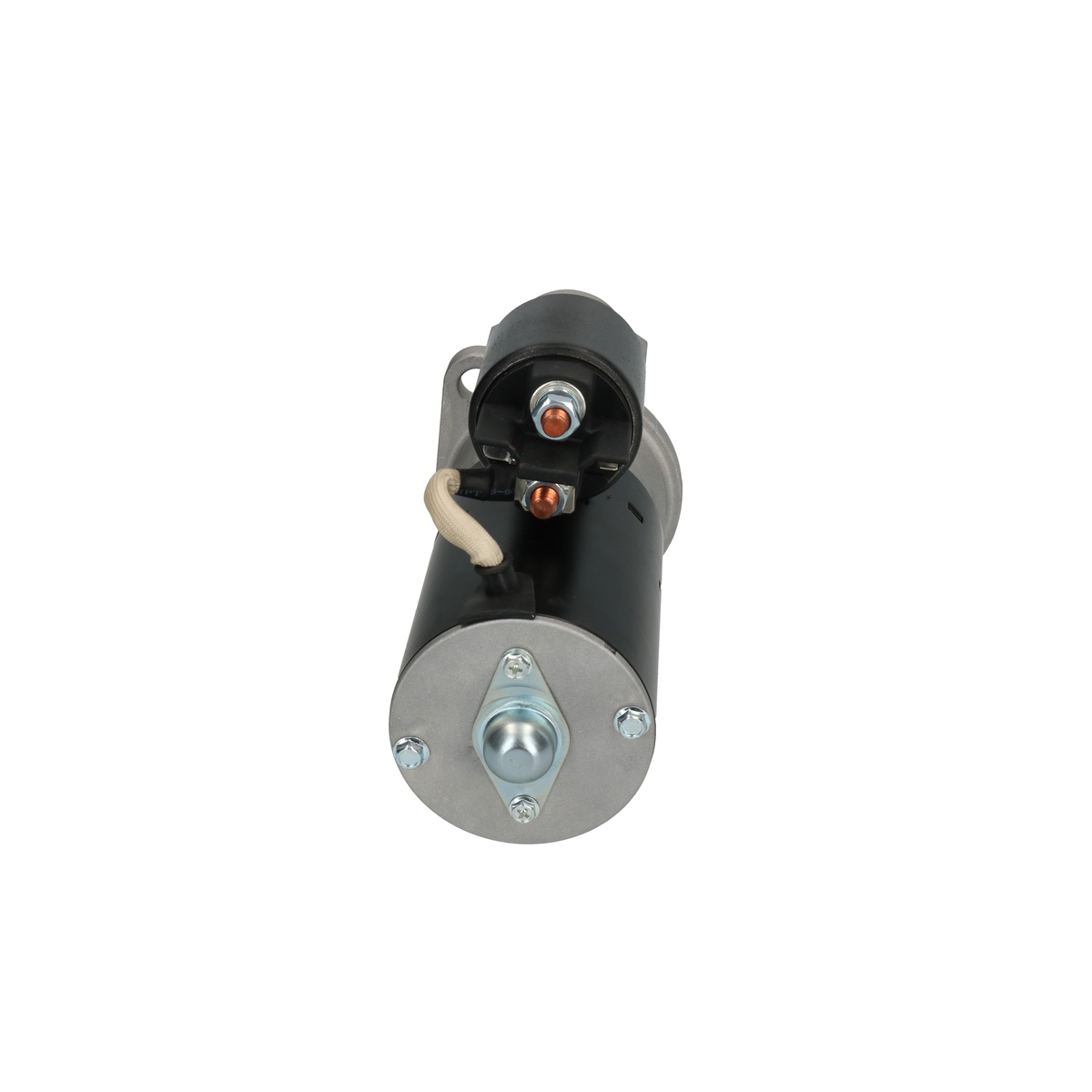

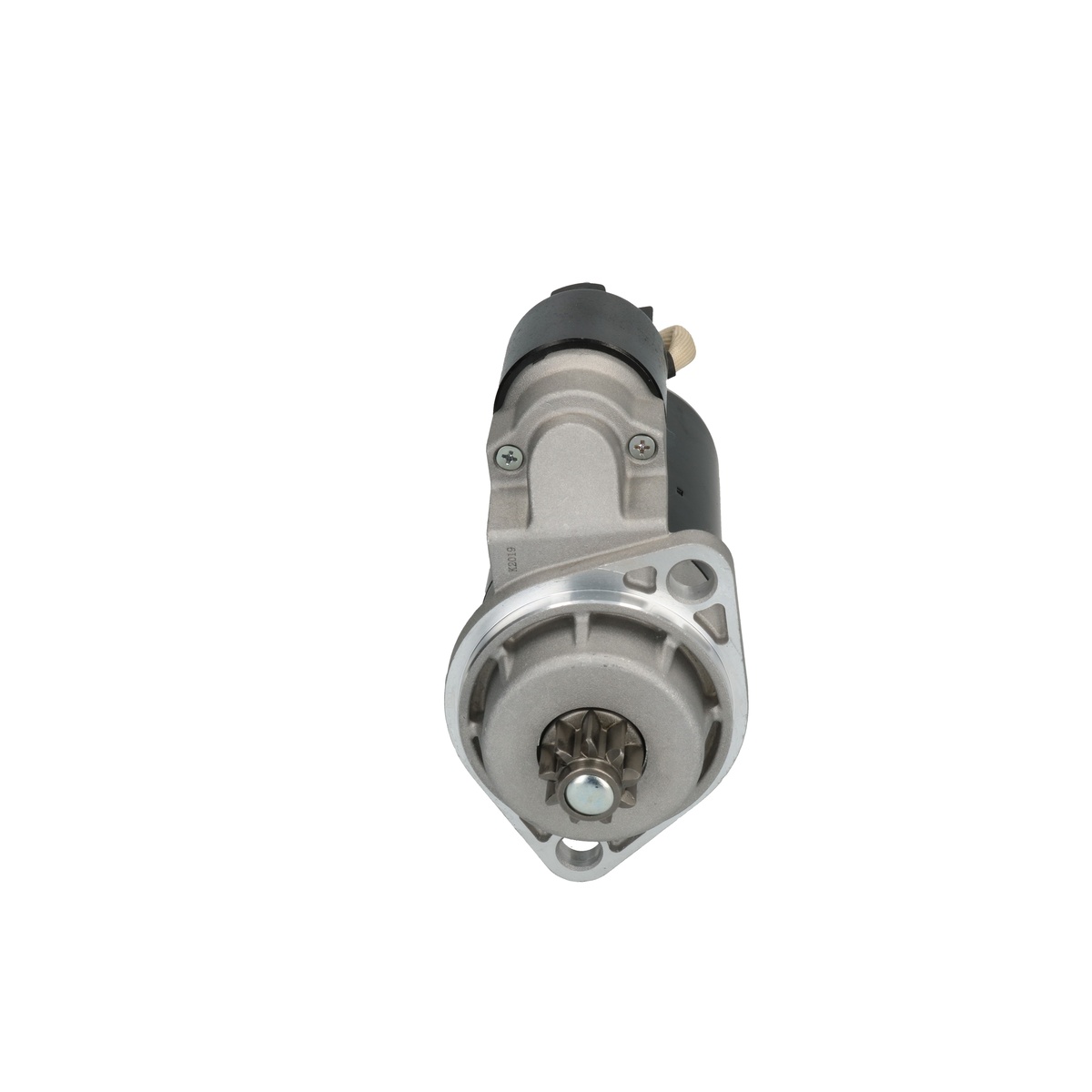

F032116458 - Starter

Trade number 116458
Product image - main
Trade number 116458

Details & description

Voltage 12, kW 2.0, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 177.00, Prod. info BN, Waterproof No, Drive Distance 40.50, Mounting Flange 82.50, Distance 102.50, Oil sealed No, No./mount. holes 2 (0), Gear type GR, Front Distance 45.00, No./teeth 9, B+ M8, Terminal 50 6.30, Rotation CW, Position 15, Mounting Hole 1 11.00, B+ Position 60, Total Length 233.50, Amount of Mounting Holes 2 (0)

Product information

Electrical information

  • Voltage12
  • kW2.0

Catalogue information

  • Prod. infoBN
  • WaterproofNo
  • Oil sealedNo

Physical information

  • Drive typeSteel
  • Mounting Hole 211.00
  • Rear Distance177.00
  • Drive Distance40.50
  • Mounting Flange82.50
  • Distance102.50
  • No./mount. holes2 (0)
  • Gear typeGR
  • Front Distance45.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 50495900HATZ
    • 50495901HATZ
    • 504959010733HATZ

    Competitor References

    • DRS0266AC DELCO
    • 101340AD KÜHNER
    • S9200LETRIKAAUTOSTARTER POLAND
    • S9200SAUTOSTARTER POLAND
    • CST21118CASCO SRL
    • 8096CEVAM
    • DRS0266NDELCO REMY
    • DRS0266DELCO REMY
    • 254043ELSTOCK

    • Compatible products
