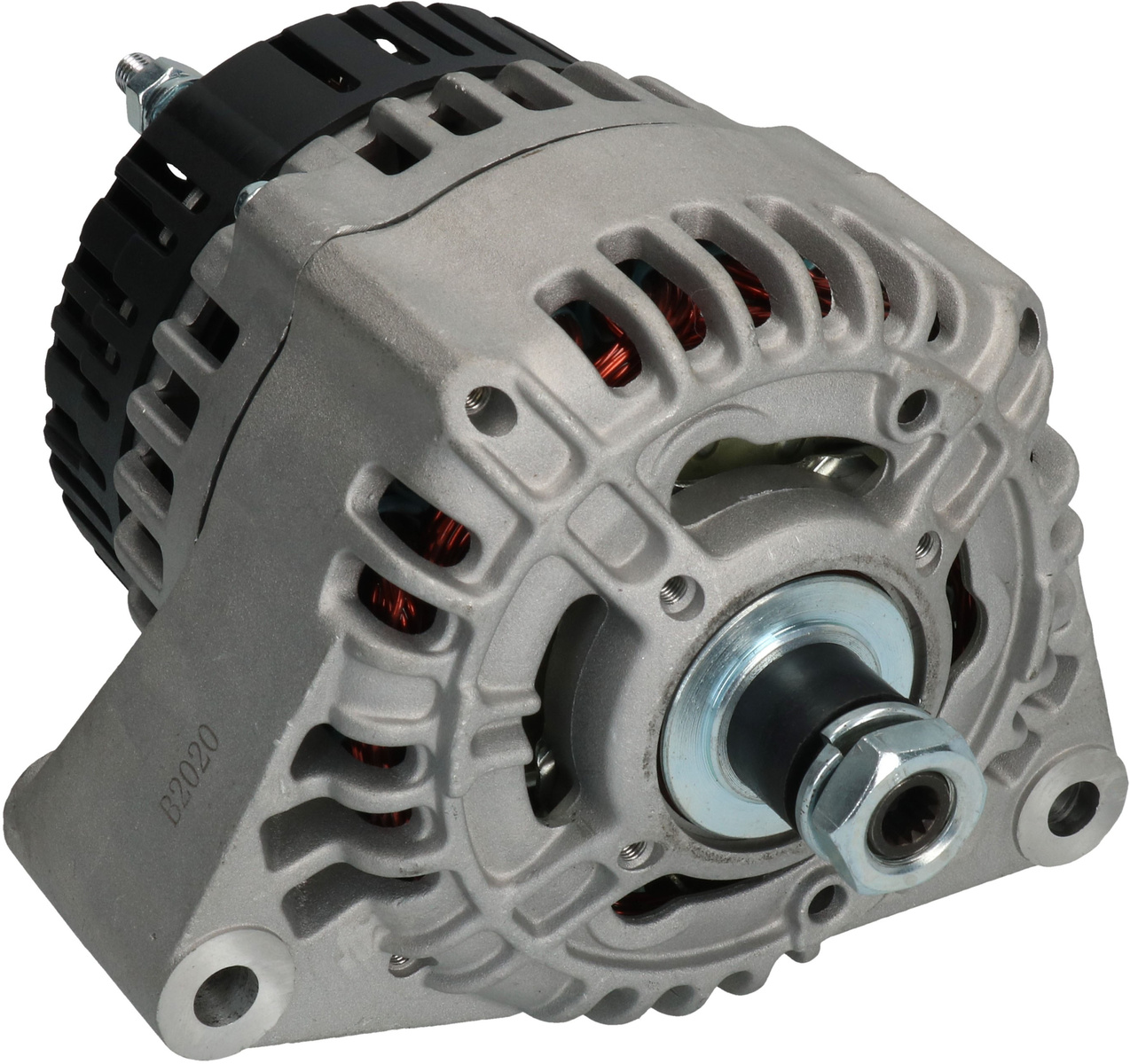

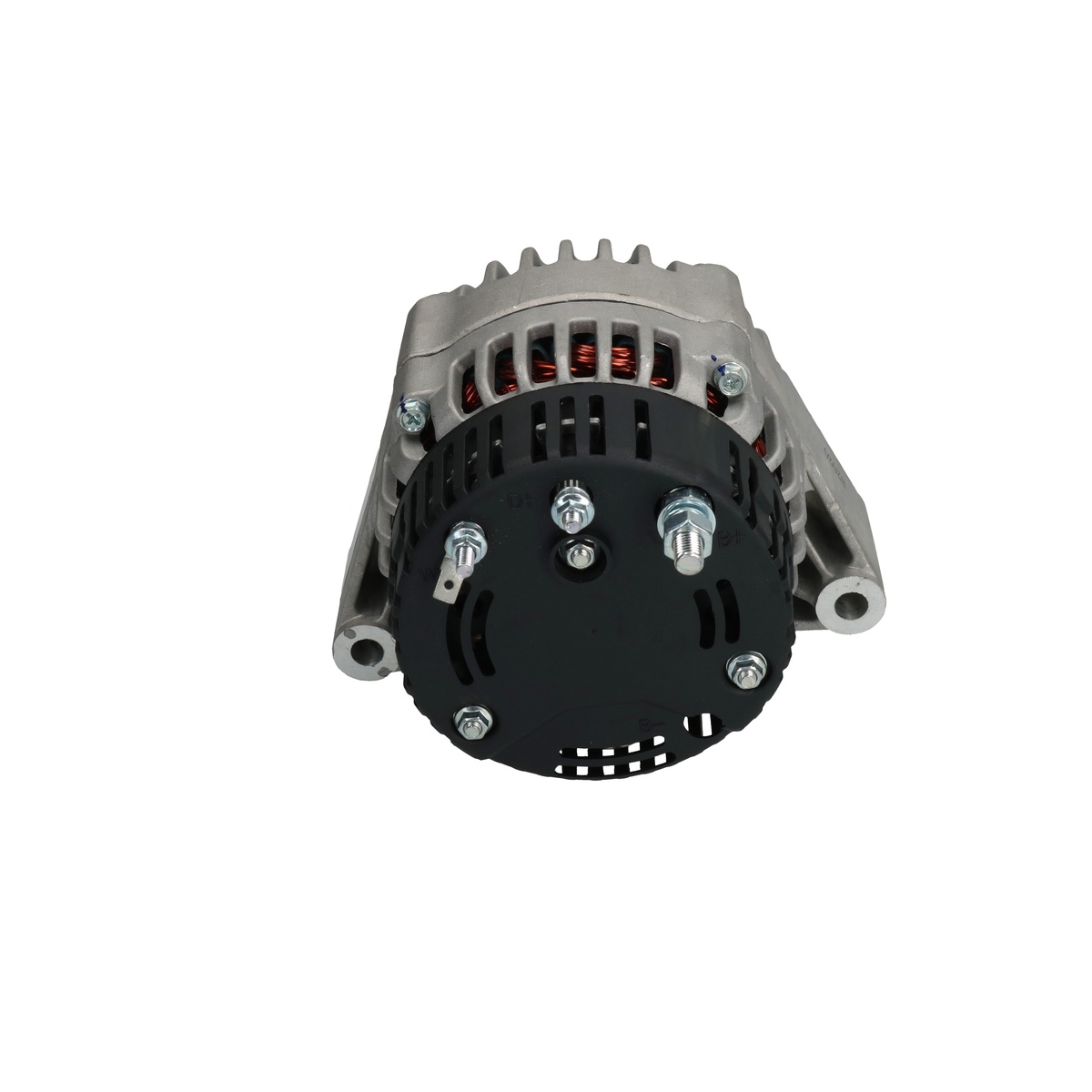

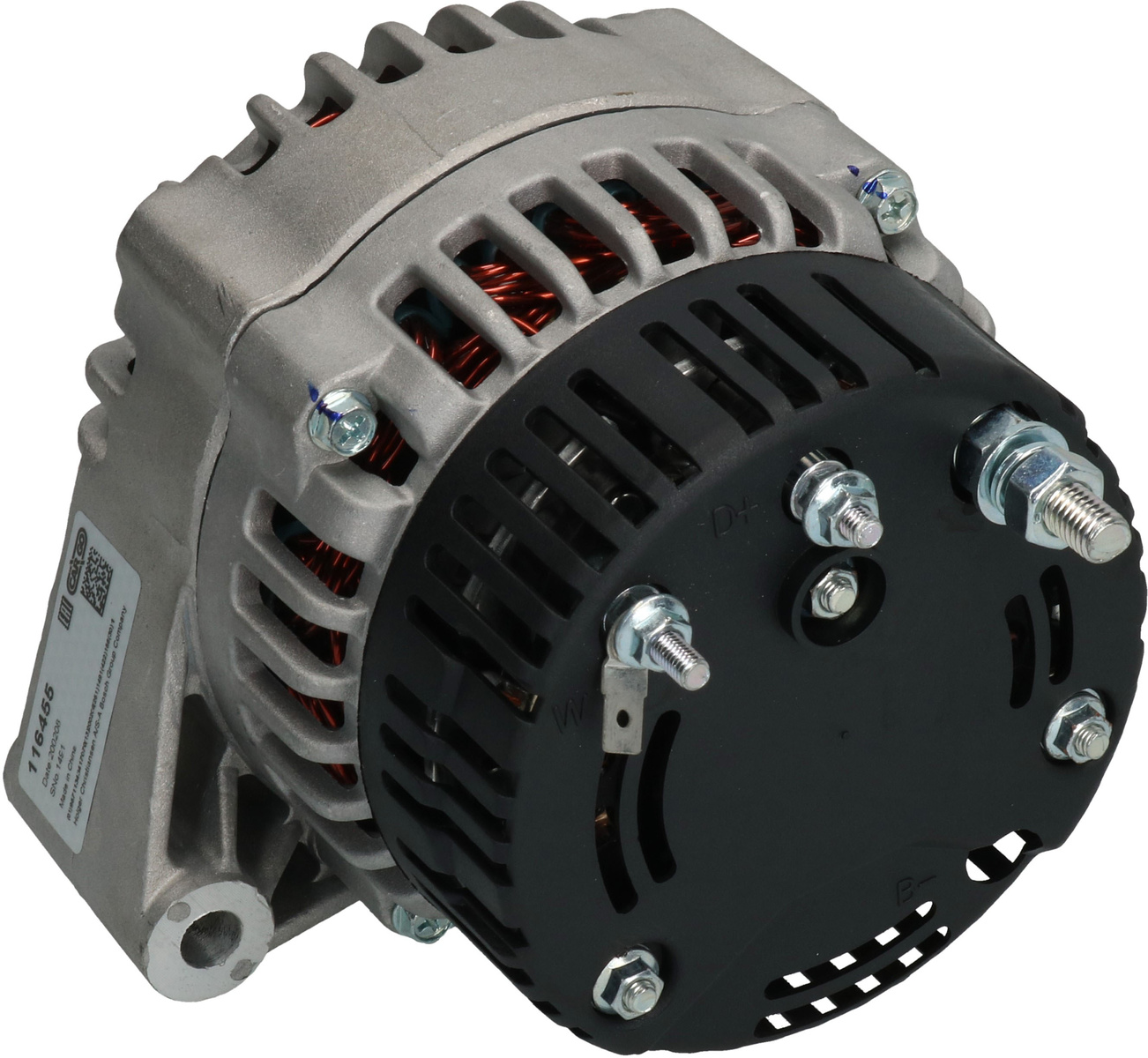

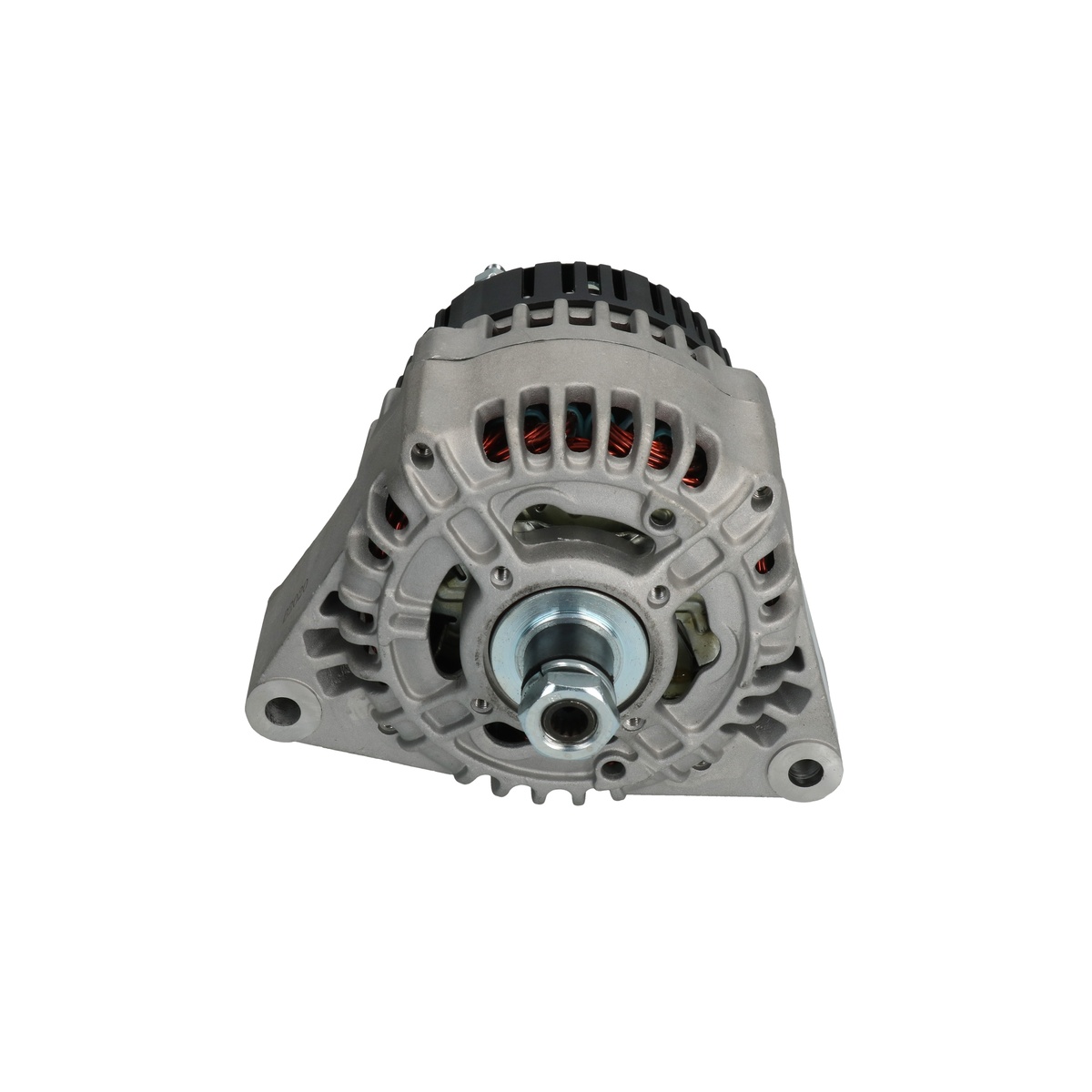

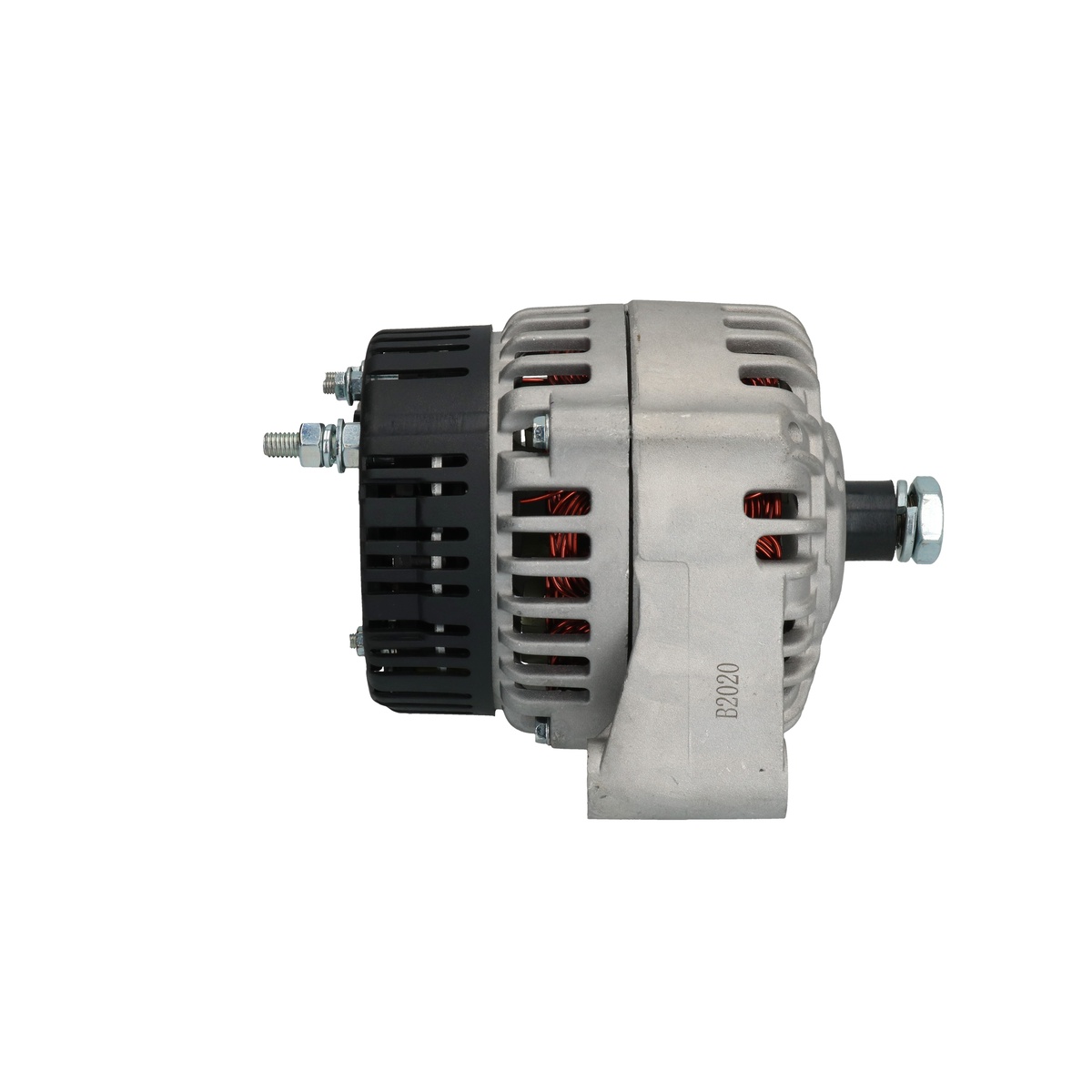

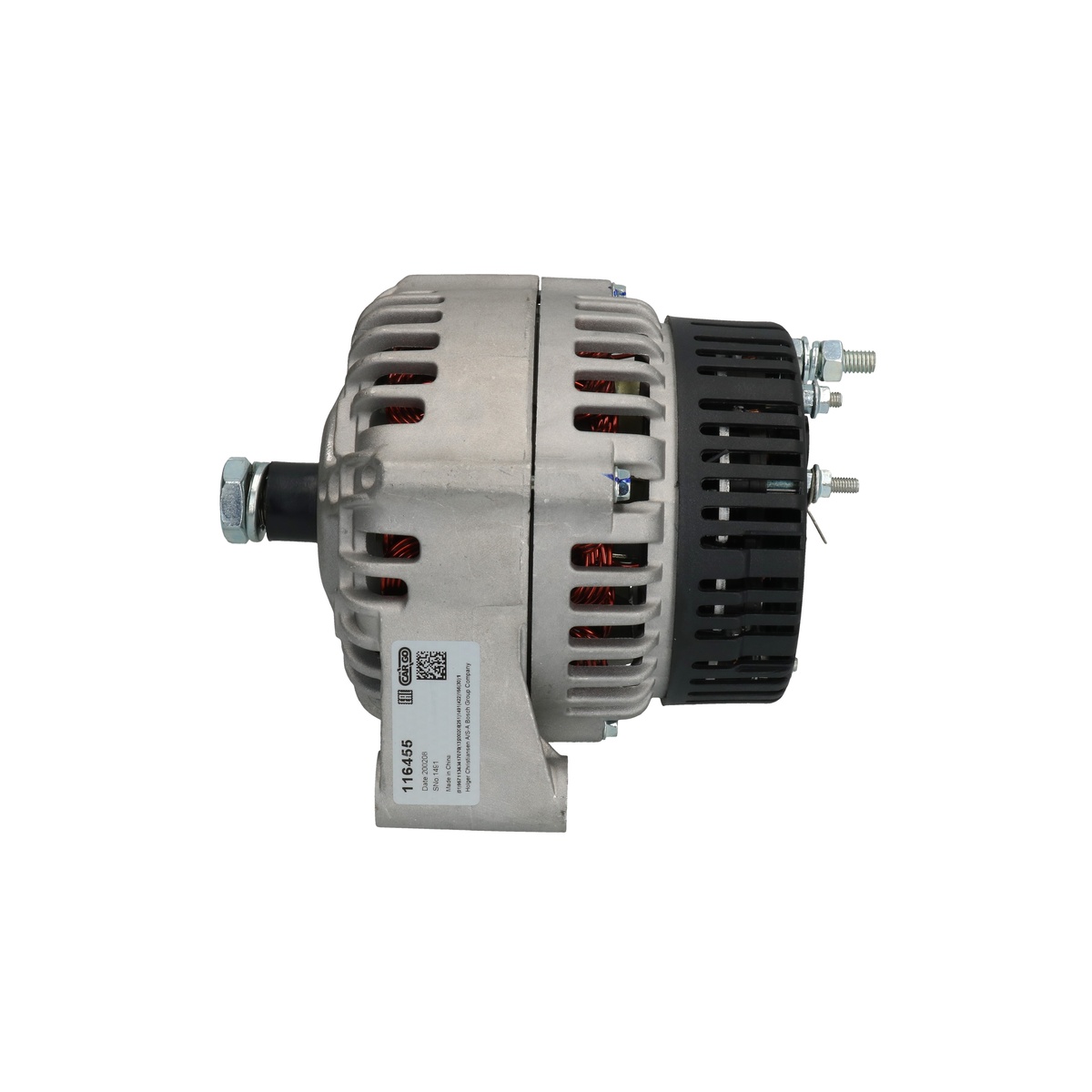

F032116455 - Alternator

Trade number 116455
Product image - main
Trade number 116455

Details & description

Terminal W, Voltage 28, Amp 55, Pulley w/o, W plug type M5-6.30, Bracket Hole Size 1 10.20, D+ Size M5-6.30, D+ Position 45, Holder Arm Width 55.00, Fan IF, Radius 2 90.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.20, Regulator type IR, B+ Position 56, Belt Adjustment Bracket Hole Position 50, Total Length 194.50

Product information

Electrical information

  • TerminalW
  • Voltage28
  • Amp55

Physical information

  • Pulleyw/o
  • W plug typeM5-6.30
  • Bracket Hole Size 110.20
  • D+ SizeM5-6.30
  • D+ Position45
  • Holder Arm Width55.00
  • FanIF
  • Radius 290.00
  • Radius90.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 01181739DEUTZ-FAHR
    • 01183189DEUTZ-FAHR
    • 01182041KHD
    • 01183437KHD
    • 01183618KHD
    • 1182041KHD
    • 1183437KHD
    • 1183618KHD

    Competitor References

    • DRA1242AC DELCO
    • DRA1242NAC DELCO
    • 553668RIAD KÜHNER
    • A9160AUTOSTARTER POLAND
    • A9160LETRIKAAUTOSTARTER POLAND
    • CAL21606CASCO SRL
    • 566502055CV PSH
    • DRA1242NDELCO REMY
    • DRA1242DELCO REMY

    • Compatible products
