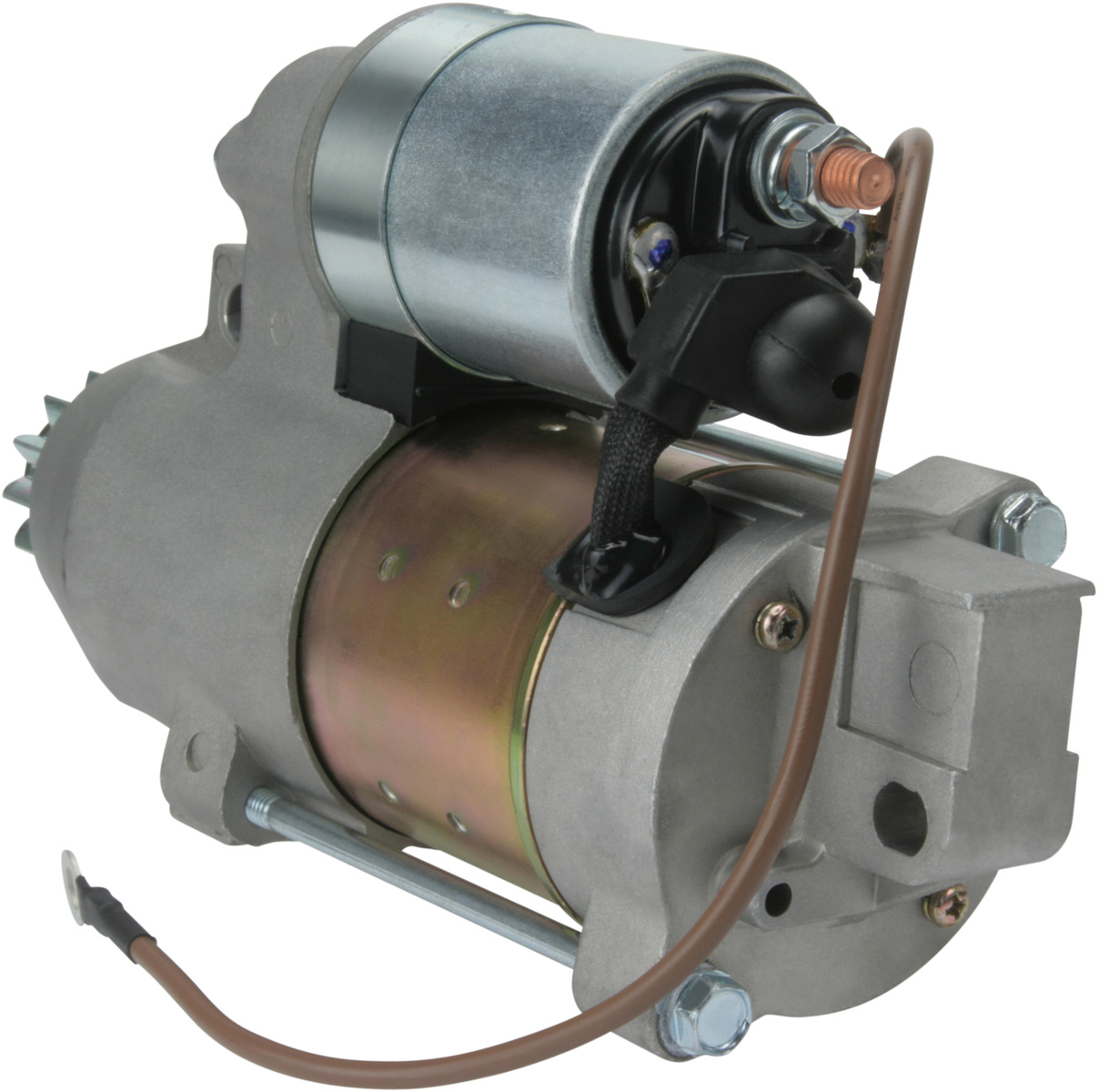

F032115992 - Starter
Trade number 115992
Replacing and BOMs
OEM number
50881368T1MERCURY MARINE
881368T2MERCURY MARINE
881368T1MERCURY MARINE
68V8180000YAMAHA
68V8180001YAMAHA
Competitor References
255172AD KÜHNER
CST20209CASCO SRL
400503133CV PSH
255234ELSTOCK
115992HC-CARGO
S114838AHITACHI
S114838HITACHI
S114838BHITACHI
S114838CHITACHI
18349LESTER
18349NWAI
F032115992 - Starter
Details & description

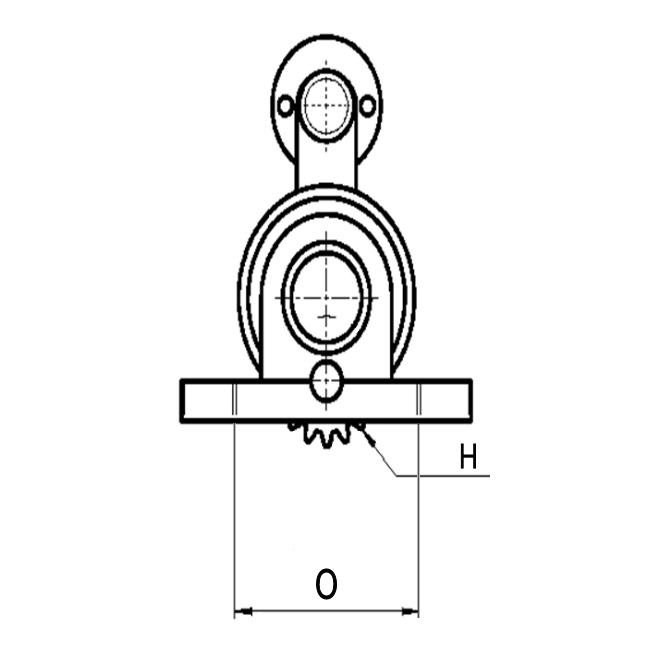

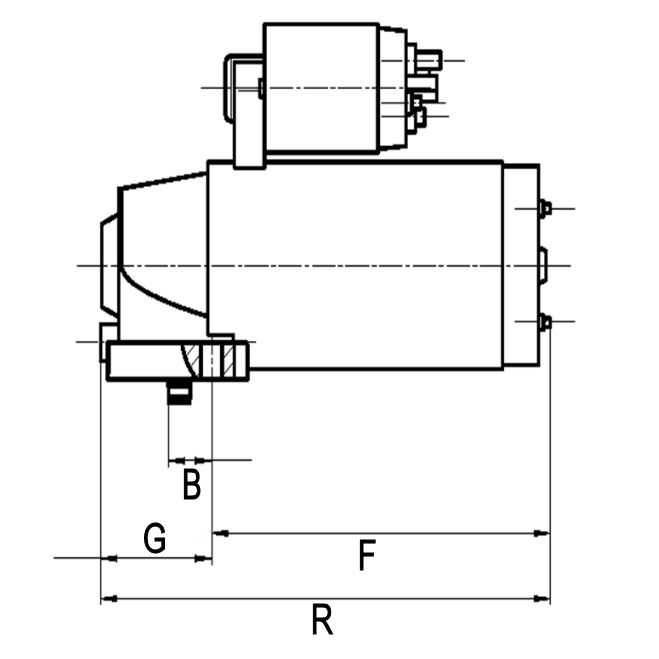

kW 1.4, Voltage 12, No./mount. holes 2 (0), Mounting Hole 2 8.50, Rear Distance 171.00, Gear type GR, Prod. info BN, Front Distance 62.00, Drive Distance 57.00, No./teeth 13, B+ M8, Terminal 50 6.30, Distance 77.00, Mounting Hole 3 8.50/10.00, Rotation CCW, Remarks Terminal 50: Ø 6.30 mm., Mounting Hole 1 8.50, Amount of Mounting Holes 2 (0), Total Length 233.00
Product information
kW:1.4
Voltage:12
No./mount. holes:2 (0)
Mounting Hole 2:8.50
Rear Distance:171.00
Gear type:GR
Prod. info:BN
Front Distance:62.00
Drive Distance:57.00
No./teeth:13
B+:M8
Terminal 50:6.30
Distance:77.00
Mounting Hole 3:8.50/10.00
Rotation:CCW
Remarks:Terminal 50: Ø 6.30 mm.
Mounting Hole 1:8.50
Amount of Mounting Holes:2 (0)
Total Length:233.00
