F032115970 - Alternator

Trade number 115970

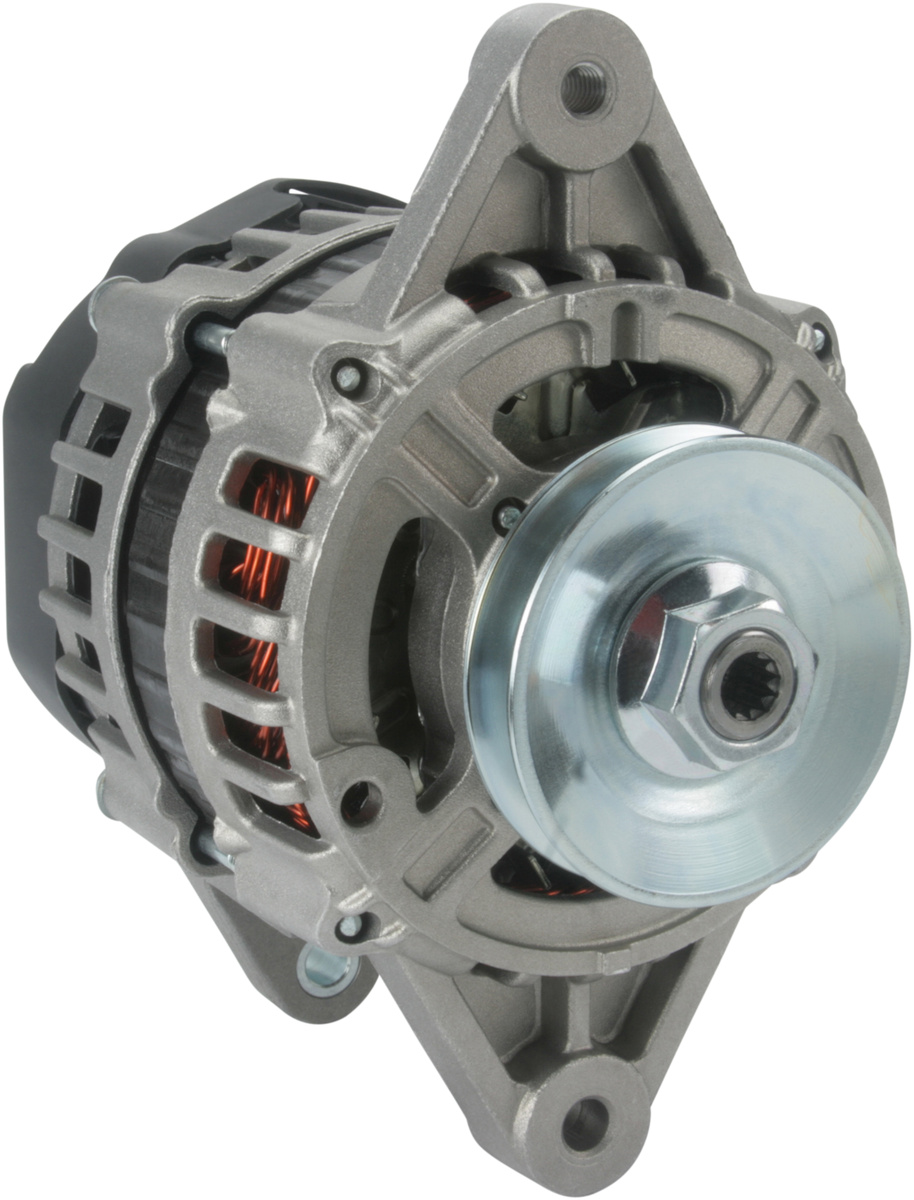

Product image - main
Trade number 115970

Details & description

Terminal W, Voltage 14, Amp 55, Pulley P, W plug type 6.30, Bracket Hole Size 1 8.20, Bracket Hole Size Rear 8.00, D+ Size M5, D+ Position 52, Holder Arm Width 18.00, B+ M6, Radius 2 78.00, Source Mahle Letrika, Mounting Bracket Distance 67.00, Radius 78.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, B+ Position 6, Belt Adjustment Bracket Hole Position 60, Total Length 160.00

Product information

Electrical information

  • TerminalW
  • Voltage14
  • Amp55

Physical information

  • PulleyP
  • W plug type6.30
  • Bracket Hole Size 18.20
  • Bracket Hole Size Rear8.00
  • D+ SizeM5
  • D+ Position52
  • Holder Arm Width18.00
  • B+M6
  • Radius 278.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 04111821DEUTZ-FAHR
    • 4111821DEUTZ-FAHR
    • 332C9238JCB
    • 332C99238JCB
    • 1183457KHD
    • 4111821KHD
    • 4115371KHD
    • 4118999KHD
    • 01183457KHD

    • Competitor References

    • 554198RIAD KÜHNER
    • A9153LETRIKAAUTOSTARTER POLAND
    • CAL21216CASCO SRL
    • 515502055CV PSH
    • 705514050CV PSH
    • 113131FACROM
    • 115970HC-CARGO
    • 115436HC-CARGO
    • IA1481ISKRA
