F032115872 - Starter

Trade number 115872

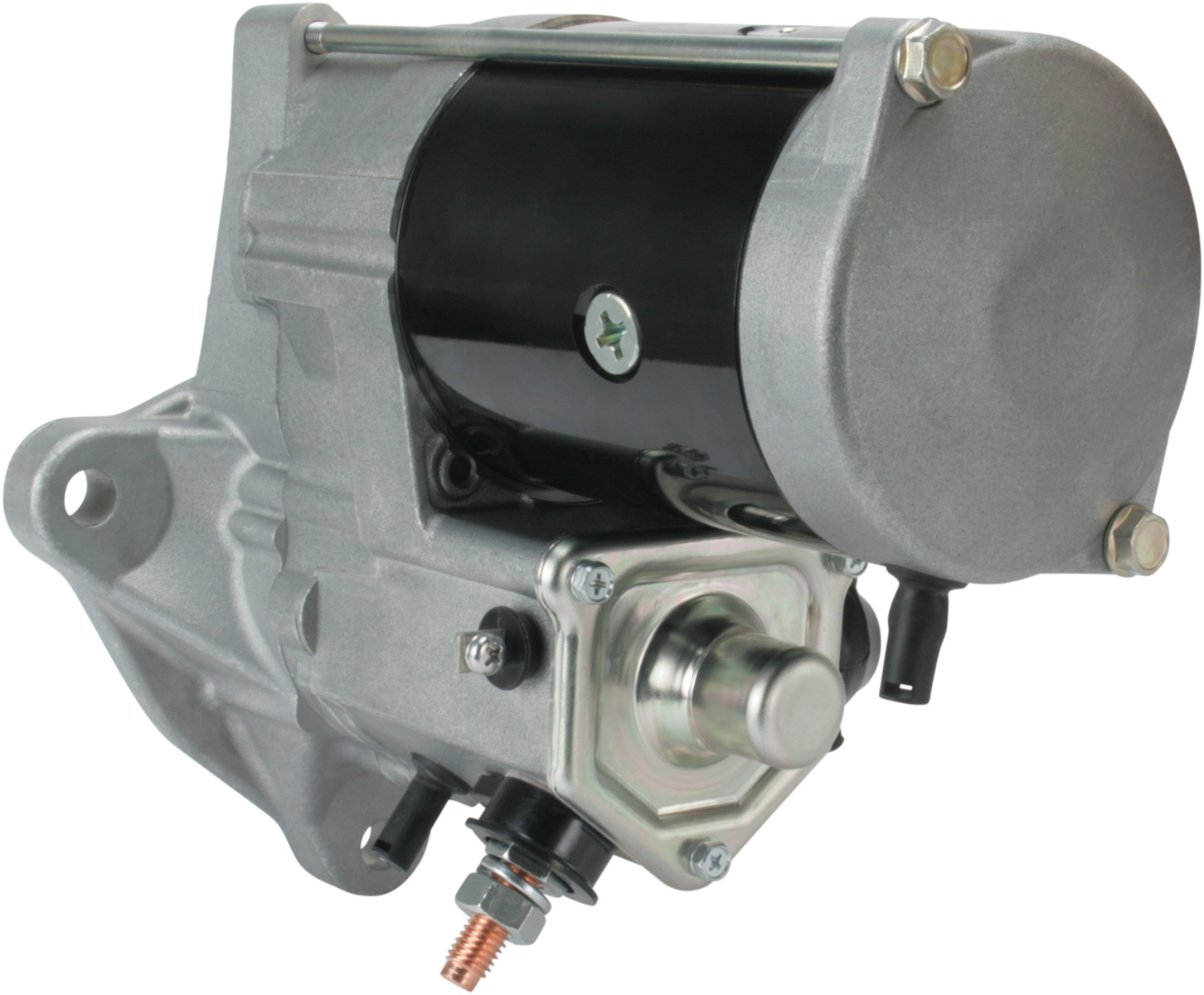

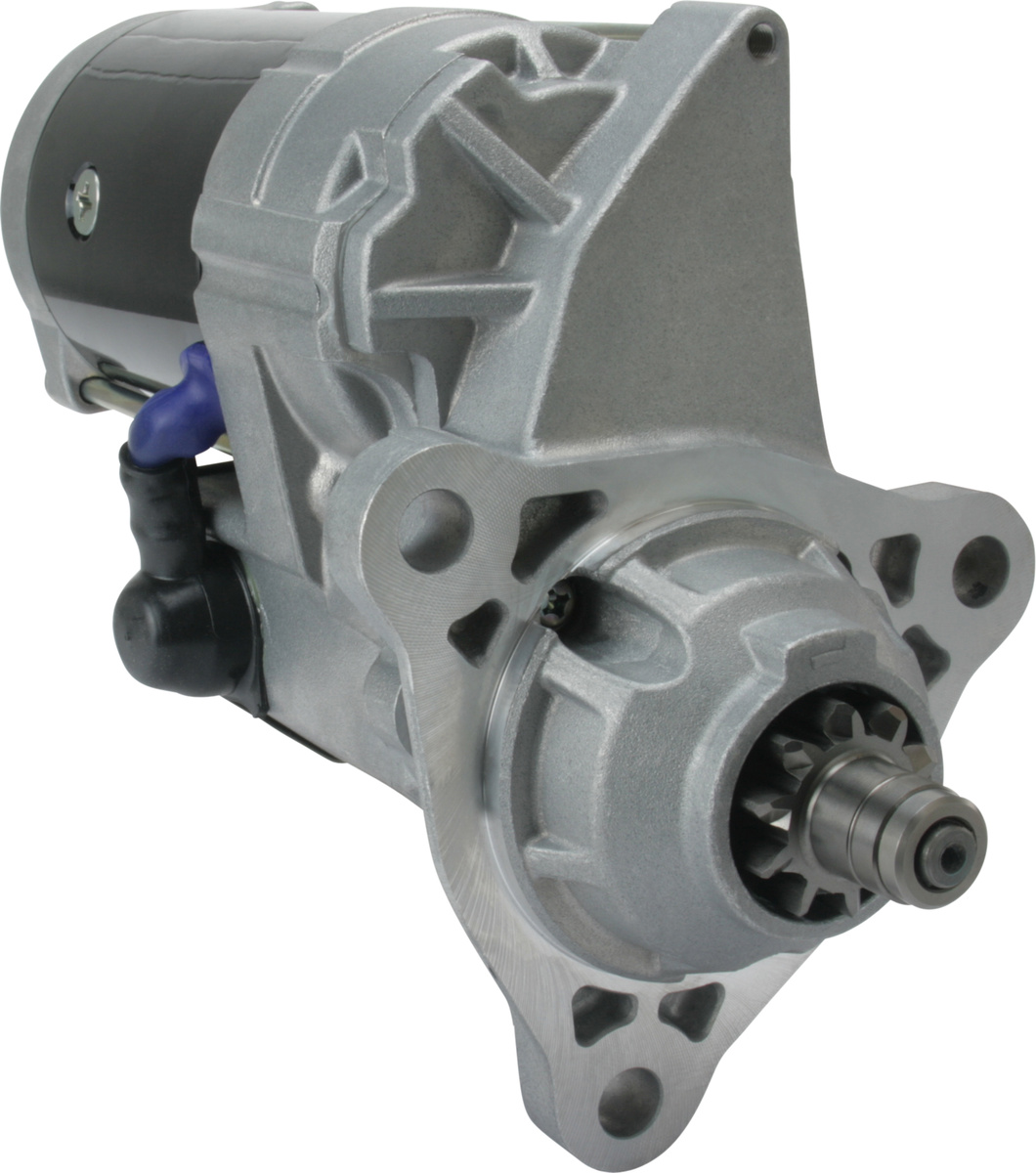

Product image - main
Trade number 115872

Details & description

kW 5.5, Voltage 24, No./mount. holes 3 (0), Mounting Hole 2 13.50, Rear Distance 160.00, Gear type GR, Front Distance 76.00, Distance 3 126.50, Drive Distance 49.00, No./teeth 10, Distance 2 126.50, B+ M10, Terminal 50 M5, Mounting Flange 92.00, Source Denso, Distance 126.50, Mounting Hole 3 13.50, Rotation CW, Position 45, Mounting Hole 1 13.50, Amount of Mounting Holes 3 (0), Total Length 317.00

Product information

Electrical information

  • kW5.5
  • Voltage24

Physical information

  • No./mount. holes3 (0)
  • Mounting Hole 213.50
  • Rear Distance160.00
  • Gear typeGR
  • Front Distance76.00
  • Distance 3126.50
  • Drive Distance49.00
  • No./teeth10
  • Distance 2126.50
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 5801710983ISUZU
    • 2995988IVECO
    • 99486046IVECO
    • 42498115IVECO

    Competitor References

    • DRS3897AC DELCO
    • DRS3897NAC DELCO
    • 101292AD KÜHNER
    • S6005AUTOSTARTER POLAND
    • S6005DENSOAUTOSTARTER POLAND
    • 0986023430BOSCH
    • F042S00242BOSCH
    • F042000242BOSCH
    • 1986S10107BOSCH
  • Compatible products
