F032115831 - Alternator

Trade number 115831

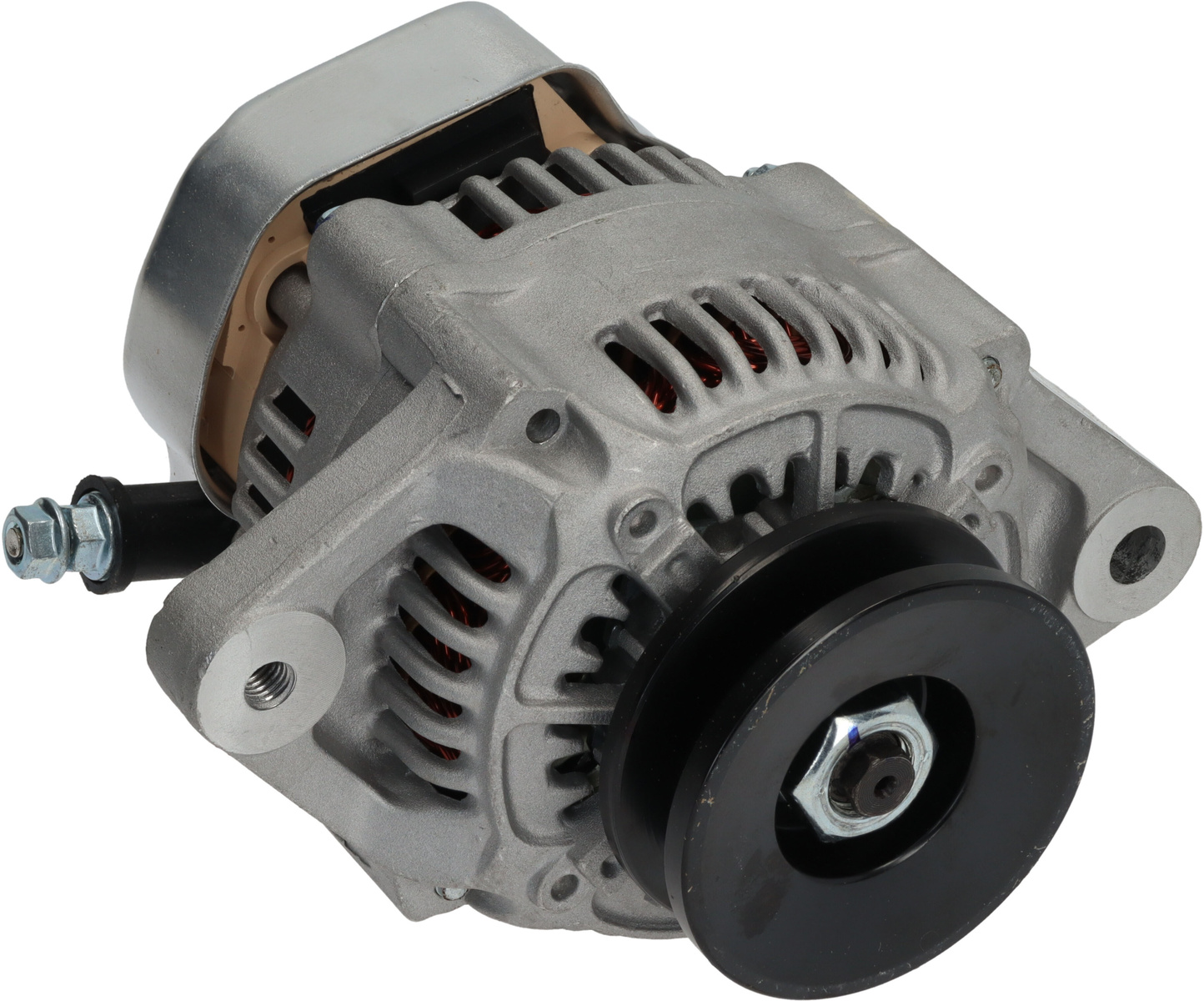

Product image - main
Trade number 115831

Details & description

Voltage 14, Amp 55, Pulley P, Bracket Hole Size 1 10.30, Lamp type Active, Pulley Diameter 69.00, D+ Size Plug, D+ Position 60, Holder Arm Width 57.50, Pulley Distance 93.50, B+ M6, Fan IF, Radius 2 73.00, Plug no. 1 PL128, Radius 80.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, B+ Position 5, Belt Adjustment Bracket Hole Position 60

Product information

Electrical information

  • Voltage14
  • Amp55

Physical information

  • PulleyP
  • Bracket Hole Size 110.30
  • Lamp typeActive
  • Pulley Diameter69.00
  • D+ SizePlug
  • D+ Position60
  • Holder Arm Width57.50
  • Pulley Distance93.50
  • B+M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 1449952CATERPILLAR
    • OR9698CATERPILLAR

    Competitor References

    • 553196RIAD KÜHNER
    • CAL40378CASCO SRL
    • 645507055CV PSH
    • 1012112780DENSOBOM
    • DAN2032DENSO
    • 112864FACROM
    • 115831HC-CARGO
    • 12854LESTER
    • 12854NWAI

    • Compatible products
