F032115811 - Alternator

Trade number 115811

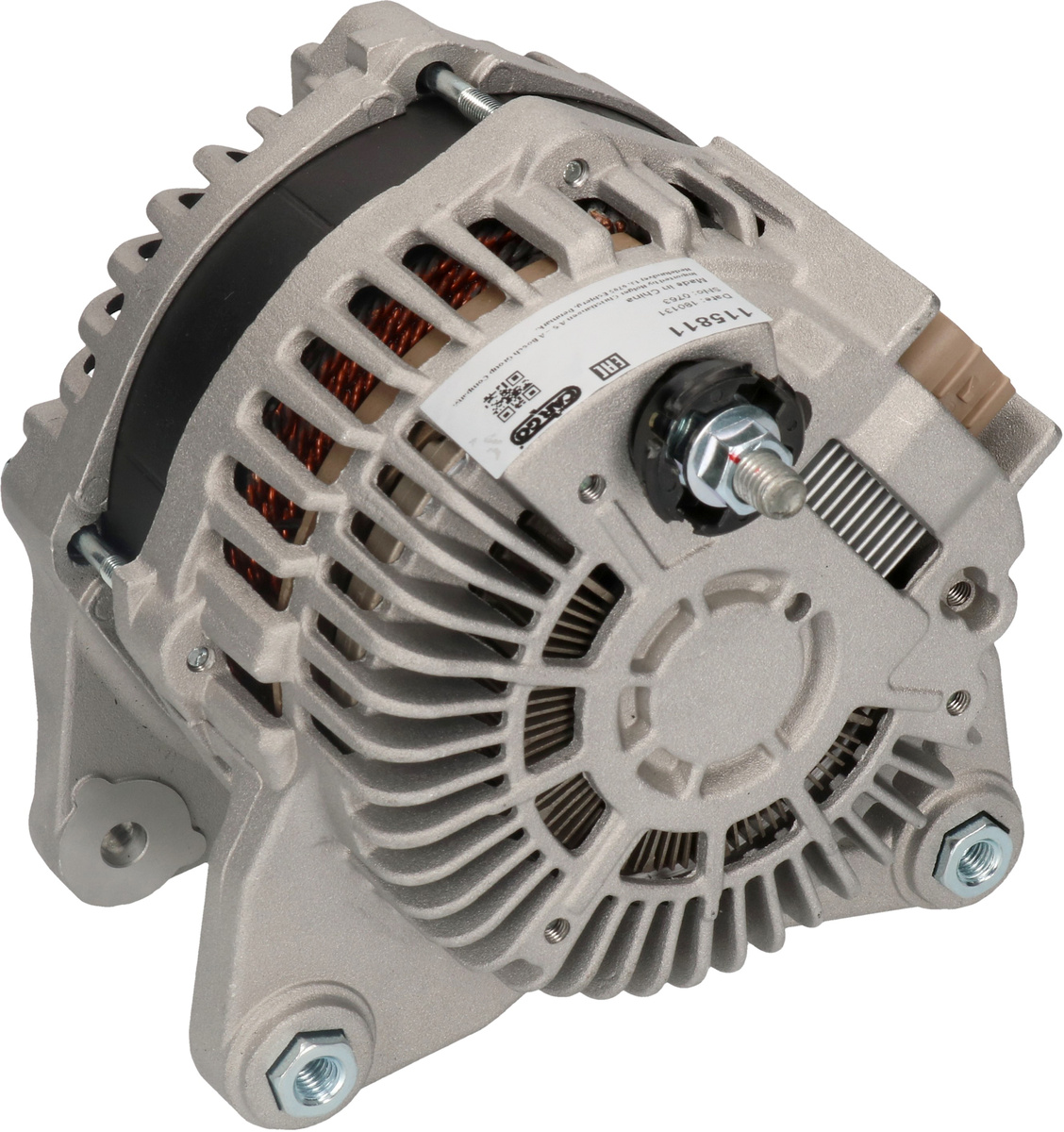

Product image - main
Trade number 115811

Details & description

Voltage 14, Amp 150, Pulley SP/FW, Pulley Diameter 55.00, Prod. info BN, Bracket Hole Size Rear M8, D+ Position 15, Pulley Distance 33.00, Mounting Bracket Distance 58.50, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.50, D+ Size Plug, Holder Arm Width 14.00, B+ M8, Radius 2 90.00, Plug no. 1 PL163, Rotation CW, Position 15, B+ Position 6, Belt Adjustment Bracket Hole Position 15, Total Length 188.00

Product information

Electrical information

  • Voltage14
  • Amp150

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP/FW
  • Pulley Diameter55.00
  • Bracket Hole Size RearM8
  • D+ Position15
  • Pulley Distance33.00
  • Mounting Bracket Distance58.50
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley7

    • Suggested Products

    Replacing and BOMs

    OEM number

    • A002TX2181MITSUBISHI
    • A2TX2181MITSUBISHI
    • A2TX2191ZEMITSUBISHI
    • A2TX2181AMMITSUBISHI
    • 231001KA1BNISSAN
    • 23100BR01ANISSAN

    Competitor References

    • DRA1432AC DELCO
    • 554184RIAD KÜHNER
    • A5233AUTOSTARTER POLAND
    • 0986083040BOSCH
    • CAL35318CASCO SRL
    • 165590150CV PSH
    • DRA1432DELCO REMY
    • 2273271502DRI
    • 286756ELSTOCK
