Details & description

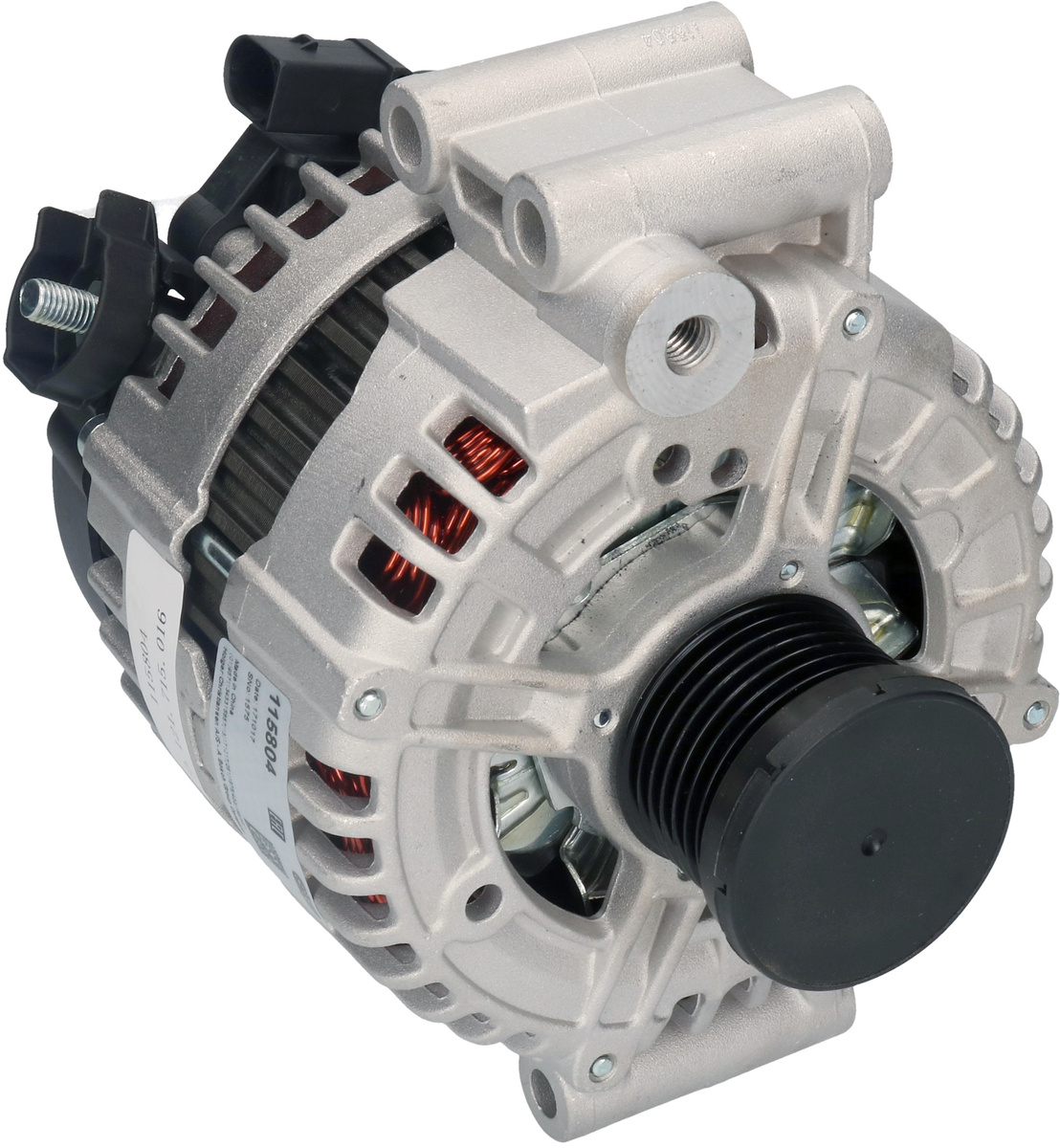

Voltage 14, Amp 180, Communication BSS, Pulley SP/FW, Pulley Diameter 49.00, Bracket Hole Size Rear 10.60, Pulley Distance 30.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 40.80, Radius 86.00, Belt Adjustment Bracket Hole 1 9.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 9.50x10.50, Belt Adjustment Bracket Hole 2 10.50, Terminal type COM, Holder Arm Width 62.50, B+ M8, Radius 2 86.00, Plug no. 1 PL86, Rotation CW, Position 55, B+ Position 9, Belt Adjustment Bracket Hole Position 60, Total Length 178.00
