F032115791 - Alternator

Trade number 115791

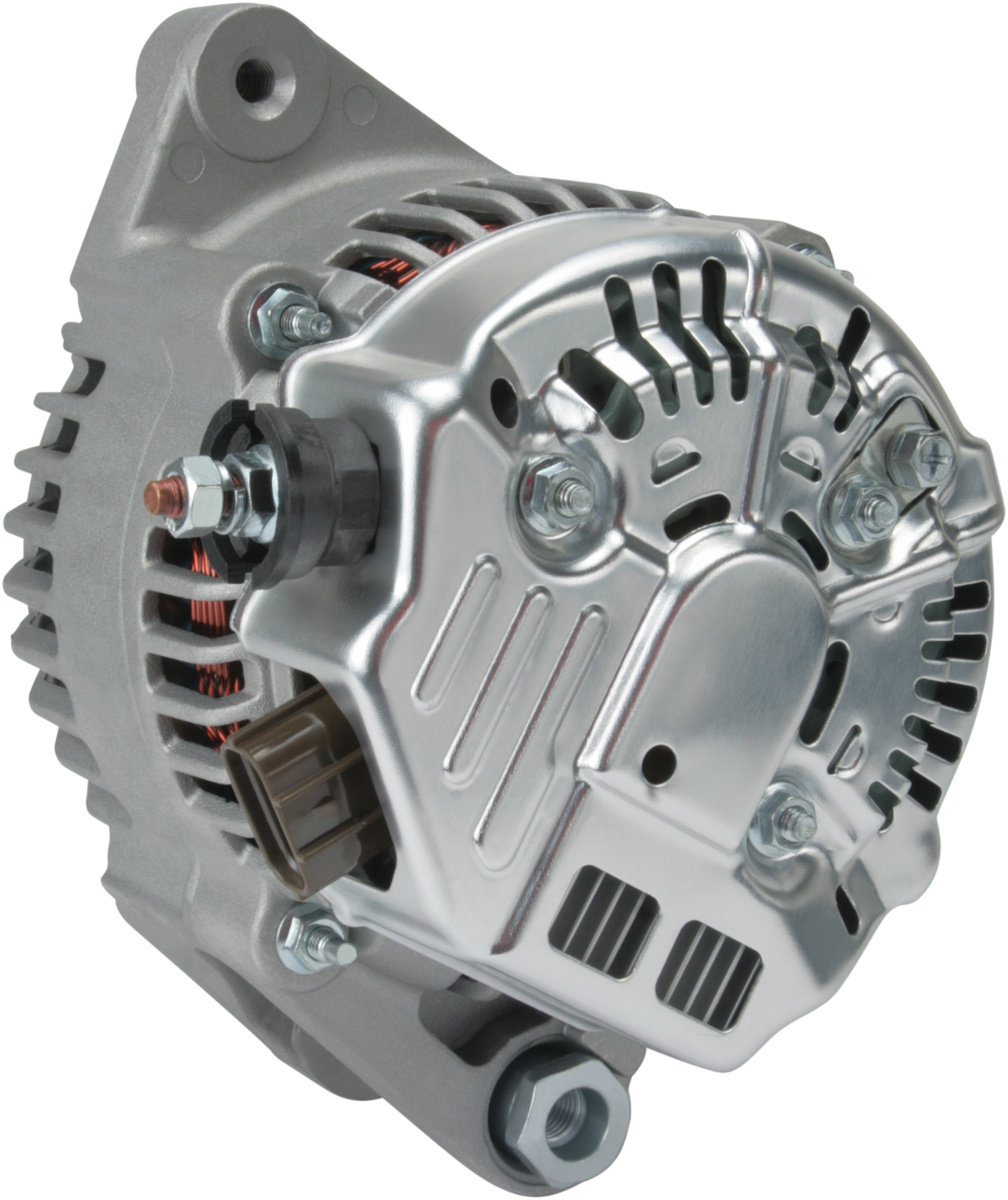

Product image - main
Trade number 115791

Details & description

Voltage 14, Amp 90, Pulley SP, Bracket Hole Size 1 11.00, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear M10, D+ Size Plug, D+ Position 43, Holder Arm Width 18.00, Pulley Distance 33.00, B+ M6, Radius 2 81.00, Plug no. 1 PL67, Mounting Bracket Distance 41.60, Radius 81.50, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 4, Regulator type IR, Position 35, B+ Position 50, Belt Adjustment Bracket Hole Position 3

Product information

Electrical information

  • Voltage14
  • Amp90

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP
  • Bracket Hole Size 111.00
  • Pulley Diameter60.00
  • Bracket Hole Size RearM10
  • D+ SizePlug
  • D+ Position43
  • Holder Arm Width18.00
  • Pulley Distance33.00
  • B+M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 2706021020TOYOTABOM
    • 2706021030TOYOTA
    • 2706021031TOYOTA
    • 2706021140TOYOTA

    Competitor References

    • DRB5831AC DELCO
    • DRA1206AC DELCO
    • DRB5821AC DELCO
    • DRB5821XAC DELCO
    • 401595RIAD KÜHNER
    • A6033AUTOSTARTER POLAND
    • A6028AUTOSTARTER POLAND
    • 0986045831BOSCH
    • 0986045821BOSCH
