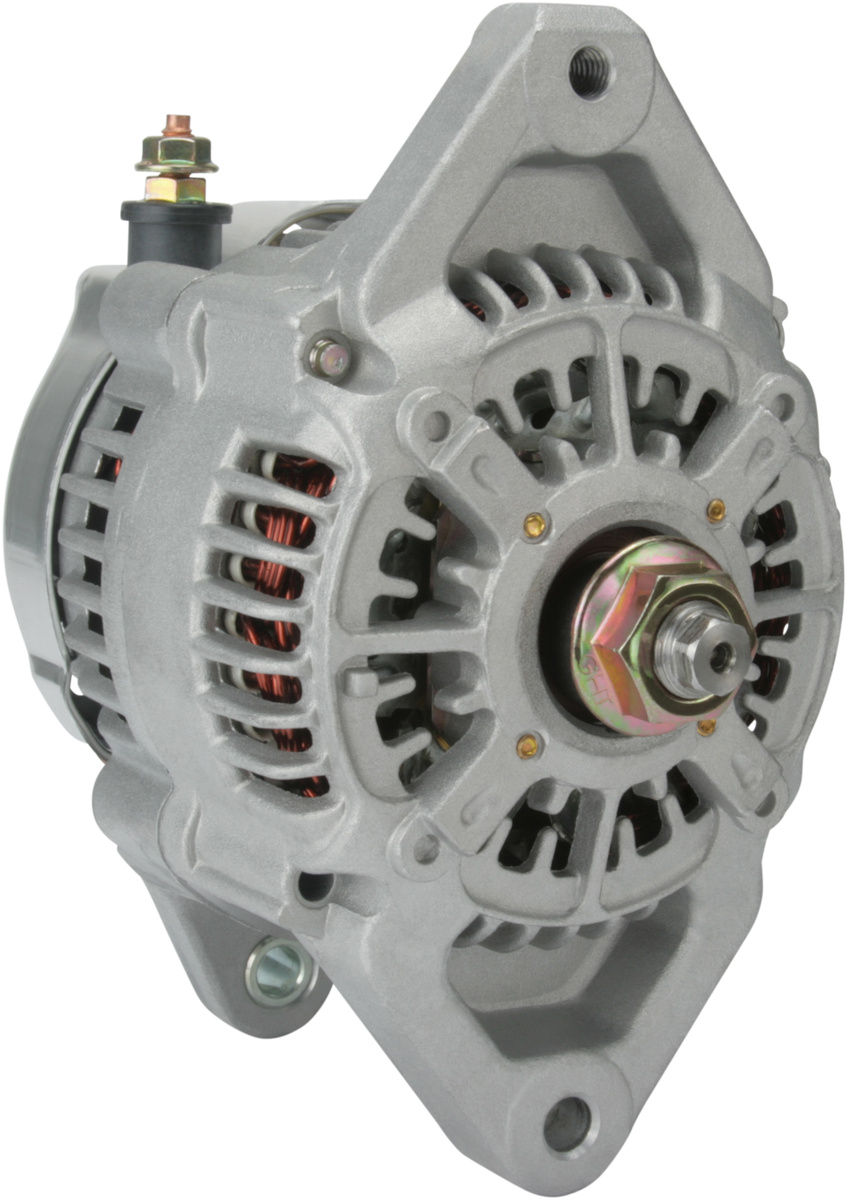

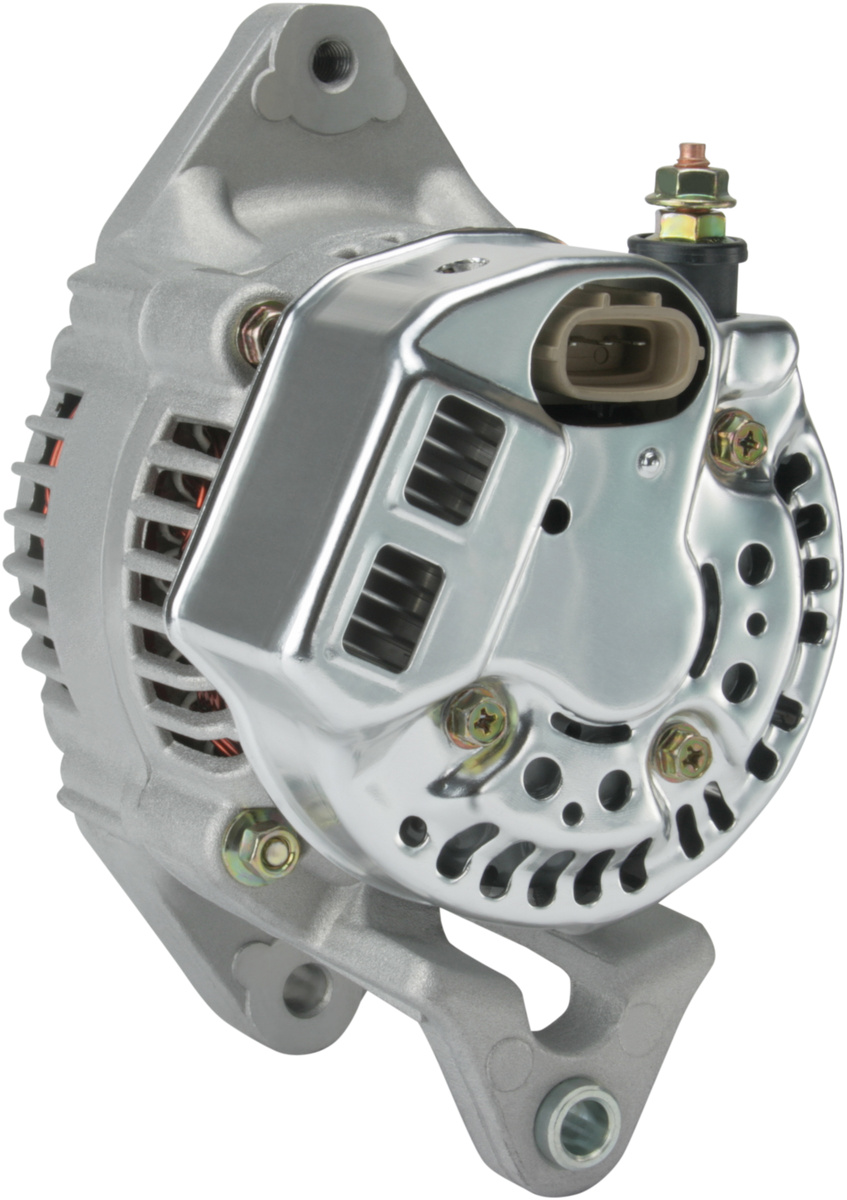

F032115724 - Alternator
Trade number 115724
Replacing and BOMs
OEM number
038522287GCHRYSLER
38522287GCHRYSLER
38522287FVM (MOTORI/STABILIMENTI MEC.)
Competitor References
553094RIAD KÜHNER
CAL40181CASCO SRL
425504045CV PSH
1012113560DENSO
111641FACROM
115724HC-CARGO
F032115724 - Alternator
Details & description
Voltage 14, Amp 45, Pulley w/o, Bracket Hole Size 1 8.20, Prod. info BN, Bracket Hole Size Rear 8.20, Holder Arm Width 20.00, Radius 2 78.00, Plug no. 1 PL128, Mounting Bracket Distance 66.00, Radius 78.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Regulator type IR, B+ Position 5, Belt Adjustment Bracket Hole Position 60
Product information
Voltage:14
Amp:45
Pulley:w/o
Bracket Hole Size 1:8.20
Prod. info:BN
Bracket Hole Size Rear:8.20
Holder Arm Width:20.00
Radius 2:78.00
Plug no. 1:PL128
Mounting Bracket Distance:66.00
Radius:78.00
Rotation:CW
Belt Adjustment Bracket Hole 1:M8
Regulator type:IR
B+ Position:5
Belt Adjustment Bracket Hole Position:60
Replacing and BOMs
OEM number
038522287GCHRYSLER
38522287GCHRYSLER
38522287FVM (MOTORI/STABILIMENTI MEC.)
Competitor References
553094RIAD KÜHNER
CAL40181CASCO SRL
425504045CV PSH
1012113560DENSO
111641FACROM
115724HC-CARGO
