F032115717 - Starter

Trade number 115717

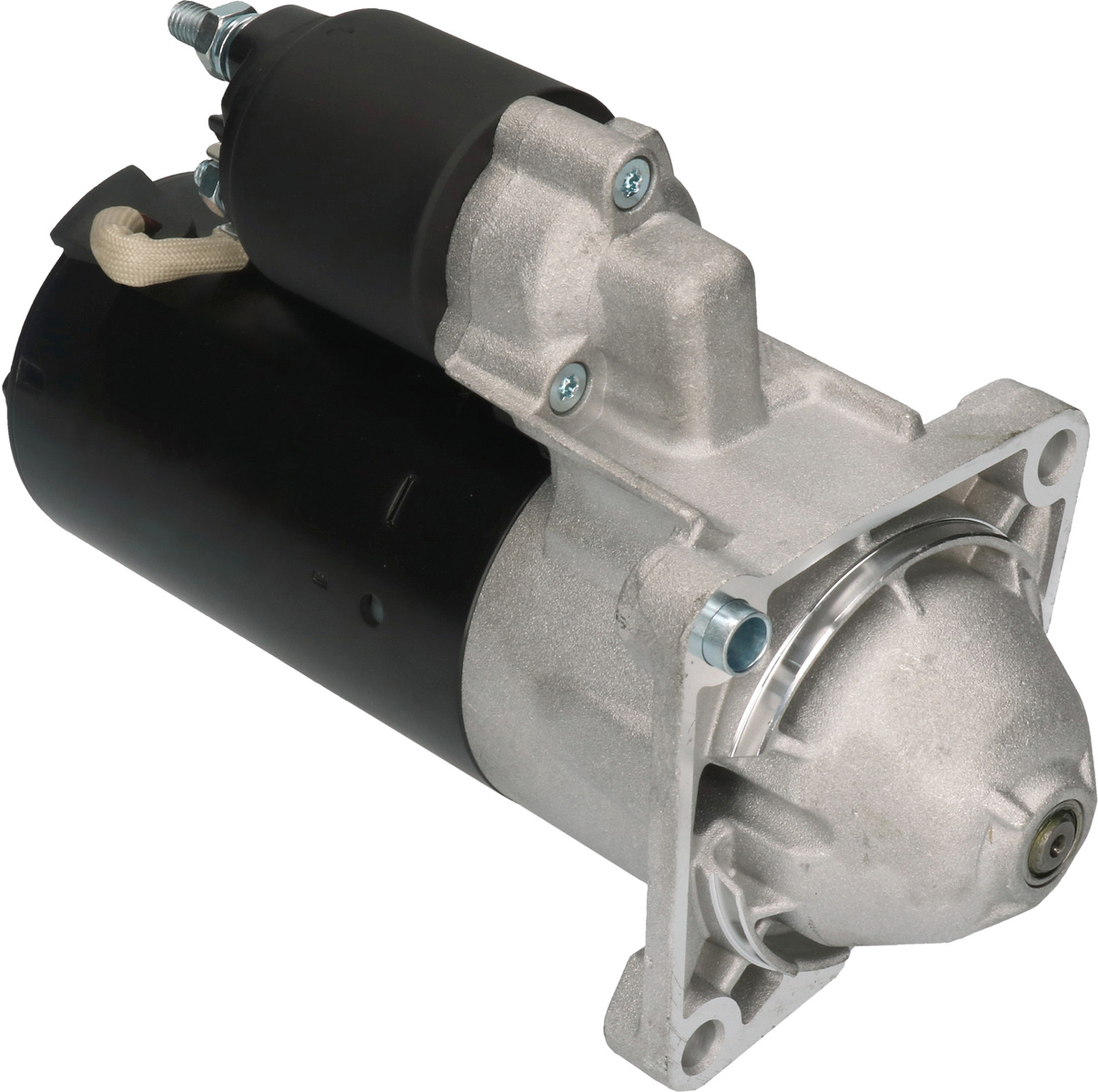

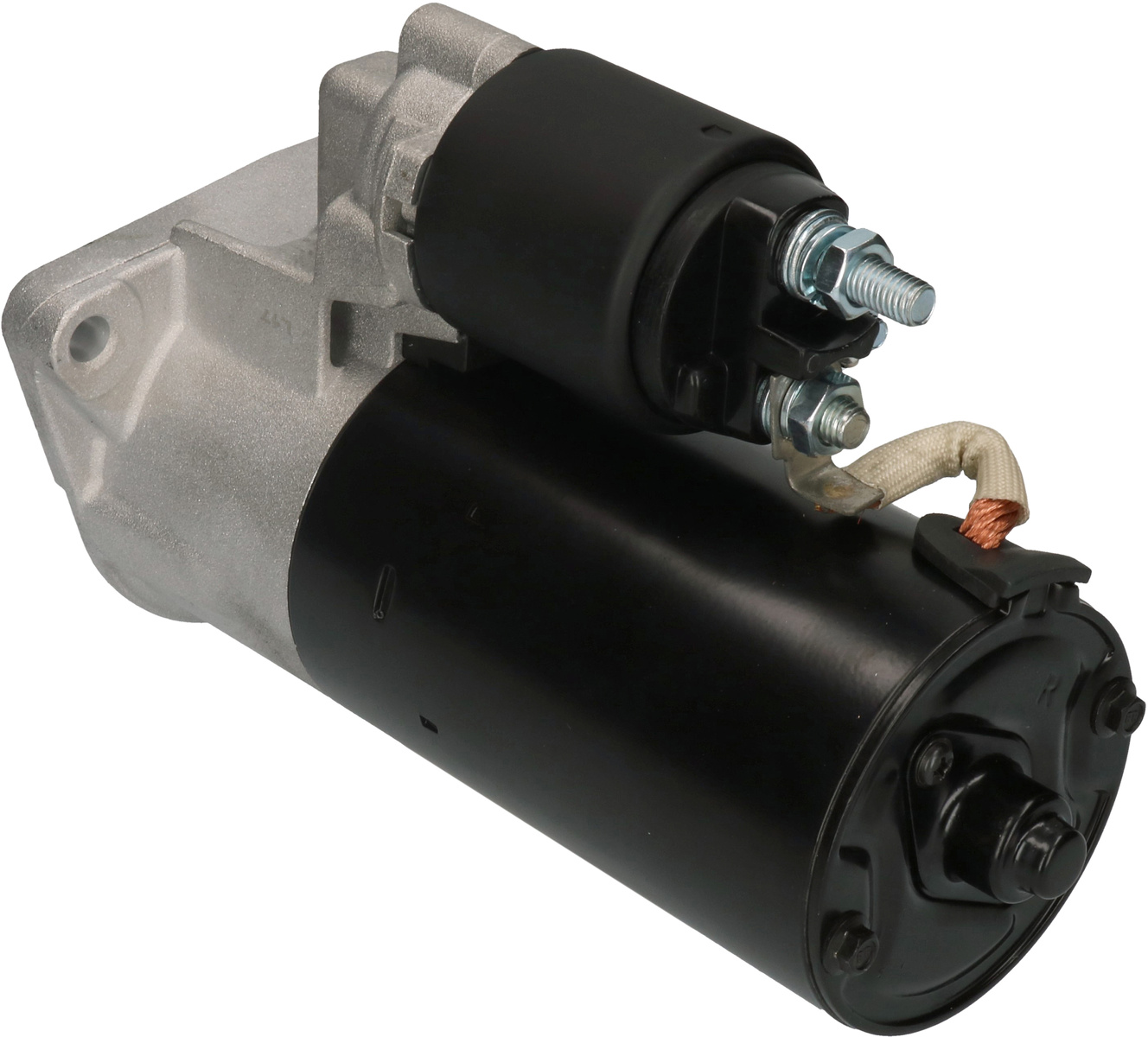

Product image - main
Trade number 115717

Details & description

kW 1.7, Voltage 12, No./mount. holes 3 (0), Mounting Hole 2 9.00, Rear Distance 194.00, Gear type GR, Prod. info BN, Front Distance 38.00, Distance 3 82.00, Drive Distance 4.00, No./teeth 10, Distance 2 82.00, B+ M8, Terminal 50 M6, Mounting Flange 82.00, Starter type Start/Stop, Distance 116.00, Mounting Hole 3 8.50, Rotation CW, Position 15, Mounting Hole 1 9.00, Amount of Mounting Holes 3 (0), Total Length 244.00

Product information

Electrical information

  • kW1.7
  • Voltage12

Catalogue information

  • Prod. infoBN
  • Starter typeStart/Stop

Physical information

  • No./mount. holes3 (0)
  • Mounting Hole 29.00
  • Rear Distance194.00
  • Gear typeGR
  • Front Distance38.00
  • Distance 382.00
  • Drive Distance4.00
  • No./teeth10
  • Distance 282.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 51810267ALFA ROMEO
    • 7812070BMW
    • 51810267FIAT

    Competitor References

    • DRS0783AC DELCO
    • 254932AD KÜHNER
    • S0506AUTOSTARTER POLAND
    • 0001139005BOSCHBOM
    • 0001139006BOSCHBOM
    • 0986027000BOSCH
    • CST10459CASCO SRL
    • CST10450CASCO SRL
    • 500570103CV PSH
