F032115678 - Alternator

Trade number 115678

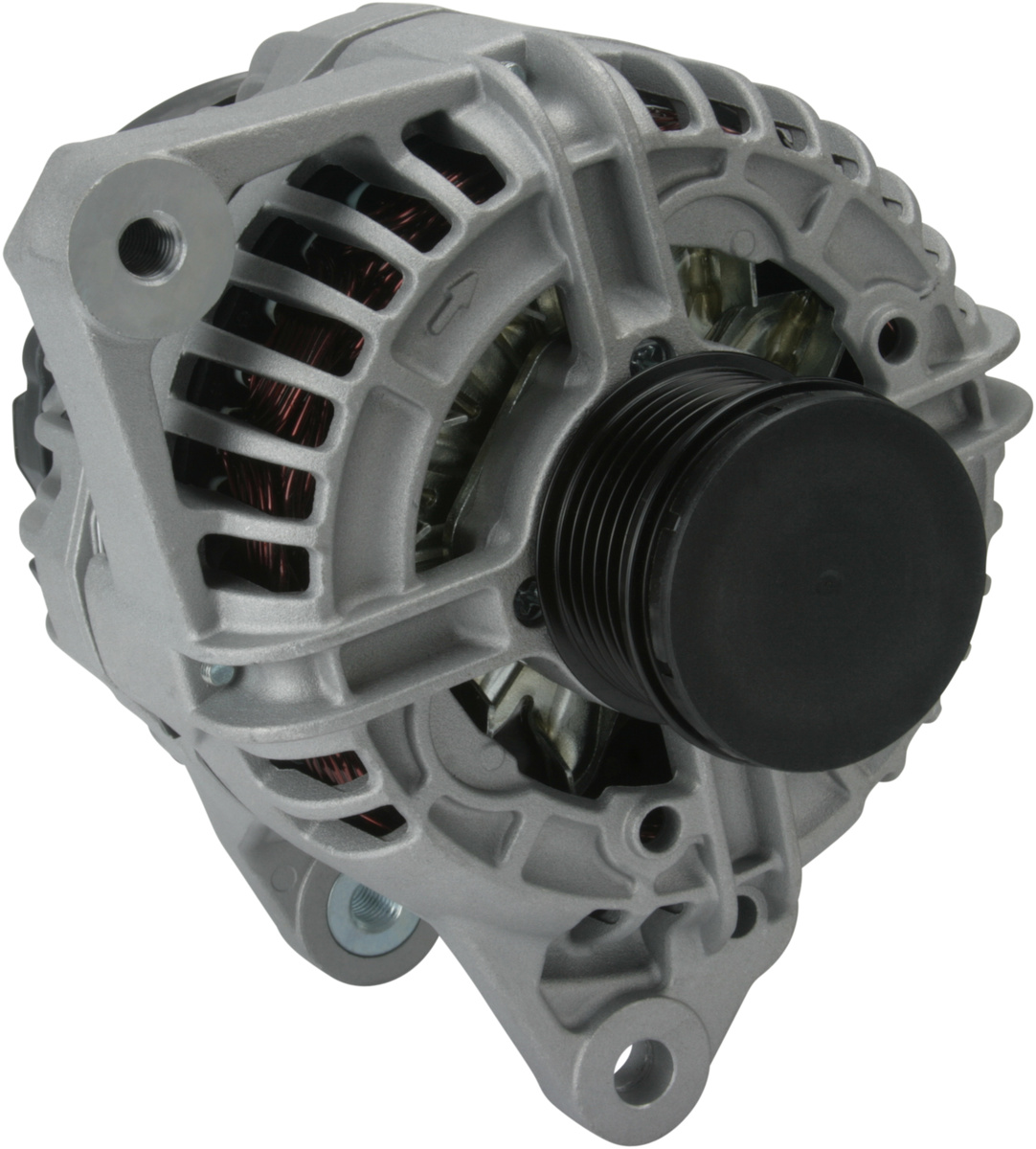

Product image - main
Trade number 115678

Details & description

Voltage 14, Amp 150, Pulley SP/FW, Pulley Diameter 53.00, Prod. info BN, Bracket Hole Size Rear 10.50, D+ Position 20, Pulley Distance 32.00, Mounting Bracket Distance 82.00, Radius 94.00, Belt Adjustment Bracket Hole 1 M10, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 M10, Terminal type L-DFM, D+ Size Plug, Holder Arm Width 14.00, B+ M8, Radius 2 104.00, Plug no. 1 PL61, Rotation CW, Position 15, B+ Position 30, Belt Adjustment Bracket Hole Position 47, Total Length 184.00

Product information

Electrical information

  • Voltage14
  • Amp150

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP/FW
  • Pulley Diameter53.00
  • Bracket Hole Size Rear10.50
  • D+ Position20
  • Pulley Distance32.00
  • Mounting Bracket Distance82.00
  • Radius94.00
  • Belt Adjustment Bracket Hole 1M10
  • Grooves/pulley6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 99760301207PORSCHE
    • 99760301206PORSCHE
    • 9976030127XPORSCHE
    • 99760301205PORSCHE
    • 99760301204PORSCHE
    • 99760301203PORSCHEBOM
    • 99760301202PORSCHE
    • 99760301201PORSCHE
    • 99760301200PORSCHE

    • Competitor References

    • DRB7140AC DELCO
    • 553233RIAD KÜHNER
    • A0227PAUTOSTARTER POLAND
    • A0227AUTOSTARTER POLAND
    • 0124525057BOSCHBOM
    • 0124525056BOSCHBOM
    • 0986047143BOSCH
    • 0986047146BOSCH
    • 0124525253BOSCH

    • Compatible products
