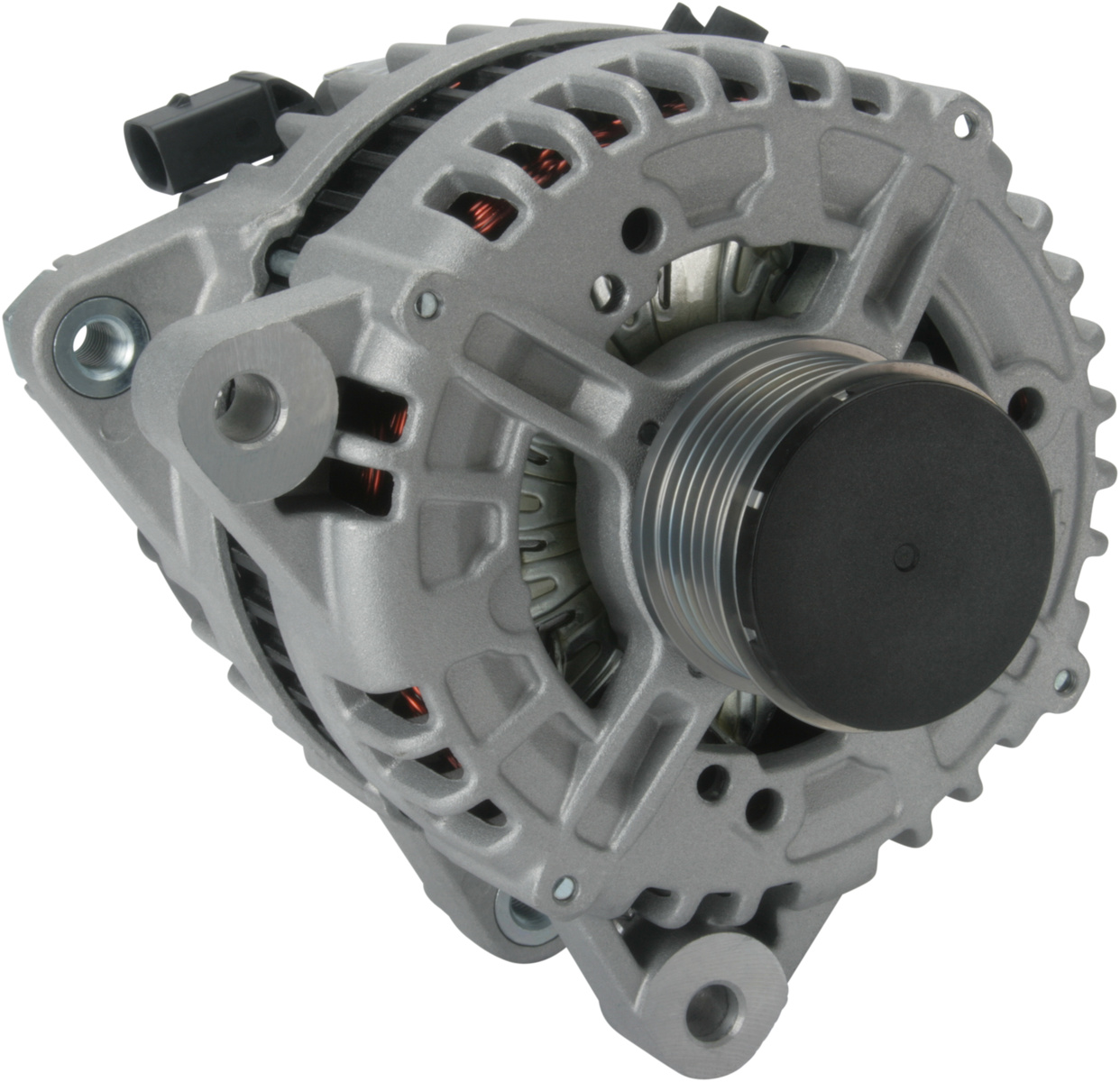

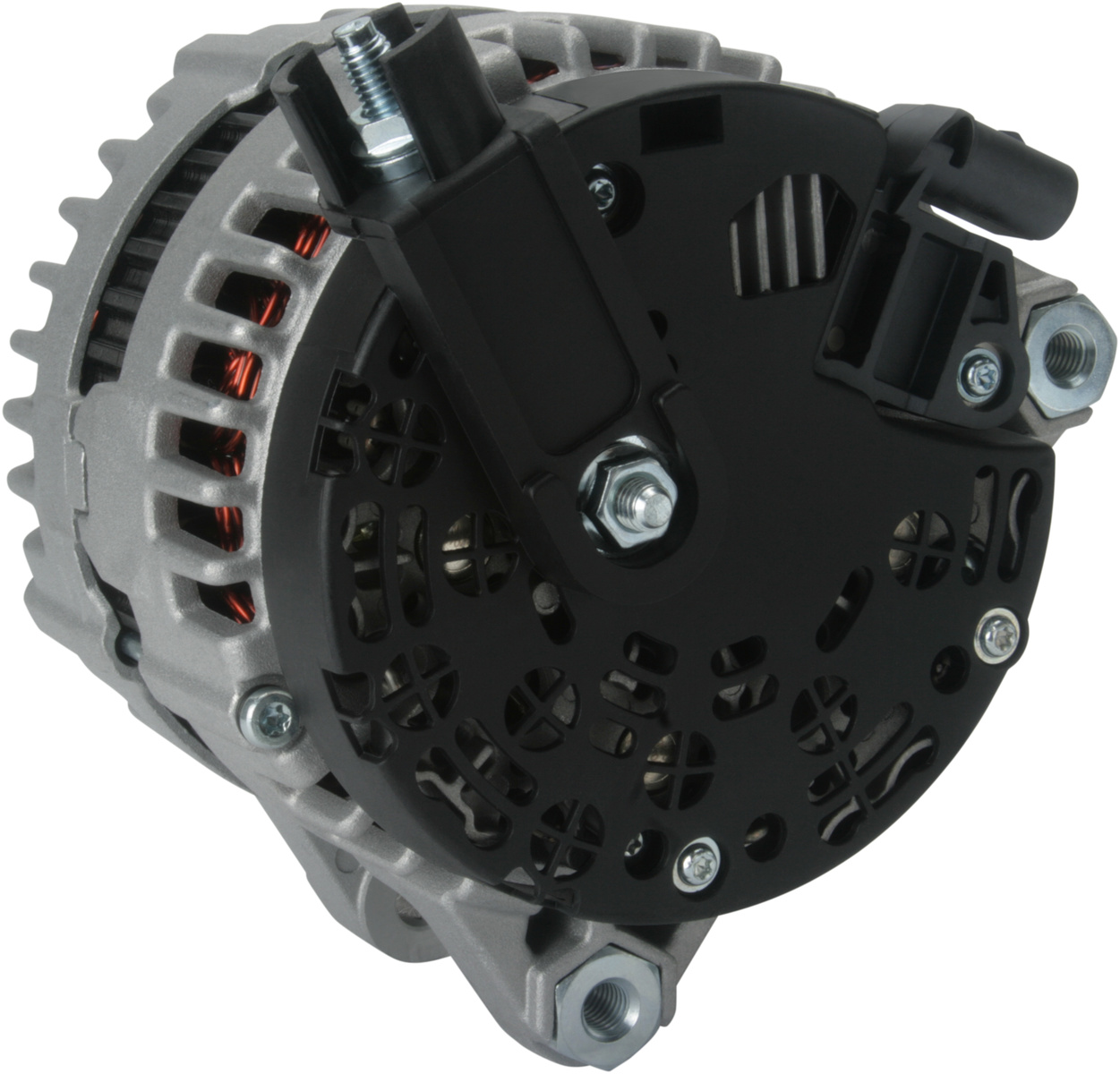

F032115671 - Alternator

Trade number 115671
Product image - main
Trade number 115671

Details & description

Voltage 14, Amp 180, Communication LIN, Pulley SP/FW, Pulley Diameter 54.00, Prod. info BN, Bracket Hole Size Rear M10, Pulley Distance 43.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 47.00, Radius 90.00, Belt Adjustment Bracket Hole 1 10.80, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 21.00, B+ M8, Radius 2 90.00, Plug no. 1 PL174, Rotation CW, B+ Position 57, Belt Adjustment Bracket Hole Position 47, Total Length 185.00

Product information

Electrical information

  • Voltage14
  • Amp180

Catalogue information

  • Prod. infoBN
  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter54.00
  • Bracket Hole Size RearM10
  • Pulley Distance43.00
  • Mounting Bracket Distance47.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 110.80
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 6G9N10300YCFORDBOM
    • LR001200ROVER
    • 8697585VOLVO
    • 36000223VOLVO

    Competitor References

    • DRA0476AC DELCO
    • 553561RIAD KÜHNER
    • A0502AUTOSTARTER POLAND
    • A0502PRAUTOSTARTER POLAND
    • 0121715024BOSCHBOM
    • 0121715124BOSCHBOM
    • 0986081390BOSCH
    • 1986A00675BOSCH
    • CAL10434CASCO SRL
