F032115661 - Alternator

Trade number 115661

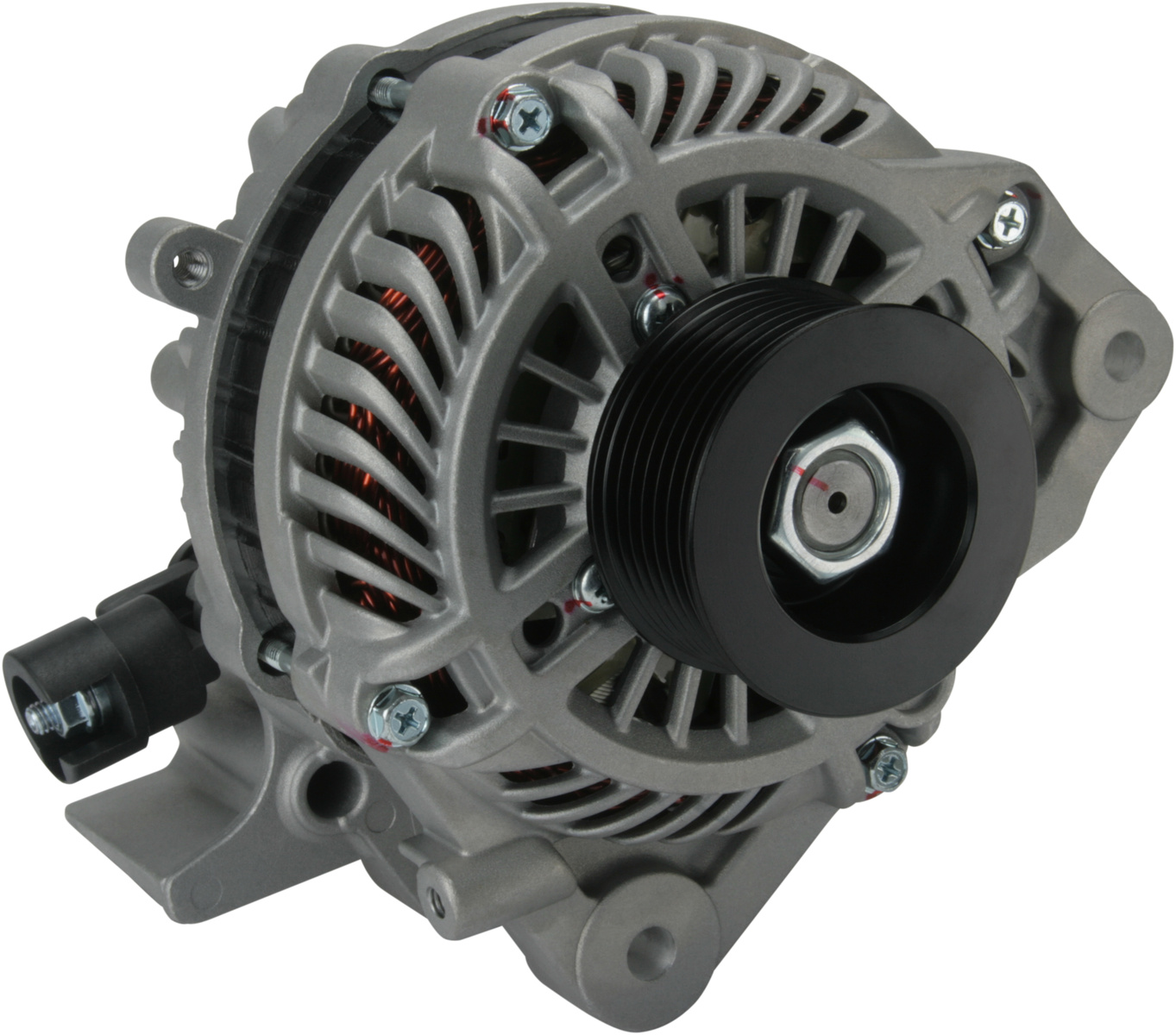

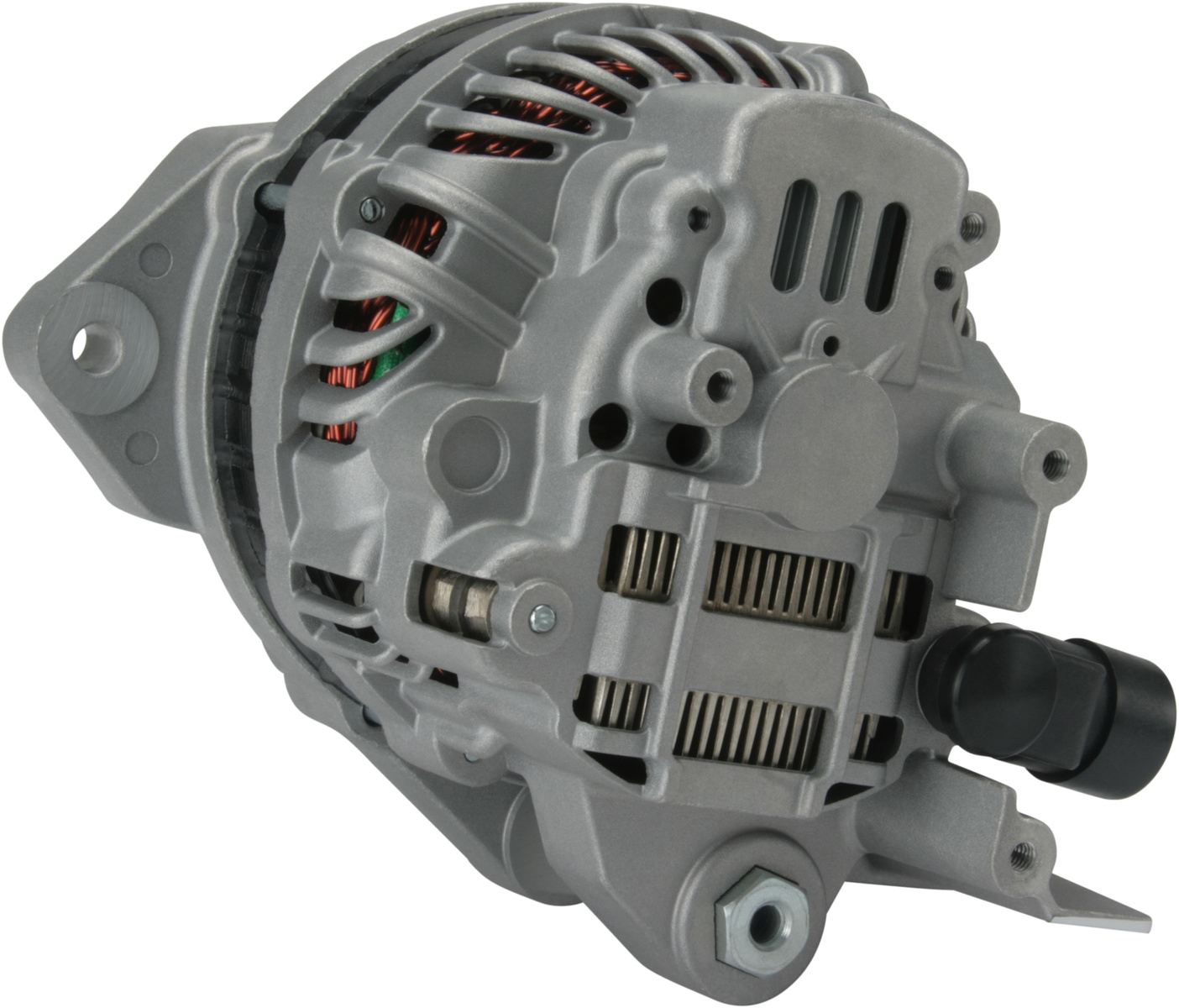

Product image - main
Trade number 115661

Details & description

Voltage 14, Amp 90, Pulley SP, Bracket Hole Size 1 9.00, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear M8, D+ Size Plug, D+ Position 15, Holder Arm Width 20.00, Pulley Distance 44.50, B+ M6, Radius 2 86.00, Plug no. 1 PL65, Mounting Bracket Distance 40.50, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, B+ Position 20, Belt Adjustment Bracket Hole Position 13, Total Length 170.00

Product information

Electrical information

  • Voltage14
  • Amp90

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP
  • Bracket Hole Size 19.00
  • Pulley Diameter60.00
  • Bracket Hole Size RearM8
  • D+ SizePlug
  • D+ Position15
  • Holder Arm Width20.00
  • Pulley Distance44.50
  • B+M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 31100RNAA01HONDA
    • AHGA67HONDA
    • A002TC1391MITSUBISHI
    • A002TC1391ZCMITSUBISHIBOM
    • A2TC1391MITSUBISHIBOM
    • A2TC1391ZCMITSUBISHIBOM
    • A2TC1391ZEMITSUBISHIBOM
    • A002TC1391ZEMITSUBISHI

    Competitor References

    • DRA0531AC DELCO
    • 301981RIAD KÜHNER
    • A5061AUTOSTARTER POLAND
    • 0986080730BOSCH
    • F042205000BOSCH
    • F042205197BOSCH
    • CAL35234CASCO SRL
    • 125538090CV PSH
    • DRA0531DELCO REMY
