F032115656 - Alternator

Trade number 115656

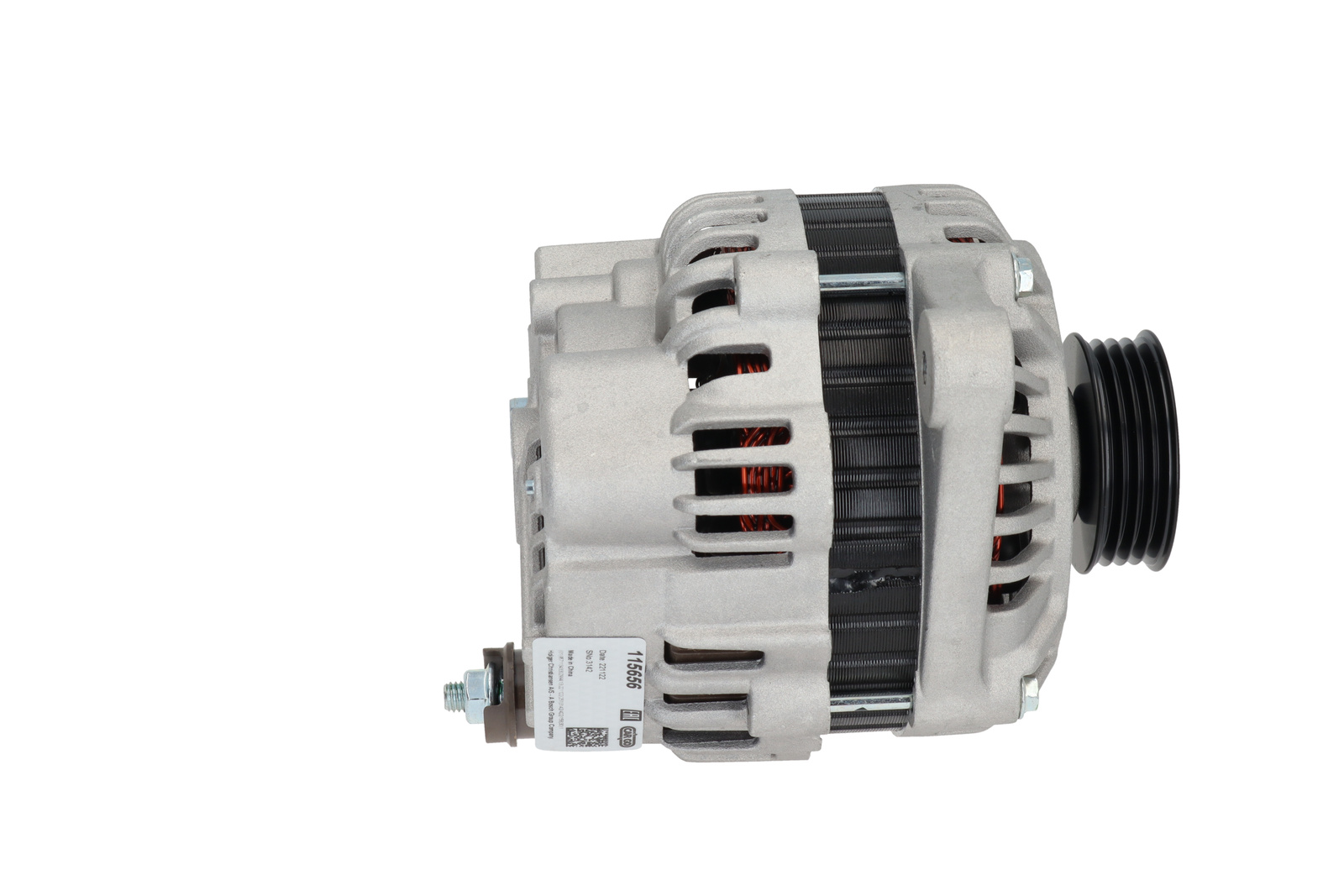

Product image - main
Trade number 115656

Details & description

Voltage 14, Amp 70, Pulley SP, Bracket Hole Size 1 10.40, Pulley Diameter 54.50, Bracket Hole Size Rear 10.50, Terminal type L, Holder Arm Width 27.00, Pulley Distance 52.50, B+ Length 11.50, B+ M8, Fan IF, Radius 2 94.00, Plug no. 1 PL55, Mounting Bracket Distance 70.40, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 4, Regulator type IR, B+ Position 20, Belt Adjustment Bracket Hole Position 4, Total Length 173.00

Product information

Electrical information

  • Voltage14
  • Amp70

Physical information

  • PulleySP
  • Bracket Hole Size 110.40
  • Pulley Diameter54.50
  • Bracket Hole Size Rear10.50
  • Terminal typeL
  • Holder Arm Width27.00
  • Pulley Distance52.50
  • B+ Length11.50
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • A001TA3792MITSUBISHI
    • A1TA3791MITSUBISHI
    • A1TA3792MITSUBISHI
    • 6001549063RENAULT
    • 8200400890RENAULT
    • 231006006RRENAULT
    • 8200660052RENAULT

    Competitor References

    • DRA1138AC DELCO
    • CAL35354CASCO SRL
    • 575935070CV PSH
    • DRA1138DELCO REMY
    • 230349702DRI
    • 286568ELSTOCK
    • 210523ERA SPA
    • 210523AERA SPA
    • 12090453EUROTEC
