F032115653 - Alternator

Trade number 115653

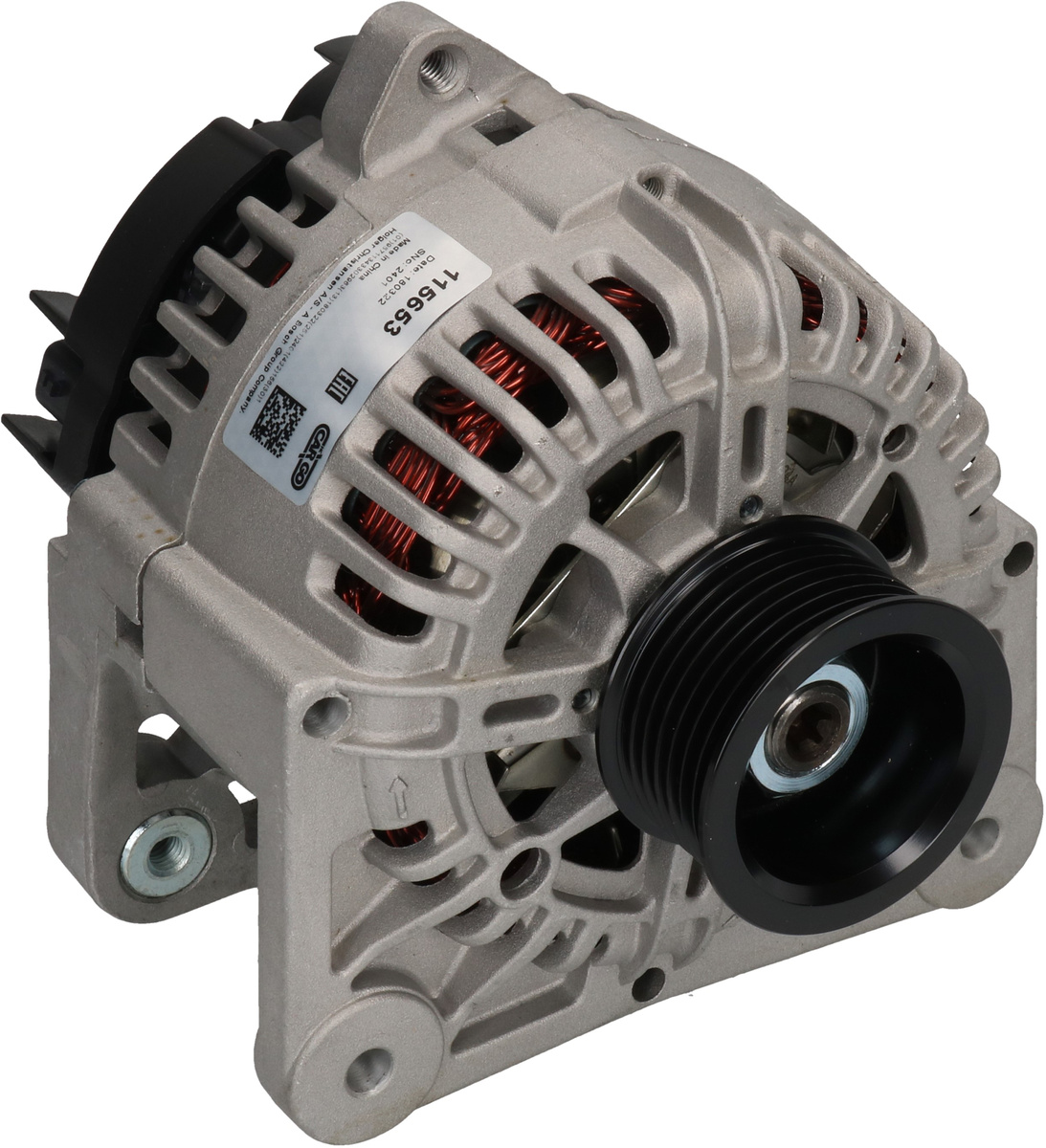

Product image - main
Trade number 115653

Details & description

Voltage 14, Amp 110, Communication BSS, Pulley SP, Pulley Diameter 55.00, Bracket Hole Size Rear M8, Pulley Distance 33.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 60.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.00, B+ M8, Radius 2 90.00, Plug no. 1 PL131, Rotation CW, Position 20, B+ Position 7, Belt Adjustment Bracket Hole Position 15, Total Length 185.00

Product information

Electrical information

  • Voltage14
  • Amp110

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP
  • Pulley Diameter55.00
  • Bracket Hole Size RearM8
  • Pulley Distance33.50
  • Mounting Bracket Distance60.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley7
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 231000646RRENAULT
    • 7711368683RENAULT
    • 8200429905RENAULT
    • 8200518409RENAULT
    • 8200538817RENAULT
    • 8200623231RENAULT
    • 8200660043RENAULT
    • 8200718724RENAULT

    Competitor References

    • DRA0698AC DELCO
    • 553230RIAD KÜHNER
    • A0279AUTOSTARTER POLAND
    • 0124425039BOSCHBOM
    • 0124425069BOSCHBOM
    • 0124425106BOSCHBOM
    • 0124425107BOSCHBOM
    • 0124425109BOSCHBOM
    • 0986083980BOSCH
  • Compatible products
