F032115651 - Alternator

Trade number 115651

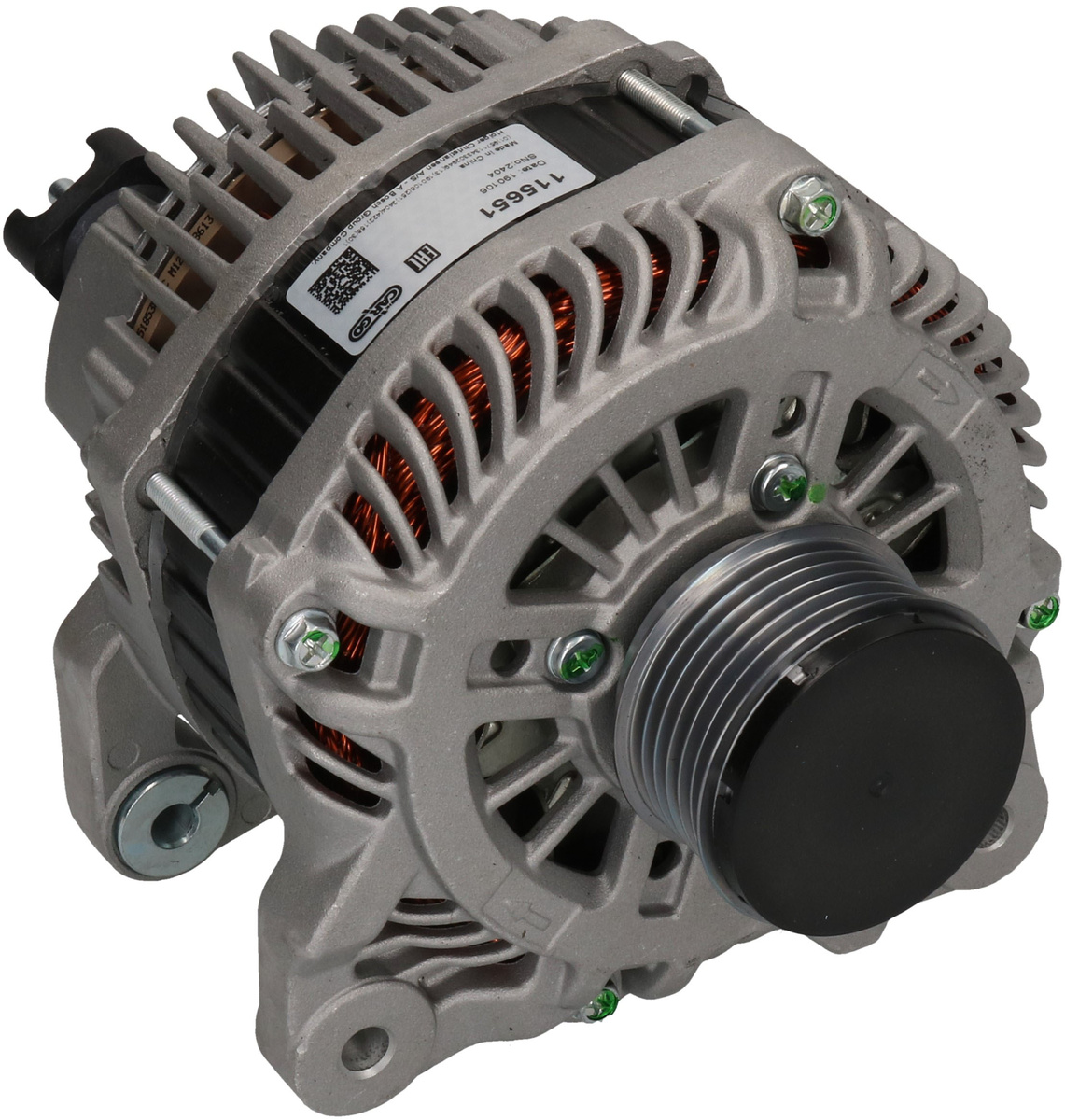

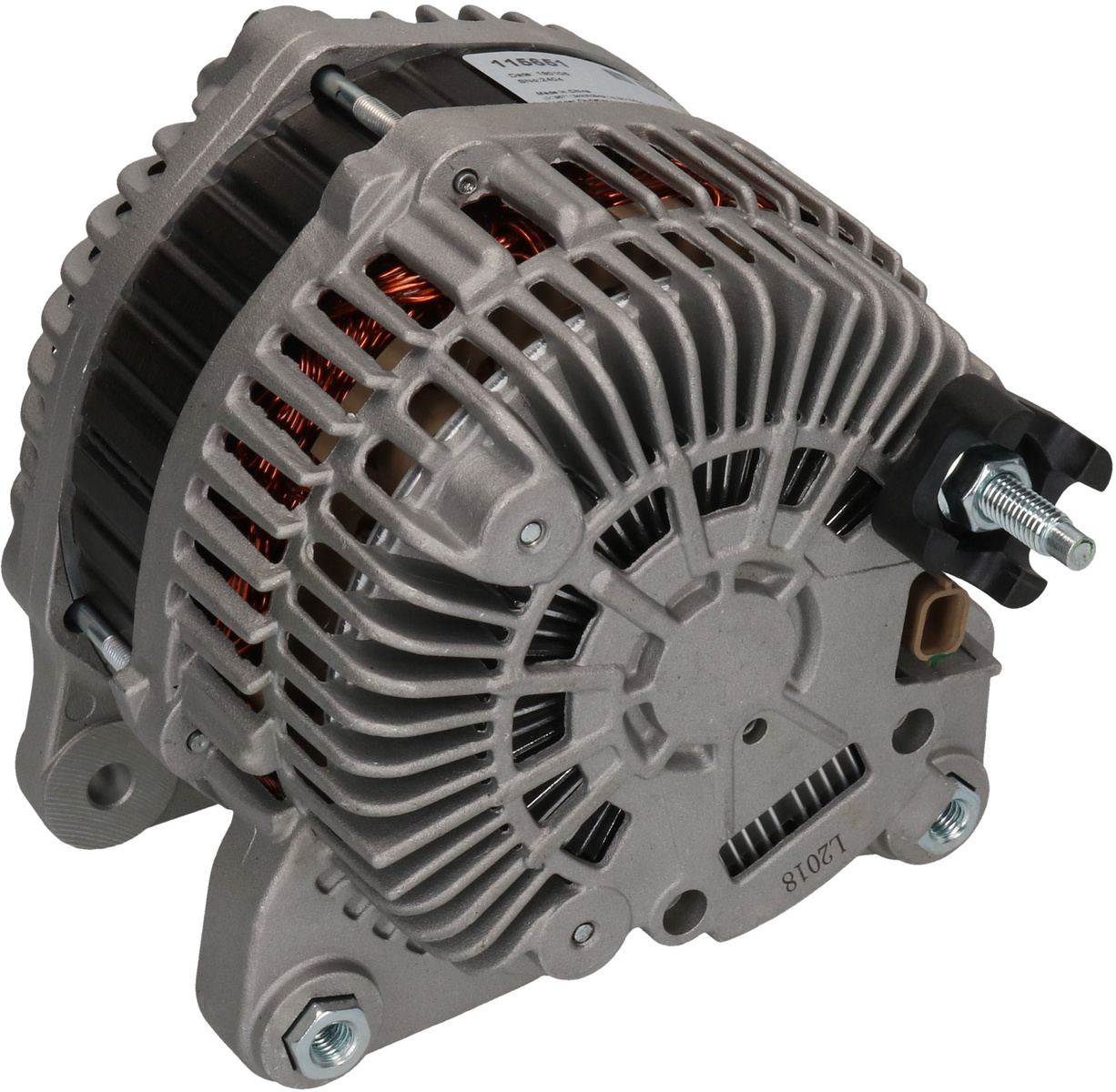

Product image - main
Trade number 115651

Details & description

Voltage 14, Amp 210, Communication BSS, Pulley SP/FW, Pulley Diameter 55.00, Bracket Hole Size Rear M8, Pulley Distance 39.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 58.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.50, B+ M8, Radius 2 90.00, Plug no. 1 PL124, Rotation CW, Position 7, B+ Position 2, Belt Adjustment Bracket Hole Position 45, Total Length 204.00

Product information

Electrical information

  • Voltage14
  • Amp210

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP/FW
  • Pulley Diameter55.00
  • Bracket Hole Size RearM8
  • Pulley Distance39.00
  • Mounting Bracket Distance58.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • A004TJ0582MITSUBISHIBOM
    • A004TJ0582ZEMITSUBISHIBOM
    • A4TJ0582MITSUBISHIBOM
    • A4TJ0582ZCMITSUBISHI
    • A4TJ0582ZEMITSUBISHIBOM
    • 231002543RRENAULT
    • 7711368727RENAULT
    • 8200363528RENAULT
    • 8200660057RENAULT

    • Competitor References

    • DRA0798AC DELCO
    • 553356RIAD KÜHNER
    • A5230AUTOSTARTER POLAND
    • 0986083730BOSCH
    • 1986A01555BOSCH
    • CAL35221CASCO SRL
    • 190014092CV PSH
    • DRA0798DELCO REMY
    • 2303372102DRI

    • Compatible products
