F032115647 - Alternator

Trade number 115647

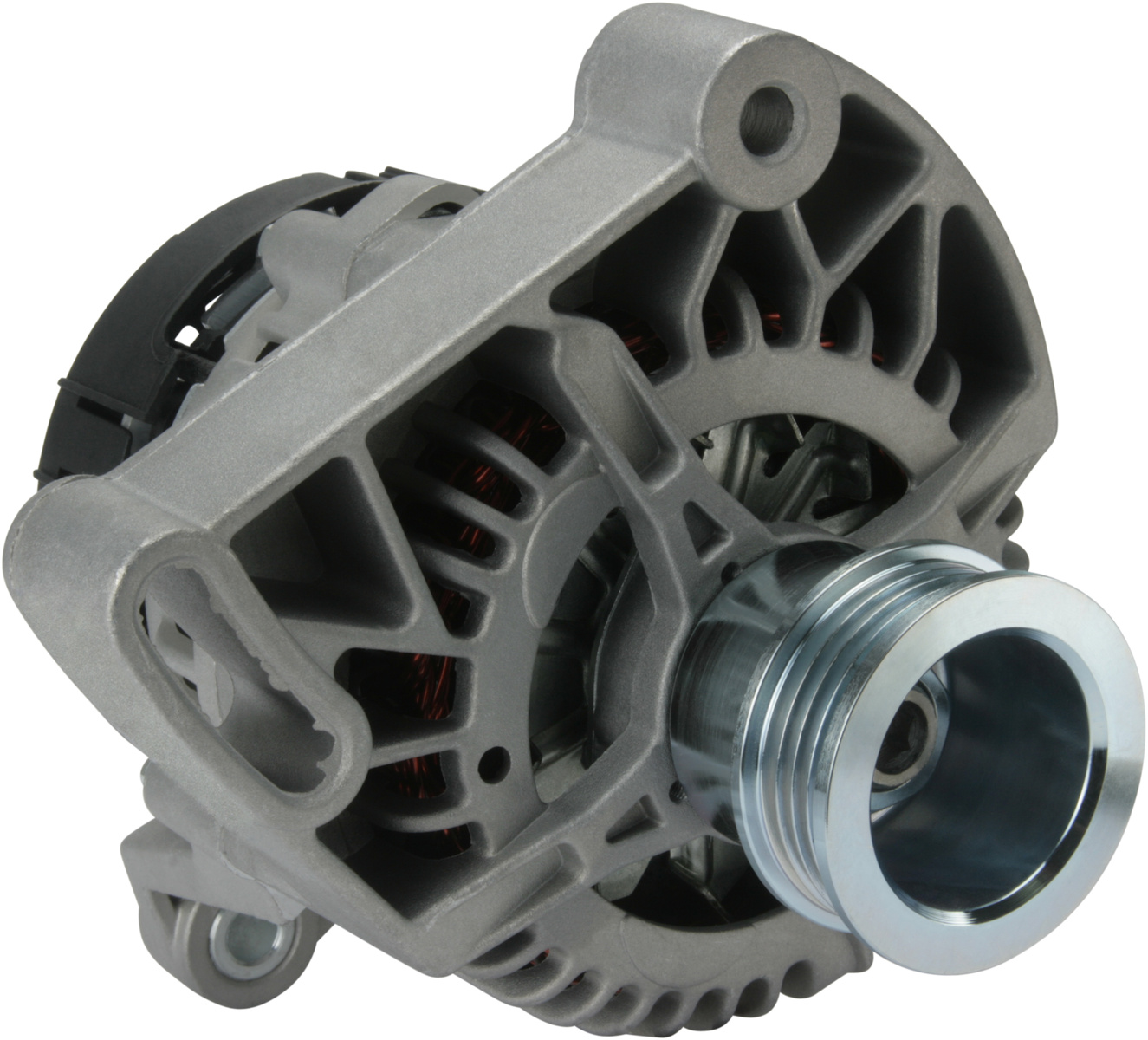

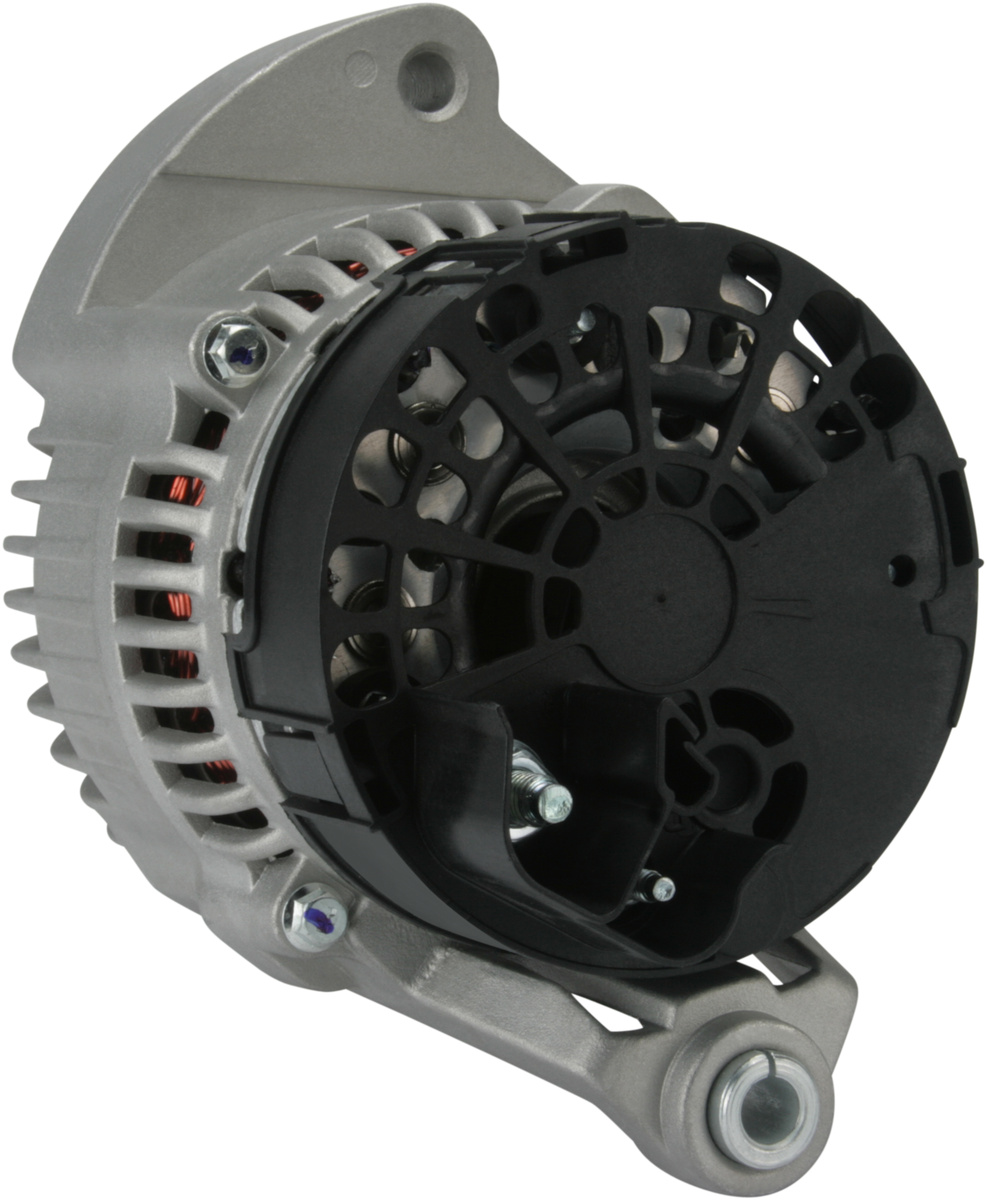

Product image - main
Trade number 115647

Details & description

Voltage 14, Amp 90, Pulley SP, Bracket Hole Size 1 10.50, Pulley Diameter 54.00, Prod. info BN, Bracket Hole Size Rear 10.00, D+ Size M5, D+ Position 35, Holder Arm Width 32.00, Pulley Distance 69.00, B+ M8, Radius 2 77.00, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 12.00, Grooves/pulley 4, Regulator type IR, Position 12, B+ Position 45, Belt Adjustment Bracket Hole Position 45, Total Length 210.00

Product information

Electrical information

  • Voltage14
  • Amp90

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP
  • Bracket Hole Size 110.50
  • Pulley Diameter54.00
  • Bracket Hole Size Rear10.00
  • D+ SizeM5
  • D+ Position35
  • Holder Arm Width32.00
  • Pulley Distance69.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 52003537FIAT
    • 51718502FIAT
    • 51859043FIAT

    Competitor References

    • DRA1194AC DELCO
    • DRA1194XAC DELCO
    • 301349RIAD KÜHNER
    • A6160DENSOAUTOSTARTER POLAND
    • A6160SAUTOSTARTER POLAND
    • 0986086870BOSCH
    • 1986A00028BOSCH
    • CAL30225CASCO SRL
    • 505569090CV PSH
