- F032115646 - Starter

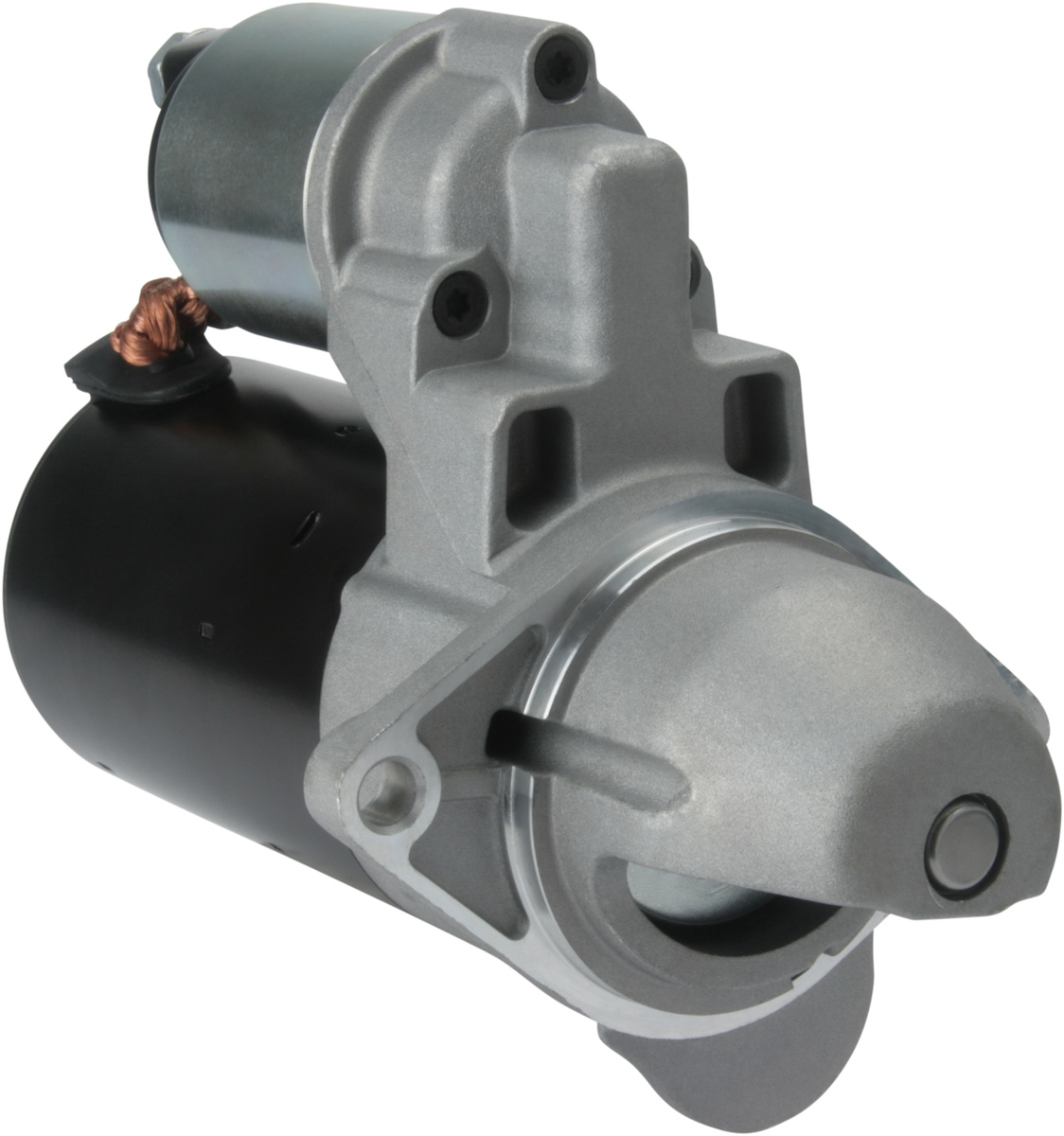

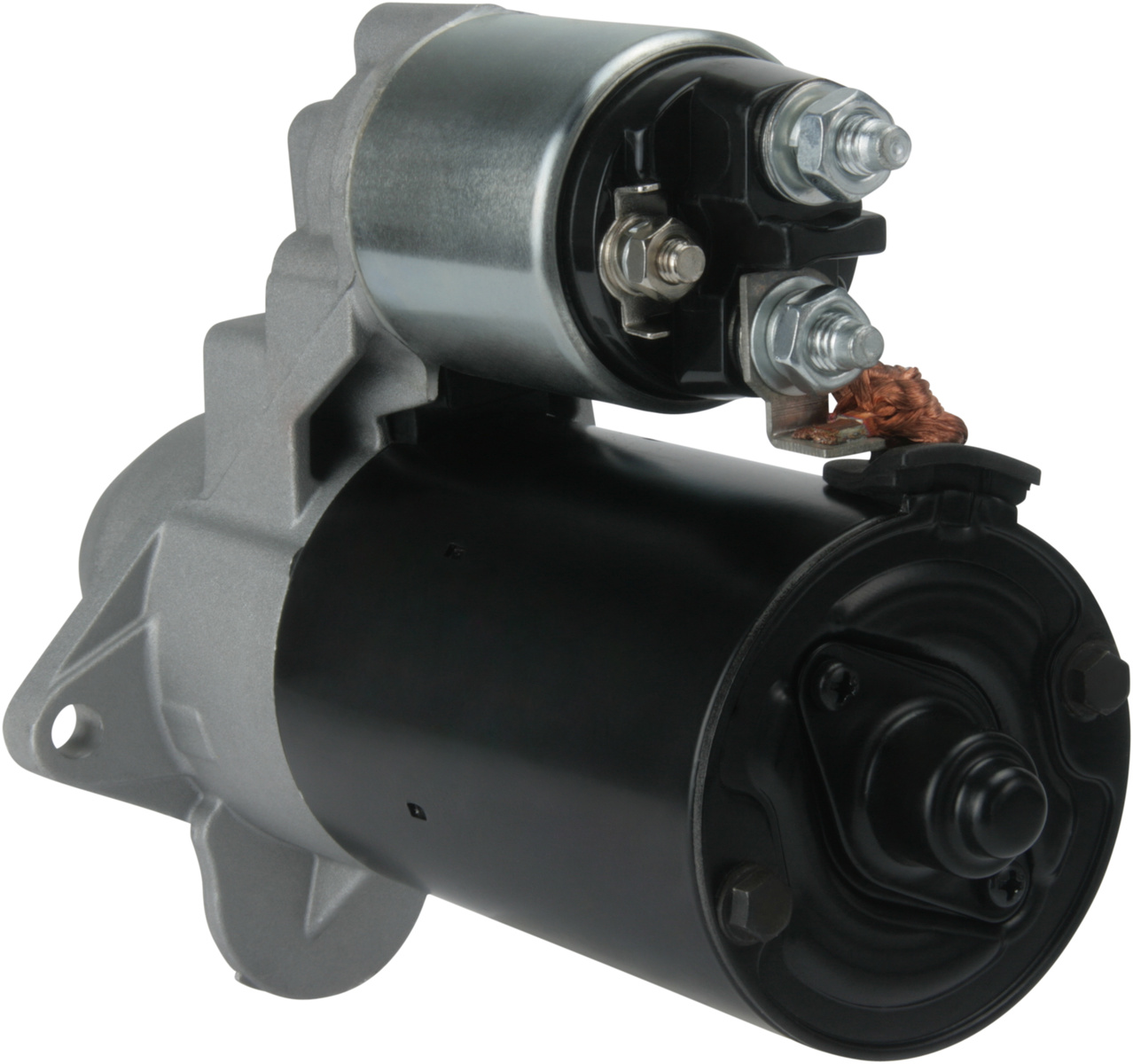

F032115646 - Starter
Trade number 115646
Trade number 115646
Details & description
kW 1.1, Voltage 12, No./mount. holes 2 (0), Mounting Hole 2 8.50, Rear Distance 165.00, Gear type GR, Prod. info BN, Front Distance 52.50, Drive Distance 18.00, No./teeth 10, B+ M8, Terminal 50 M6, Mounting Flange 68.00, Starter type Start/Stop, Distance 105.00, Rotation CW, Position 45, Mounting Hole 1 8.50, Amount of Mounting Holes 2 (0), Total Length 217.00
Product information
Electrical information
- kW1.1
- Voltage12
Catalogue information
- Prod. infoBN
- Starter typeStart/Stop
Physical information
- No./mount. holes2 (0)
- Mounting Hole 28.50
- Rear Distance165.00
- Gear typeGR
- Front Distance52.50
- Drive Distance18.00
- No./teeth10
- B+M8
- Terminal 50M6
