F032115632 - Alternator

Trade number 115632

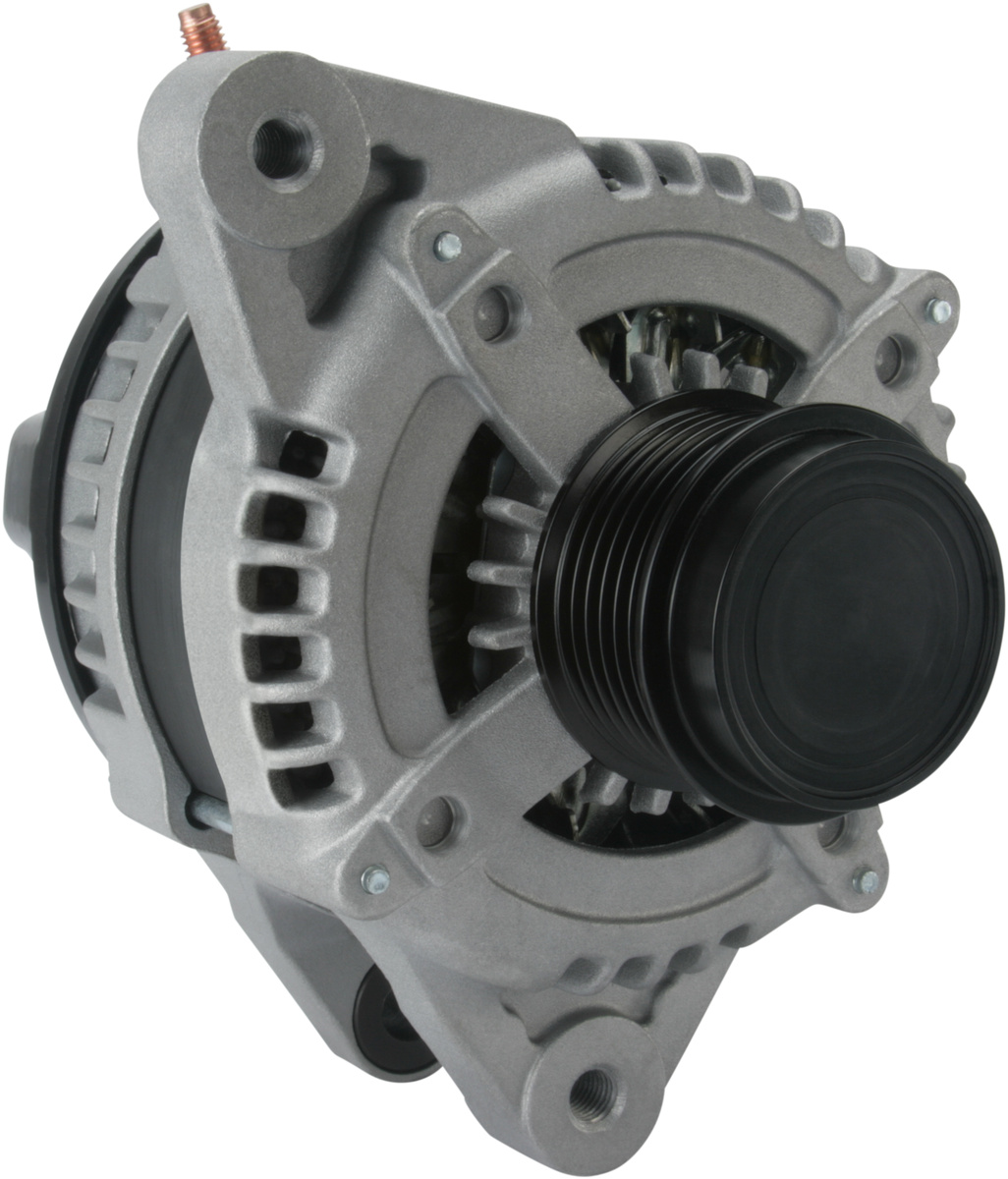

Product image - main
Trade number 115632

Details & description

Voltage 14, Amp 150, Communication PWM, Pulley SP/FW, Pulley Diameter 55.50, Prod. info BN, Bracket Hole Size Rear 11.20, Pulley Distance 52.00, Mounting Bracket Distance 38.00, Radius 90.00, Belt Adjustment Bracket Hole 1 M10-1.25, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 M10-1.25, Holder Arm Width 20.00, B+ M8, Radius 2 87.00, Plug no. 1 PL172, Rotation CW, Position 55, B+ Position 5, Belt Adjustment Bracket Hole Position 53, Total Length 172.00

Product information

Electrical information

  • Voltage14
  • Amp150

Catalogue information

  • Prod. infoBN

Physical information

  • CommunicationPWM
  • PulleySP/FW
  • Pulley Diameter55.50
  • Bracket Hole Size Rear11.20
  • Pulley Distance52.00
  • Mounting Bracket Distance38.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 1M10-1.25
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 373002F200HYUNDAI

    Competitor References

    • DRA0998AC DELCO
    • 553943RIAD KÜHNER
    • A6253AUTOSTARTER POLAND
    • 0986082390BOSCH
    • 1986A01282BOSCH
    • CAL32152CASCO SRL
    • CAL40495CASCO SRL
    • 155578150CV PSH
    • DRA0998DELCO REMY
  • Compatible products
