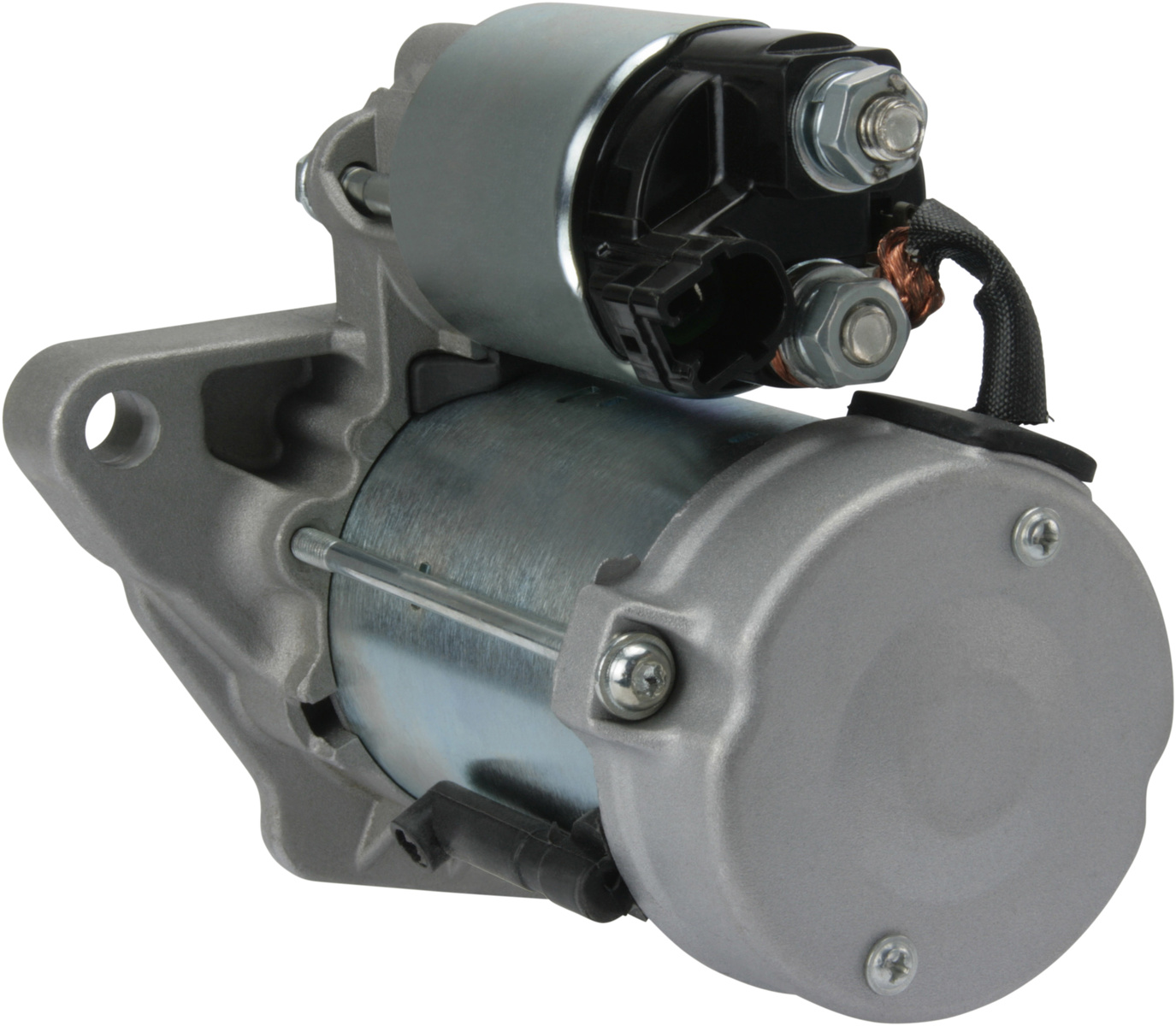

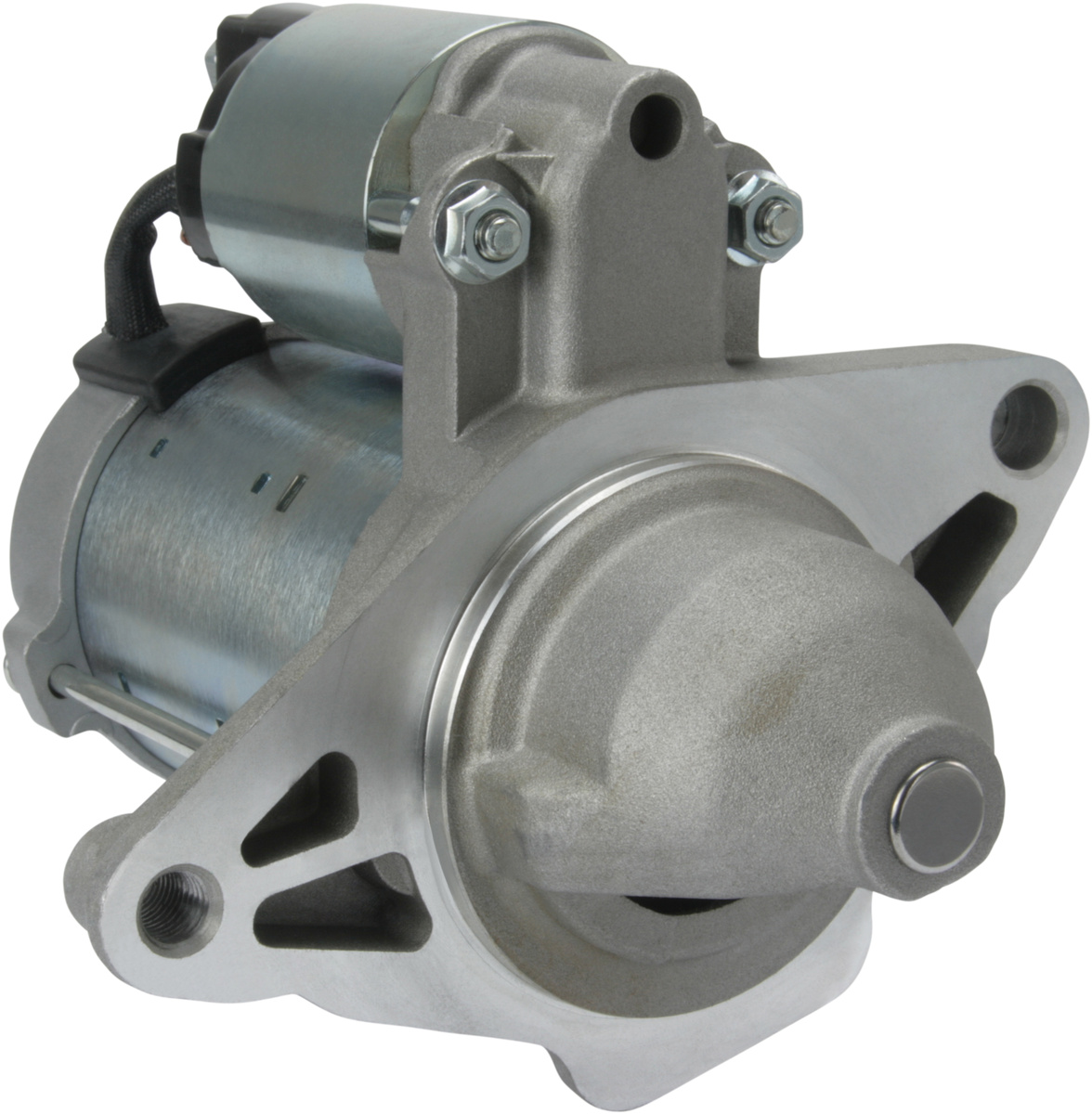

F032115613 - Starter

Trade number 115613
Product image - main
Trade number 115613

Details & description

kW 1.0, Voltage 12, No./mount. holes 2 (1), Rear Distance 132.00, Gear type GR, Prod. info BN, Front Distance 57.00, Drive Distance 24.00, No./teeth 9, B+ M8, Terminal 50 Plug, Mounting Flange 74.00, Distance 139.00, Rotation CW, Position 37, Mounting Hole 1 11.00, Amount of Mounting Holes 2 (1), Total Length 188.50

Product information

Electrical information

  • kW1.0
  • Voltage12

Catalogue information

  • Prod. infoBN

Physical information

  • No./mount. holes2 (1)
  • Rear Distance132.00
  • Gear typeGR
  • Front Distance57.00
  • Drive Distance24.00
  • No./teeth9
  • B+M8
  • Terminal 50Plug
  • Mounting Flange74.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 2810047122TOYOTA
    • 2810047130TOYOTA
    • 2810047131TOYOTA
    • 2810047132TOYOTA
    • 281000Y010TOYOTA
    • 2810047120TOYOTA
    • 2810047121TOYOTA
    • 281000Y030TOYOTA

    Competitor References

    • DRS0521AC DELCO
    • DRS0521XAC DELCO
    • 254591AD KÜHNER
    • S6042AUTOSTARTER POLAND
    • S6042DENSOAUTOSTARTER POLAND
    • 1986S00979BOSCH
    • 0986027350BOSCH
    • 1986S01198BOSCH
    • CST40287CASCO SRL
