F032115609 - Starter

Trade number 115609

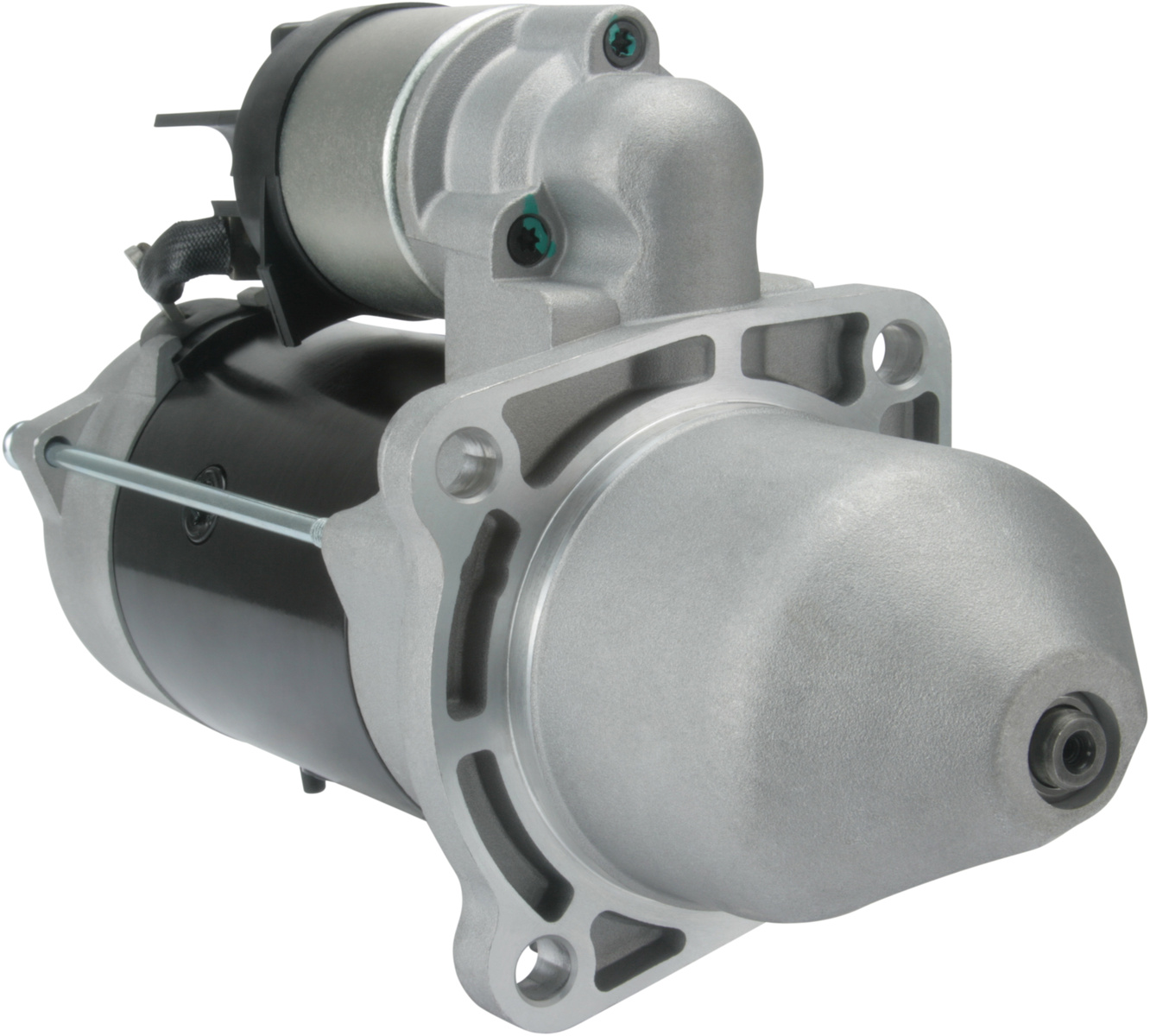

Product image - main
Trade number 115609

Details & description

kW 3.0, Voltage 12, No./mount. holes 3 (0), Mounting Hole 2 11.00, Rear Distance 208.50, Gear type GR, Prod. info BN, Front Distance 95.00, Distance 3 90.00, Drive Distance 48.00, No./teeth 11, Distance 2 90.00, B+ M10, Terminal 50 M5, Mounting Flange 89.00, Distance 127.00, Info Direct Drive Starter: HC-CARGO 112442., Mounting Hole 3 11.00, Rotation CW, Position 15, Mounting Hole 1 11.00, Amount of Mounting Holes 3 (0), Total Length 315.50

Product information

Electrical information

  • kW3.0
  • Voltage12

Catalogue information

  • Prod. infoBN
  • InfoDirect Drive Starter: HC-CARGO 112442.

Physical information

  • No./mount. holes3 (0)
  • Mounting Hole 211.00
  • Rear Distance208.50
  • Gear typeGR
  • Front Distance95.00
  • Distance 390.00
  • Drive Distance48.00
  • No./teeth11
  • Distance 290.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 87524725IVECO
    • RE503226JOHN DEEREBOM
    • RE504807JOHN DEERE

    Competitor References

    • DRS0067AC DELCO
    • S9274LETRIKAAUTOSTARTER POLAND
    • S0297AUTOSTARTER POLAND
    • 0001230002BOSCHBOM
    • 0986023990BOSCH
    • 0986023993BOSCH
    • 1986S10057BOSCH
    • CST10228CASCO SRL
    • 630501113CV PSH

    • Compatible products
