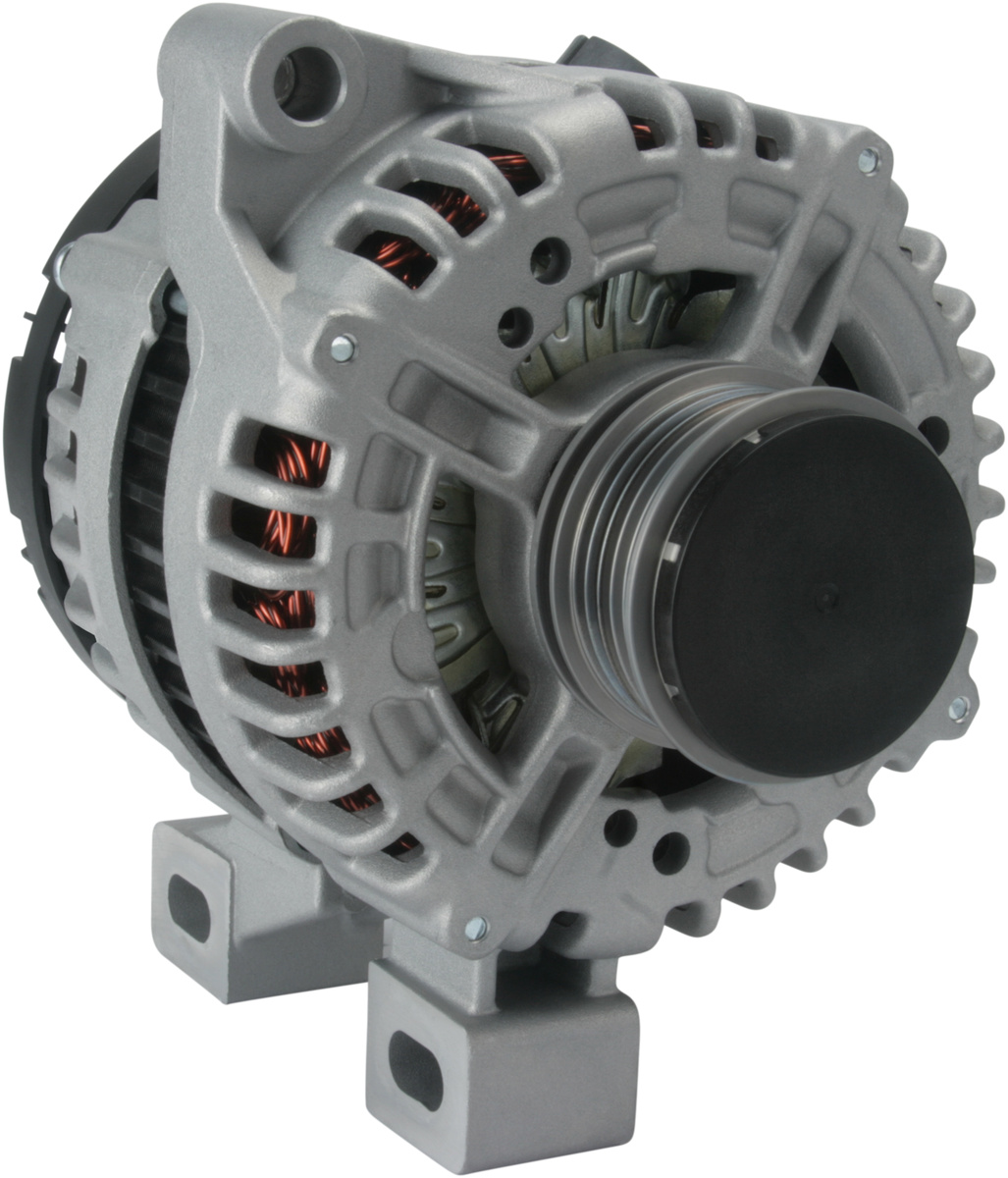

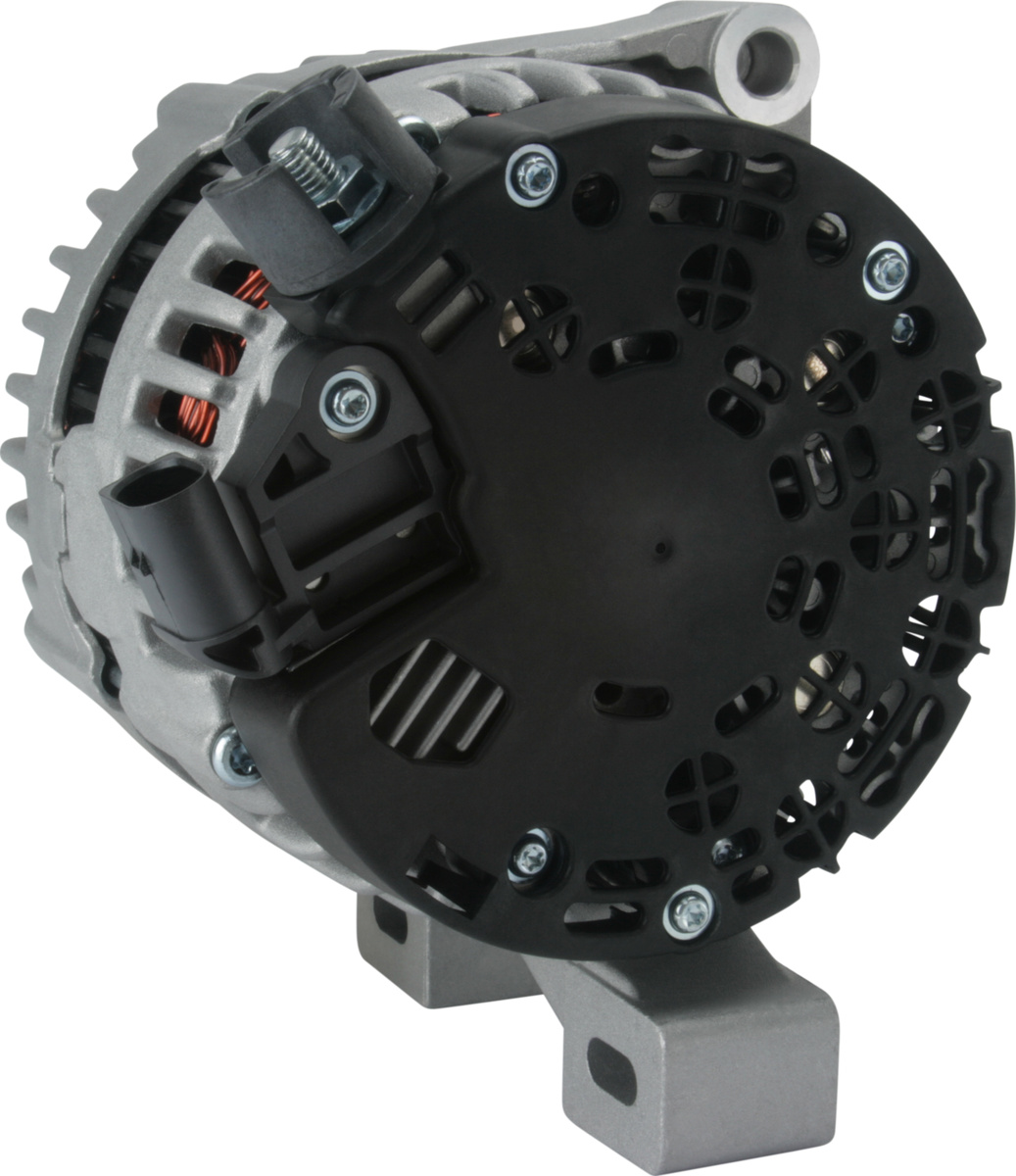

F032115606 - Alternator
Trade number 115606
Replacing and BOMs
OEM number
1541451FORD
6M5T10300SAFORD
AM5T10300SAFORD
2099471FORD
6M5J10300SAFORD
30773111VOLVO
36000207VOLVO
36001497VOLVO
360014970VOLVO
Competitor References
DRA0052AC DELCO
DRA1034AC DELCO
301967RIAD KÜHNER
554291RIAD KÜHNER
A0497AUTOSTARTER POLAND
A0498AUTOSTARTER POLAND
A0498SAUTOSTARTER POLAND
F00E100026BOSCH
F00E100569BOSCH
1986A00673BOSCH
1986A01040BOSCH
AL0859XBOSCH
0986080810BOSCH
0986082560BOSCH
CAL10440CASCO SRL
815519150CV PSH
815538150CV PSH
DRA0052DELCO REMY
DRA1034DELCO REMY
2381511502DRI
2381611502DRI
285710ELSTOCK
286800ELSTOCK
210440ERA SPA
210440AERA SPA
12090227EUROTEC
12090343EUROTEC
113043FACROM
115606HC-CARGO
CA1967IRHC-PARTS
8EL738211951HELLA
8EL011712221HELLA
32080810HERTH U. BUSS
LRA03098LUCAS
LRA03660LUCAS
444312VALEO
11347NWAI
F032115606 - Alternator
Details & description
Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 8.50, Pulley Diameter 55.60, Prod. info BN, Terminal type COM, Holder Arm Width 33.00, Pulley Distance 34.00, B+ M8, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL137, Mounting Bracket Distance 91.00, Radius 89.00, Rotation CW, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 5, Regulator type IR, Position 45, B+ Position 55, Total Length 170.00
Product information
Voltage:14
Amp:150
Communication:LIN
Pulley:SP/FW
Bracket Hole Size 1:8.50
Pulley Diameter:55.60
Prod. info:BN
Terminal type:COM
Holder Arm Width:33.00
Pulley Distance:34.00
B+:M8
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Plug no. 1:PL137
Mounting Bracket Distance:91.00
Radius:89.00
Rotation:CW
Belt Adjustment Bracket Hole 1:11.00
Grooves/pulley:5
Regulator type:IR
Position:45
B+ Position:55
Total Length:170.00
Replacing and BOMs
OEM number
1541451FORD
6M5T10300SAFORD
AM5T10300SAFORD
2099471FORD
6M5J10300SAFORD
30773111VOLVO
36000207VOLVO
36001497VOLVO
360014970VOLVO
Competitor References
DRA0052AC DELCO
DRA1034AC DELCO
301967RIAD KÜHNER
554291RIAD KÜHNER
A0497AUTOSTARTER POLAND
A0498AUTOSTARTER POLAND
A0498SAUTOSTARTER POLAND
F00E100026BOSCH
F00E100569BOSCH
1986A00673BOSCH
1986A01040BOSCH
AL0859XBOSCH
0986080810BOSCH
0986082560BOSCH
CAL10440CASCO SRL
815519150CV PSH
815538150CV PSH
DRA0052DELCO REMY
DRA1034DELCO REMY
2381511502DRI
2381611502DRI
285710ELSTOCK
286800ELSTOCK
210440ERA SPA
210440AERA SPA
12090227EUROTEC
12090343EUROTEC
113043FACROM
115606HC-CARGO
CA1967IRHC-PARTS
8EL738211951HELLA
8EL011712221HELLA
32080810HERTH U. BUSS
LRA03098LUCAS
LRA03660LUCAS
444312VALEO
11347NWAI
