F032115603 - Alternator

Trade number 115603

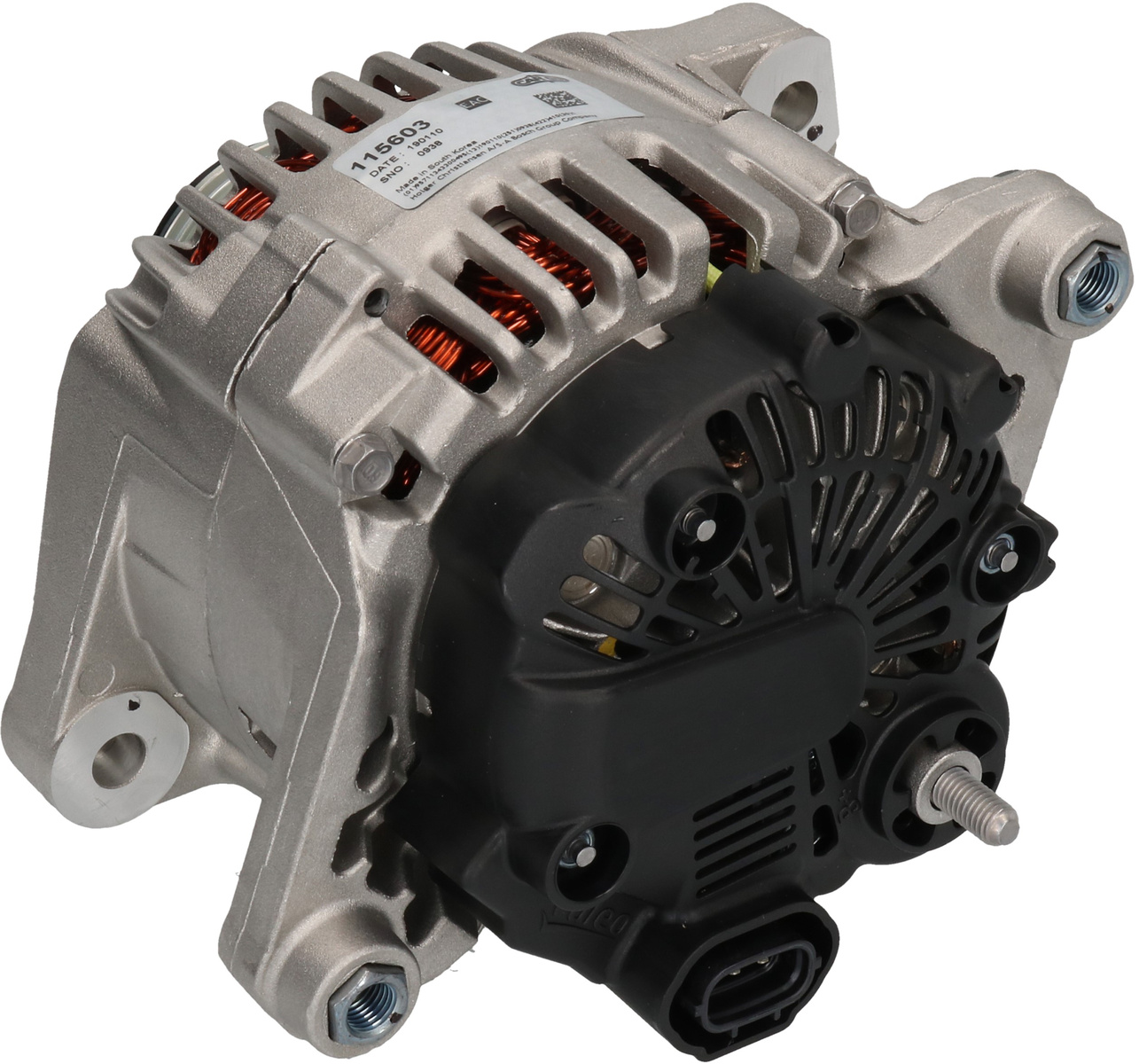

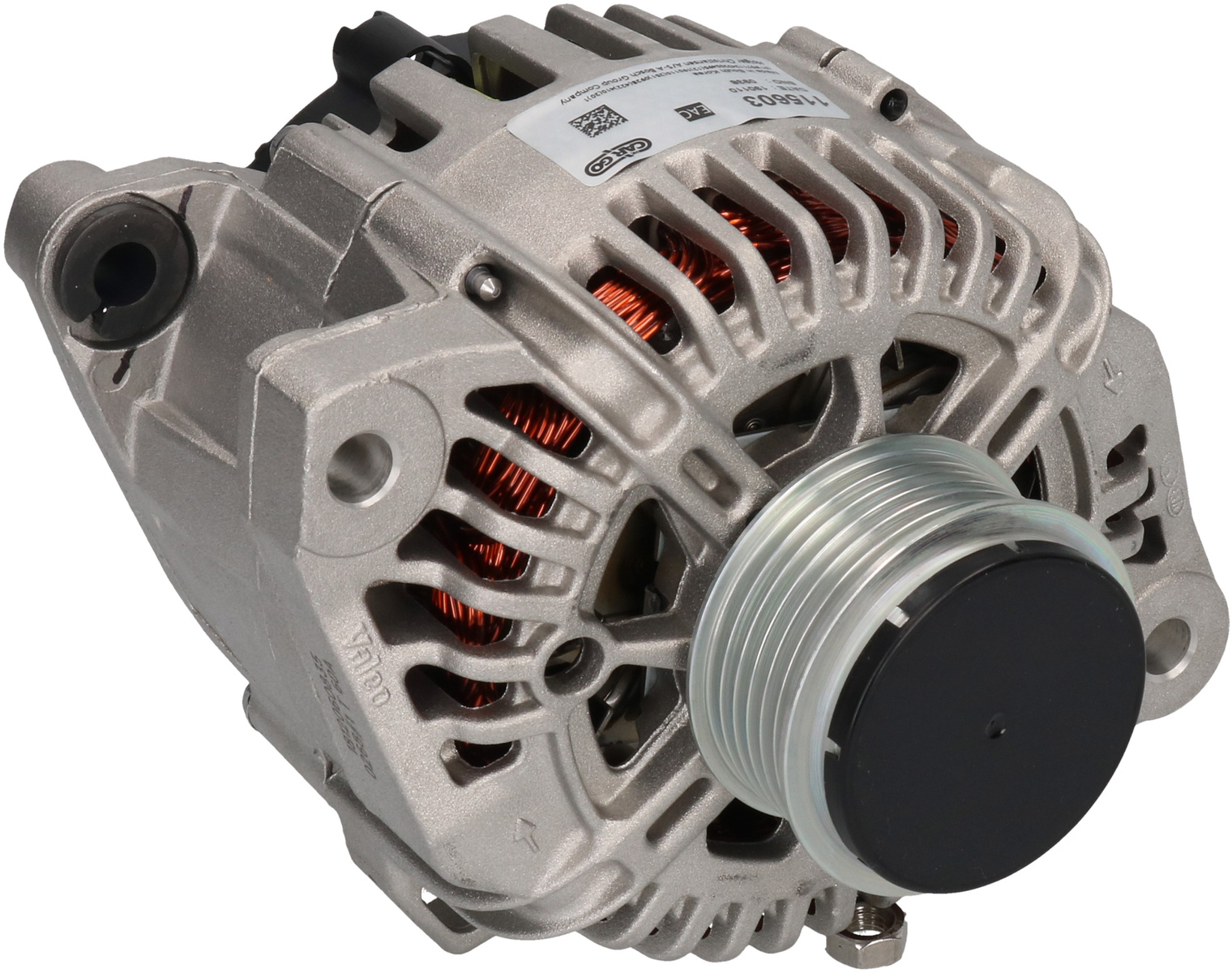

Product image - main
Trade number 115603

Details & description

Voltage 14, Amp 110, Pulley SP/FW, Bracket Hole Size 1 10.50, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear M10, D+ Size Plug, D+ Position 20, Holder Arm Width 20.00, Pulley Distance 42.50, B+ M8, Radius 2 85.00, Plug no. 1 PL176, Mounting Bracket Distance 57.00, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, B+ Position 13, Belt Adjustment Bracket Hole Position 60, Total Length 174.50

Product information

Electrical information

  • Voltage14
  • Amp110

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP/FW
  • Bracket Hole Size 110.50
  • Pulley Diameter60.00
  • Bracket Hole Size RearM10
  • D+ SizePlug
  • D+ Position20
  • Holder Arm Width20.00
  • Pulley Distance42.50
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 3730025600HYUNDAI
    • 373002G150HYUNDAI
    • 373002G400HYUNDAI
    • 373002G500HYUNDAI

    Competitor References

    • DRA0988NAC DELCO
    • DRA1142AC DELCO
    • 553591RIAD KÜHNER
    • A3239VALEOAUTOSTARTER POLAND
    • A3278AUTOSTARTER POLAND
    • 0986083490BOSCH
    • 0986UN6116BOSCH
    • 1986A01833BOSCH
    • CAL32175CASCO SRL
