F032115602 - Alternator

Trade number 115602

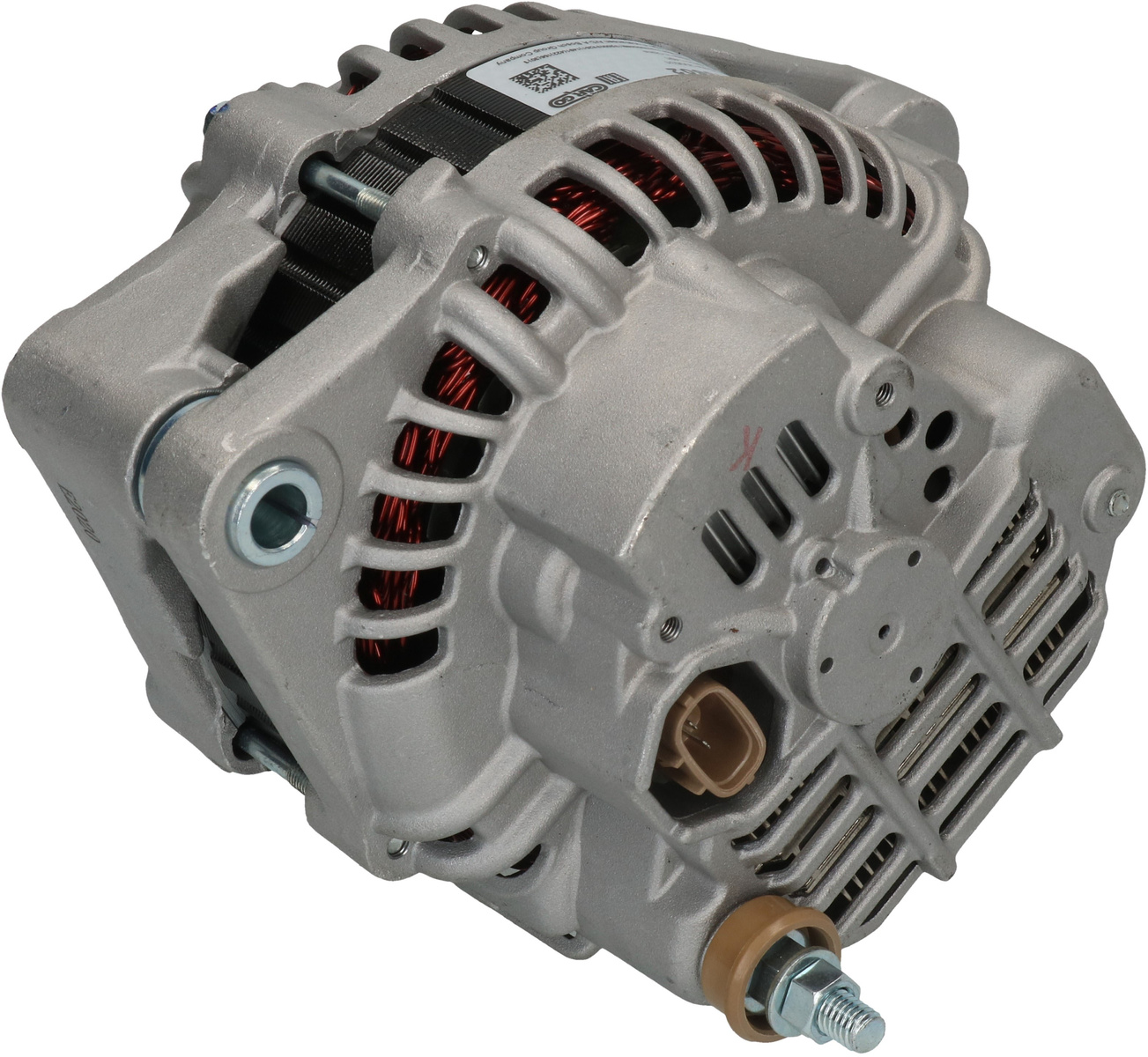

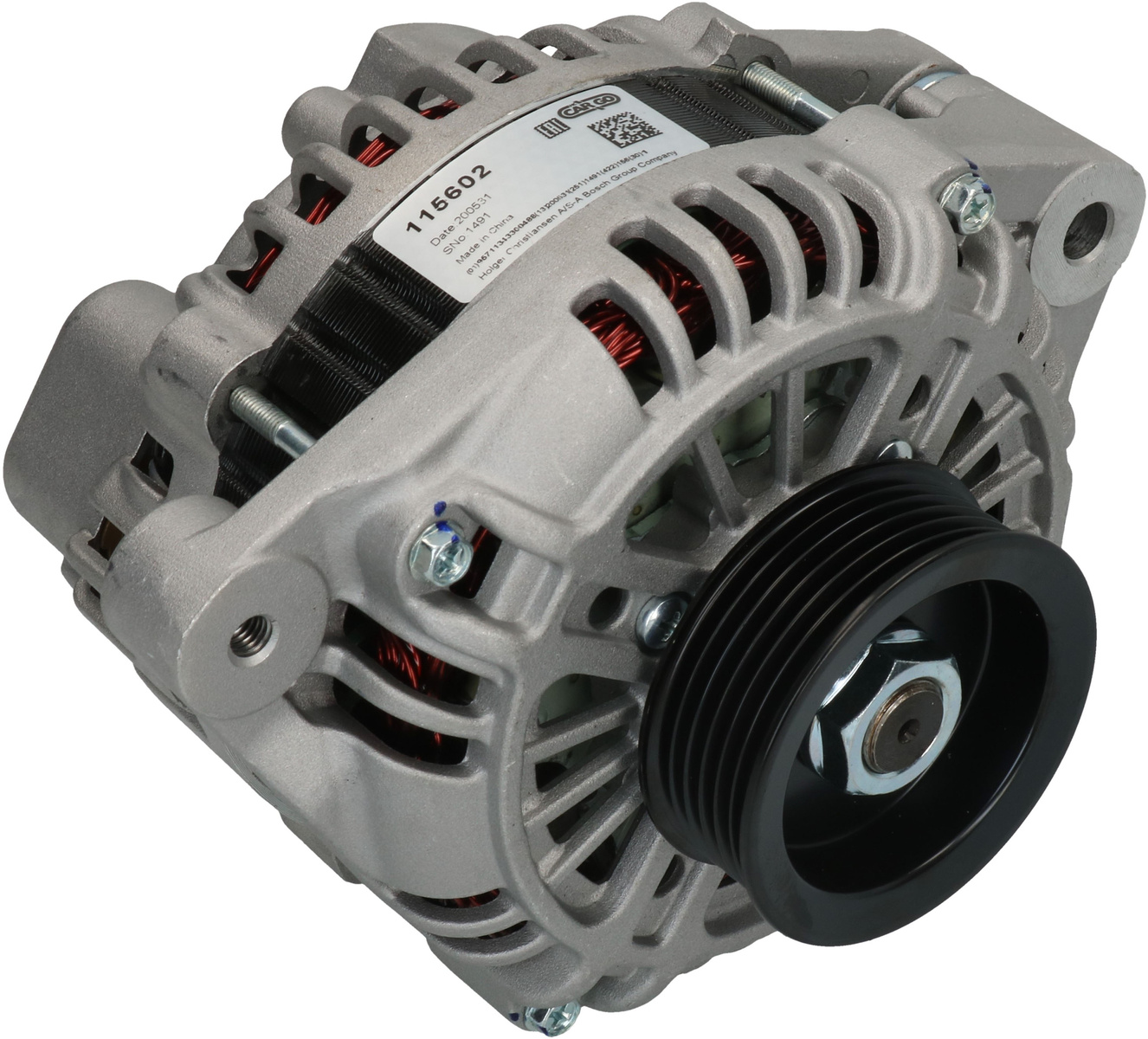

Product image - main
Trade number 115602

Details & description

Voltage 28, Amp 90, Pulley SP, Prod. info BN, Bracket Hole Size Rear 10.60, D+ Position 12, Radius 88.50, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 11.00, Lamp type Active, Terminal type L-IG-S, D+ Size Plug, Holder Arm Width 59.00, B+ M8, Radius 2 89.00, Plug no. 1 PL42, Rotation CW, Position 13, B+ Position 58, Belt Adjustment Bracket Hole Position 7, Total Length 198.00

Product information

Electrical information

  • Voltage28
  • Amp90

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP
  • Bracket Hole Size Rear10.60
  • D+ Position12
  • Radius88.50
  • Belt Adjustment Bracket Hole 1M8
  • Grooves/pulley6
  • Regulator typeIR
  • Bracket Hole Size 111.00
  • Lamp typeActive
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 504282333IVECO
    • A004TA0594MITSUBISHIBOM
    • A004TA8494MITSUBISHI
    • A4TA0594MITSUBISHIBOM
    • A4TA8494MITSUBISHI
    • A4TA8494AMMITSUBISHI

    Competitor References

    • DRA0815AC DELCO
    • F042A03088BOSCH
    • F042303088BOSCH
    • CAL35612CASCO SRL
    • DRA0815DELCO REMY
    • 484557ELSTOCK
    • 210909ERA SPA
    • 210909AERA SPA
    • 111962FACROM
