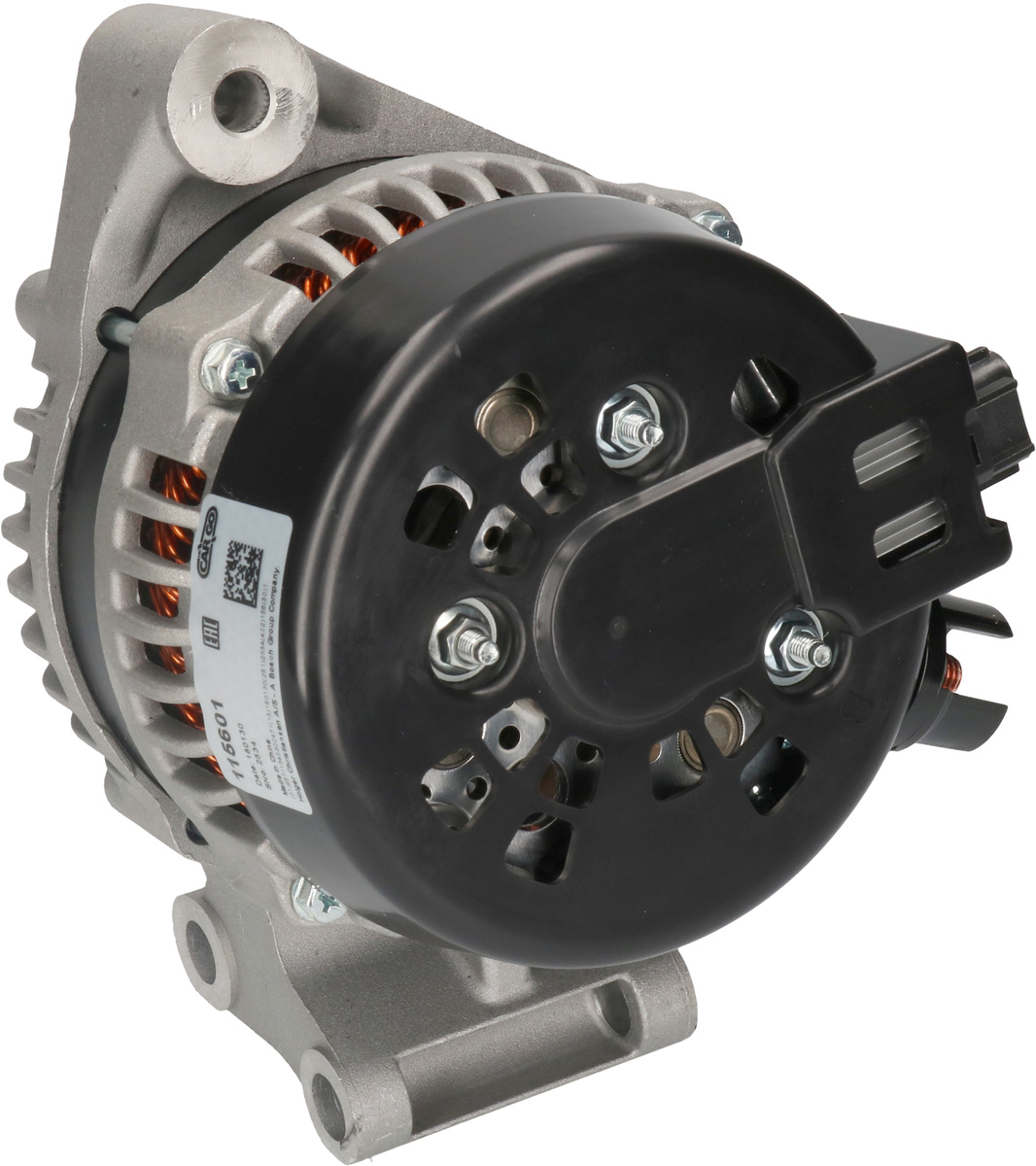

F032115601 - Alternator
Trade number 115601
Replacing and BOMs
OEM number
1352858FORD
1353886FORD
1543764FORD
3M5T10300KAFORD
3M5T10300KBFORD
3M5T10300KCFORD
30667501VOLVO
8603604VOLVO
30795493VOLVO
36002573VOLVO
Competitor References
DRA1198AC DELCO
301962RIAD KÜHNER
A6088AUTOSTARTER POLAND
A6088DENSOAUTOSTARTER POLAND
0986082100BOSCH
0986082104BOSCH
1986A00593BOSCH
CAL40332CASCO SRL
4868CEVAM
595555105CV PSH
595582120CV PSH
DRA1198DELCO REMY
DAN582DENSO
1042104020DENSO
1042104021DENSO
1042105760DENSO
DAN1041DENSO
2381531202DRI
275820ELSTOCK
210384ERA SPA
210384AERA SPA
12090235EUROTEC
113007FACROM
9090832FRIESEN
115601HC-CARGO
CA1962IRHC-PARTS
8EL012430881HELLA
8EL738212921HELLA
32118920HERTH U. BUSS
32082100HERTH U. BUSS
LRA03208LUCAS
063377421010MARELLI
063377421MARELLI
MAN7421MARELLI
443075VALEO
444308VALEO
20492RWAI
20492WAI
F032115601 - Alternator
Details & description
Voltage 14, Amp 120, Pulley SP, Pulley Diameter 49.00, Prod. info BN, Bracket Hole Size Rear 12.50, D+ Position 14, Pulley Distance 11.00, Mounting Bracket Distance 49.50, Radius 84.00, Belt Adjustment Bracket Hole 1 10.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 12.50, D+ Size Plug, Holder Arm Width 72.00, B+ M8, Radius 2 86.50, Plug no. 1 PL57, Rotation CW, Position 14, B+ Position 20, Belt Adjustment Bracket Hole Position 3, Total Length 157.00
Product information
Voltage:14
Amp:120
Pulley:SP
Pulley Diameter:49.00
Prod. info:BN
Bracket Hole Size Rear:12.50
D+ Position:14
Pulley Distance:11.00
Mounting Bracket Distance:49.50
Radius:84.00
Belt Adjustment Bracket Hole 1:10.20
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:12.50
D+ Size:Plug
Holder Arm Width:72.00
B+:M8
Radius 2:86.50
Plug no. 1:PL57
Rotation:CW
Position:14
B+ Position:20
Belt Adjustment Bracket Hole Position:3
Total Length:157.00
Replacing and BOMs
OEM number
1352858FORD
1353886FORD
1543764FORD
3M5T10300KAFORD
3M5T10300KBFORD
3M5T10300KCFORD
30667501VOLVO
8603604VOLVO
30795493VOLVO
36002573VOLVO
Competitor References
DRA1198AC DELCO
301962RIAD KÜHNER
A6088AUTOSTARTER POLAND
A6088DENSOAUTOSTARTER POLAND
0986082100BOSCH
0986082104BOSCH
1986A00593BOSCH
CAL40332CASCO SRL
4868CEVAM
595555105CV PSH
595582120CV PSH
DRA1198DELCO REMY
DAN582DENSO
1042104020DENSO
1042104021DENSO
1042105760DENSO
DAN1041DENSO
2381531202DRI
275820ELSTOCK
210384ERA SPA
210384AERA SPA
12090235EUROTEC
113007FACROM
9090832FRIESEN
115601HC-CARGO
CA1962IRHC-PARTS
8EL012430881HELLA
8EL738212921HELLA
32118920HERTH U. BUSS
32082100HERTH U. BUSS
LRA03208LUCAS
063377421010MARELLI
063377421MARELLI
MAN7421MARELLI
443075VALEO
444308VALEO
20492RWAI
20492WAI
