F032115576 - Alternator

Trade number 115576

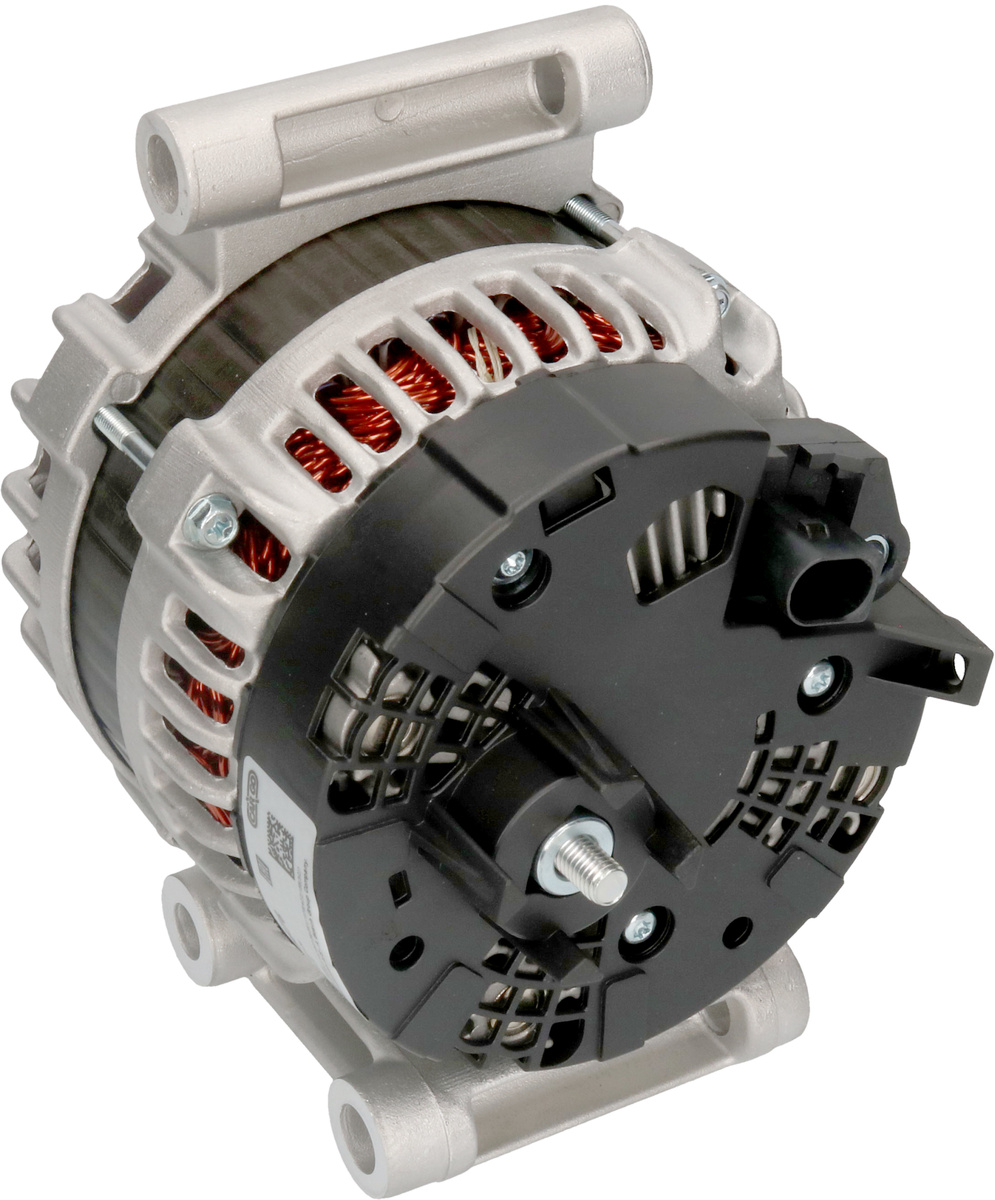

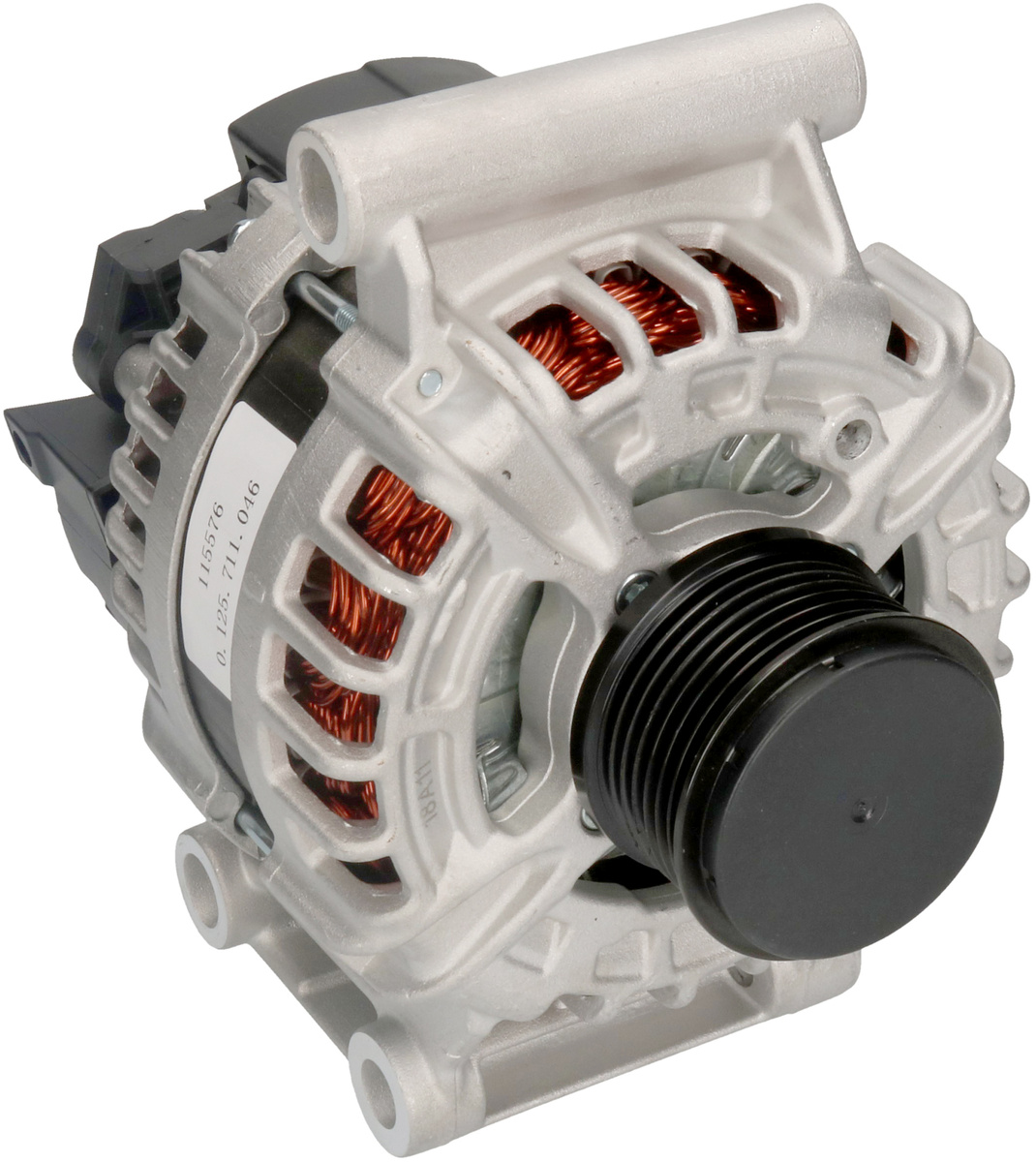

Product image - main
Trade number 115576

Details & description

Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Pulley Diameter 58.50, Prod. info BN, Bracket Hole Size Rear 12.50, Pulley Distance 43.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 74.00, Radius 87.50, Belt Adjustment Bracket Hole 1 11.50x13.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 10.60, Terminal type COM, Holder Arm Width 97.00, B+ M8, Radius 2 87.50, Plug no. 1 PL174, Rotation CW, Position 60, B+ Position 44, Belt Adjustment Bracket Hole Position 60, Total Length 199.00

Product information

Electrical information

  • Voltage14
  • Amp150

Catalogue information

  • Prod. infoBN
  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter58.50
  • Bracket Hole Size Rear12.50
  • Pulley Distance43.50
  • Mounting Bracket Distance74.00
  • Radius87.50
  • Belt Adjustment Bracket Hole 111.50x13.50
  • Grooves/pulley7
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 1738113FORD
    • 1745662FORD
    • CC1T10300CDFORD
    • 1800123FORD
    • CC1T10300CAFORD
    • CC1T10300CBFORD
    • CC1T10300CCFORD
    • 1889372FORD
    • 1874995FORD
  • Competitor References

    • DRA1032AC DELCO
    • 553997RIAD KÜHNER
    • A0438BOSCHAUTOSTARTER POLAND
    • A0482AUTOSTARTER POLAND
    • A0438SAUTOSTARTER POLAND
    • A0482SAUTOSTARTER POLAND
    • 0125711005BOSCHBOM
    • 0125711046BOSCHBOM
    • 0125711103BOSCHBOM
  • Compatible products
