F032115551 - Alternator

Trade number 115551

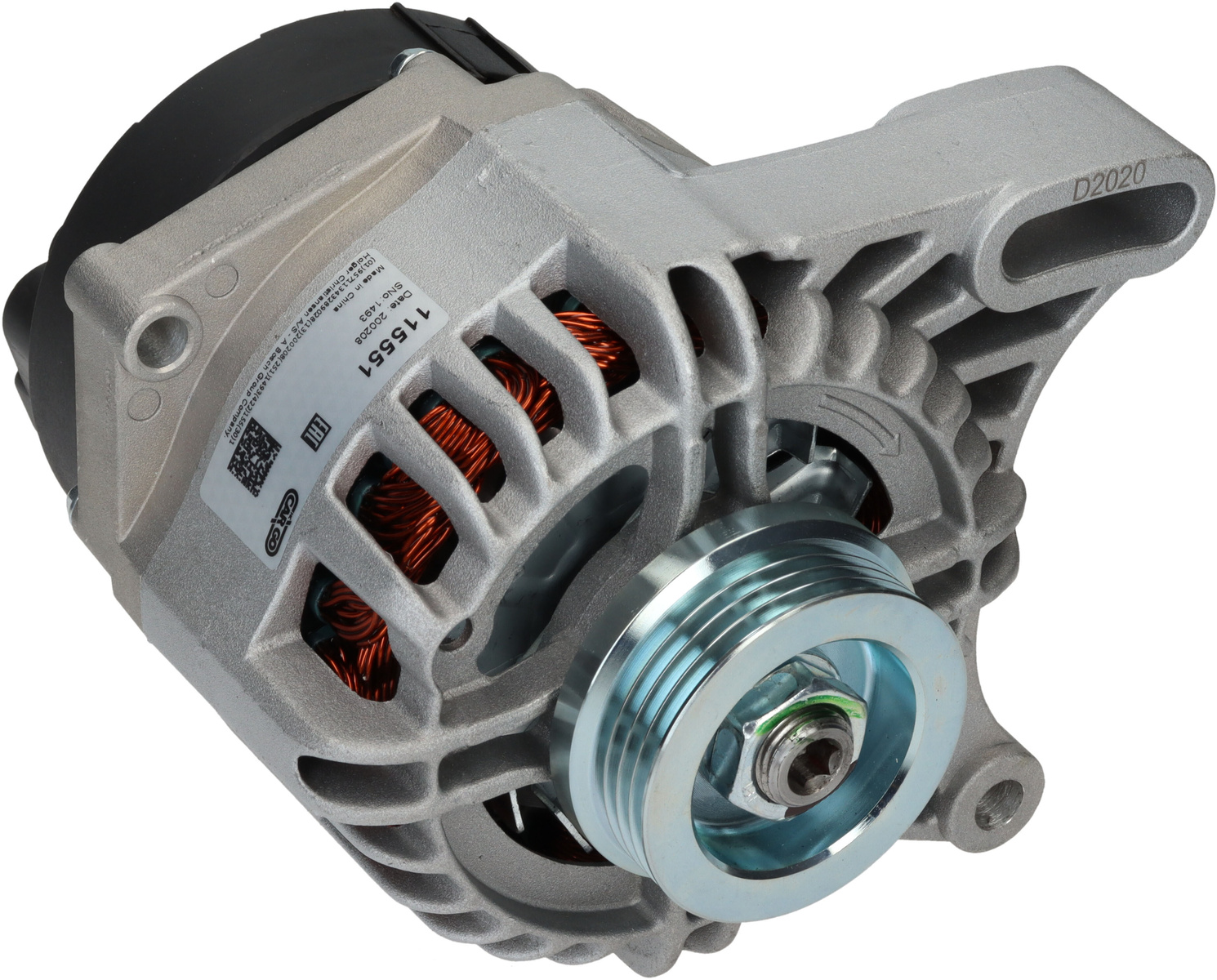

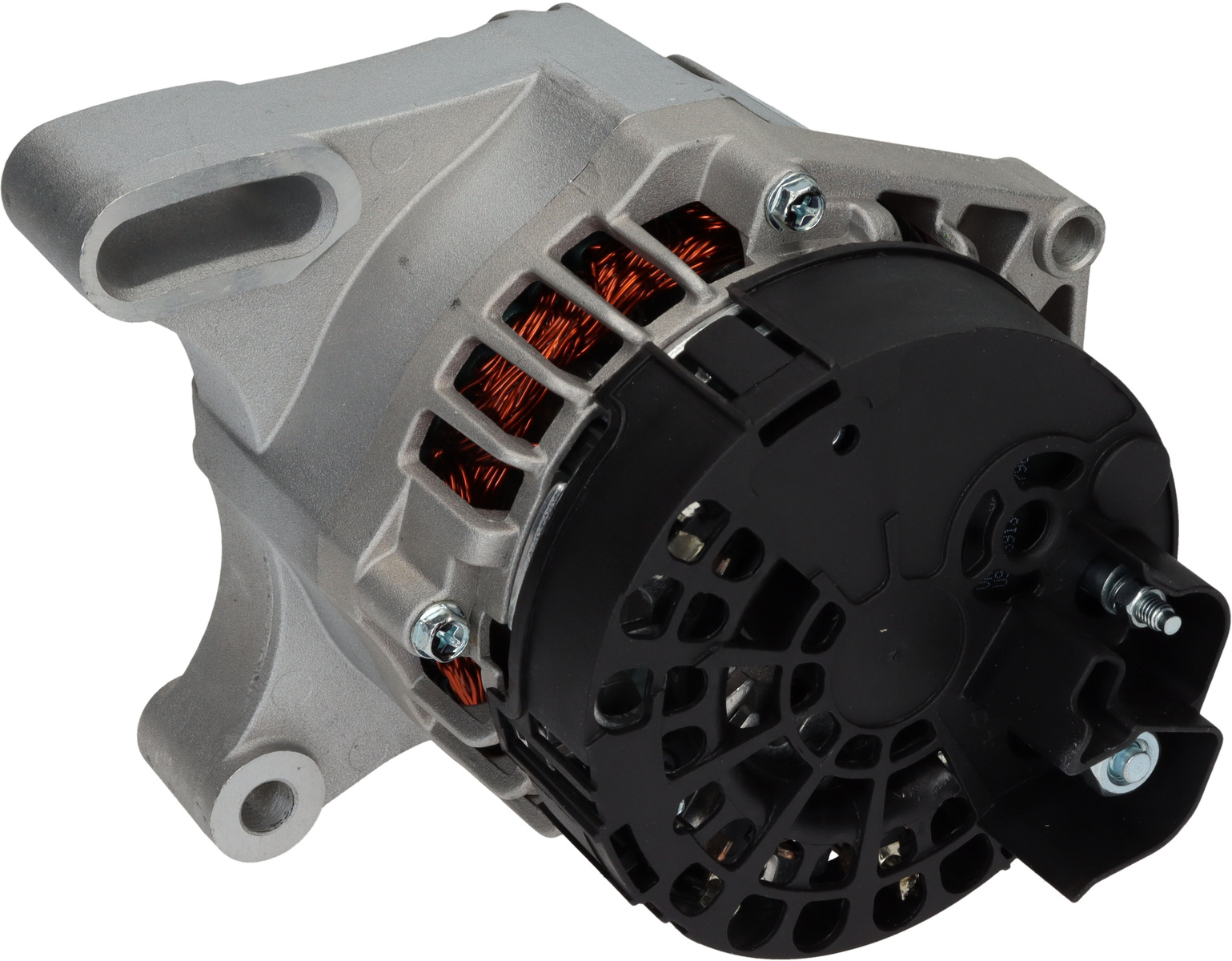

Product image - main
Trade number 115551

Details & description

Voltage 14, Amp 90, Pulley SP, Bracket Hole Size 1 10.00, Pulley Diameter 60.00, D+ Size M5, D+ Position 7, Holder Arm Width 33.00, Pulley Distance 54.60, B+ M8, Fan IF, Radius 2 110.00, Radius 92.50, Rotation CW, Belt Adjustment Bracket Hole 1 11.50, Grooves/pulley 4, Regulator type IR, B+ Position 12, Belt Adjustment Bracket Hole Position 18, Total Length 187.50

Product information

Electrical information

  • Voltage14
  • Amp90

Physical information

  • PulleySP
  • Bracket Hole Size 110.00
  • Pulley Diameter60.00
  • D+ SizeM5
  • D+ Position7
  • Holder Arm Width33.00
  • Pulley Distance54.60
  • B+M8
  • FanIF

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 46736968FIAT
    • 51859049FIAT

    Competitor References

    • DRA0141AC DELCO
    • 553107RIAD KÜHNER
    • A4104AUTOSTARTER POLAND
    • A4104DENSOAUTOSTARTER POLAND
    • 0986087080BOSCH
    • 1986A02066BOSCH
    • CAL30183CASCO SRL
    • 505538090CV PSH
    • DRA0141DELCO REMY
