F032115545 - Alternator

Trade number 115545

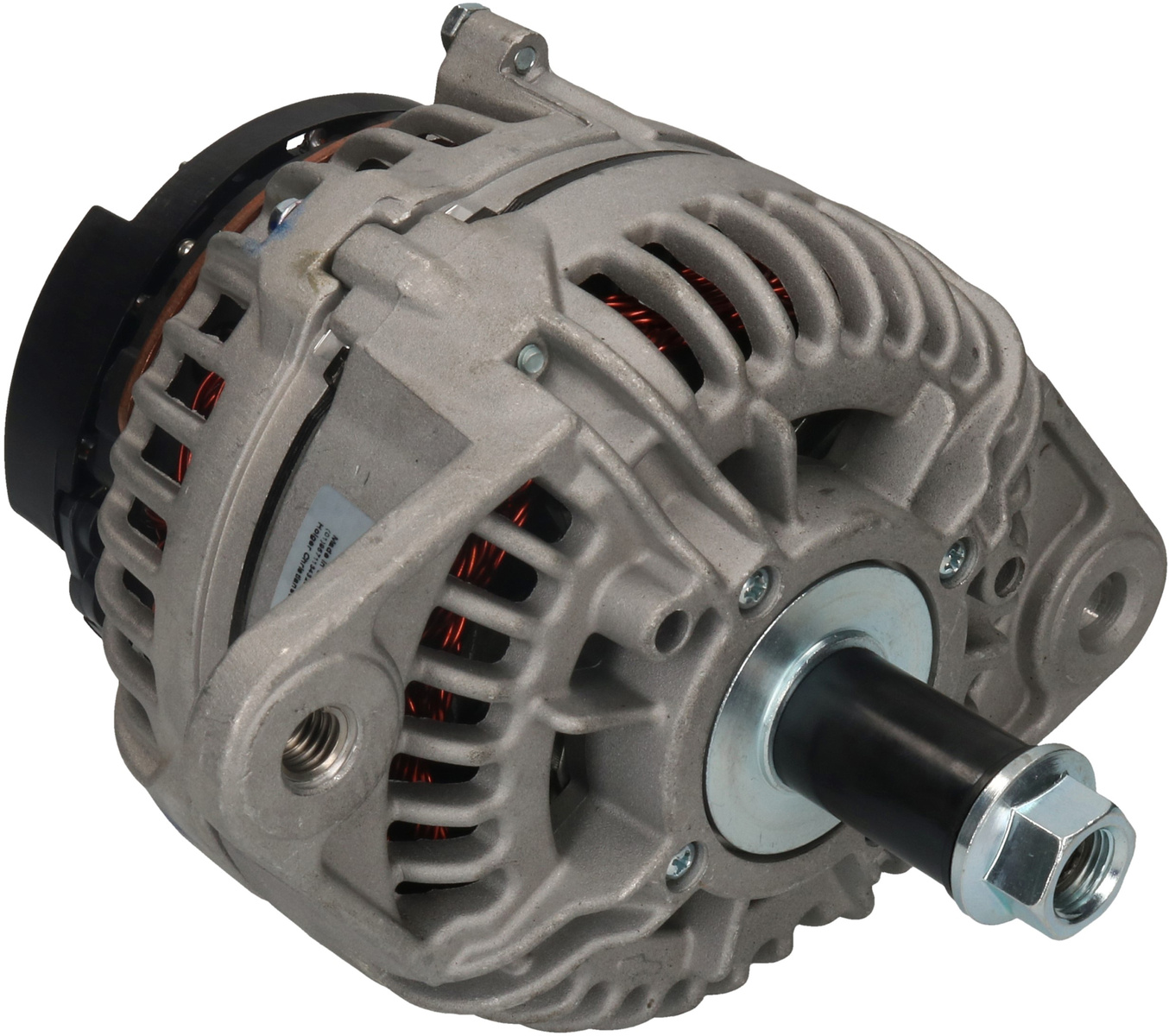

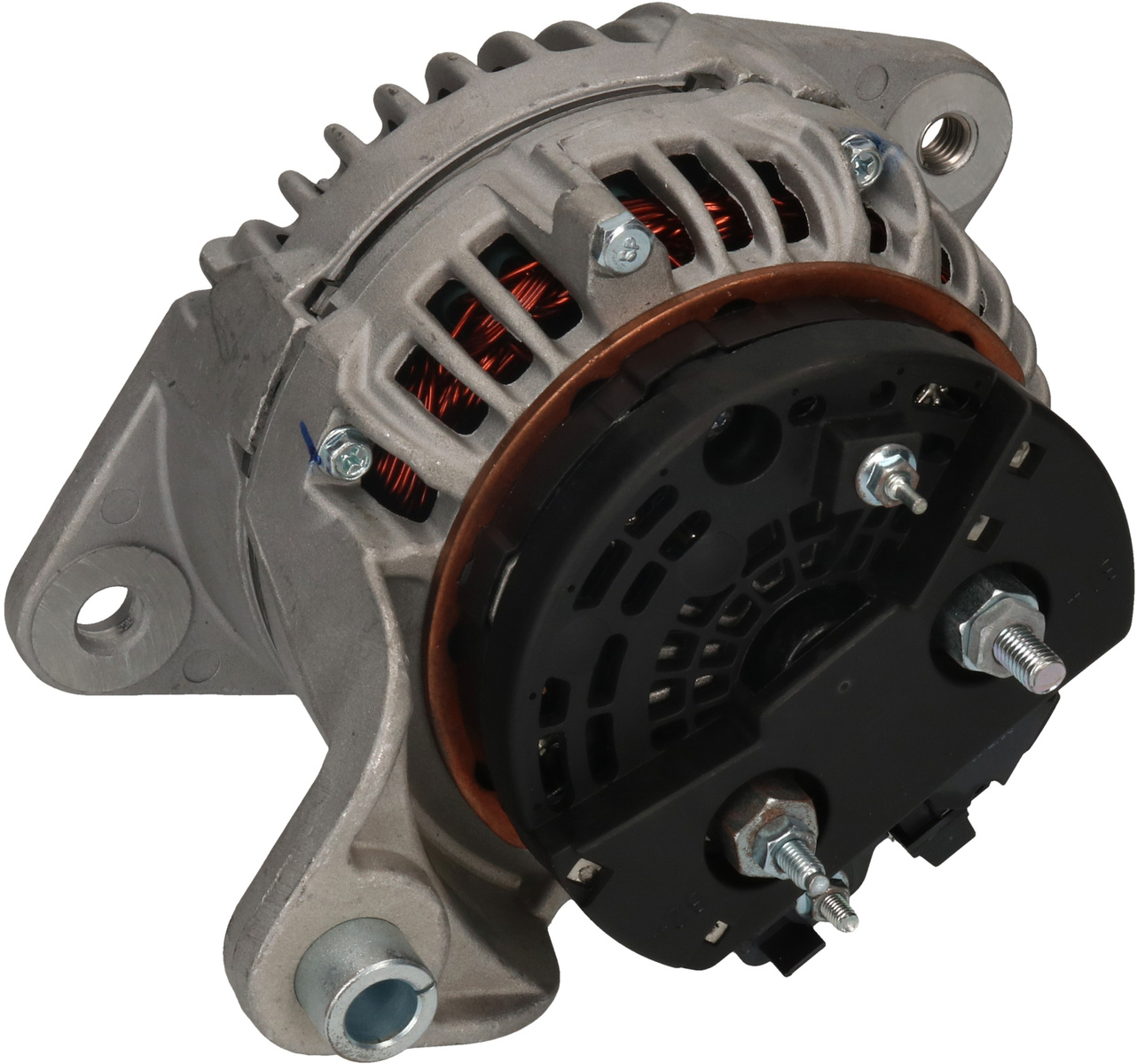

Product image - main
Trade number 115545

Details & description

Terminal W, Voltage 14, Amp 200, Pulley w/o, W plug type M5, Bracket Hole Size Rear 13.00, D+ Size M5, D+ Position 17, Holder Arm Width 14.00, B+ M8, Radius 2 99.00, Mounting Bracket Distance 107.00, Radius 99.00, Rotation CW, Belt Adjustment Bracket Hole 1 1/2" UNC, Regulator type IR, B+ Position 2, Belt Adjustment Bracket Hole Position 60, Total Length 230.00

Product information

Electrical information

  • TerminalW
  • Voltage14
  • Amp200

Physical information

  • Pulleyw/o
  • W plug typeM5
  • Bracket Hole Size Rear13.00
  • D+ SizeM5
  • D+ Position17
  • Holder Arm Width14.00
  • B+M8
  • Radius 299.00
  • Mounting Bracket Distance107.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 87715398CASE
    • 0504338098CHRYSLER
    • 504338098CHRYSLER

    Competitor References

    • 0124625123BOSCHBOM
    • 1986A00962BOSCH
    • 0986082553BOSCH
    • 0124625059BOSCHBOM
    • 635530200CV PSH
    • 115545HC-CARGO
    • MG41ISKRA
    • 12881LESTER
    • 12881NWAI
