F032115540 - Starter

Trade number 115540

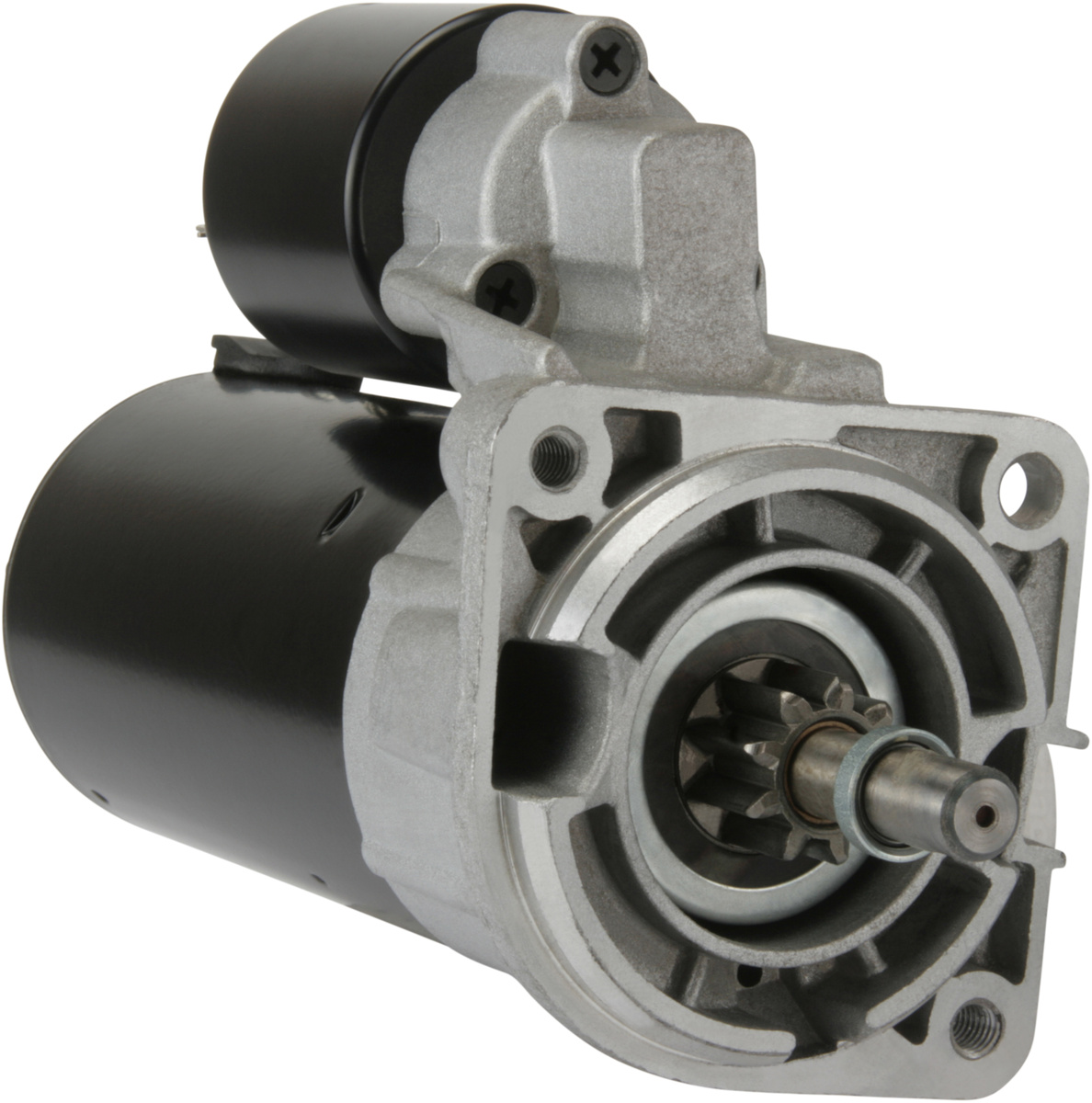

Product image - main
Trade number 115540

Details & description

kW 1.4, Voltage 12, No./mount. holes 3 (2), Rear Distance 181.00, Gear type GR, Prod. info BN, Front Distance 52.00, Distance 3 74.50, Drive Distance 14.00, No./teeth 9, Distance 2 105.00, B+ M8, Terminal 15a 6.30, Terminal 50 6.30, Mounting Flange 82.50, Distance 74.50, Mounting Hole 3 M8, Rotation CW, Position 45;15, Mounting Hole 1 8.50, Amount of Mounting Holes 3 (2), Total Length 245.00

Product information

Electrical information

  • kW1.4
  • Voltage12

Catalogue information

  • Prod. infoBN

Physical information

  • No./mount. holes3 (2)
  • Rear Distance181.00
  • Gear typeGR
  • Front Distance52.00
  • Distance 374.50
  • Drive Distance14.00
  • No./teeth9
  • Distance 2105.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 031911023VW (VOLKSWAGEN)
    • 031911023AVW (VOLKSWAGEN)
    • 031911023AXVW (VOLKSWAGEN)
    • 031911023XVW (VOLKSWAGEN)

    Competitor References

    • DRS4580AC DELCO
    • 10500AD KÜHNER
    • S0187AUTOSTARTER POLAND
    • 0001109001BOSCHBOM
    • 0001109002BOSCHBOM
    • 0986014580BOSCH
    • CST10204CASCO SRL
    • 3642CEVAM
    • 300526093CV PSH
