F032115531 - Alternator

Trade number 115531

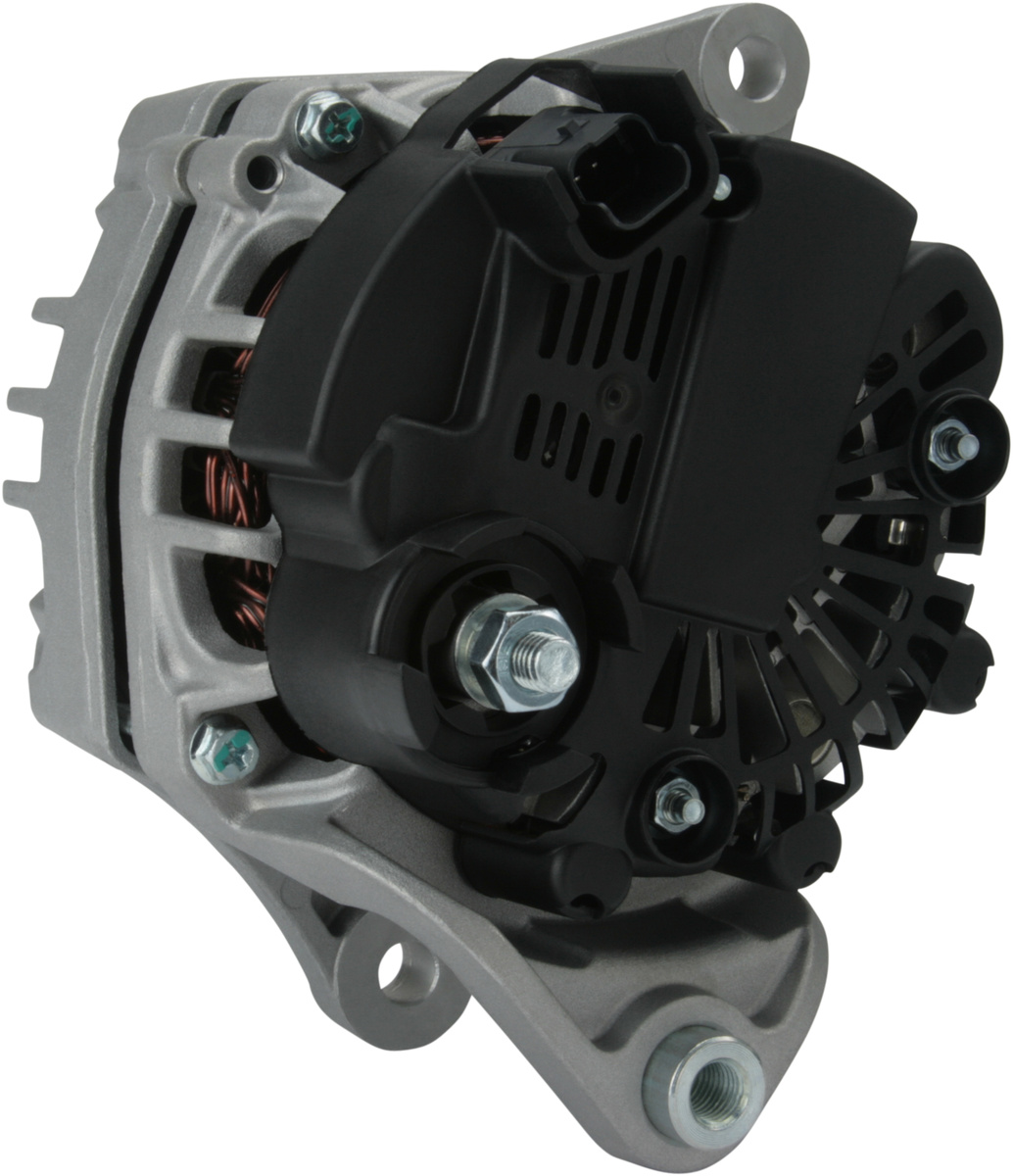

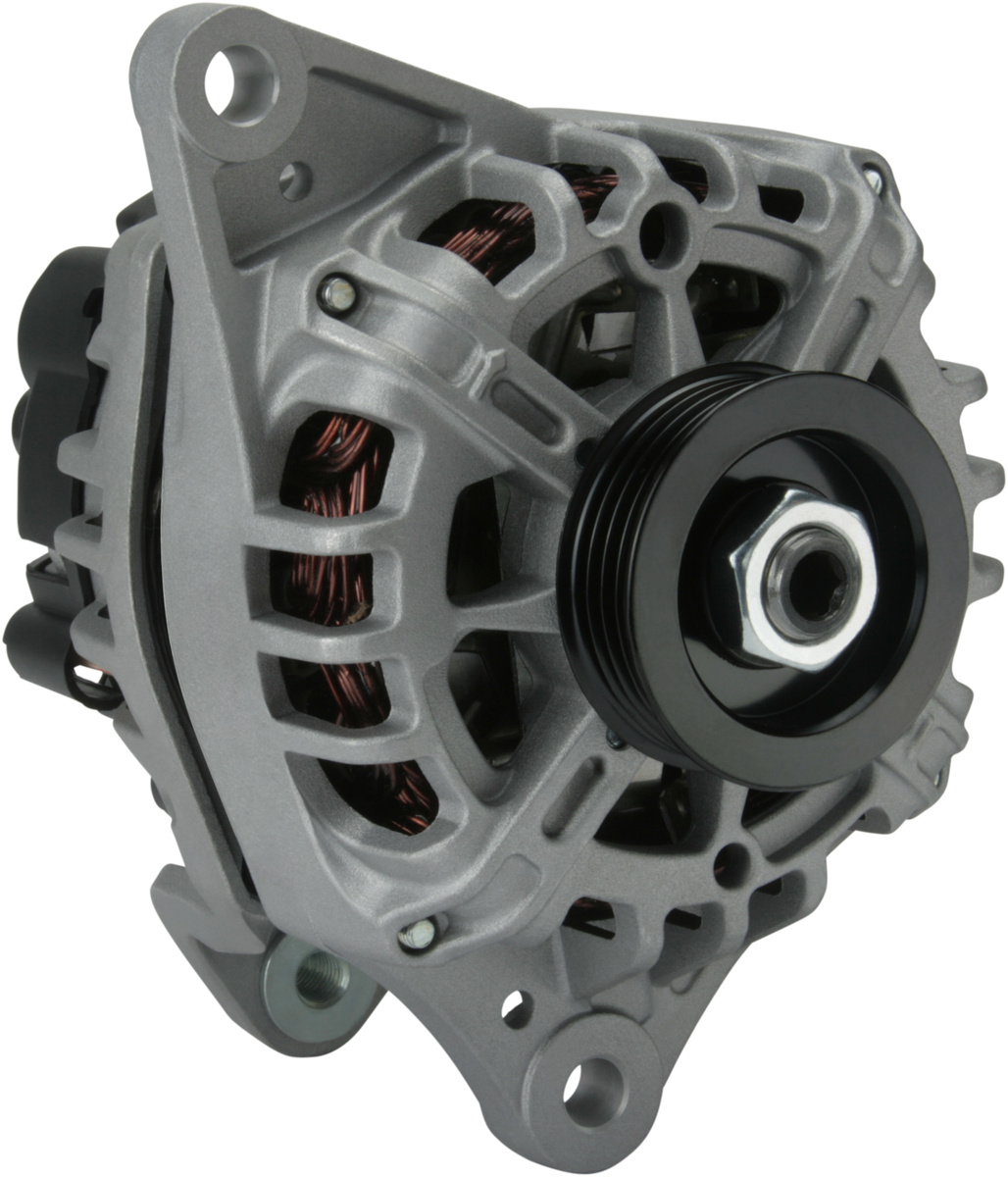

Product image - main
Trade number 115531

Details & description

Voltage 14, Amp 80, Pulley SP, Bracket Hole Size 1 10.00, Pulley Diameter 55.00, Prod. info BN, Bracket Hole Size Rear M10, Holder Arm Width 13.00, Pulley Distance 44.50, B+ M8, Radius 2 93.00, Plug no. 1 PL55, Mounting Bracket Distance 67.50, Radius 83.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.00, Grooves/pulley 4, Regulator type IR, Position 50, B+ Position 40, Belt Adjustment Bracket Hole Position 53, Total Length 170.00

Product information

Electrical information

  • Voltage14
  • Amp80

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP
  • Bracket Hole Size 110.00
  • Pulley Diameter55.00
  • Bracket Hole Size RearM10
  • Holder Arm Width13.00
  • Pulley Distance44.50
  • B+M8
  • Radius 293.00
  • Plug no. 1PL55

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 23100AX610NISSAN
    • 23100AX62ANISSAN

    Competitor References

    • DRA0206AC DELCO
    • 301963RIAD KÜHNER
    • A3220PRAUTOSTARTER POLAND
    • A3220AUTOSTARTER POLAND
    • A3331AUTOSTARTER POLAND
    • 0986080680BOSCH
    • CAL15318CASCO SRL
    • 165502080CV PSH
    • 165542080CV PSH
