F032115519 - Alternator

Trade number 115519

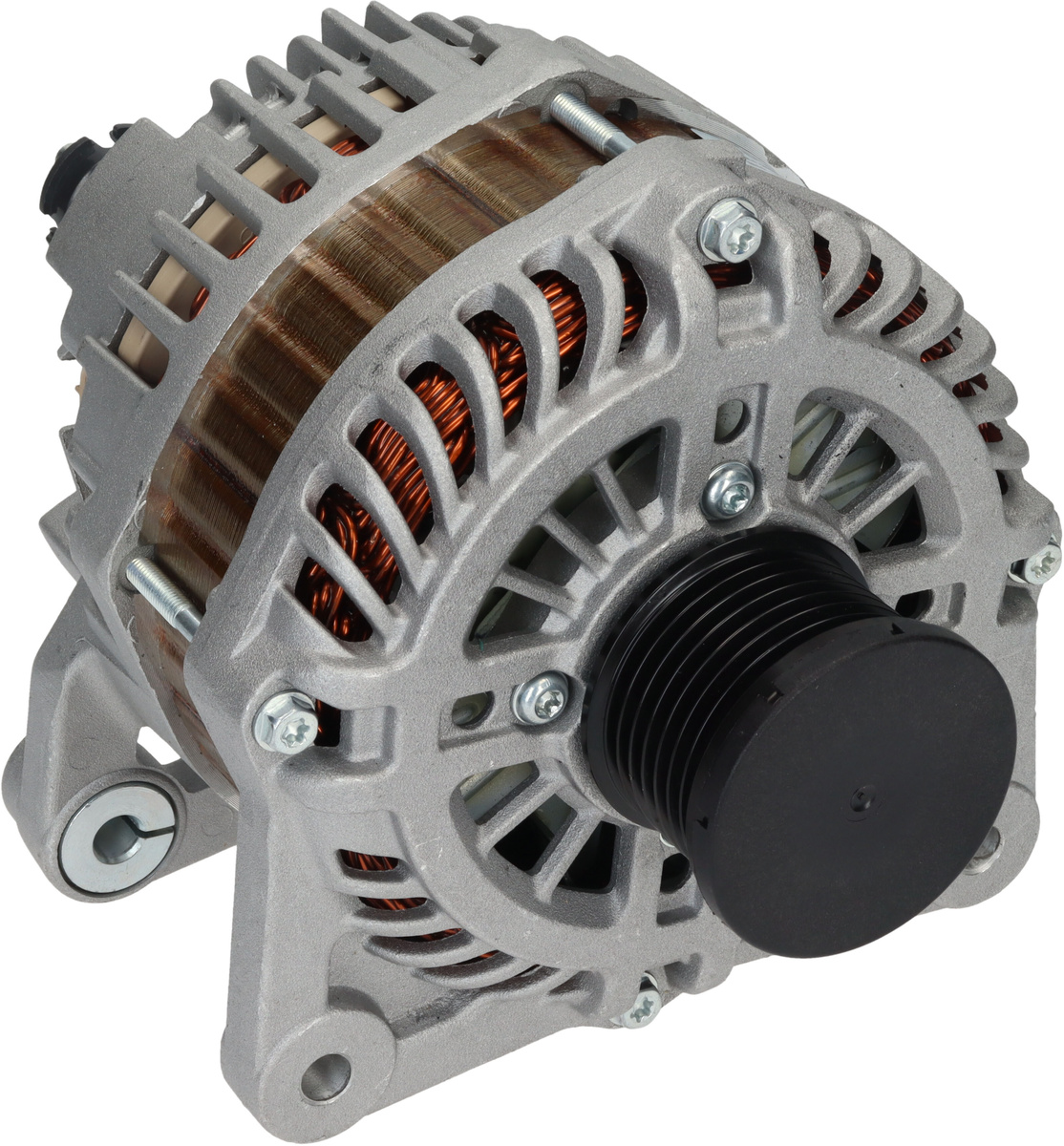

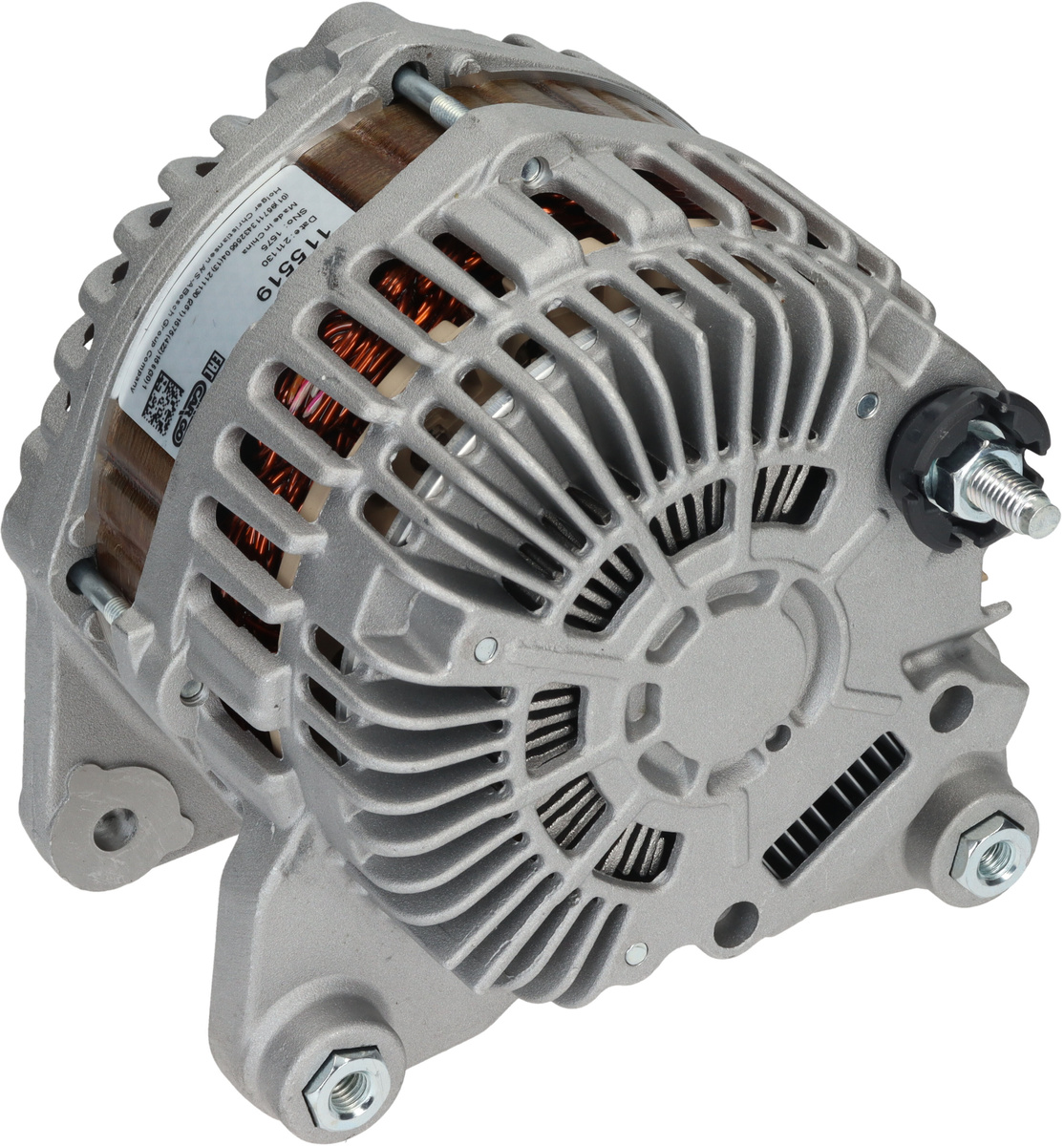

Product image - main
Trade number 115519

Details & description

Voltage 14, Amp 150, Pulley SP/FW, Bracket Hole Size 1 8.50, Pulley Diameter 49.00, Bracket Hole Size Rear M8, D+ Size Plug, D+ Position 7, Holder Arm Width 14.00, Pulley Distance 33.50, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL163, Mounting Bracket Distance 60.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, B+ Position 1, Belt Adjustment Bracket Hole Position 45, Total Length 193.00

Product information

Electrical information

  • Voltage14
  • Amp150

Physical information

  • PulleySP/FW
  • Bracket Hole Size 18.50
  • Pulley Diameter49.00
  • Bracket Hole Size RearM8
  • D+ SizePlug
  • D+ Position7
  • Holder Arm Width14.00
  • Pulley Distance33.50
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • A003TJ3881MITSUBISHI
    • A003TJ3881ZEMITSUBISHI
    • A3TJ3881MITSUBISHI
    • A3TJ3881ZEMITSUBISHI
    • 23100JD71BNISSAN
    • 23100JG71BNISSAN

    Competitor References

    • 301979RIAD KÜHNER
    • 554166RIAD KÜHNER
    • A5168AUTOSTARTER POLAND
    • A5097AUTOSTARTER POLAND
    • 0986083540BOSCH
    • CAL35203CASCO SRL
    • CAL35202CASCO SRL
    • CAL35362CASCO SRL
    • 165586150CV PSH
